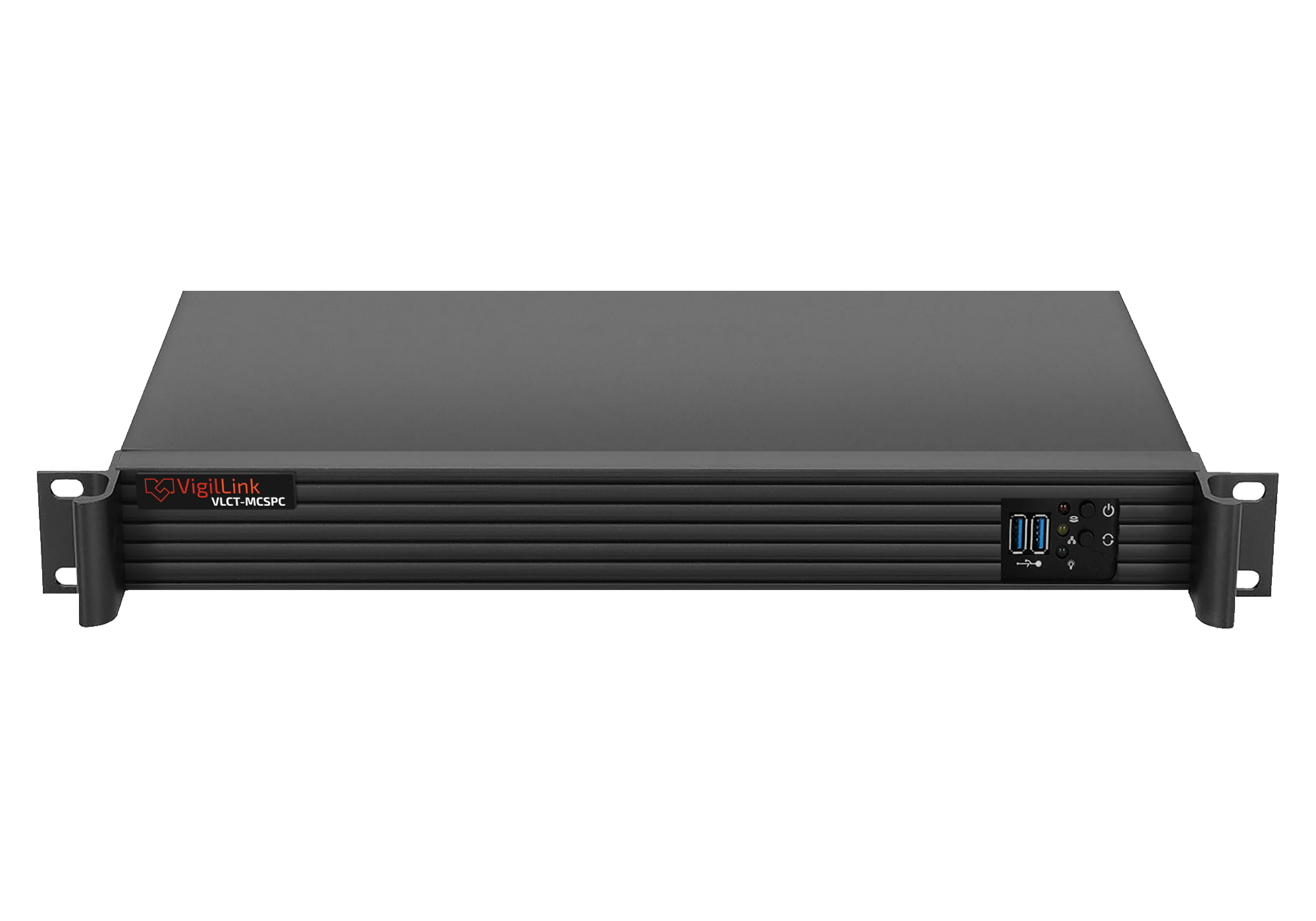

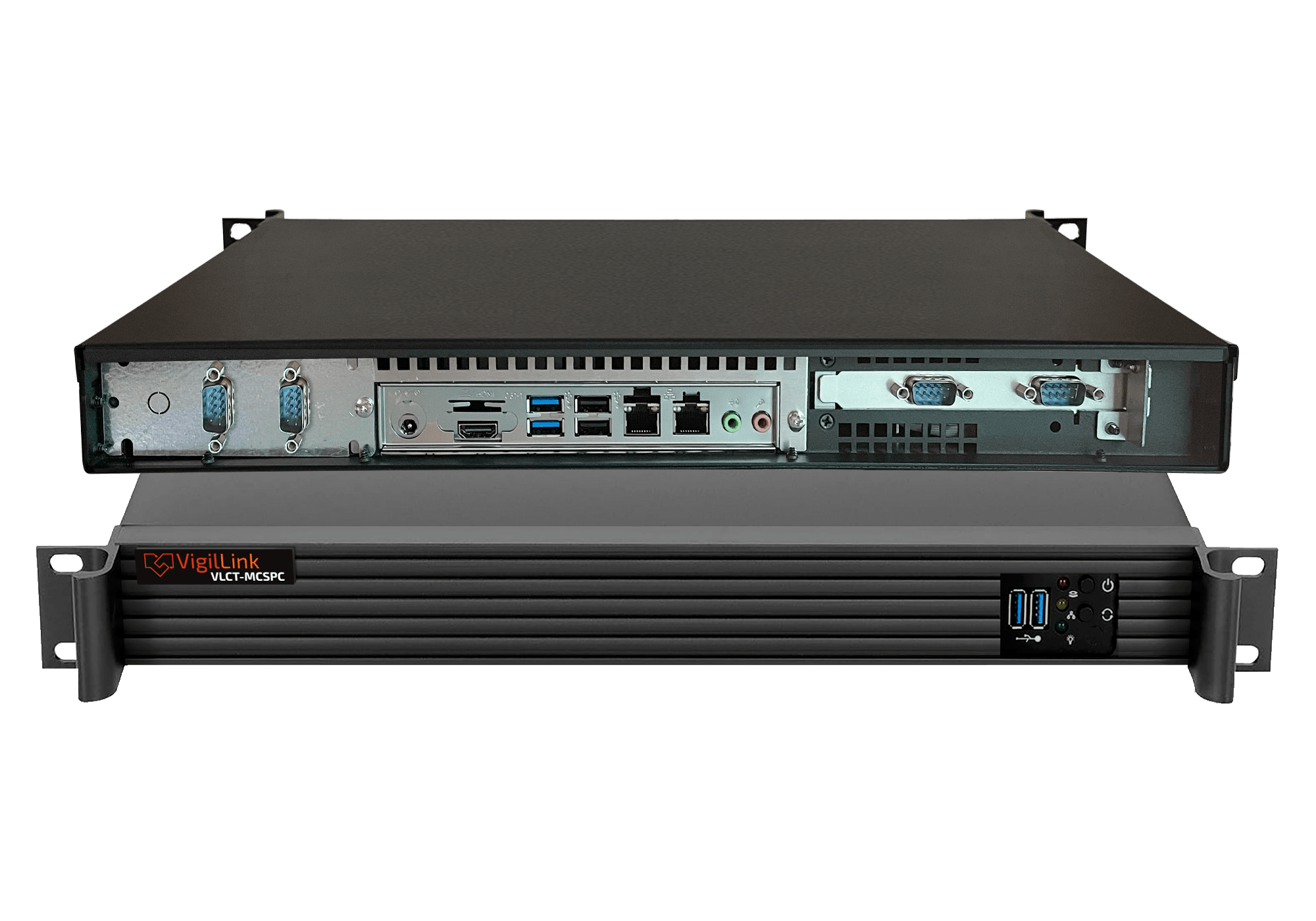

VigilLynx™ Control PC Master Controller with IP, USB, RS-232
VLCT-MCSPC
Linux PC Master Controller pre-loaded with VigilLynx™ Control software, ready to deploy out of the box
Intel Celeron J6412 Elkhart Lake quad-core SoC, 2.0GHz / 2.6GHz Turbo, 10W TDP for 24/7 efficiency in a 2-fan 1U chassis
Dual 2.5GbE network ports, 4x rear RS-232 ports, and 6x USB ports for broad device integration
8GB DDR4 RAM and 500GB NVMe SSD for reliable, low-latency AV control operations, 1U rack-mount
Product Description
The VLCT-MCSPC is a dedicated 1U rack-mount PC master controller purpose-built for VigilLynx™ Control installations. Running Linux Ubuntu with VigilLynx™ Control software pre-installed at the factory, the VLCT-MCSPC is the on-premises compute foundation for the VigilLynx™ Control ecosystem, enabling AV integrators and system programmers to deploy, run, and manage VigilLynx™ Control projects without sourcing, configuring, or qualifying a separate server platform. It arrives ready to connect to your network and begin commissioning.
The VLCT-MCSPC is built on the Intel Celeron J6412 Elkhart Lake platform, a quad-core SoC running at 2.0GHz with 2.6GHz Turbo and a 10W TDP, qualified for 24/7 operation in commercial AV environments. The platform features a long production cycle commitment through Q1 2036, ensuring long-term hardware consistency for multi-year enterprise contracts and campus-scale deployments. The unit ships with 8GB DDR4-3200 SODIMM RAM and a 500GB M.2 NVMe SSD, providing sufficient headroom for VigilLynx™ Control projects of any scale.
Connectivity is designed for the full range of ProAV and building control integrations. Dual 2.5GbE LAN ports allow separation of control and management traffic, or connection to primary and backup network segments. Four rear-panel RS-232 COM ports provide native serial control for displays, projectors, matrix switchers, and legacy AV equipment without requiring external serial adapters. Six USB ports (four USB 2.0, two USB 3.2 Gen 1) support touch panels, HID devices, USB-to-serial adapters, and peripheral configuration. A single HDMI output enables local display access for on-site commissioning and maintenance. The 1U 19-inch chassis integrates directly into standard equipment racks with a depth of 11 inches — compatible with AV rack environments where rear clearance is limited.
VigilLynx™ Control is a platform-independent commercial control system developed by VigilLink. It connects and integrates AV and building systems — displays, switchers, lighting, climate, security, and access control — through IP, RS-232, USB, and IR interfaces. The VigilLynx™ Control IDE provides a browser-accessible development environment with IntelliSense, AI-assisted programming, and a pre-built module library covering VigilLink products and hundreds of third-party devices. Control interfaces can be accessed from the VLCT-CSQTP10 touch panel, iOS and Android devices, Windows and Mac applications, or any modern web browser — without proprietary client software.
Key Features
Pre-loaded with Linux Ubuntu and VigilLynx™ Control software — no OS configuration or software installation required
Intel Celeron J6412 Elkhart Lake quad-core SoC, 2.0GHz / 2.6GHz Turbo, 10W TDP for 24/7 efficiency in a 2-fan 1U chassis
Long production lifecycle commitment: hardware platform available through Q1 2036
8GB DDR4-3200 SODIMM RAM and 500GB M.2 NVMe SSD
Dual 2.5GbE LAN ports for network segmentation or redundant connectivity

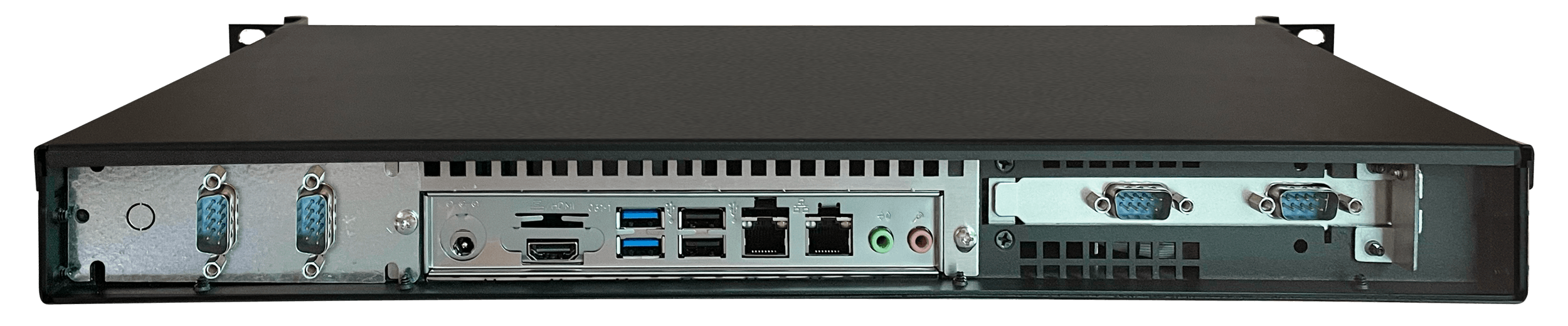

4x RS-232 COM ports (rear panel) for direct serial control of displays, projectors, and AV equipment
6x USB ports: 4x USB 2.0 (2 front, 2 rear), 2x USB 3.2 Gen 1 (rear)
1x HDMI video output for local display access during commissioning
Standard 1U 19-inch rack-mount chassis, 11-inch depth — fits shallow AV equipment racks
Integrates with the full VigilLynx™ Control ecosystem: touch panels, VigilLynx™ IDE, cloud server, and mobile/browser clients
Downloads
Ideal Applications
Corporate AV and Boardroom Automation The VLCT-MCSPC serves as the on-premises control brain for corporate conference rooms, boardrooms, and multi-room AV systems. Install it in the equipment rack and use VigilLynx™ Control to integrate displays, video conferencing codecs, room switchers, lighting, shades, and HVAC into a single unified control layer. The dual network ports allow separation of AV control traffic from corporate IT networks, and RS-232 ports directly drive legacy displays and projectors that lack IP control. System staff can access the control interface from any browser or device on the network without installing client software.
Higher Education and Campus AV Universities and K–12 campuses require consistent, scalable AV control across dozens or hundreds of rooms — classrooms, lecture halls, collaboration spaces, and event venues. The VLCT-MCSPC deployed in each building's AV rack runs a locally resident VigilLynx™ Control instance, ensuring control system operation is not dependent on cloud connectivity. The long production lifecycle through Q1 2036 provides procurement stability for multi-phase campus rollouts, and the standardized hardware platform allows a single system image to be maintained across all installations.
Government, Military, and Secure Facilities Facilities requiring on-premises, air-gapped, or isolated control system operation benefit from the VLCT-MCSPC's self-contained Linux architecture. VigilLynx™ Control runs entirely on the local unit without requiring cloud services, and the multi-tier access control model (Developer, Installer/Programmer, Client, Technical Support) aligns with role-based access requirements in government and defense environments. The RS-232 serial ports support legacy equipment common in government AV infrastructure, and the unit's industrial operating range (0°C to 60°C) accommodates non-climate-controlled rack environments.
Hospitality and Venue Control Hotels, convention centers, and entertainment venues use the VLCT-MCSPC to centralize control of room AV, digital signage, lighting scenes, and access systems under a single VigilLynx™ Control instance. Front-of-house and back-of-house staff access role-appropriate control interfaces from iPads, touch panels, or room PCs without specialized training. The pre-built VigilLynx™ Control module library reduces programming time for common hospitality AV equipment, and the 500GB SSD provides long-term storage headroom for system logs, configuration backups, and driver libraries.
System Integration and ProAV Contracting For AV integrators, the VLCT-MCSPC provides a factory-qualified, software-ready control server that eliminates the need to source, load, and validate a generic PC for each project. VigilLynx™ Control software is pre-installed, tested, and ready for project upload on arrival. The standardized hardware spec — consistent Intel J6412 platform, fixed RAM and storage, defined I/O — allows integrators to develop and test system programs in-house and deploy to any VLCT-MCSPC in the field with confidence that the hardware environment matches. Commissioning time is reduced to network configuration, project upload, and device addressing.
Specifications
| Processor & System | |
|---|---|
| CPU | Intel Celeron J6412, Elkhart Lake Platform, Quad-Core, 2.0GHz / 2.6GHz Turbo, 10W TDP |
| Memory | 8GB DDR4-3200 SODIMM RAM |
| Storage | 500GB M.2 2280 NVMe SSD |
| Operating System | Linux Ubuntu with VigilLynx™ Control MC version (pre-installed) |
| Connectivity | |
| LAN | 2x 2.5GbE RJ45 |
| COM / Serial | 4x RS-232 (Rear) |
| USB | 4x USB 2.0 (2 Front, 2 Rear); 2x USB 3.2 Gen 1 (Rear) |
| Video Output | 1x HDMI |
| Audio | Onboard Audio |
| Chassis | |
| Form Factor | 1U Rackmount |
| Motherboard Compatibility | Mini ITX |
| Color | Black |
| Material | Metal / Steel, 1mm thickness |
| Dimensions | 19.10" (W) × 11" (D) × 1.75" (H) |
| Expansion Slots | 1x Full Height Slot, Max Card Depth: 6.5" |
| Internal Drive Bays | 2x 2.5" Internal Bays |
| Cooling | 2x Included Fans (2x Maximum) |
| Slide Rails | Optional |
| Environmental | |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Shipping | |
| Shipping Dimensions | 22" (D) × 15" (W) × 5" (H) |
| Shipping Weight | 15 lbs |
What’s in the Box
1 × VLCT-MCSPC PC Master Controller
1 × Power Cord
Frequently Asked Questions
What is the VLCT-MCSPC and what does it do? The VLCT-MCSPC is a dedicated 1U rack-mount PC master controller pre-loaded with VigilLynx™ Control software. It serves as the on-premises compute engine for VigilLynx™ Control systems — running the control software locally, communicating with AV and building devices over IP, RS-232, and USB, and serving control interfaces to touch panels, mobile devices, and web browsers on the network.
Does the VLCT-MCSPC come with VigilLynx™ Control software pre-installed? Yes. The VLCT-MCSPC ships with Linux Ubuntu and VigilLynx™ Control software pre-installed and factory-configured. No OS setup or software installation is required on arrival. The unit is ready for network connection, project upload via the VigilLynx™ Control IDE, and device commissioning.
Does the VigilLynx™ Control system require the VLCT-MCSPC, or can it run on other hardware? VigilLynx™ Control is a platform-independent system. In addition to the VLCT-MCSPC, it can be deployed via VigilLink's secure cloud server or installed on other supported platforms. The VLCT-MCSPC is the purpose-built on-premises option — factory-qualified, pre-configured, and matched to VigilLynx™ Control's hardware requirements — making it the recommended choice for integrators who want a known-good, fully supported hardware foundation for each installation.
How many serial devices can the VLCT-MCSPC control directly? The VLCT-MCSPC provides 4x RS-232 COM ports accessible from the rear panel. Each port can independently control one serial device — projectors, displays, matrix switchers, DSPs, and other RS-232-addressable equipment. For installations requiring RS-422/485 or additional serial ports, the VLCT-4PSPC 4-Port Network Serial Expander can extend serial connectivity over the network.
What network configuration does the VLCT-MCSPC support? The unit includes dual 2.5GbE LAN ports. These can be configured for network segmentation — separating AV control traffic from general IT or building networks — or for connection to primary and redundant network segments. VigilLynx™ Control communicates with IP-controllable devices over TCP/IP and supports standard network authentication including 802.1x and HTTPS for secure deployments.
Can the VLCT-MCSPC be accessed and programmed remotely? Yes. The VigilLynx™ Control IDE is a browser-based development environment accessible from Windows, Mac, or any web browser — no local software installation is required for programming or system management. Integrators can upload projects, update drivers, and modify configurations remotely once the VLCT-MCSPC is connected to the network.
What is the difference between the VLCT-MCSPC and deploying VigilLynx™ Control on a cloud server? The VLCT-MCSPC hosts VigilLynx™ Control entirely on-premises, within the local network. This is the preferred configuration for facilities that require local control operation independent of internet connectivity — government sites, secure facilities, campus environments, or any installation where cloud dependency is not acceptable. Cloud server deployment extends the system to remote access and multi-site management but requires persistent internet connectivity for operation.
What is the production lifecycle of the VLCT-MCSPC hardware platform? The VLCT-MCSPC is built on a long production cycle Intel Celeron J6412 Elkhart Lake motherboard platform committed through Q1 2036. This provides multi-year hardware consistency for enterprise procurement, campus-scale deployments, and integrators managing standardized system images across many installed sites.
