1080p HDMI to USB2.0 Video Capture

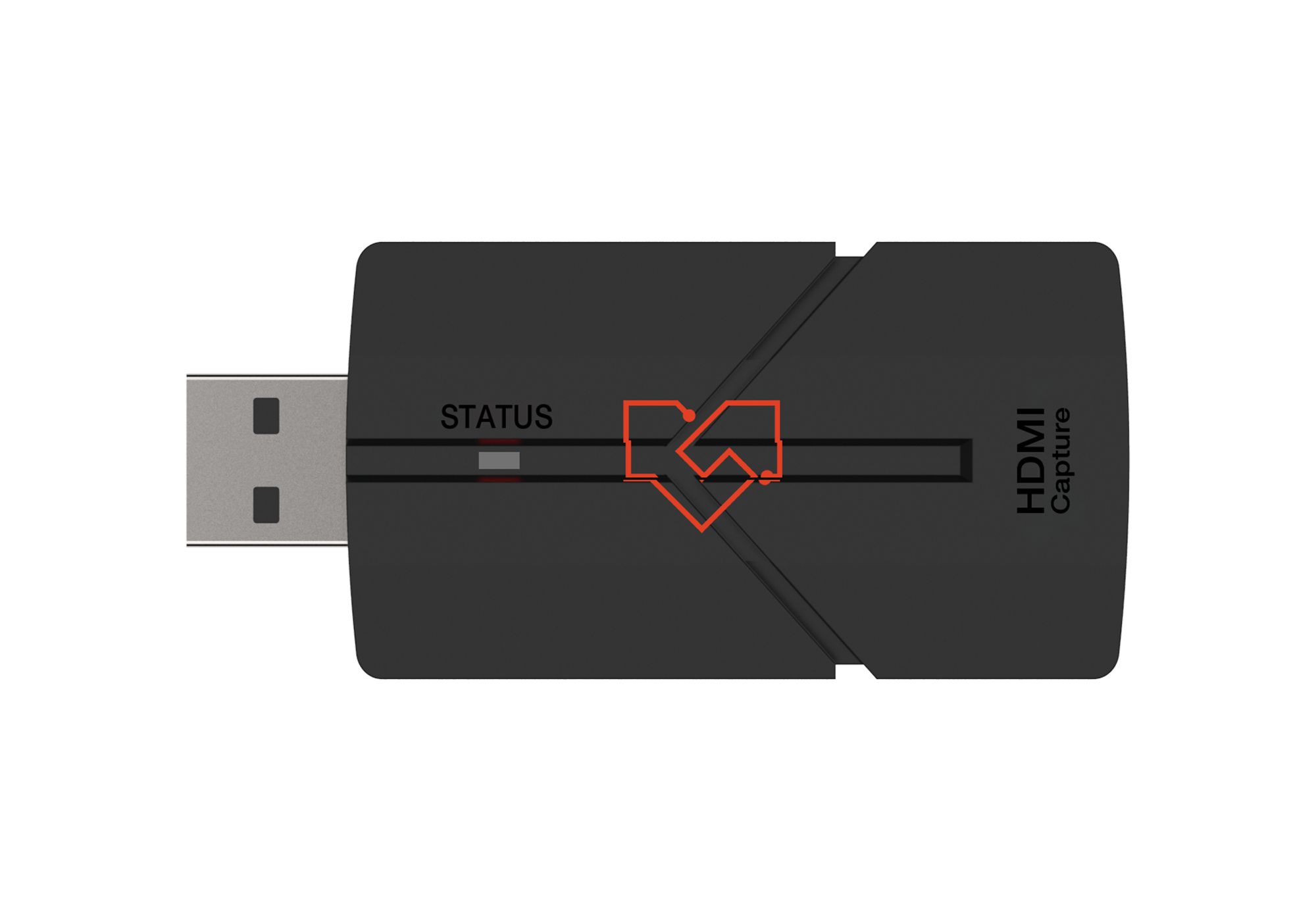

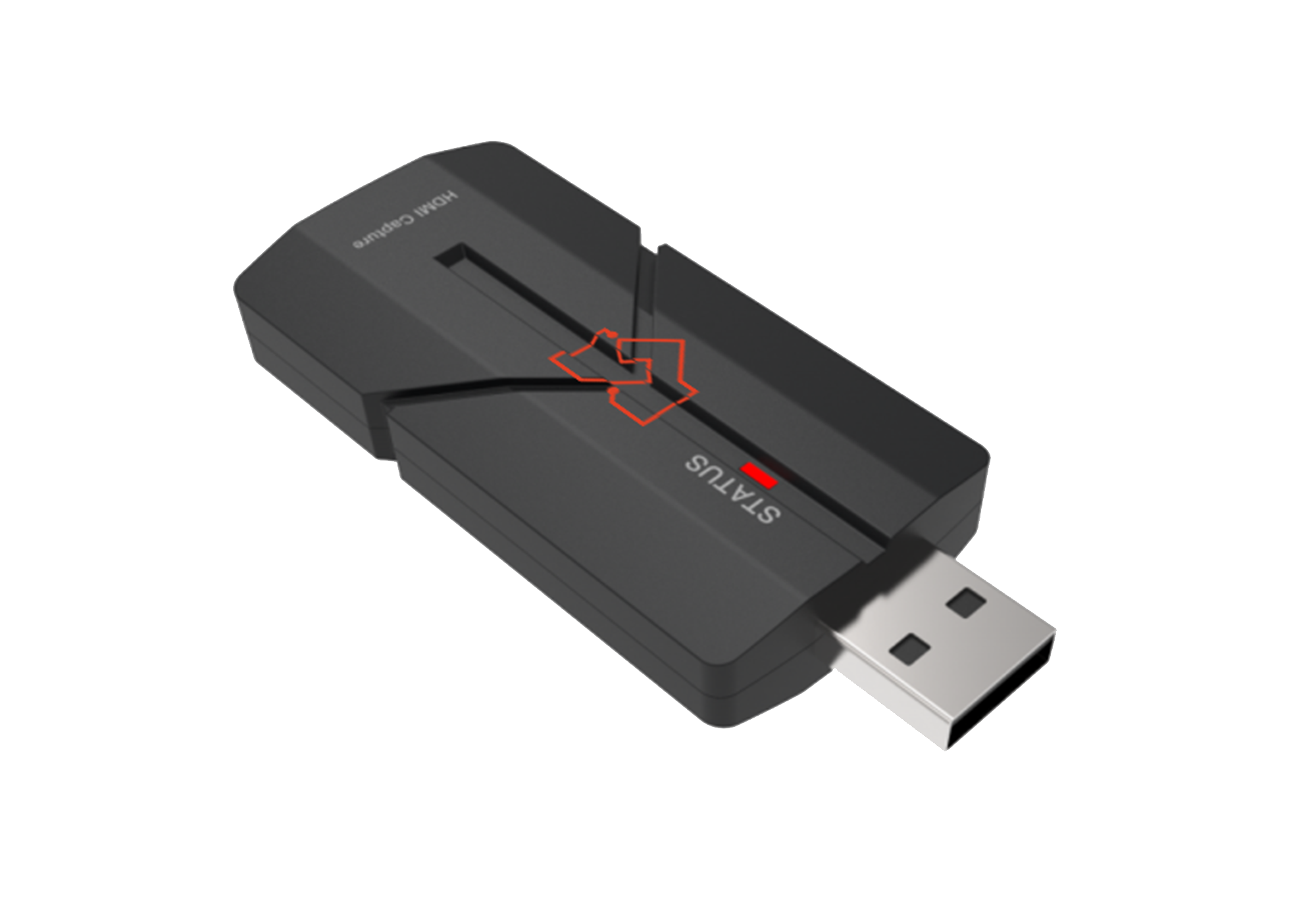

VLUC-USB22K

  • Compact plug-and-play HDMI-to-USB 2.0 video capture dongle for recording and streaming

  • Captures HDMI input up to 4K@30Hz and outputs up to 1080p@60Hz over USB 2.0

  • HDMI 1.4 (HDCP 1.4) at 10.2Gbps, with automatic input-format recognition and LPCM 2.0 audio

  • Driver-free operation on Windows, Linux, and macOS, in a pocket-sized 16g enclosure

Where to Buy
Six Year Warranty logo

Product Description

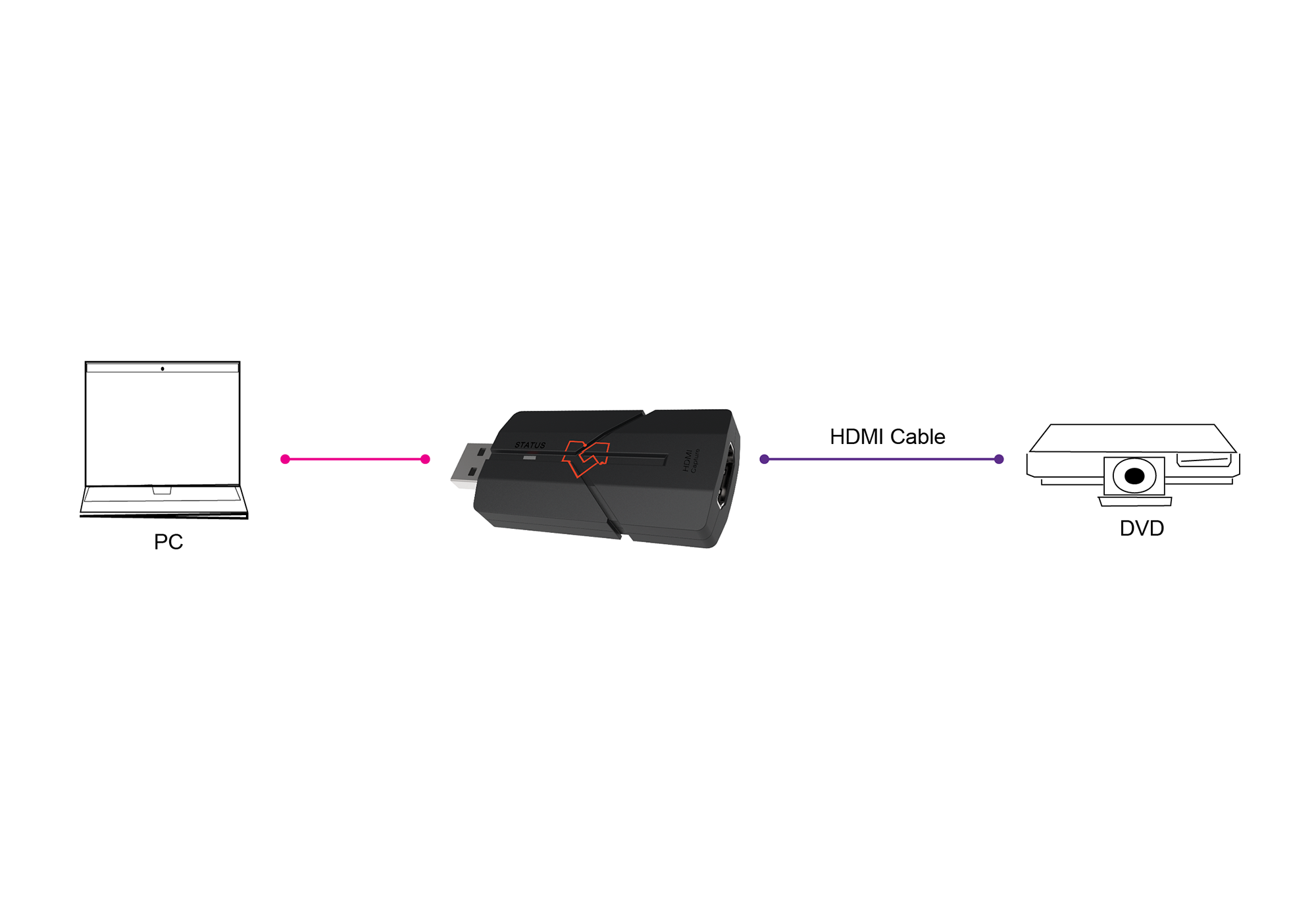

VLUC-USB22K: This HDMI-to-USB 2.0 video capture device captures HDMI audio and video input signals. It supports video capture resolutions up to 4K2K at 30Hz and outputs up to 1080p at 60Hz.

The product offers high performance, broad compatibility, and easy portability and installation. It is compatible with Windows, Linux, and macOS operating systems, supports USB 2.0, and features plug-and-play functionality for simple, user-friendly operation.

Key Features

  • HDMI 1.4 and HDCP 1.4 compliant

  • Supports 10.2Gbps video bandwidth

  • Captures video up to 4K2K@30Hz, outputs up to 1080p@60Hz

  • Compatible with Windows, Linux, and macOS via USB 2.0

  • Automatic recognition of the input video format

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Specifications

Technical
HDMI Compliance     HDMI 1.4
HDCP Compliance     HDCP 1.4
Video Bandwidth     10.2 Gbps
Video Resolution   Input: Up to 4k2k@30Hz; Output: Up to 1080P@60Hz
Color Depth     8/10/12-bit (1080P@60Hz); 8-bit (4K2K@30Hz YUV4:4:4)
Color Space     RGB, YCbCr 4:4:4/4:2:2, YUV 4:2:0
HDMI Audio Format     LPCM2.0
USB Version     USB 2.0
ESD Protection     Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Input         1x HDMI [Type A 19-pin female]
Output         1x USB [Type A male]
Mechanical
Housing     Plastic Enclosure
Color     Black
Dimensions     51mm[W] x 31mm[D] x 13mm[H]
Weight     16g
Power Supply     PC USB 5V
Power Consumption     1.75W
Operating Temperature     0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature     -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity     20 - 90% RH (No condensation)
