HDMI Video/Live Streamer

VLSM-4KH10V-4FS

  • HDMI video and live streamer that broadcasts 4K UHD+ sources online while keeping a local archive, auto-scaled for efficient streaming

  • H.264 encoding at QVGA, VGA, 720p, or 1080p up to 60fps, generating four simultaneous streams (1080p60, 1080p30, VGA30, QVGA30) at different bandwidth targets

  • Streaming server (RTP/RTSP) or client (RTMP) with built-in support for Facebook, YouTube, and Twitch, plus on-screen countdown timer and text overlays

  • Local recording to SD card, USB storage, or network drive (FAT32/exFAT/NFS/CIFS), with an audio mixer, EDID management, and WebGUI control

Where to Buy
Six Year Warranty logo

Product Description

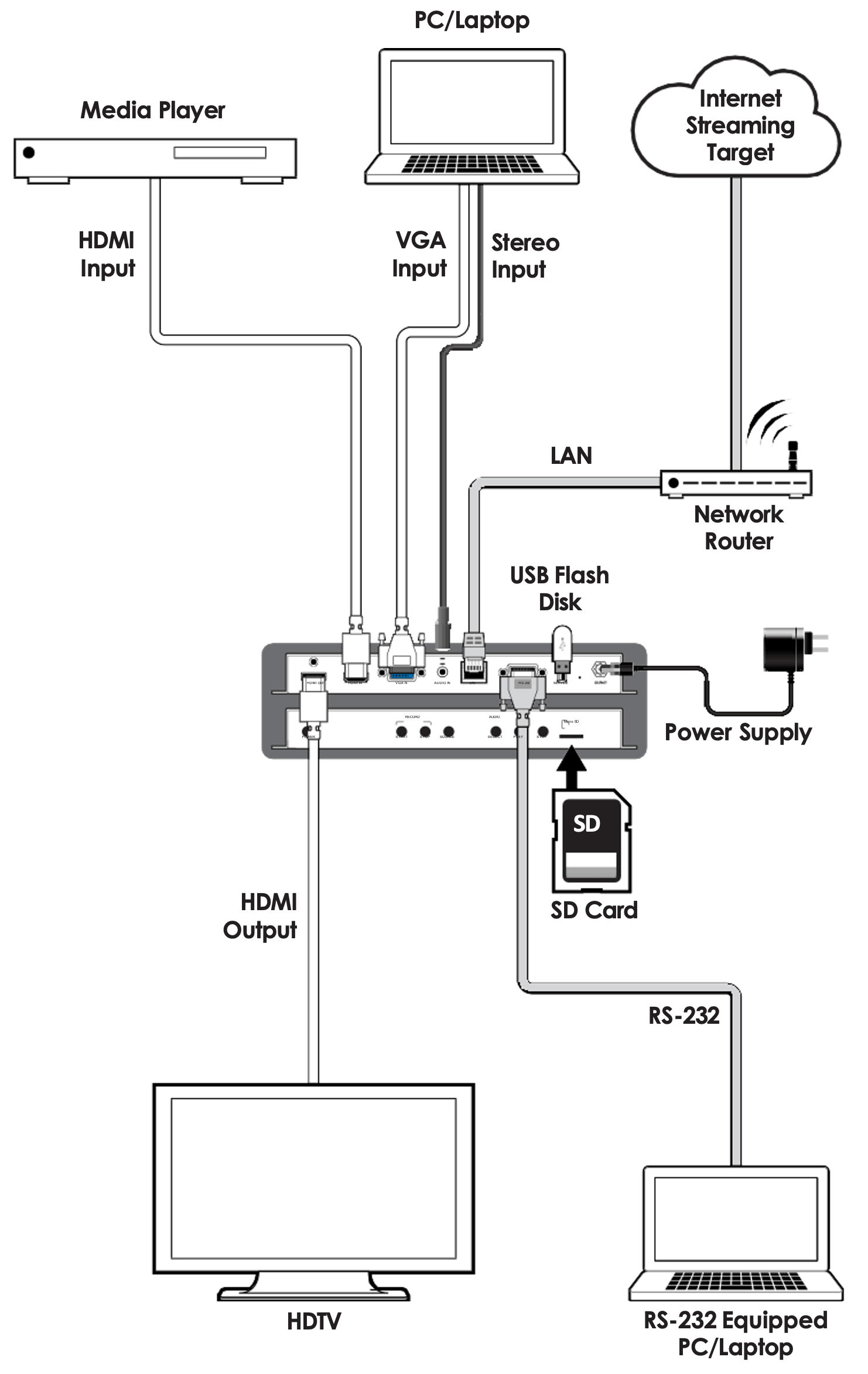

VLSM-4KH10V-4FS makes online broadcasting of live video, with a locally stored archive, an easy and simple process. Video content up to 4K UHD+ is supported and is automatically scaled to a resolution that is more appropriate for efficient streaming. An HDMI output is provided for local monitoring of the selected input source. The video may also be recorded locally (via SD card) or to a local network drive.

An audio mixer function is included, allowing an external audio source to be mixed with the embedded audio of your HDMI source (LPCM 2.0 only) for your video stream.

Comprehensive EDID management, intuitive WebGUI, and adjustable Audio functions make this unit a wonderful tool for video streaming and recording.

Key Features

  • HDCP 1.x and HDCP 2.2 compliant (Note: HDCP-encrypted sources cannot be streamed over the Internet and will be blacked out)

  • Advanced H.264 video streaming and recording at QVGA (320×240), VGA (640×480), 720p, or 1080p up to 60fps

  • Recorded video stored on inserted SD card, USB storage, or a designated network drive (FAT32, exFAT, NFS, CIFS)

  • Acts as a streaming server (RTP/RTSP) or streaming client (RTMP)

  • Audio embedding and mixing with the analog stereo audio input (Note: analog audio can only be mixed with LPCM 2.0 audio from the HDMI source)

  • Integrated live streaming to Facebook, YouTube, or Twitch

  • On-screen countdown timer and text overlays

  • Automatic input switching and downscaling, converting UHD (up to 4K@60Hz) down to 1080p or lower for broadcast

  • Generates four simultaneous streams from one source (1080p@60, 1080p@30, VGA@30, QVGA@30) for multi-bandwidth integration

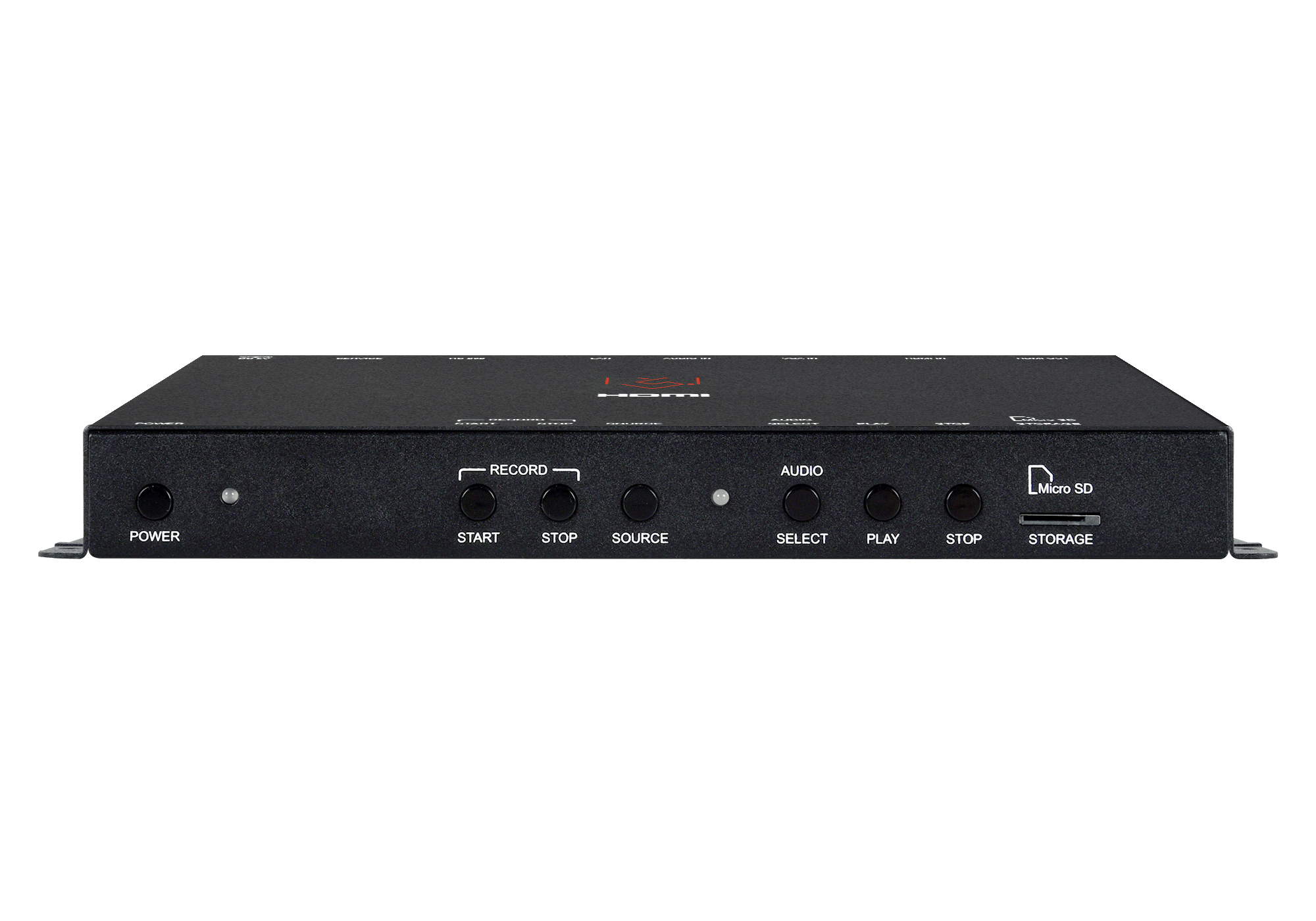

  • Control via front panel buttons, WebGUI, Telnet, RS-232, and IR

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Specifications

TECHNICAL SPECIFICATIONS
Video
HDMI Compliance 2.0
HDCP Compliance     2.2
Input Signal Types     4K@60 8bit YUV 4:4:4
Output Signal Types     4K@60 8bit YUV 4:4:4
Resolutions
Maximum Input HDMI



VGA    		 4096×2160p@60

2560×1600p@60RB

1920×1080p@60
Maximum Output HDMI



H.264 Stream    		 4096×2160p@60

2560×1600p@60RB

1920×1080p@60
Audio
Input Signal Type HDMI, Unbalanced Stereo
Output Signal Type     Unbalanced Stereo
Digital Formats     HDMI 2CH LPCM

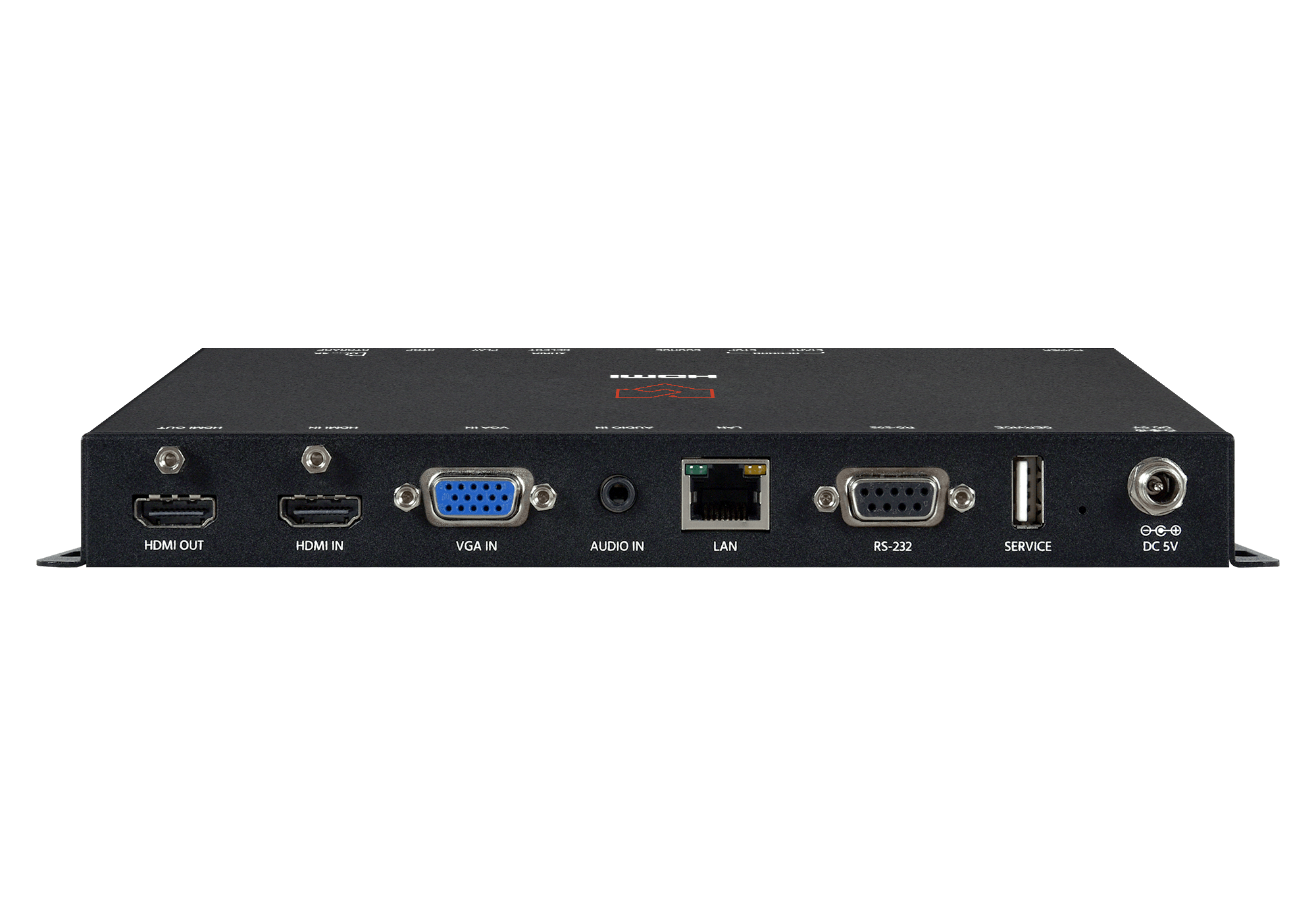

CONNECTIONS
Input Port     1 HDMI (Type-A)

1 VGA (HD-15)

1 Unbalanced Stereo (3.5mm)
Output Port     1 HDMI (Type-A)
Control I/O     1 LAN (RJ-45)

1 RS-232 (DE-9)

1 MicroSD slot
Service Port     1 USB (Type-A)
MECHANICAL SPECIFICATIONS
Housing Construction     Metal (Aluminum)
Device Dimension (W x H x D)     231.5mm×25mm×108mm [Case Only]

231.5mm×25mm×117mm [All Inclusive]
Weight     668g
Power Supply     5V/3A
Power Consumption     12.44W(Full load)
