Multi-viewer with Streaming Solution and Stand-alone PC-based System for Video Capturing

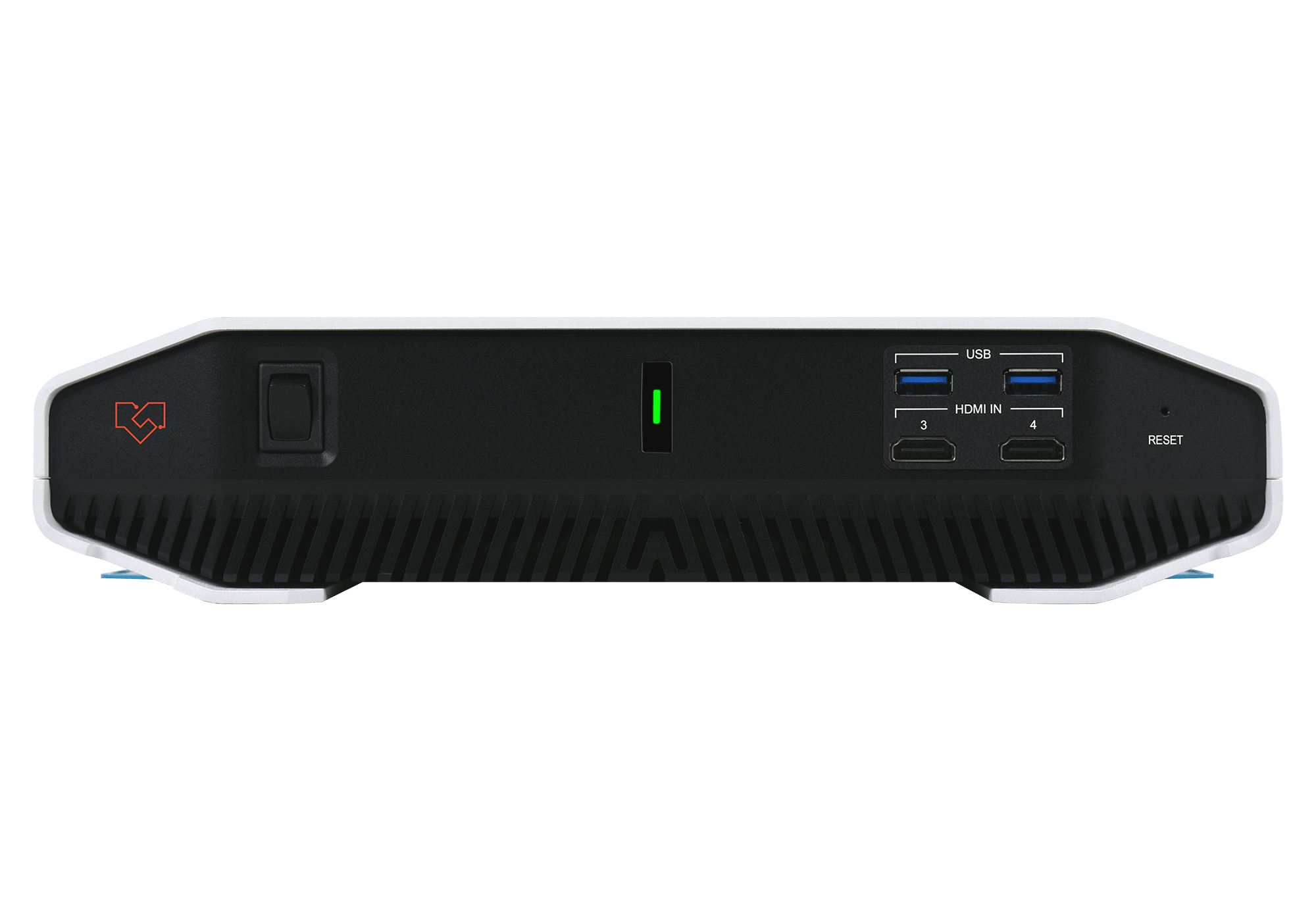

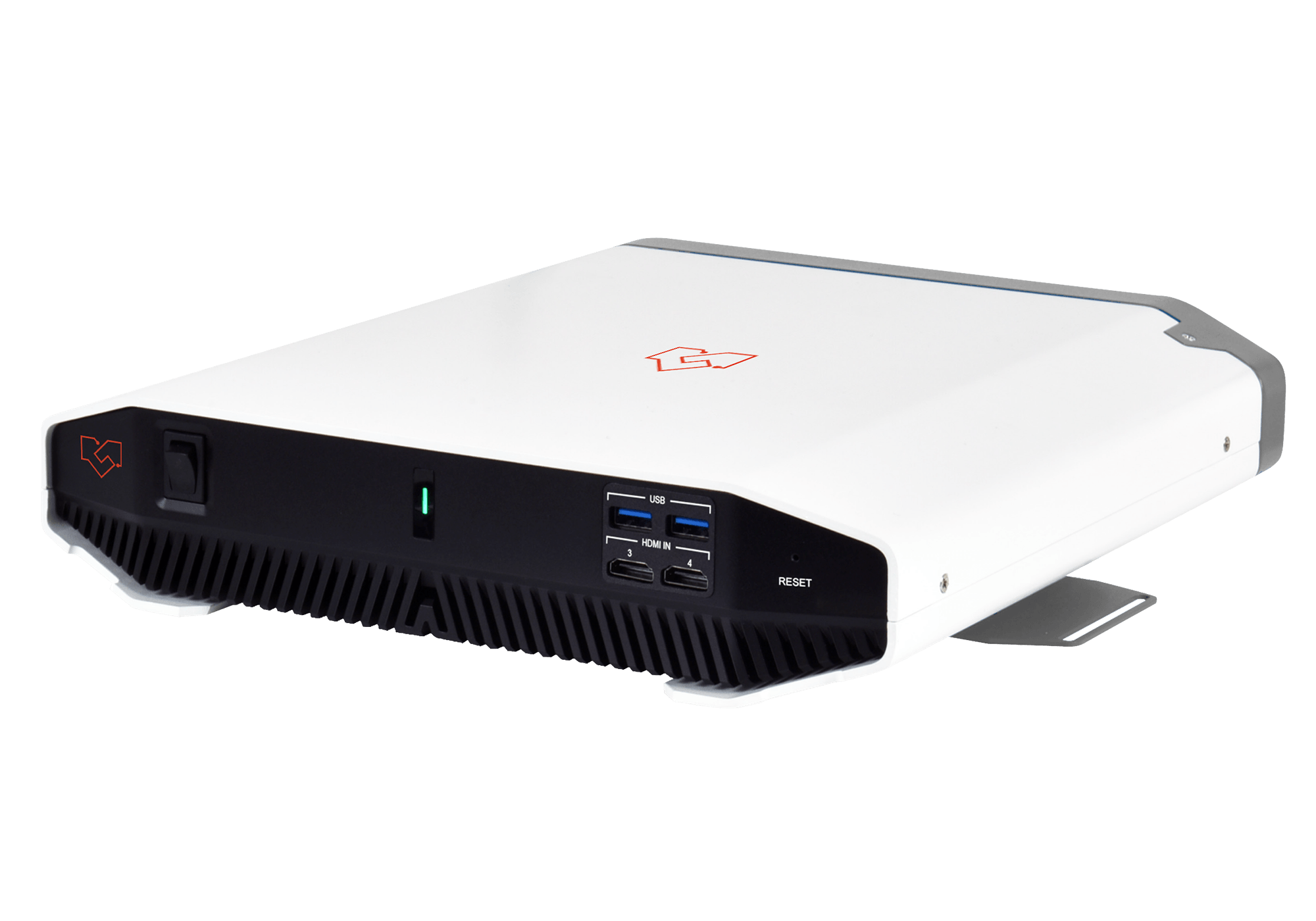

VLSM-4x3P4K-SR

  • Medical-grade PC-based multiviewer, streaming, and capture system that records up to four 4K@60 sources during operation or diagnosis

  • Simultaneous live display and H.264/H.265 recording to built-in SSD (1TB SATA, M.2 expandable), with 4K UHD+ input downscaled to 1080p@60 for capture

  • Intel Atom (Elkhart Lake x6425E) platform with 16GB RAM, TPM 2.0 hardware security, and power-isolated HDMI, RS-232, and LAN ports

  • 4x HDMI in and 2x HDMI plus HDBaseT out, IEC/EN60601-1 medical-compliant, for endoscopy, X-ray, ultrasound, and surgical systems

Where to Buy
Six Year Warranty logo

Product Description

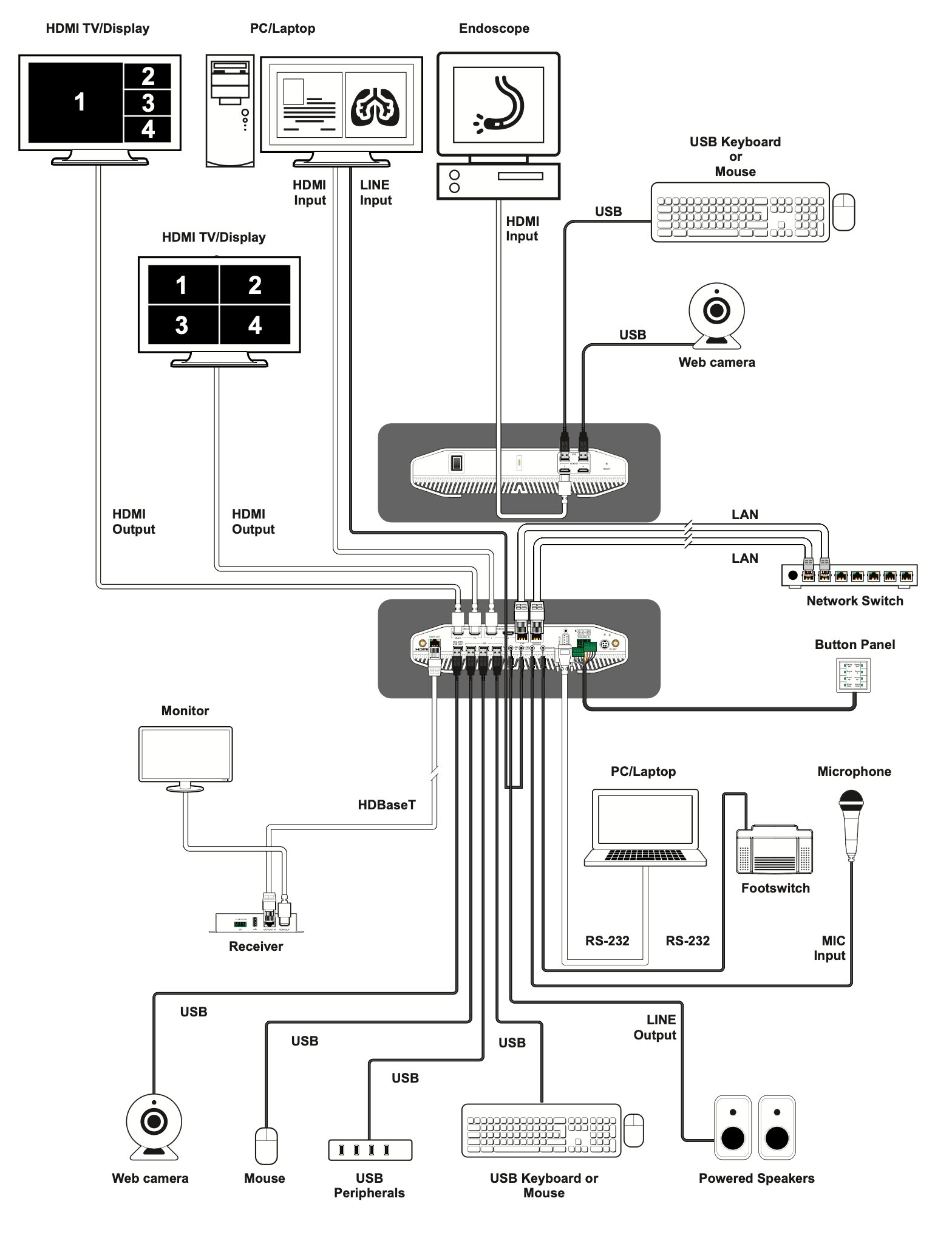

The VLSM-4X3P4K-SR is purpose-built to integrate with multiple medical devices for video recording during operation or diagnosis. It supports high-quality 4K@60 video input and output over HDMI. Video from medical devices such as endoscopes, X-ray systems, ultrasound, and the da Vinci Surgical System is exported to a monitor and simultaneously recorded to the unit's built-in drive. This medical recorder supports real-time display and recording, and complies with medical criteria for demanding clinical applications.

Key Features

  • Records 4K UHD+ 60Hz video from medical devices to built-in SSD storage (downscaled to 1080p@60Hz)

  • H.264 and H.265 codecs for high-quality recording at optimal file sizes

  • Intel Atom processor-based PC with Pro-AV streaming functionality

  • Power-isolated HDMI, RS-232, and LAN ports

  • Video source previewing

  • TPM 2.0 (Trusted Platform Module) for industry-standard hardware-based security

  • Medical-grade design meeting medical application compliance requirements

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Specifications

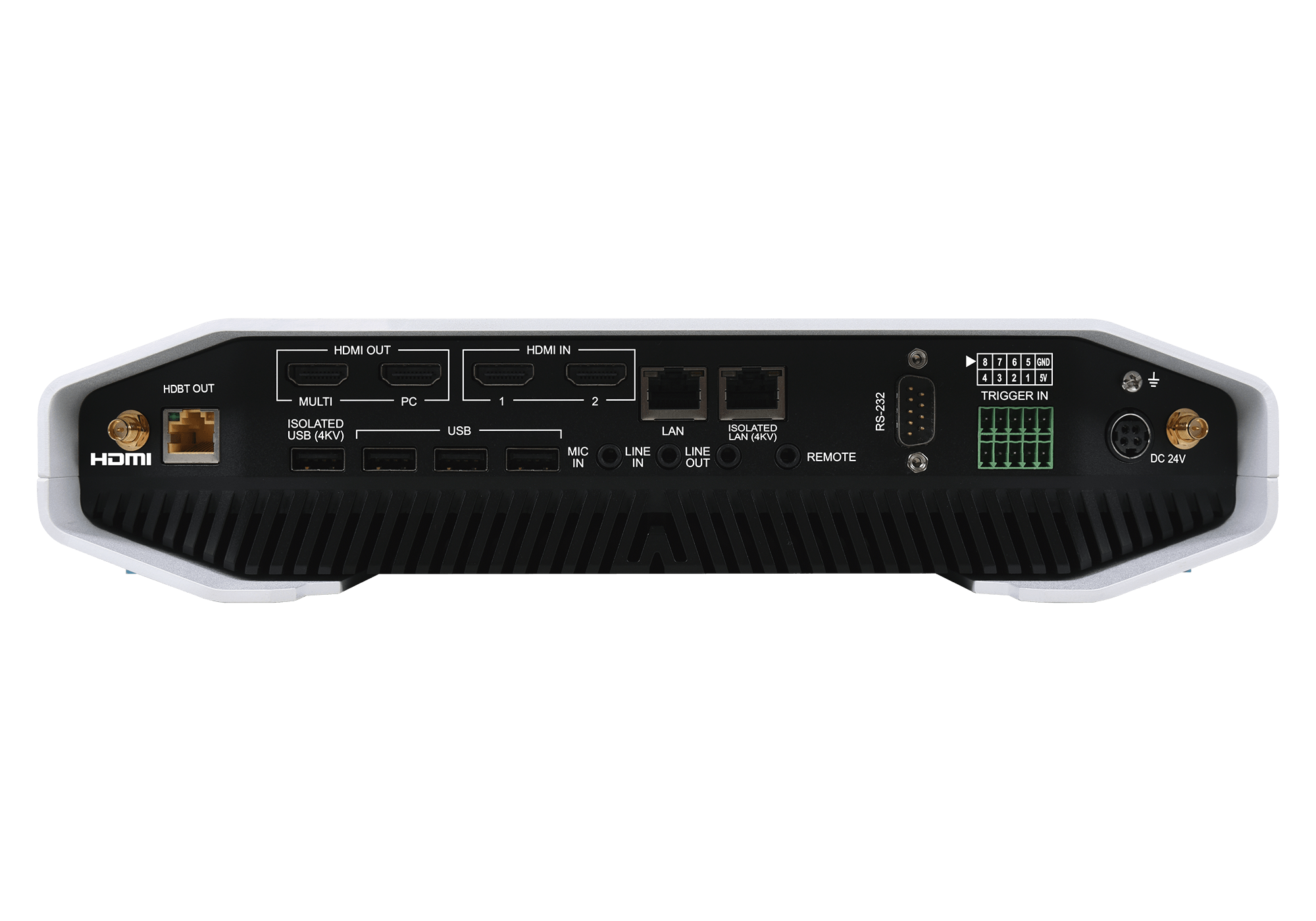

Interfaces
Input Port4 HDMI (Type-A)
8 Trigger (10-pin terminal block)
2 Analog Stereo (3.5mm)
Output Port2 HDMI (Type-A)
1 HDBaseT (RJ-45)
1 Analog Stereo (3.5mm)
Bi-directional Port1 GbE LAN (RJ-45)
1 GbE LAN (RJ-45) with 4KV isolation
Control I/O1 UART (RX/TX only) (3.5mm)
1 RS-232 (DB-9) with 4KV isolation
3 USB2.0 (Type-A)
1 USB2.0 (Type-A) with 4KV isolation (12MB/Bits)
2 USB3.0 (Type-A)
Video
HDMI ComplianceHDMI 2.0 (DVI 1.0)
HDCP ComplianceInput: 2.0b; Output: 2.2
Input Signal Types4096×2160p@60 8-bit YUV 4:4:4
Output Signal Types4096×2160p@60 8-bit YUV 4:4:4
Maximum InputHDMI: 4096×2160p@60
Maximum OutputHDMI: 4096×2160p@60
HDBaseT: 4096×2160p@60 (4:2:0)
Recording: 1920×1080p@60
HDMI: 1080p@60
Audio
HDMILPCM (8 Channels)
Line In2 Vrms; S/N Ratio: > 80dB (1kHz with 0dBFS)
Mic In2 Vrms; S/N Ratio: > 80dB (1kHz with 0dBFS)
Line Out2 Vrms; S/N Ratio: > 80dB (1kHz with 0dBFS)
System
CPU / MemoryIntel Elkhart Lake x6425E 2.0GHz (Boost 3.0GHz)
DDR4-16GB Soldered on board
Storage2.5 Inch SATA SSD 1TB
M.2 SATA SSD (Expandable)
Power
Power Supply24V/4.17A DC
Enclosure
Chassis MaterialMetal (Aluminum)
Chassis ColorWhite
Dimensions (W×H×D)296mm × 296mm × 67mm [Case Only]
318mm × 316mm × 67mm [All Inclusive]
Weight4.3kg
Certification
MedicalCE, FCC Part 18B Compliant
IEC/EN60601-1 Compliant
IEC/EN60601-1-2 Compliant
Field Firmware Update
MethodApp
