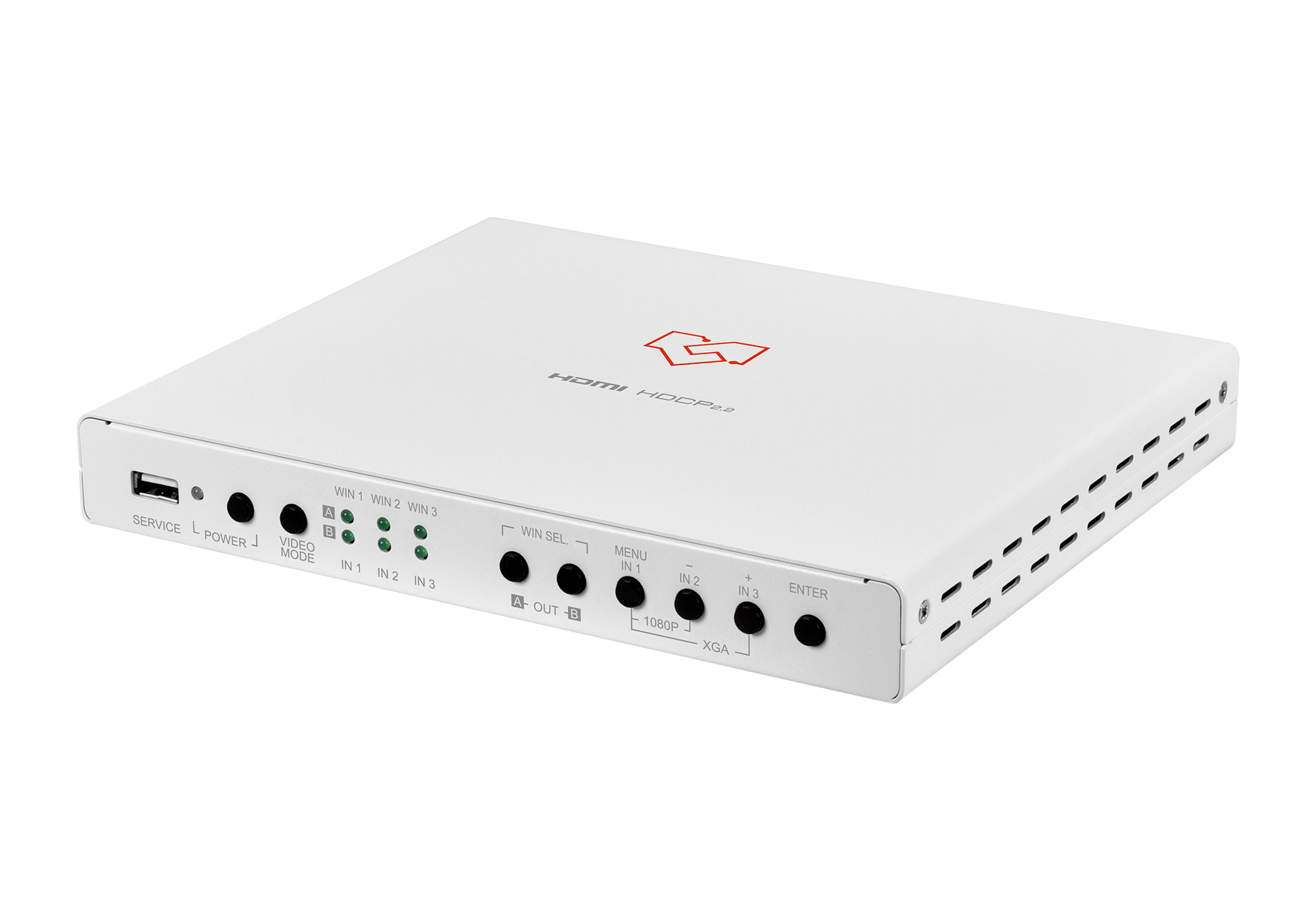

UHD+ 3x2 SDI/HDMI Seamless Matrix and Multiviewer with PiP/PoP

VLML-SDH3x2

  • 3x2 seamless matrix and multi-window processor with integrated scaling, purpose-built for medical imaging sources like endoscopes, X-ray, ultrasound, and the Da Vinci Surgical System

  • SDI and HDMI inputs and outputs up to 4K@60Hz, HDCP 2.x compliant, with 2-channel LPCM audio up to 192kHz

  • PiP, PoP, Side-by-Side, and Auto multi-window modes with independent audio selection, recallable window presets, and per-window colored borders

  • Output to a standard HDMI display or 3D smart glasses, with EDID management and control via front panel, WebGUI, RS-232, or Telnet

Where to Buy
Six Year Warranty logo

Product Description

This 3x2 matrix is a high-performance switch with integrated scaling and multi-windowing technology. It is an ideal solution for monitoring or displaying multiple medical sources, such as endoscopes, X-ray systems, ultrasonic devices, and the Da Vinci Surgical System, simultaneously during operation or diagnosis. Video resolutions (SDI and HDMI) up to 4K@60Hz, along with LPCM audio supporting up to 7.1 channels and 192kHz, are supported on both input and output. This unit is fully compatible with HDCP 2.x standards.

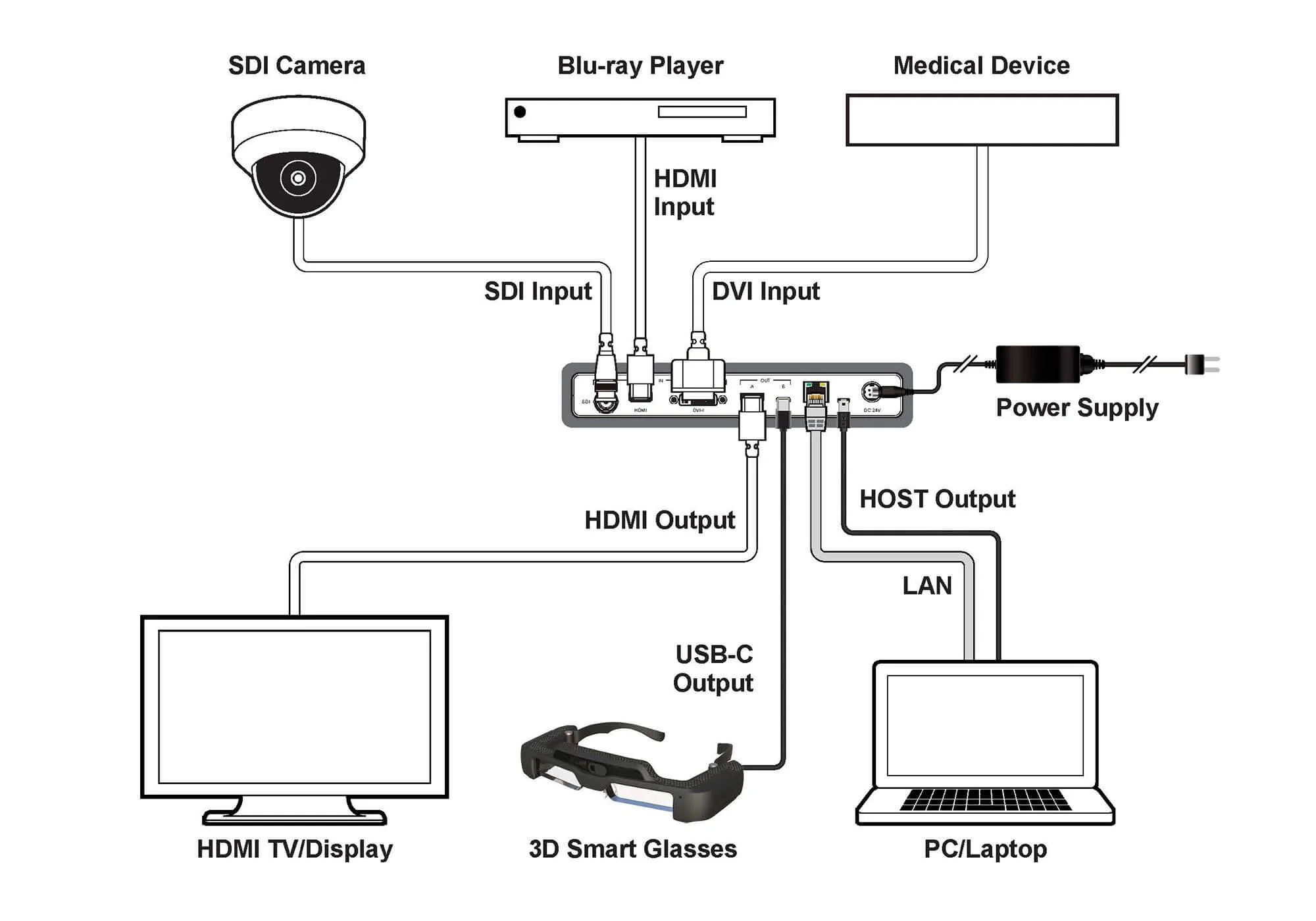

Any of the three different HDMI sources can be displayed individually, full screen, or in a variety of multi-window modes, including PiP, PoP, Side-by-Side, and Auto display, with the output sent to a general HDMI display and 3D Smart Glasses. Management of input, window routing, position, and sizing can be easily controlled using the front panel controls, as well as through WebGUI, RS-232, Telnet, and other options.

Key Features

  • SDI input distance up to 60 meters; HDMI input/output at 18Gbps (600MHz) 4K UHD

  • Seamless switching with no loss of sync in 3x2 matrix mode

  • PiP, PoP, Side-by-Side, and Auto display options with independent audio source selection

  • Store multi-window arrangements as recallable presets

  • Selectable colored border per window

  • EDID management

  • Uploadable, freely positioned graphic logo support

  • Adjust window size, position, and settings in PiP mode via WebGUI

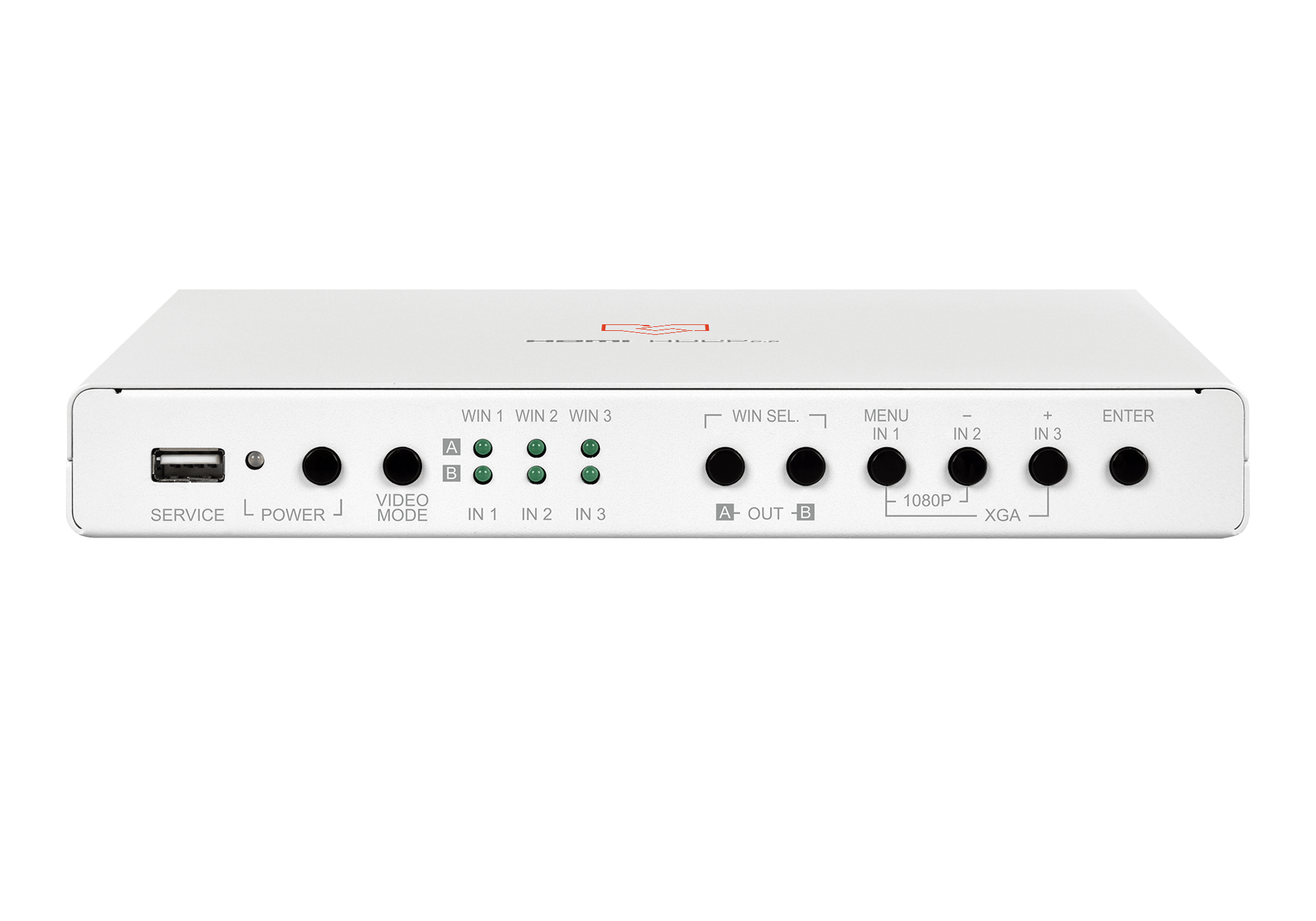

  • Control via front panel buttons, WebGUI, Telnet, and RS-232

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Specifications

Technical
HDMI Bandwidth18Gbps
USB-C Bandwidth21.6Gbps
SDI Bandwidth12Gbps (12G-SDI)

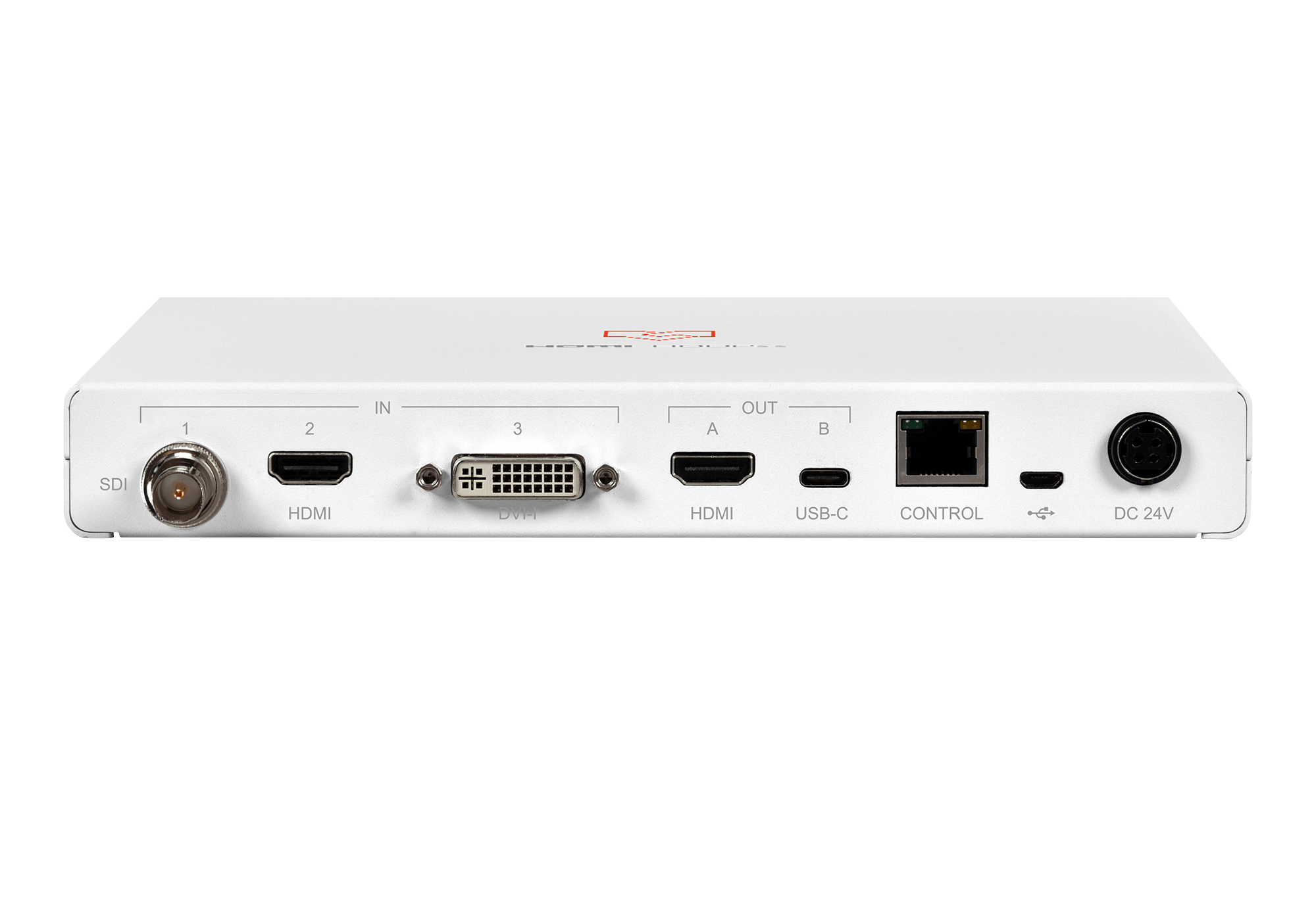

Connection
Input Ports1× SDI (BNC)
1× HDMI (Type-A)
1× DVI-I (Single Link)
Output Ports1× HDMI (Type-A)
1× USB (Type-C)
Control Ports1× IP Control (RJ-45)
1× USB (Micro-B)
Service Port1× USB 2.0 (Type-A)
Audio
HDMI Input (LPCM)Max 2 channels; Sampling rate 32, 44.1, 48, 88.2, 96, 176.4, 192kHz; Bitstream: None
SDI Input (LPCM)Max 2 channels; Sampling rate 48kHz; Bitstream: None
HDMI/USB-C Output (LPCM)Max 2 channels; Sampling rate 48kHz; Bitstream: None
Transmission Distance (Cable Length)
High Speed HDMI Cable — HDMI InputHD 15m / FHD 10m / 4K UHD 5m / 4K UHD+ 3m
High Speed HDMI Cable — HDMI OutputHD 15m / FHD 10m / 4K UHD 5m / 4K UHD+ 3m
DVI Cable — DVI InputHD 15m / FHD 10m
VGA Cable — VGA InputHD/FHD 2m
Coaxial SDI Cable (Belden 1694A 6GHz) — SDI InputHD 260m / FHD 200m / 4K UHD 100m / 4K UHD+ 80m
USB-C Cable — USB-C OutputHD/FHD/4K UHD 2m / 4K UHD+ 1m
Mechanical
Power Supply24V/2.7A DC (US/EU standards, CE/FCC/UL certified)
ESD Protection (HBM)±8kV (Air Discharge), ±4kV (Contact Discharge)
Dimensions (W×H×D)231.5mm × 25mm × 108mm [Case Only]
231.5mm × 25mm × 116mm [All Inclusive]
Weight671g
Chassis MaterialMetal (Steel)
Chassis ColorWhite
Power Consumption22W
Operating Temperature0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity20 ~ 90% RH (Non-condensing)
