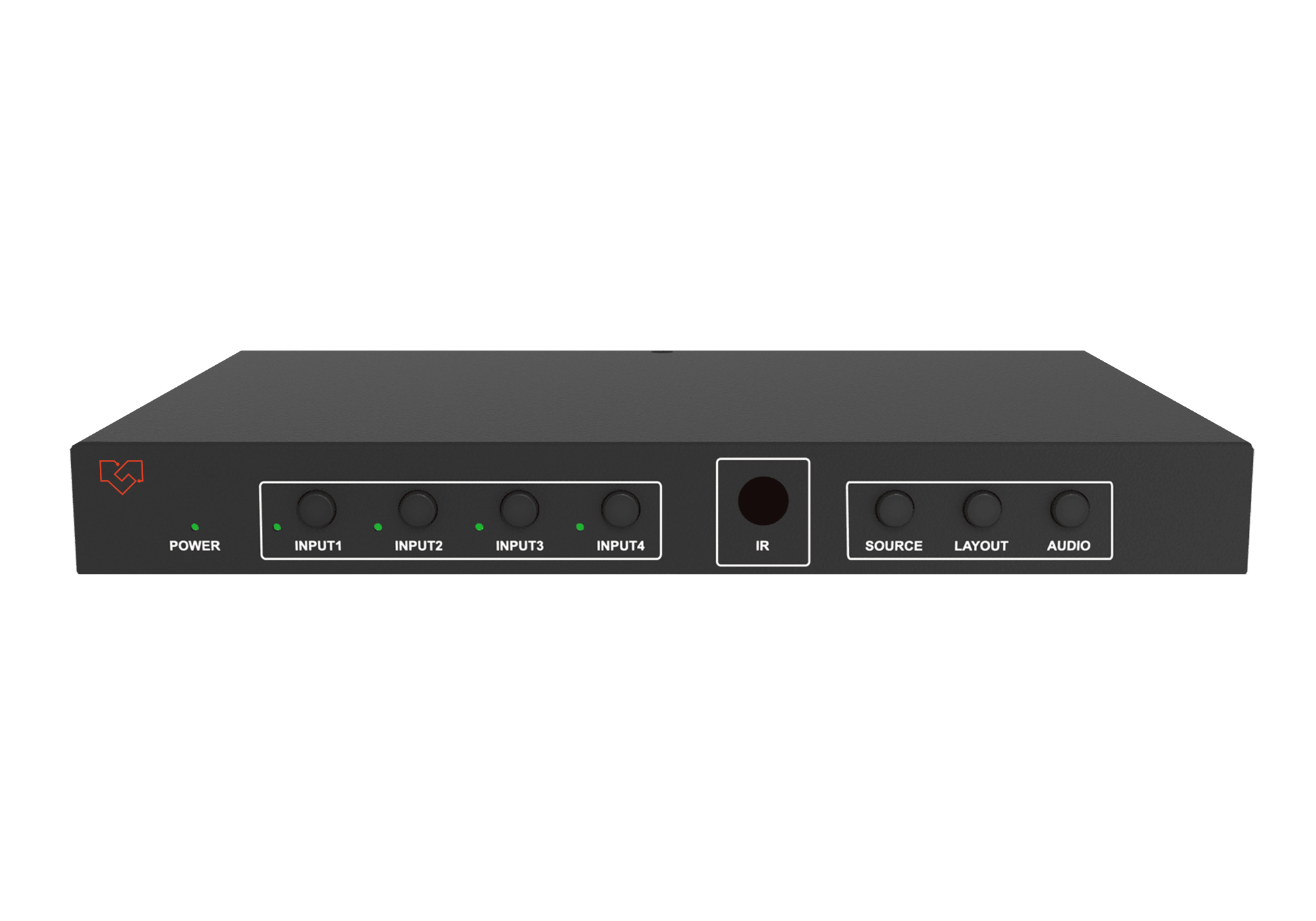

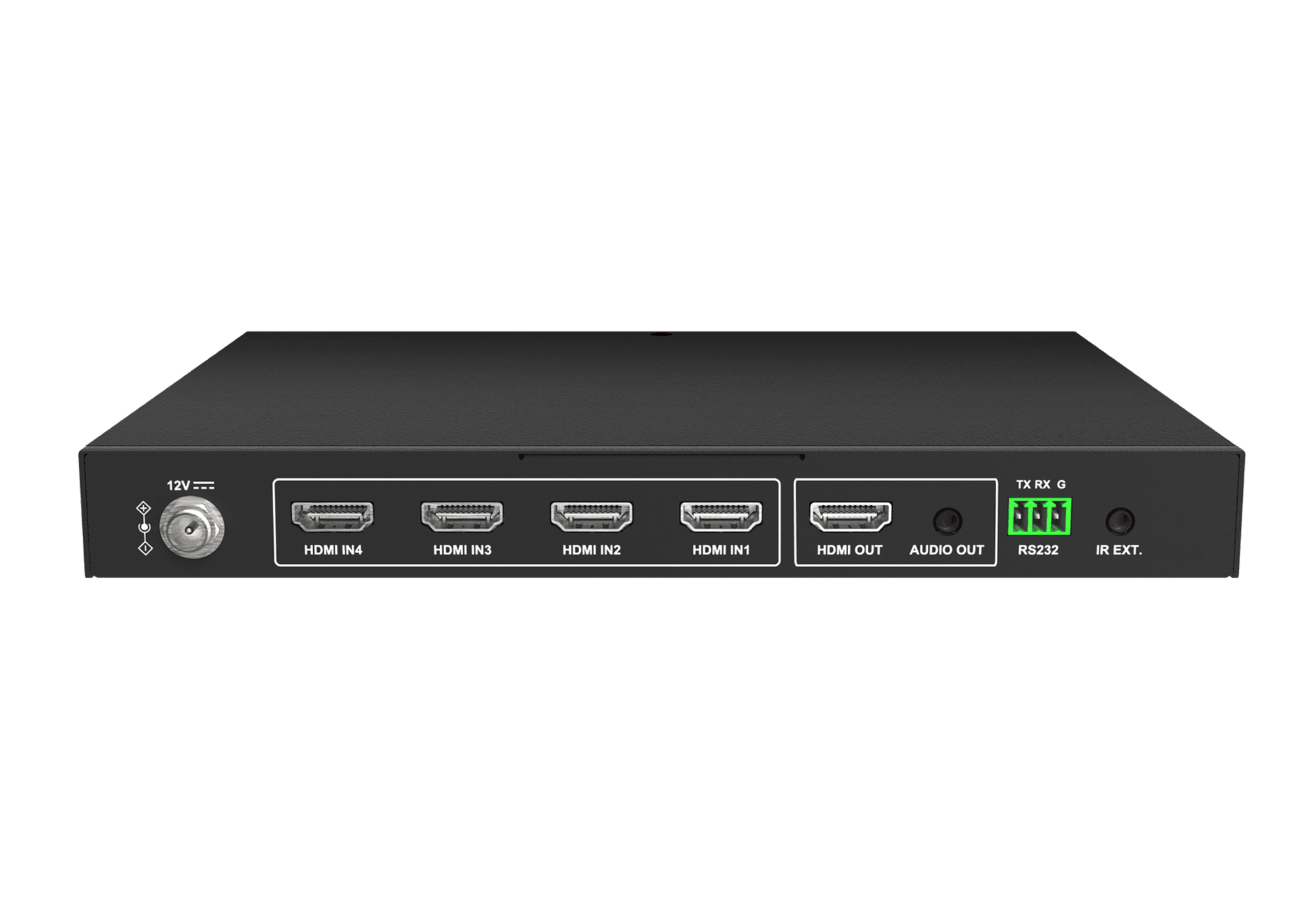

4x1 HDMI 2.0 4K60 MultiViewer with Seamless Switching

VLML-4x1H20ET

  • 4x1 seamless HDMI 2.0 multiviewer displaying up to four 4K/UHD sources simultaneously on a single 4K display

  • HDMI 2.0b (HDCP 2.2) at 18Gbps / 600MHz, with true 4K@60Hz 4:4:4 8-bit input and output

  • Multiple screen layouts (Original, Dual-view, H/Master, PiP, Quad) with seamless switching and a cascade function for more inputs

  • Fixed-aspect-ratio or image-stretching modes, HDMI audio de-embedding, and control via front panel, IR, IP, or RS-232

Where to Buy
Six Year Warranty logo

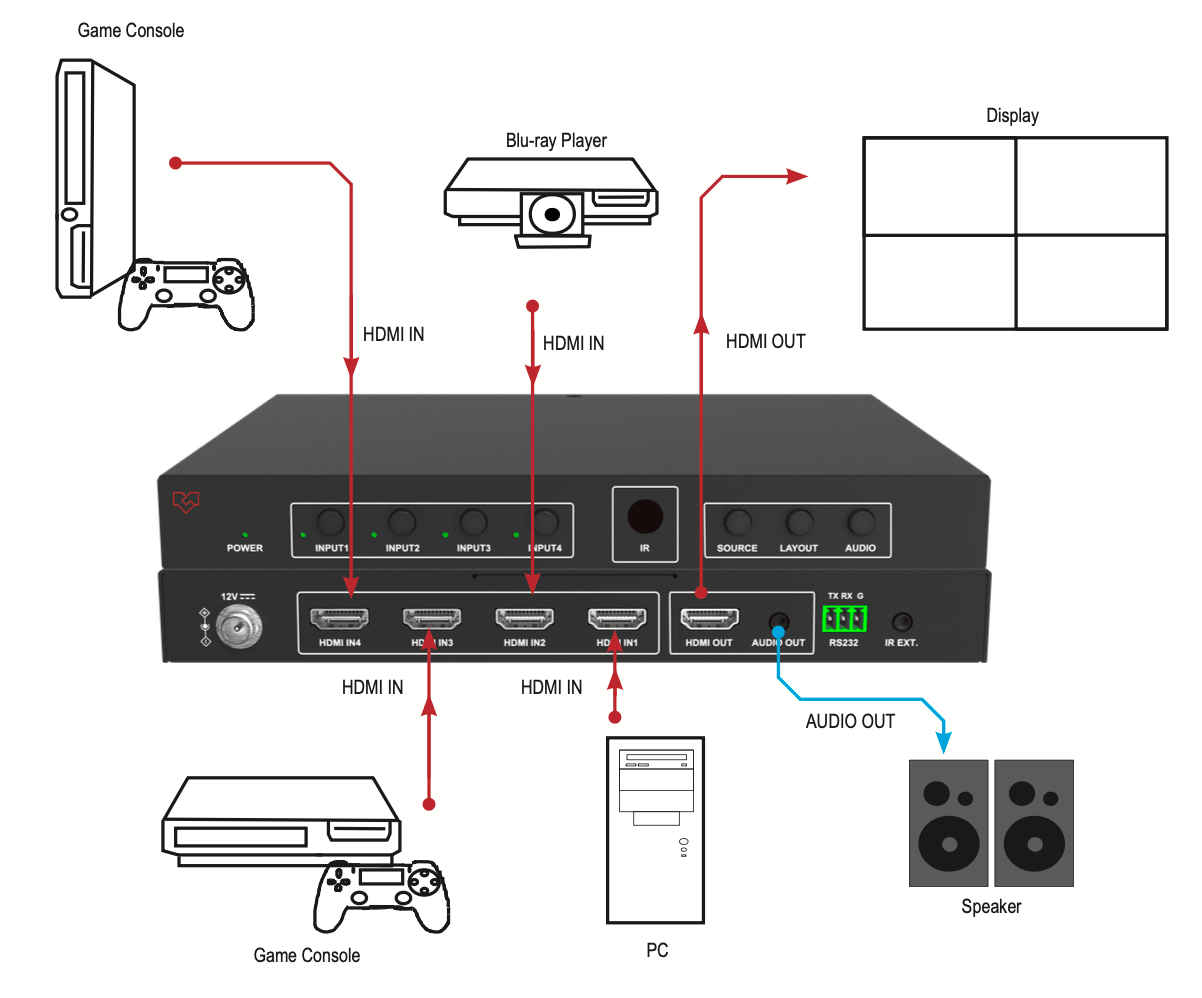

Product Description

The VLML-4X1H20ET is a multiview video processor that supports 4K at 60Hz input and output. Up to 4 channels of 4K/UHD video signals can be simultaneously displayed on one 4K/UHD display.

The VLML-4X1H20ET offers seamless switching between 4 input signals. It supports multiple screen layouts, including Original mode, Dual-view mode, H mode, PIP mode, and Quad mode, to meet various image display needs. Available control methods include the Front Panel, IR remote, IP, and RS-232.

Key Features

  • True 4K@60Hz UHD video: HDMI 2.0b input and output up to 4K@60Hz 4:4:4 8-bit

  • Rich layout modes: Original, Dual-view, Master, H mode, PiP, and Quad

  • Seamless switching within the same layout

  • Cascade function to display more inputs on the same screen

  • Image stretching: selectable fixed aspect ratio or stretch mode

  • Audio de-embedding from the HDMI output

  • Multiple control methods: button, IR, RS-232, and IP

Downloads

PRELIMINARY DATA SHEET (PDF)

Specifications

Technical
Video Input     4 x HDMI in
Input Video Signal     HDMI 2.0b up to 4K@60Hz 4:4:4 8bit and HDCP 2.2
Video Output   1x HDMI out
Output Video Signal     HDMI 2.0b up to 4K@60Hz 4:4:4 8bit and HDCP 2.2
Input/Output Resolutions Supported     VESA: 800 x 6008, 1024 x 7688, 1280 x 7688, 1280 x 8008, 1280 x 9608, 1280 x 10248, 1360 x 7688, 1366 x 7688, 1440 x 9008, 1600 x 9008, 1600 x 12008, 1680 x 10508, 1920 x 12008, 2048 x 11528, 3840 x 21602,3,5,6,8, 4096 x 21602,3,5,6,8
SMPTE: 1280 x 720P6,7,8, 1920 x 1080P6,7,8,9
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = at 120 Hz
Audio Format     HDMI: Supports all audio formats in HDMI 2.0 spec. Audio Out: Stereo only.
Maximum Pixel Clock     600 MHz
Maximum Data Rate     18 Gbps
Control Method     Button, IR, RS-232 and IP
Mechanical
Operating Temperature     0°C to 45°C (32°F to 113°F)
Storage Temperature     -20°C to 70°C (-4°F to 158°F)
Humidity     10% to 90%, non-condensing
ESD Protection    Human-body Model:

±8kV (Air-gap discharge)/

±4kV (Contact discharge)
Power Supply     12V/2A
Power Consumption (Max)     8W
Device Dimension (W x H x D)     230*25*142mm
Product Weight    TBD
