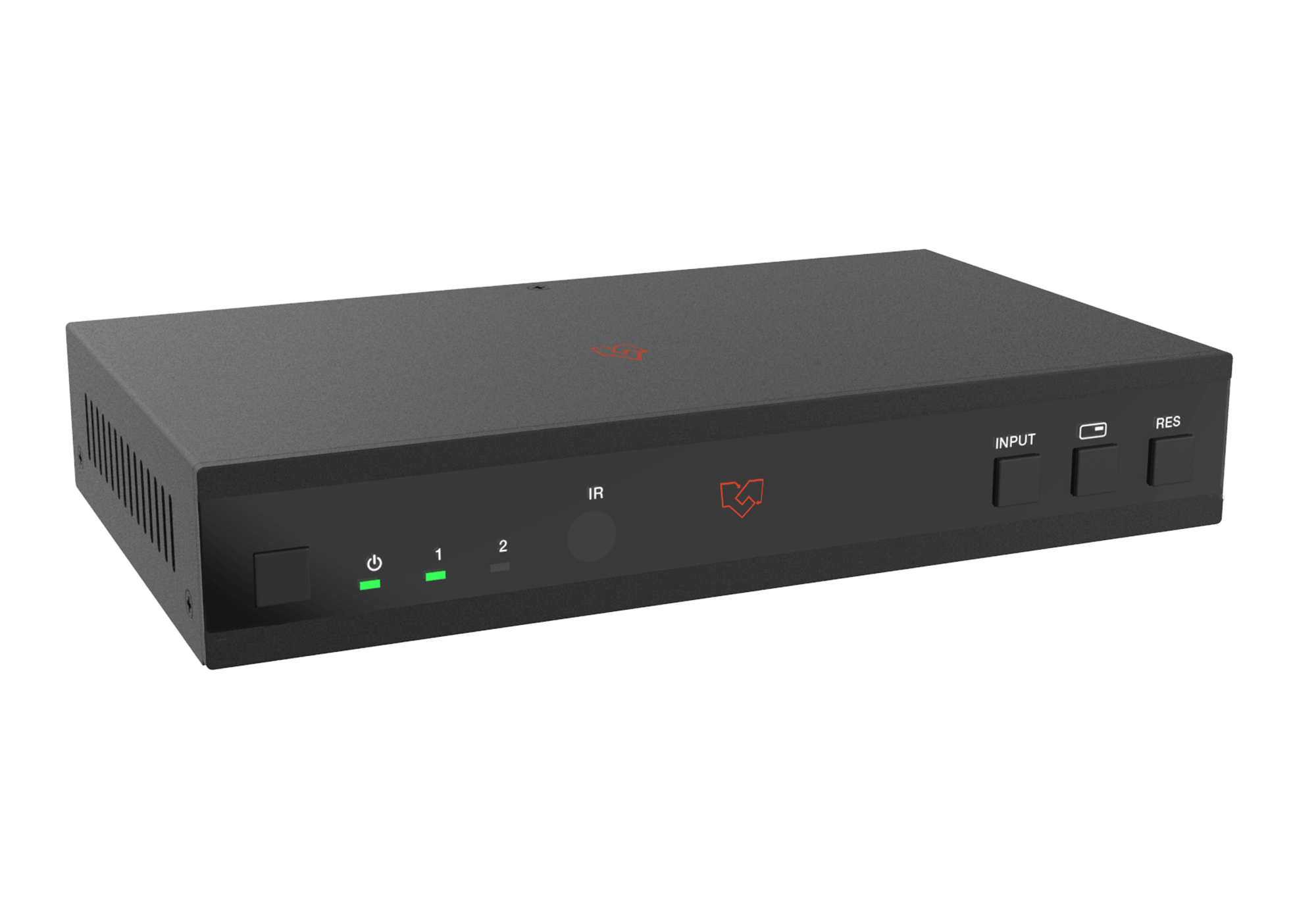

2x1 4K60 HDMI Switcher with Multi-Viewer

VLML-2x1H20

  • 2x1 seamless HDMI 4K60 switcher and multiviewer, combining two sources onto a single UHD or HD display

  • HDMI 2.0b (HDCP 2.2/1.x) at 18Gbps, up to 4K@60Hz 4:4:4 input and output

  • Four display modes (Single, PiP, PBP 1, PBP 2) with seamless switching, adjustable input position, and independent audio selection

  • Analog RCA and optical SPDIF audio de-embedding with volume control, EDID management, and control via front panel, IR, OSD, RS-232, or software

Where to Buy
Six Year Warranty logo

Product Description

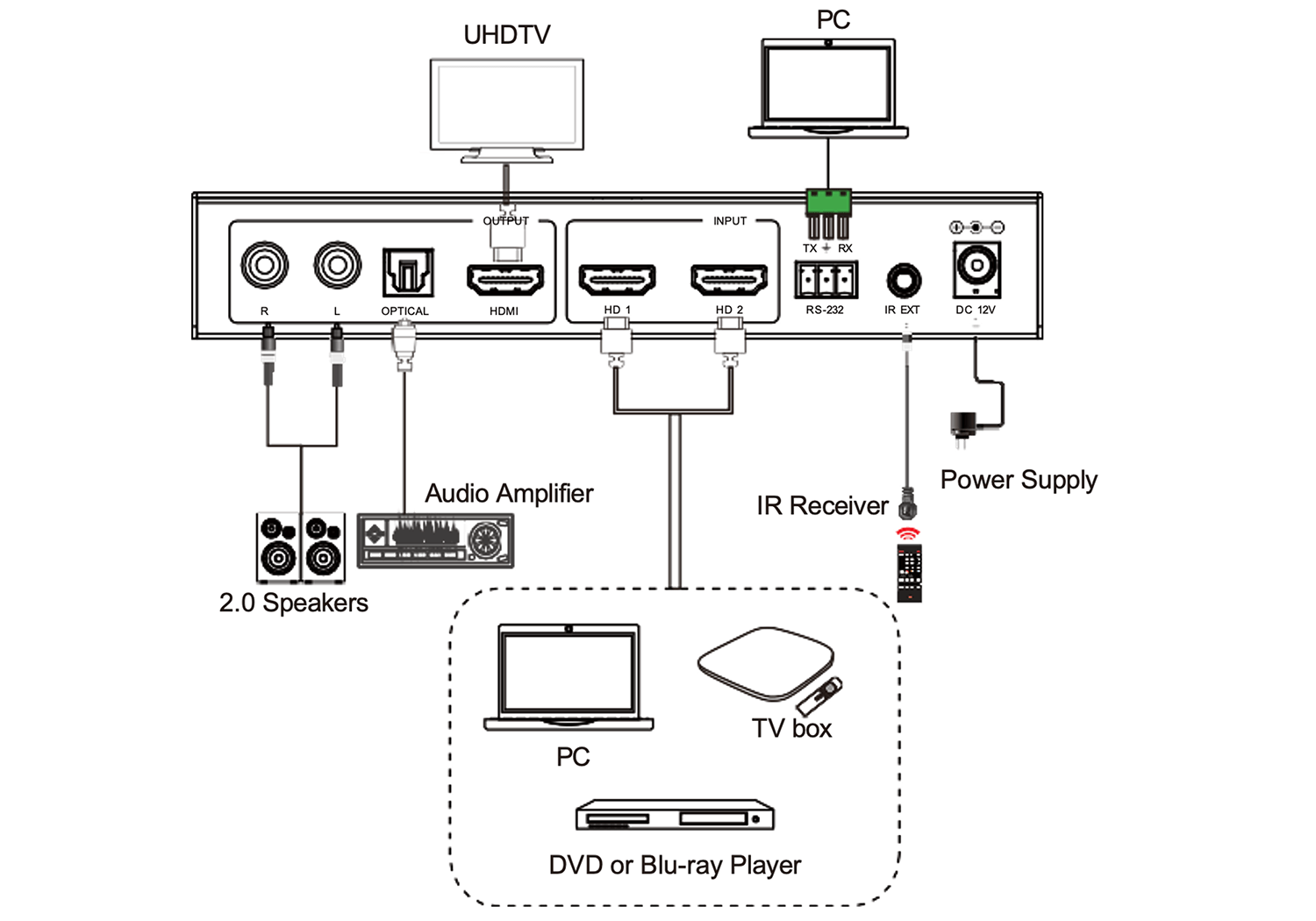

This 4K60 2x1 Multiviewer Seamless UHD Video Switcher was designed to support higher output resolutions (4K@60) for multiple sources on a single screen. It can combine two video signals onto a single UHD or HD display. The user can manage each input and create combinations of the two inputs on a single display, as well as adjust the position of either input.

This product supports 4 display modes. Within the mode range, users can freely switch 2-channel HD input signals. It can display single-screen and multiview content on a single screen. It supports a full range of input video resolutions up to 4K@60 (RB) and features audio RCA/Optical de-embedding for external audio distribution systems.

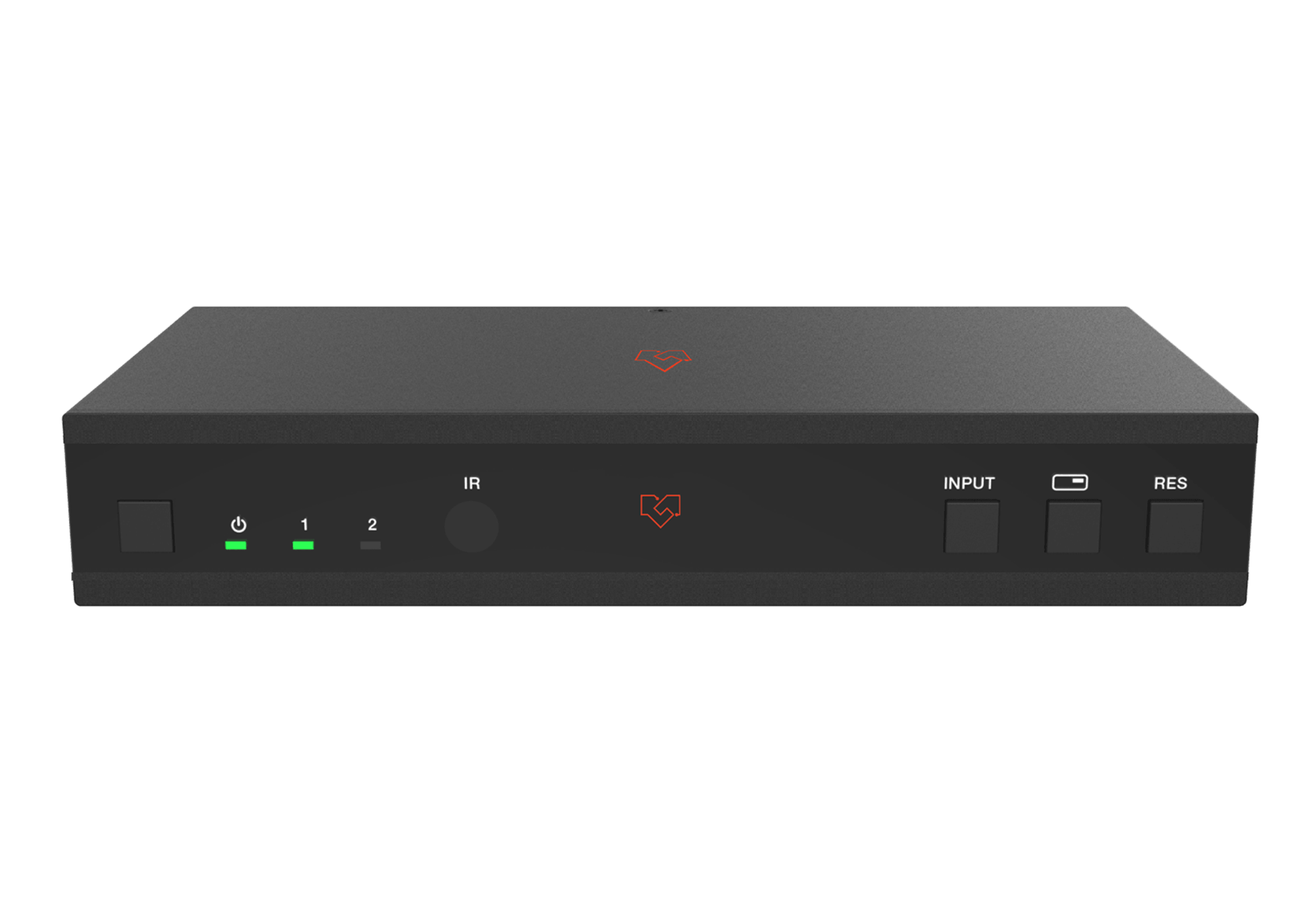

VLML-2x1H20 can be controlled via front panel buttons, IR remote, OSD menu navigation, Controller software, and RS-232 commands.

Key Features

  • HDMI 2.0b, HDCP 2.2, and HDCP 1.x compliant

  • Supports 18Gbps video bandwidth

  • Input and output resolutions up to 4K2K@60 4:4:4

  • Audio support: LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 channels

  • Seamless switching between inputs, combining images on a single UHD monitor

  • Up to four display modes: Single, PiP, PBP (1), PBP (2)

  • Audio de-embedding via analog and optical audio ports

  • Volume control and independent audio selection

  • Advanced EDID management

  • Control via front panel buttons, IR remote, OSD menu, controller software, and RS-232

  • Compact design for easy, flexible installation

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Specifications

Technical
HDMI Compliance     HDMI 2.0b
HDCP Compliance     HDCP 2.2 / 1.x
Video Bandwidth     18Gbps
Video Resolution     Up to 4K2K@60 4:4:4
IR Level     5Vp-p
IR Frequency     38KHz
Color Space     RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth     8bit
Audio Formats     PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res

Analog audio [3.5mm L/R]: PCM2.0

SPDIF (OPTICAL): Dolby Digital, DTS 5.1, PCM2.0

Note: It does not support HBR audio.
ESD Protection     Human-body Model： ±8kV (Air-gap discharge) , ±4kV (Contact discharge)

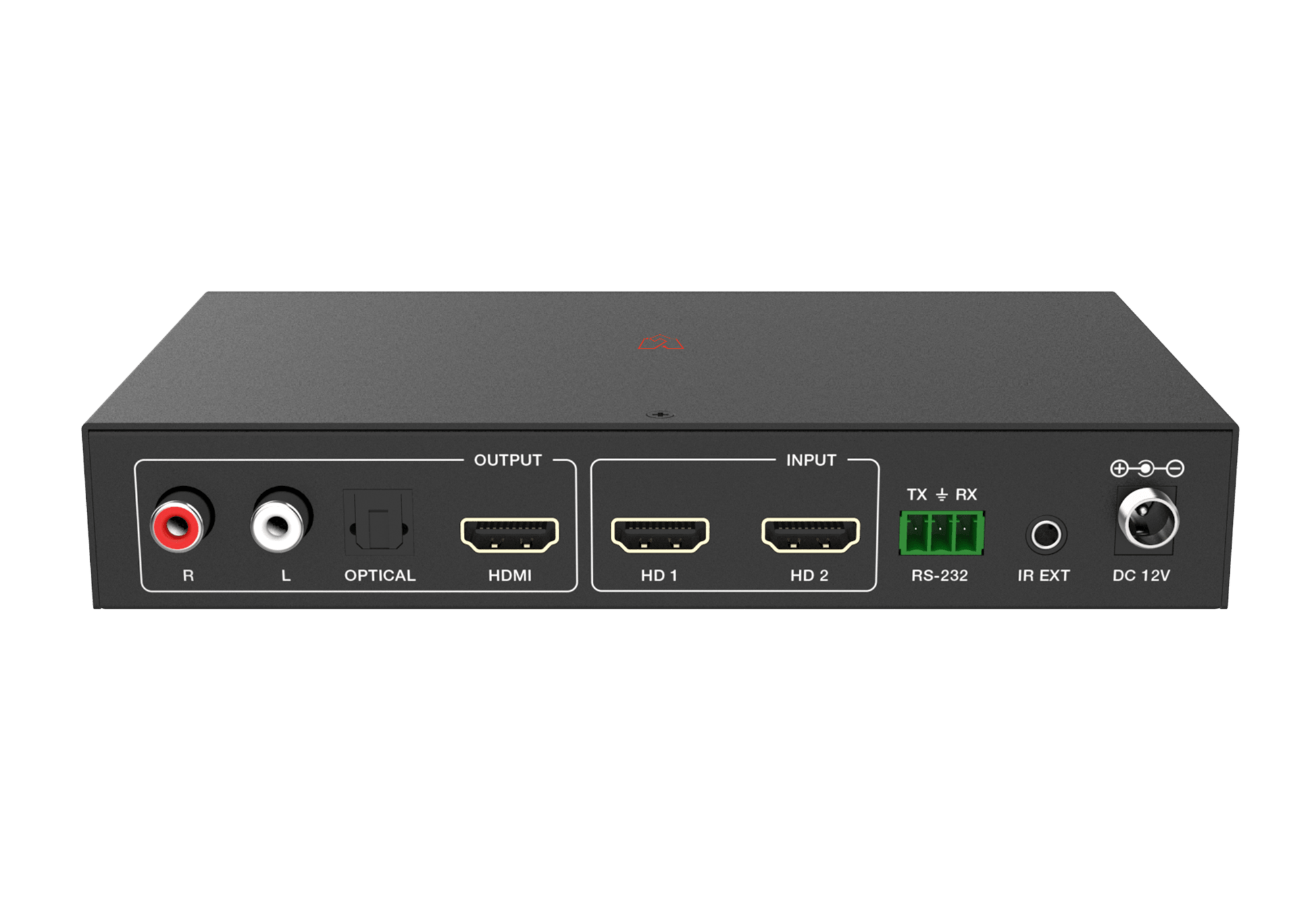

Connection
Input Ports         2 x HDMI IN [Type A, 19-pin female]
Output ports         1 x HDMI OUT [Type A, 19-pin female]

1 x L/R OUTPUT [RCA] 1 x OPTICAL OUTPUT [S/PDIF]
Control ports         1 x RS-232 [3pin-3.81mm phoenix connector] 1 x IR EXT [3.5mm Stereo Mini-jack]
Mechanical
Housing     Metal Enclosure
Color     Black
Dimensions     175mm [W] x 100mm [D] x 30mm [H]
Weight     497g
Power Supply     Input: AC 100 - 240V 50/60Hz
Power Consumption     4.56W (Max)
Operating Temperature     0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature     -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity     20 - 90% RH (No condensation)
