4x1 HDMI 2.1 48Gbps Switcher with Audio De-embedding, ARC & eARC
VLSW-41H21A
4x1 HDMI 2.1 switcher routing four 8K sources to a single display, up to 8K@60Hz (48Gbps FRL / 18Gbps TMDS)
Supports 8K@60 4:2:0, 8K@30 4:4:4, and 4K@120 4:4:4, with VRR, ALLM, QMS, QFT, and SBTM, at zero latency
eARC audio routing to SPDIF, analog L/R, or an eARC soundbar (Sonos Arc/Beam), with CEC volume control from the TV
HDR10, HDR10+, Dolby Vision, and HLG pass-through, EDID management, and USB-C firmware updates
Product Description
The VigilLink VLSW-41H21A is an advanced 8K HDMI 4x1 switcher that allows seamless switching between four HDMI sources to a single HDMI display. Supporting resolutions up to 8K@60Hz (4:2:0), it delivers ultra-high-definition performance ideal for professional and large-scale AV setups.
Designed for flexibility and enhanced compatibility, the switcher features advanced EDID management, CEC control, and support for ARC and eARC for audio routing to SPDIF, analog L/R, or an eARC soundbar (Sonos Arc/Beam), with CEC volume control from the TV. It also includes audio de-embedding via optical and analog outputs, enabling versatile audio routing. A USB Type-C port is provided for convenient firmware upgrades, ensuring the product stays current with evolving system requirements.
Perfect for environments such as presentations, video conferencing, multimedia classrooms, and large-screen demonstrations, the VLSW-41H21A offers professional-grade performance and dependable switching in a compact form factor.
Key Features
HDMI 2.1 and HDCP 2.3 compliant
48Gbps FRL and 18Gbps TMDS video bandwidth
Video resolution up to 8K@60Hz 4:2:0, 8K@30Hz 4:4:4, and 4K@120Hz 4:4:4
HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, and SBTM supported
HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through
HDMI audio: LPCM 7.1CH, Dolby TrueHD, Atmos, DTS-HD Master, and DTS:X pass-through
4 HDMI inputs routed to 1 HDMI output

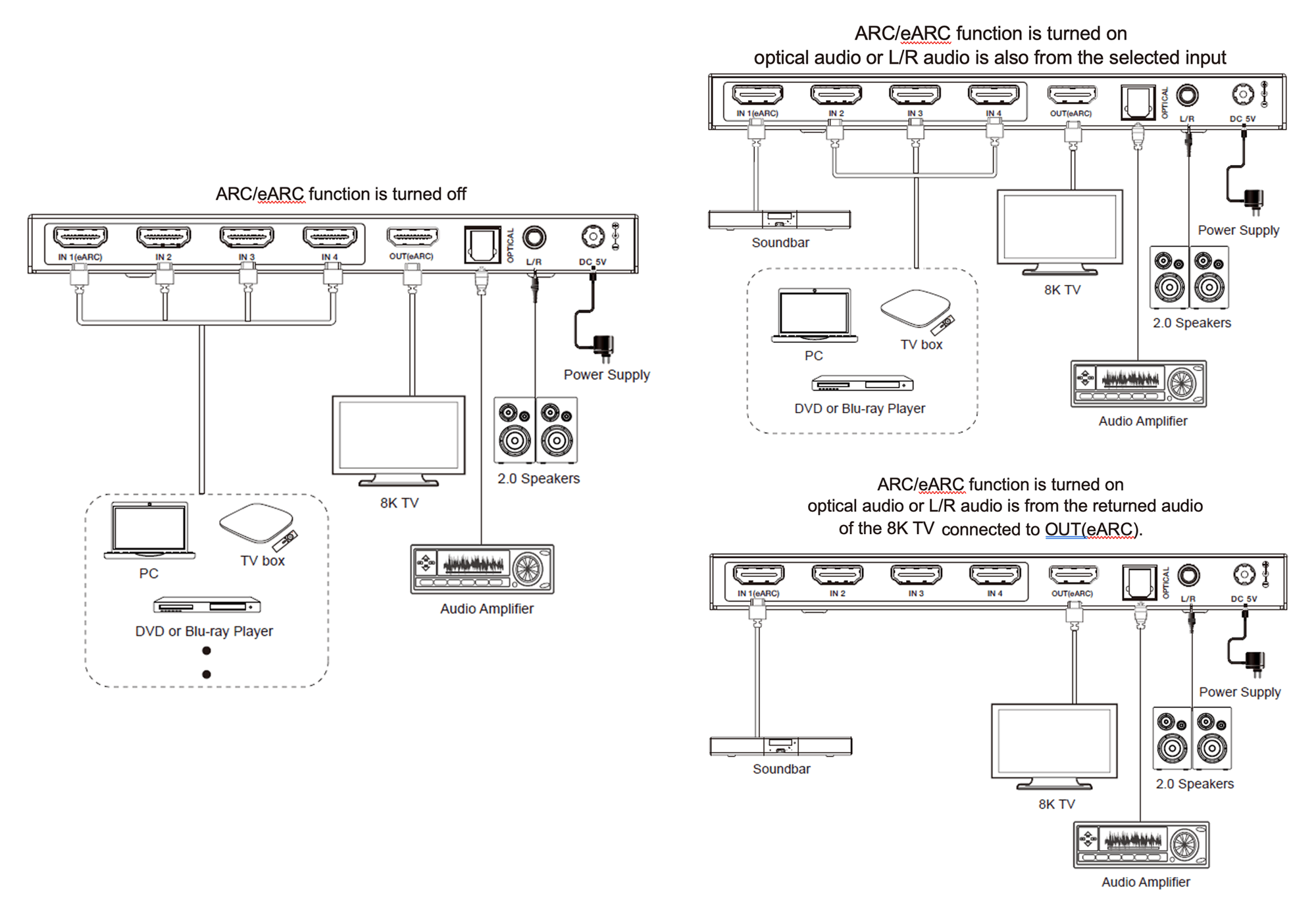

HDMI input and TV eARC audio de-embedded to SPDIF and analog L/R
HDMI input and TV eARC audio routed to a Sonos Arc/Beam or any eARC soundbar
CEC control from TV output to source input, including CEC volume control to any eARC sound system
Advanced EDID management
Downloads
Specifications
| Technical | ||||
|---|---|---|---|---|
| HDMI Compliance | HDMI 2.1 | |||
| HDCP Compliance | HDCP 2.3 | |||
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS | |||
| Video Resolution | Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit | |||
| Audio/ Video Latency | No Latency | |||
| Color Depth | 8/10/12-bit | |||
| Color Space | RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 | |||
| Audio Formats |
HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD eARC Audio Out: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD Audio De-embedded Output: Optical: LPCM 2.0CH/Dolby/DTS 5.1CH Analog: LPCM 2.0CH |
|||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | |||
| Connection | ||||

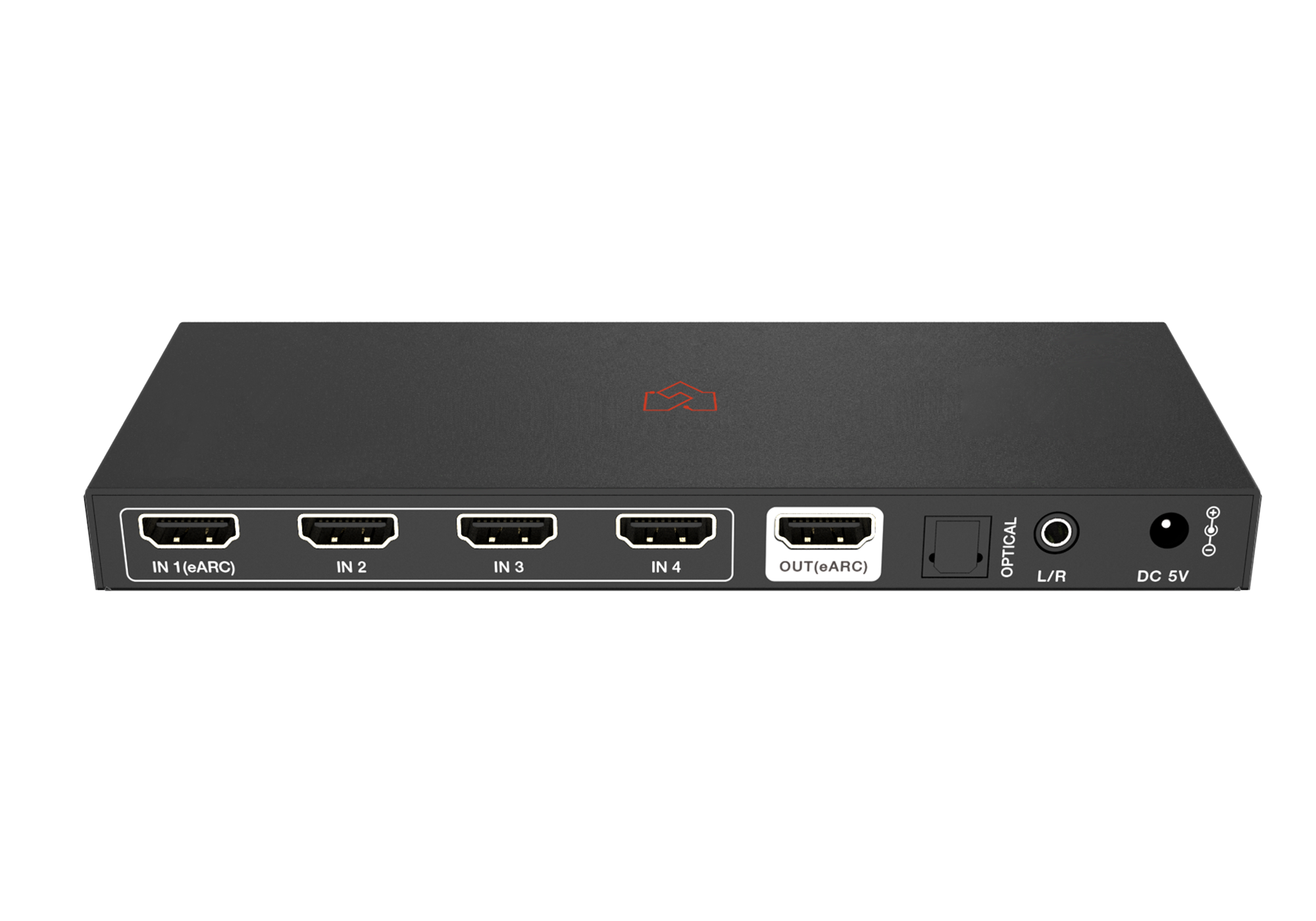

| Input | 4 × HDMI IN [Type A, 19-pin female] | |||
| Output | 1 × HDMI OUT [Type A, 19-pin female] 1 × OPTICAL [S/PDIF] 1 × L/R [3.5mm Stereo Mini-jack] |
|||
| Control | 1 × SERVICE [USB Type C, Update port] | |||
| Mechanical | ||||
| Housing | Metal enclosure | |||
| Color | Black | |||
| Dimensions | 176mm (W) × 68mm (D) × 18mm (H) | |||
| Weight | 315g | |||
| Power Supply | Input: AC100-240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
|||
| Power Consumption | 2.5W (Max) | |||
| Operating Temperature | 32 - 104°F / 0 - 40°C | |||
| Storage Temperature | -4 - 140°F / -20 - 60°C | |||
| Relative Humidity | 20 - 90% RH (No condensation) | |||
| Recommended HDMI Cable | ||||
| Video Resolution | 8K | 4K60 | 4K24 | 1080P |
| HDMI Cable Length (HDMI IN / OUT) |
2m/6.6ft (Ultra HDMI 2.1) |
8m/26f | 12m/39ft | 15m/49ft |
| The use of the “Premium High-Speed HDMI” is highly recommended. | ||||
