2x1 HDMI 2.1 Switch with Audio De-embedder 48Gbps
VLSW-21H21A
2x1 HDMI 2.1 switcher routing two 8K sources to a single display, up to 8K@60Hz (48Gbps)
Supports 8K@60 4:2:0, 8K@30 4:4:4, and 4K@120 4:4:4 (10-bit), with VRR, FVA, and ALLM
HDR10, HDR10+, Dolby Vision, and HLG pass-through, with a built-in equalizer, retiming, and driver for signal integrity
Audio de-embedding to optical (up to 5.1) and analog L/R outputs, with EDID management and IR/front-panel control
Product Description

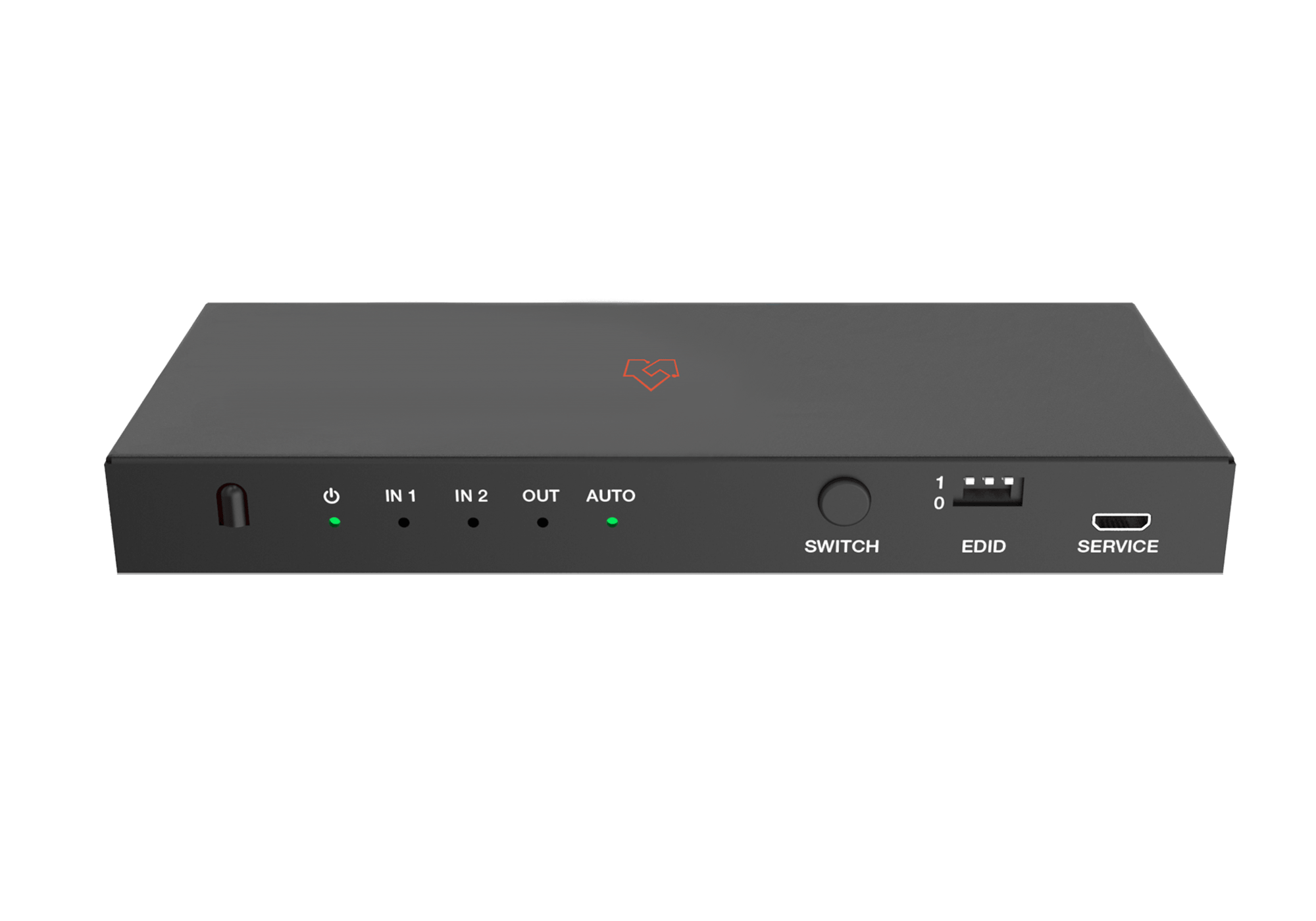

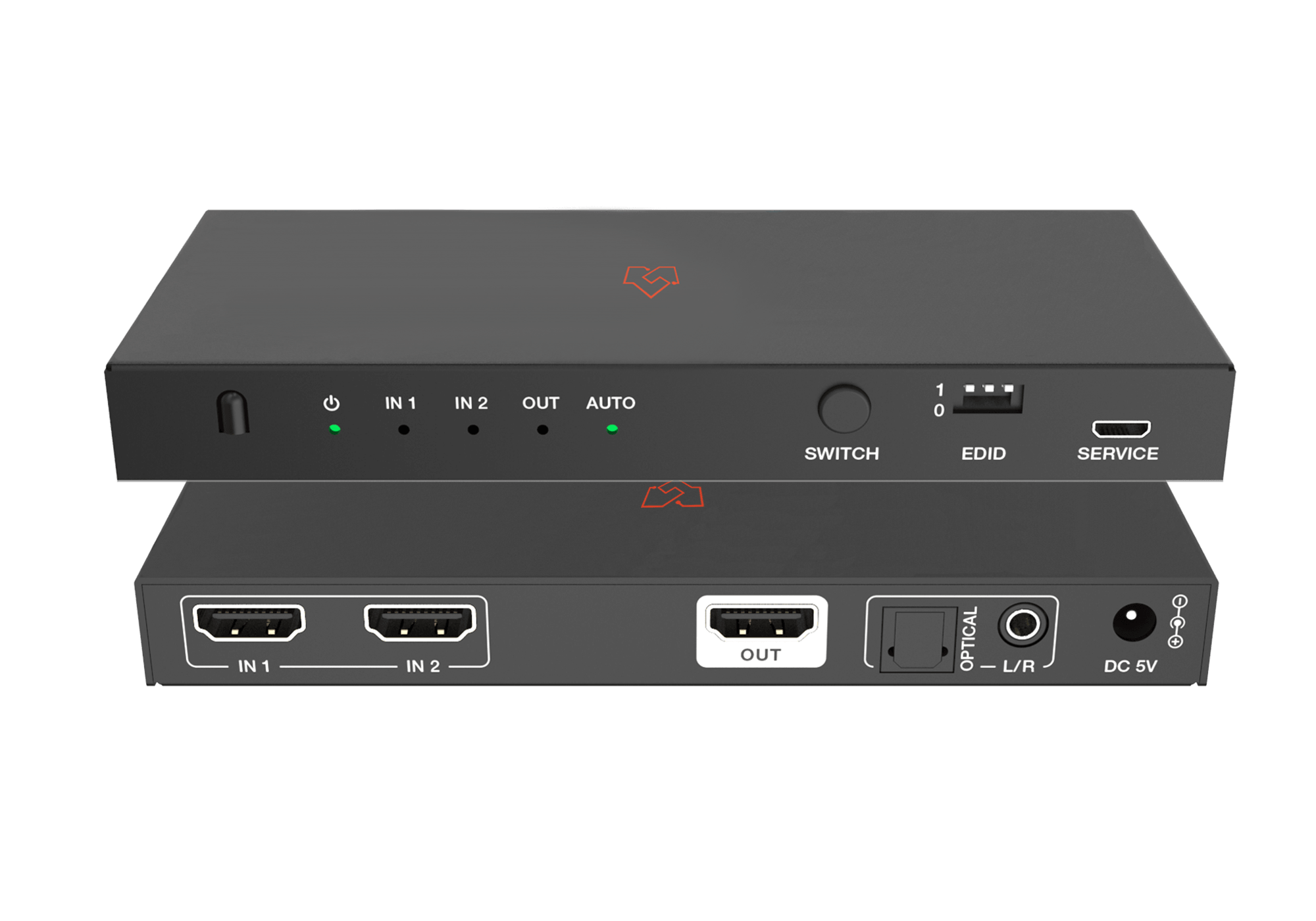

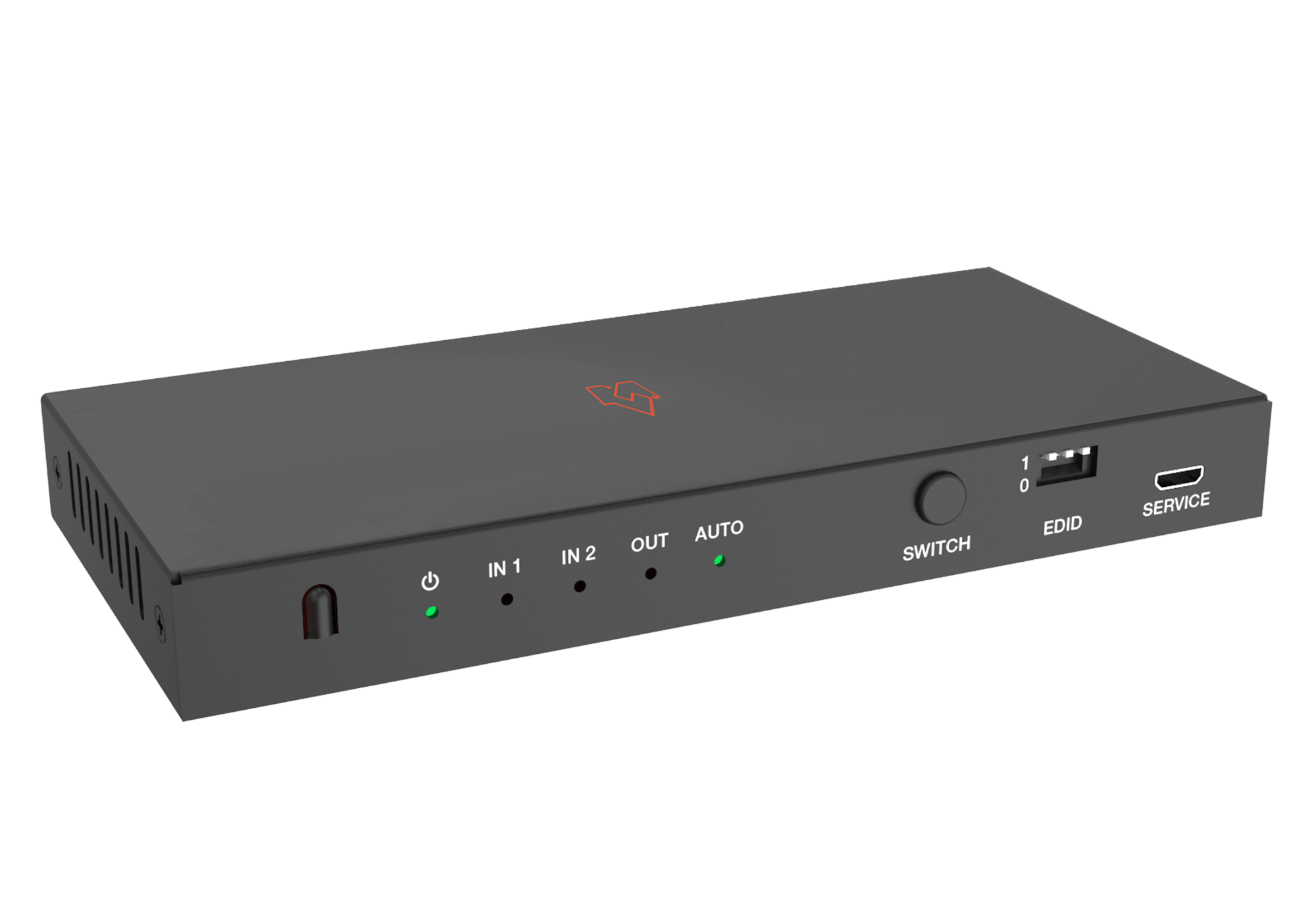

The VigilLink VLSW-21H21A is a versatile 2x1 HDMI switcher that allows seamless switching between two HDMI sources to a single HDMI display. Supporting ultra-high resolutions up to 8K@60Hz (4:2:0), this switcher delivers crystal-clear visuals for high-performance AV applications.
With advanced EDID management for enhanced display compatibility and audio de-embedding via optical and analog outputs, it ensures both video and audio are handled with professional precision.
Ideal for presentations, video conferencing, multimedia classrooms, and large-screen environments, the VLSW-21H21A is engineered for reliability and smooth switching in today’s dynamic AV systems.
Key Features
HDMI 2.1 and HDCP 2.3 compliant
Supports 48Gbps video bandwidth
Video resolution up to 8K@60Hz 4:2:0 10-bit, 8K@30Hz 4:4:4 10-bit, and 4K@120Hz 4:4:4 10-bit
VRR, FVA, and ALLM supported
HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through
HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Built-in equalizer, retiming, and driver
Advanced EDID management
Audio de-embedding via optical and analog ports
Control via IR remote and front-panel button
Compact design for easy, flexible installation
Downloads
Specifications
| Technical | ||||
|---|---|---|---|---|
| HDMI Compliance | HDMI 2.1 | |||
| HDCP Compliance | HDCP 2.3 | |||
| Video Bandwidth | 48Gbps | |||
| Video Resolution | Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit | |||
| Color Depth | 8/10/12-bit | |||
| Color Space | RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 | |||
| Audio Formats |
HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Audio De-embedded Output: Optical: LPCM 2.0CH/Dolby/DTS 5.1CH Analog: LPCM 2.0CH |
|||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | |||
| Connection | ||||

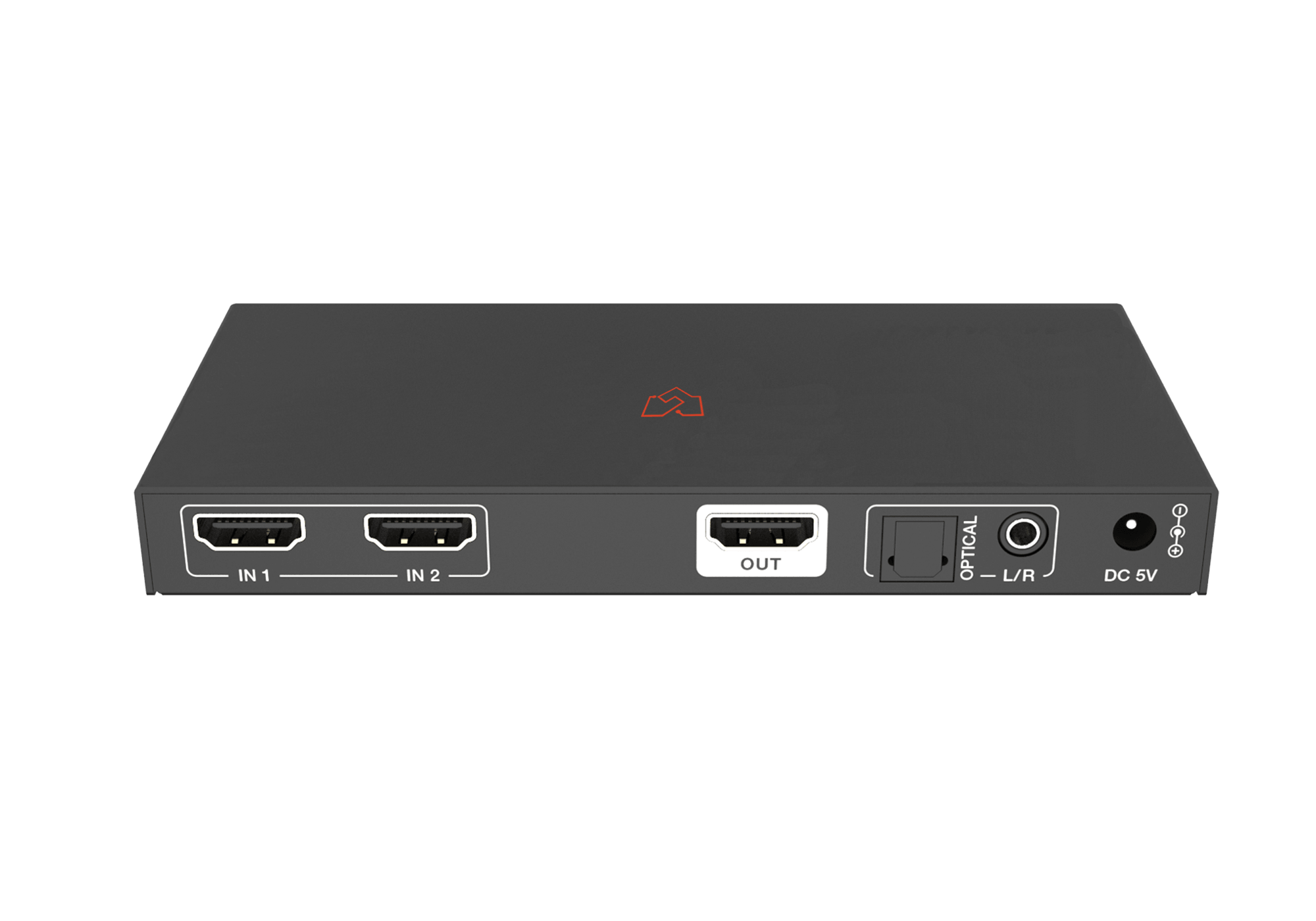

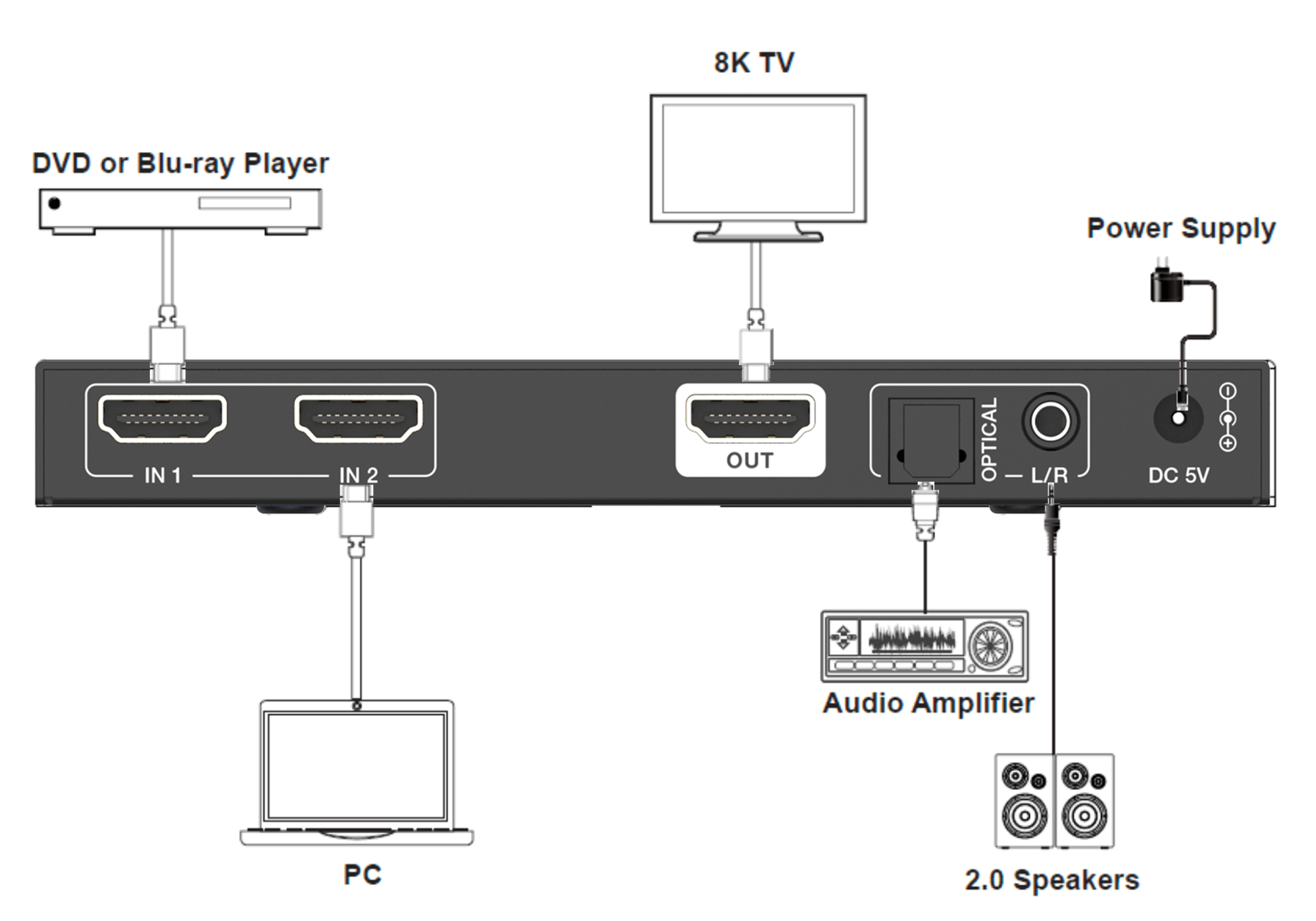

| Input | 2 × HDMI IN [Type A, 19-pin female] | |||
| Output | 1 × HDMI OUT [Type A, 19-pin female] 1 × OPTICAL [S/PDIF] 1 × L/R [3.5mm Stereo Mini-jack] |
|||
| Control | 1 × SERVICE [USB Type C, Update port] | |||
| Mechanical | ||||
| Housing | Metal enclosure | |||
| Color | Black | |||
| Dimensions | 145mm (W) × 68mm (D) × 17mm (H) | |||
| Weight | 268g | |||
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified) |
|||
| Power Consumption | 5.25W (Max) | |||
| Operating Temperature | 32 - 104°F / 0 - 40°C | |||
| Storage Temperature | -4 - 140°F / -20 - 60°C | |||
| Relative Humidity | 20 - 90% RH (No condensation) | |||
| Recommended HDMI Cable | ||||
| Video Resolution | 8K | 4K60 | 4K24 | 1080P |
| HDMI Cable Type | Ultra HDMI 2.1 | HDMI 2.0 | HDMI 1.4 | HDMI 1.4 |
| HDMI Cable Length (HDMI IN / OUT) |
3m/10ft | 8m/26f | 12m/39ft | 15m/49ft |
| The use of the “Premium High-Speed HDMI” is highly recommended. | ||||
