2x2 XLR Audio Bridge with Dante® and PoE

VLDT-XL22DB

  • 2x2 Dante audio bridge with XLR/TRS inputs and XLR outputs

  • Integrated DSP with gain, 8-band PEQ, and delay control

  • Dual Dante network support with redundancy for mission-critical applications

  • Flexible powering via PoE+ or local DC supply for versatile installation

Where to Buy

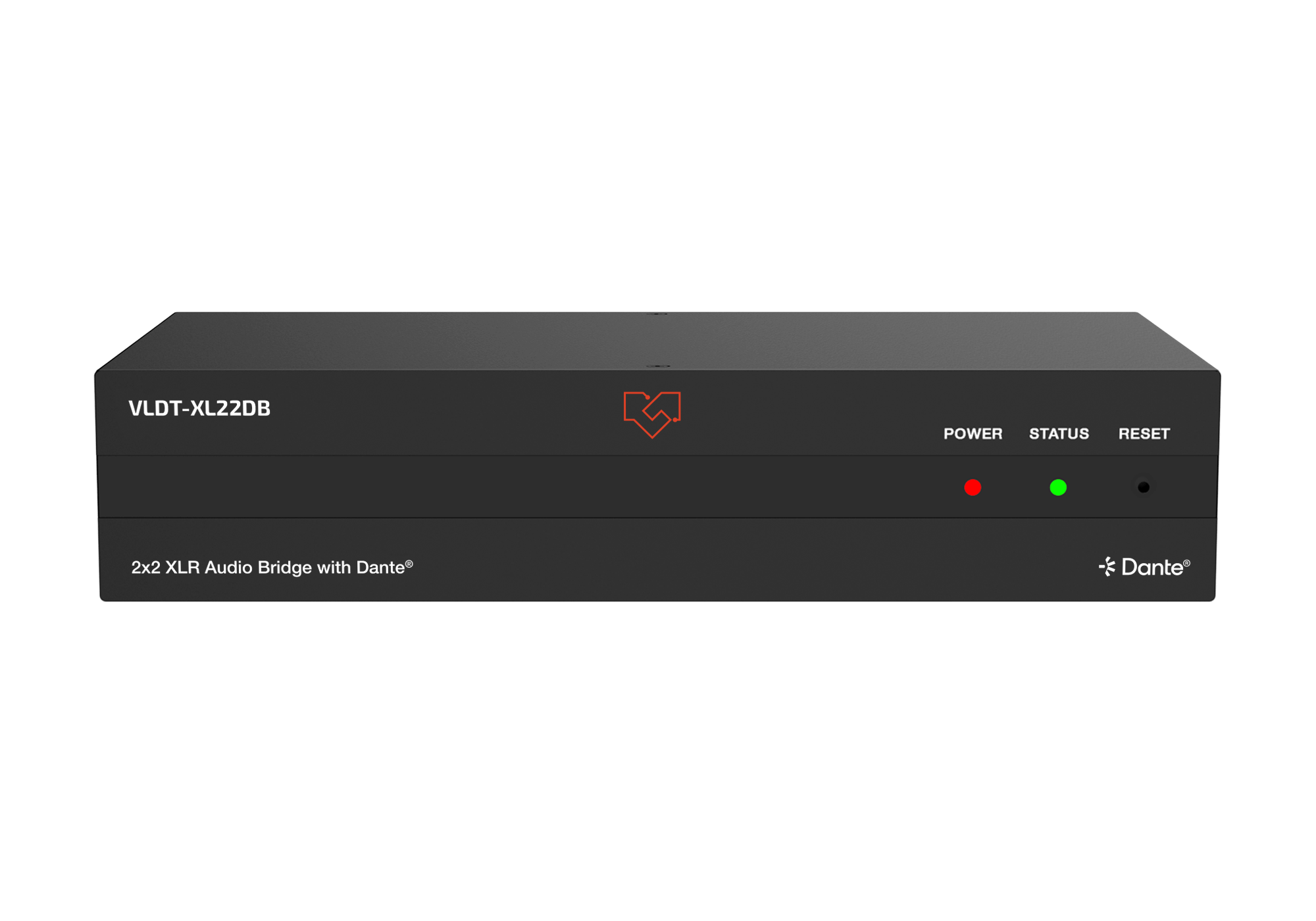

Product Description

The VLDT-XL22DB is a Dante®-enabled 2x2 audio bridge that converts analog audio signals to and from the Dante® network standard. Built on the DEP (Dante Embedded Platform) architecture, this compact unit handles up to 2 analog inputs and 2 analog outputs. The analog inputs utilize XLR/TRS combo jacks supporting both balanced and unbalanced connections, with 48V phantom power and 6-level sensitivity adjustment available. Analog outputs offer 5-level gain control for precise signal management.

Integrated DSP provides comprehensive audio processing including gain control, equalization, and delay adjustments. Configuration is straightforward through either the built-in web GUI or standard Dante® Controller software.

The unit supports both primary and secondary Dante® networks for enhanced redundancy and reliability. Power options include PoE (Power over Ethernet) or local DC supply, providing flexible installation choices. This compact 1U rack-mountable unit delivers an efficient solution for professional AV installations, integrating easily with diverse audio equipment while dramatically reducing system cabling complexity.

Key Features

  • 2x balanced analog inputs on XLR, supporting XLR/TRS combo connection

  • 2x balanced analog outputs on XLR

  • Dante® 2x2 and AES67 audio input/output supported

  • Supports balanced/unbalanced analog audio input and output

  • 2x RJ45 Dante® connectors with redundancy, supporting Dante® primary and backup networks

  • Each input supports +48V phantom power

  • Adjustable global 0dBFS line up selection (-35dBV/-18dBV/0dBV/+4dBu/+14dBu/+24dBu)

  • Built-in audio DSP processing for sensitivity, gain, 8-band PEQ and delay control

  • Audio input and output support 8 band PEQ adjustment (with +15dB/-15dB gain), and a maximum of 50ms delay setting

  • Dante® audio supports: 44.1kHz, 48kHz, 88.2kHz, and 96kHz sampling rates @ 16/24bit

  • Dante® audio delay supports settings of 5 or 10ms

  • Configuration using internal Web GUI or Dante® Controller

  • Power via PoE and local DC power supply

  • Compact form factor

Downloads

VLDT-XL22DB DATA SHEET (PDF)
VLDT-XL22DB USER MANUAL (PDF)

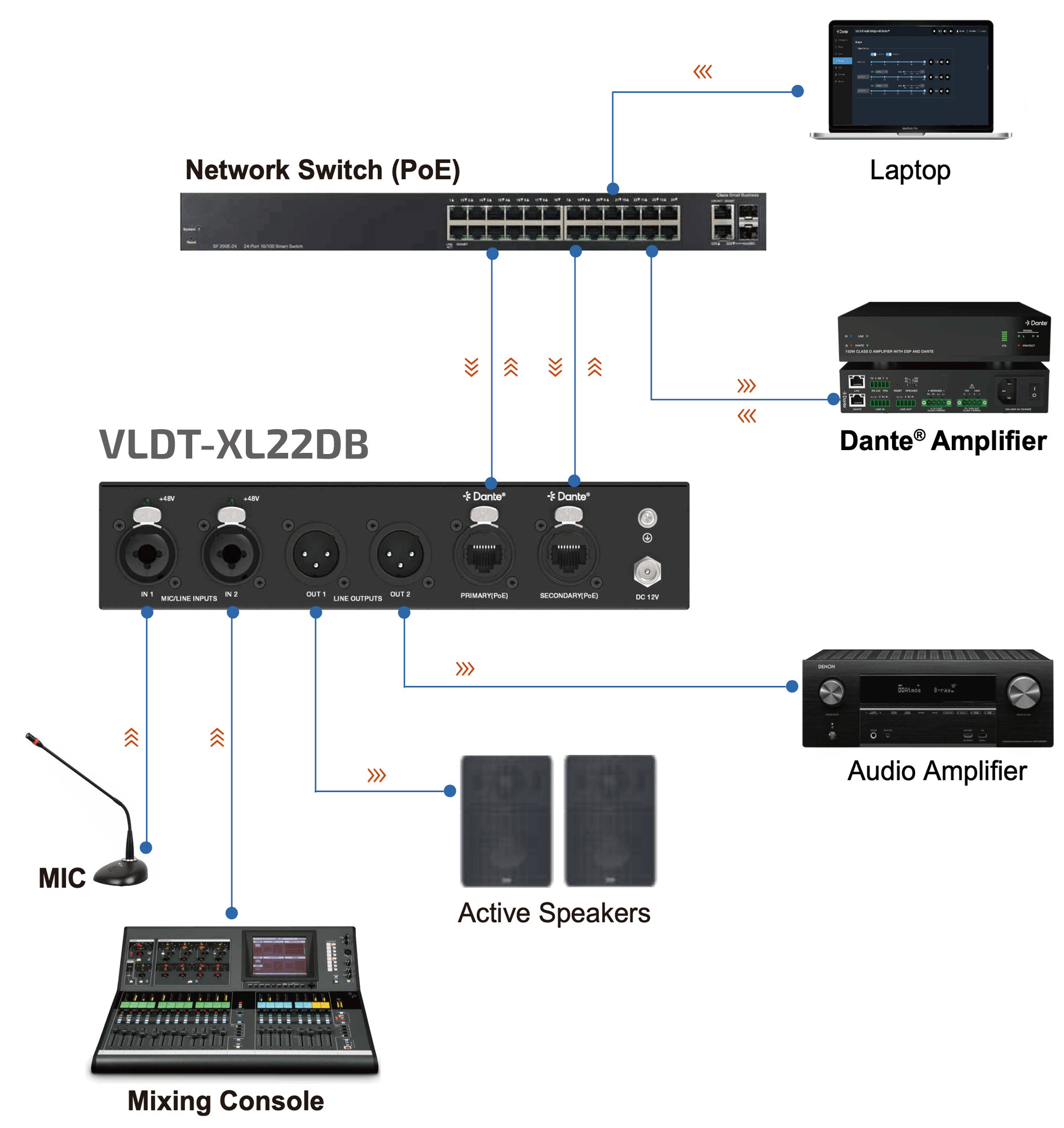

Ideal Applications

Professional Corporate AV Systems

Perfect for modern corporate meeting rooms and conference centers integrating analog microphones, wireless receivers, or legacy audio equipment into a Dante® network infrastructure. Connect wireless mic receivers or podium microphones to your networked DSP, mixer, or recording system while maintaining centralized control. The dual network redundancy ensures uninterrupted audio during critical presentations and video conferences, while PoE+ power eliminates the need for separate power outlets at podium or table locations.

Live Sound & Concert Venues

Essential for live performance environments where analog stage equipment needs to interface with a Dante® network backbone. Connect stage microphones, DI boxes, or instrument preamps to your digital mixing console over standard network cabling, reducing stage box requirements and simplifying cable runs. The 8-band parametric EQ on each input allows for precise tonal shaping before signals reach the mix console, while configurable delay compensation ensures perfect time alignment across your system.

Broadcast & Production Studios

Ideal for radio stations, podcast studios, and video production facilities requiring reliable analog-to-Dante® conversion with professional DSP. Interface legacy broadcast consoles, analog microphone preamps, or outboard processing gear with modern Dante®-based infrastructure. The dual network configuration provides broadcast-critical redundancy, automatically switching to the secondary network if the primary fails, ensuring uninterrupted on-air operation.

Houses of Worship

Designed for churches, temples, and religious facilities integrating traditional audio systems with modern networked AV. Connect pulpit microphones, choir mics, or instrument inputs to your Dante® network for distribution to multiple zones, streaming systems, and recording equipment. The compact half-rack form factor fits easily in podiums or wall-mounted racks, while phantom power support accommodates condenser microphones without additional equipment.

Educational Institutions

Perfect for schools, universities, and training facilities requiring flexible audio routing between classrooms, lecture halls, and control rooms. Bridge analog sources like podium microphones, document cameras with audio, or legacy PA systems to a centralized Dante® network for recording lectures, streaming classes, or routing to multiple rooms. PoE+ power simplifies installation in classrooms where power outlet access is limited, reducing installation complexity and cost.

Specifications

Technical
Network Bandwidth Dante® Network 1000M
Audio Latency • Configurable Dante® device latency: (Supports 5 or 10ms configurable using Dante® Controller)
• Configurable analogue output latency: (0~50ms)
Audio Format • Dante® [Dante/AES67 digital audio in/out, PCM 2CH 44.1K-96kHz 16/24Bit]
• LINE IN [Analog audio, Balanced/unbalanced, Max input level 24dBu]
• MIC IN [Analog audio, Balanced/unbalanced, Min input level -35dBV]
• LINE OUT [Analog audio, Balanced/unbalanced, Max output level 20dBu, Min output level -18dBu]
LINE/MIC INPUT AUDIO
Input Impedance • 20K Ohm balanced
• 10K Ohm unbalanced
Input Level • Max 24dBu (12.28Vrms) @ balanced line audio
• Max 18dBu (6.14Vrms) @ unbalanced line audio
• Min -35dBV (17.78mVrms) @ balanced mic audio
LINE OUTPUT AUDIO
Output Impedance • 600 Ohm balanced
• 300 Ohm unbalanced
Output Level • Max 20dBu (7.75Vrms) @ balanced audio
• Max 14dBu (3.875Vrms) @ unbalanced audio
Frequency Response 20Hz to 20kHz (-/+0.5dB)
Dynamic Range >90dB@0dBu, 1kHzA-weighted
Audio S/N Ratio >90dB@0dBu, 1kHzA-weighted
Audio THD+N < 0.01% at +4dBu, 1KHz
Audio Output Delay <1ms
Transmission Distance 328ft/100m (CAT6/6A/7)
ESD Protection IEC 61000-4-2: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)

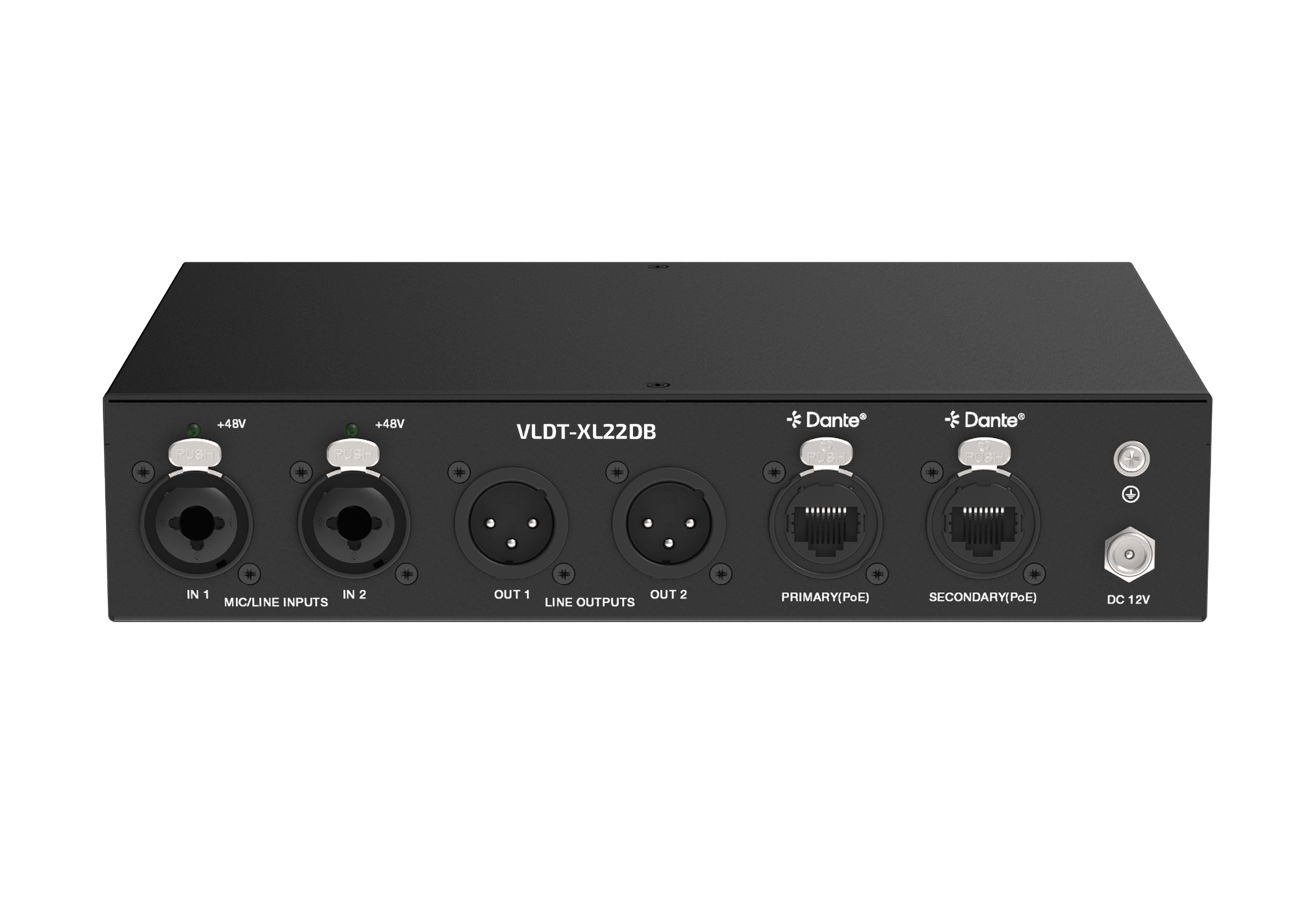

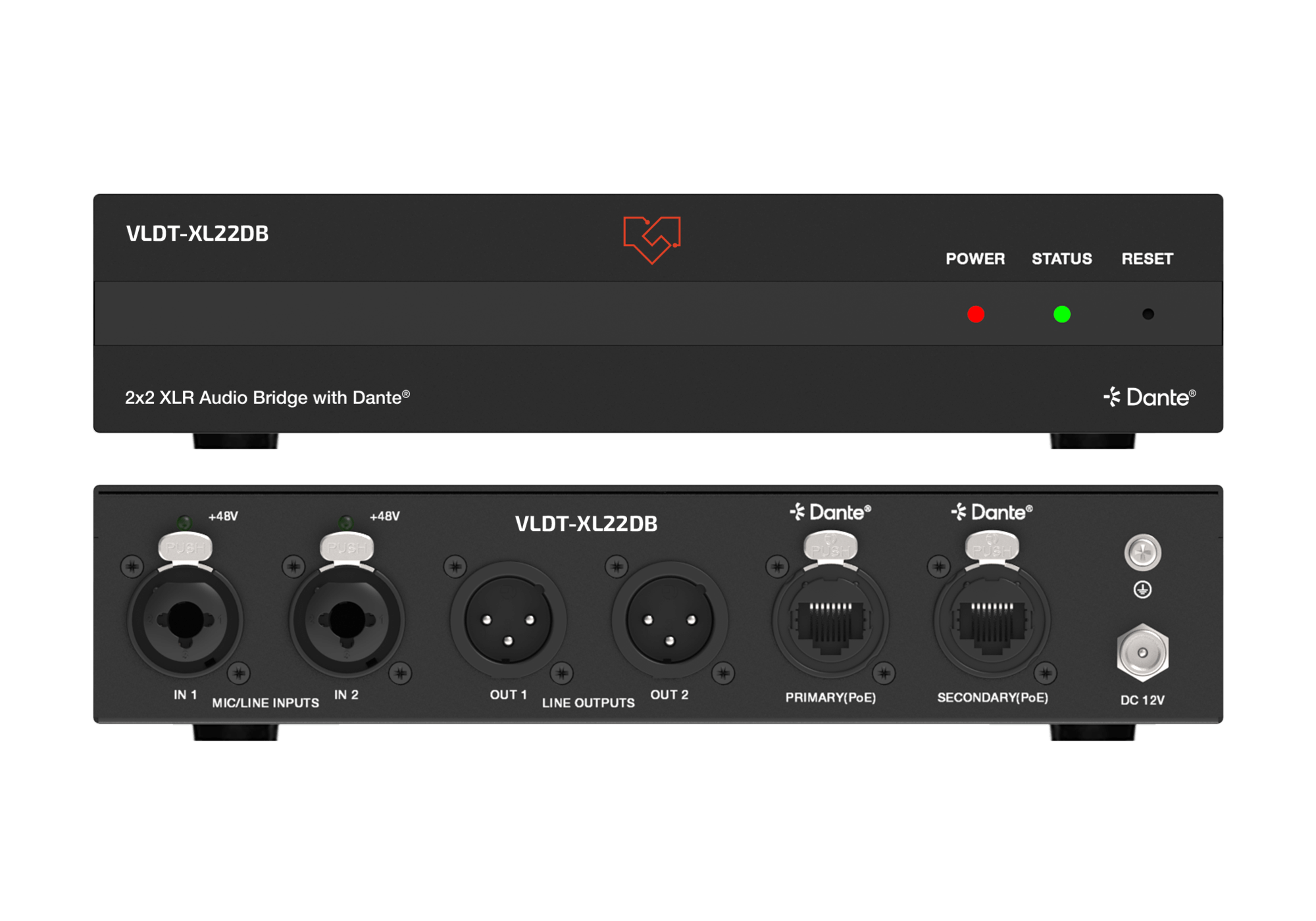

Connections
2x MIC/LINE INPUTS [XLR/TRS Combo, female] [Line analog audio, Max input level 24dBu]
[Mic analog audio, Balanced/unbalanced 2CH, Min input level -35dBV]
2x LINE OUTPUTS [XLR, male]
[Analog audio, Balanced/unbalanced 2CH, Max output level 20dBu]
1x DANTE PRIMARY [RJ45 locking connector, PoE+/PD (Class 4 IEEE 802.3at)] [Dante/AES67 digital audio in/out, PCM 2CH 44.1K-96KHz 16/24Bit, Web GUI and TCP/IP]
1x DANTE SECONDARY [RJ45 locking connector]
[Dante/AES67 digital audio in/out, PCM 2CH 44.1K-96KHz 16/24Bit] 1x DC 12V IN [2-pin DC Locking Power Jack, max 1A]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions 210mm [W]×150mm [D]×44mm [H]
Weight 0.9kg
Power Supply • (1) 12V/1A 2PIN Locking Power Supply
• (2) PoE+/PD (Class 4 IEEE 802.3at)
Power Consumption 5.4W (Test with 1Hz sine wave)
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Operating Humidity 20%~80% (relative humidity, non-condensing)
Storage Humidity 10%~90% (relative humidity, non-condensing)

What’s in the Box

  • 1 × VLDT-XL22DB 2x2 Dante Audio Bridge

  • 1 × 12V/1A 2-Pin Locking Power Supply

  • 1 × Rack Mount Brackets (half-rack)

  • 1 × User Manual

Frequently Asked Questions

Does the VLDT-XL22DB work with non-Dante audio equipment?

Yes, that's its primary purpose. The VLDT-XL22DB bridges analog audio equipment (microphones, mixers, wireless receivers, legacy gear) with Dante® network infrastructure. It converts analog XLR/TRS signals to Dante® digital audio and vice versa, allowing you to integrate traditional analog equipment into a modern networked AV system.

What is the difference between primary and secondary Dante networks?

The VLDT-XL22DB features dual Dante® network connections for redundancy. The primary network handles all audio traffic during normal operation. If the primary network fails (cable damage, switch failure, etc.), the unit automatically switches to the secondary network, ensuring uninterrupted audio in mission-critical applications like live events, broadcast, or corporate presentations.

Can I use this with Shure wireless microphone receivers?

Yes, the VLDT-XL22DB is perfect for connecting Shure wireless receivers (or any brand) to a Dante® network. Connect the receiver's XLR or TRS outputs to the VLDT-XL22DB inputs, and the audio is immediately available on your Dante® network. You can route it to mixing consoles, DSPs, recorders, or any other Dante®-enabled device. The adjustable input sensitivity accommodates both line-level and microphone-level signals.

Do I need phantom power for dynamic microphones?

No, phantom power (+48V) is only required for condenser microphones that need external power. Dynamic microphones (like Shure SM58, SM57) do not require phantom power and will work fine with it turned off. The VLDT-XL22DB allows you to enable/disable phantom power on each input independently, so you can use condenser mics on one input and dynamic mics on the other.

What DSP processing is available on the VLDT-XL22DB?

The integrated DSP provides comprehensive signal processing on both inputs and outputs: adjustable gain control, 8-band parametric equalizer with ±15dB gain per band (allowing precise frequency shaping), and up to 50ms of delay compensation for time alignment. All processing is configured through the web GUI or Dante® Controller, with settings stored in the device memory.

Can I power this unit using PoE instead of the DC adapter?

Yes, the VLDT-XL22DB supports PoE+ (IEEE 802.3at, Class 4) power through the primary Dante® network port. This eliminates the need for a separate power supply, simplifying installation in locations where AC outlets are limited or difficult to access. You can also use the included 12V DC power supply if PoE is unavailable. The unit automatically detects which power source is available.

Is the VLDT-XL22DB compatible with AES67 devices?

Yes, the VLDT-XL22DB supports both Dante® and AES67 audio protocols. AES67 is an interoperability standard that allows different networked audio systems to communicate. This means you can use the VLDT-XL22DB in mixed environments with devices from different manufacturers that support AES67, ensuring compatibility across diverse networked audio ecosystems.

What is the maximum distance I can run Dante network cables?

Dante® audio operates over standard Gigabit Ethernet, allowing cable runs up to 100 meters (328 feet) using Cat6, Cat6A, or Cat7 network cables. For longer distances, you can use Ethernet switches to extend the network. The dual network ports on the VLDT-XL22DB allow you to daisy-chain units or create redundant network paths for enhanced reliability.
