1G 4K30 4:4:4 / 4K60 4:2:0 AVoIP Transmitter w/USB, KVM, VGA
VLIP-VGH1G-ENC
4K UHD AVoIP transmitter extending HDMI or VGA with audio, USB, and KVM over TCP/IP on Cat5e/6/7, up to 328ft (100m) per segment
Accepts up to 4K@30 4:4:4 or 4K@60 4:2:0 input; HDMI output up to 4K@30 (RGB 8-bit) plus a VGA output up to WUXGA
Unicast and multicast modes for one-to-many distribution and video walls with 180/270-degree rotation, plus 3 LAN ports to daisy-chain receivers without an external switch
USB keyboard/mouse/storage KVM, bidirectional IR and RS-232 pass-through, analog audio in/out, HDCP 1.4/2.2, and PoE (802.3af) or 5V DC power
Product Description

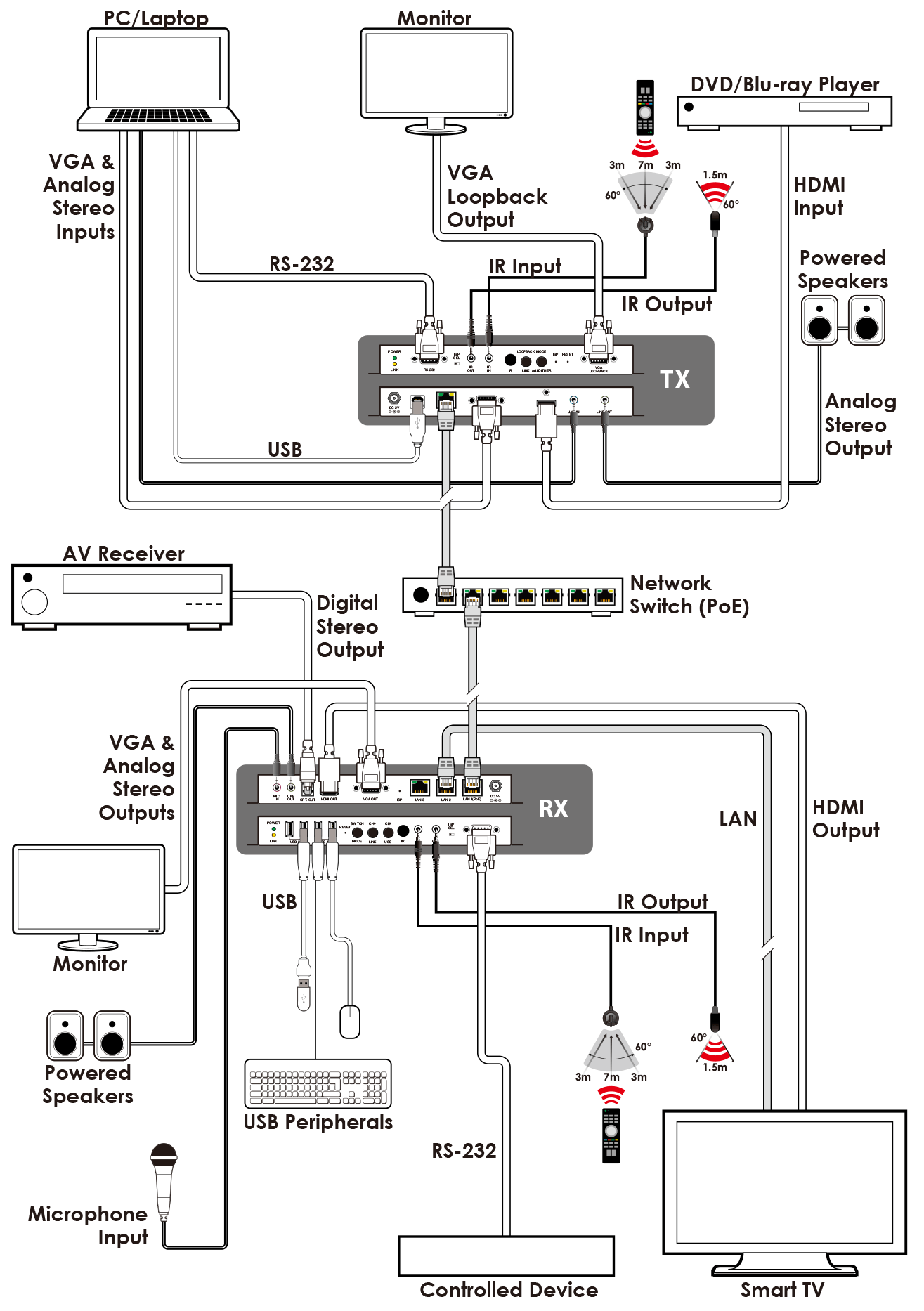

VLIP-VGH1G-ENC is part of a 4K UHD multi-function extension system that allows you to extend an HDMI signal along with KVM using the TCP/IP protocol over regular Cat.5e/6/7 network cable. This extender supports the transmission of Ultra High-Definition signals (up to 4K@30Hz RGB) with audio and USB up to 100m over a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay.
When the extension system's units are in multicast mode, a single transmitter’s AV signal can be sent to a large number of receivers within the same local network (unicast limits extension routing to point-to-point only). Additionally, that same multicast signal can be used to create large multi- display video walls with amazing simplicity. When combined with the optional IP Master Controller the functionality of the system expands exponentially. Its centralized web-based interface greatly simplifies control and management of large distributed video matrix or video wall systems adding to their flexibility in large home or commercial installations.
This system also features bi-directional IR and RS-232 pass-through, analog line level in/out, and a microphone input (on the receiver), providing the user with a variety of audio options. The USB functionality allows the system to act like a remote USB hub which provides a flexible remote KVM platform.
Configuration information is provided via On Screen Display (OSD) and control is by WebGUI, IP Master Controller, Telnet, and front panel controls.
Key Features
HDMI 2.0 and DVI 1.0 compliant
HDCP 1.4 & 2.2 compliant
1×HDMI input
HDMI input supports resolutions up to 4K@60Hz (4:4:4, 8-bit); Note: 4K@50/60Hz (4:2:0) sources are automatically converted to 4K@25/30Hz (RGB) and 4K@50/60Hz (4:4:4) sources are automatically converted to 1080p@50/60Hz (RGB) prior to transmission from the transmitter.
Supports the extension of many audio formats including 8 channel LPCM and standard Bitstream
Supports independent breakaway A/V and control matrix routing
The analog Line In can be automatically embedded into the streaming output and can be independently routed to any receiver
May be powered directly by PoE when connected to a Gigabit Ethernet switch that provides PoE (802.3af)
Supports USB host device extension allowing the remote connection of a keyboard, mouse or storage
Supports IR and RS-232 bypass
Supports the use of an external control center (IP Master Controller) to provide expanded functionality (Contact your authorized dealer for more information)
Basic control via front panel buttons, or can be fully controlled via WebGUI, IP Master Controller, and Telnet
Downloads
Specifications
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| Video | ||
| HDMI Compliance | 2.0 (DVI 1.0) | |
| HDCP Compliance | 2.2 | |
| Input Signal Types | 4K@60 8-bit YUV 4:2:0 | |
| Output Signal Types | 4K@60 8-bit YUV 4:2:0 | |
| Resolutions | ||
| Maximum Input | HDMI | 4096×2160p@60 |
| Maximum Output | Cat.5e/6/7 VGA |
4096×2160p@60 1920×1200p@60RB |
| Audio | ||
| Input Signal Types | HDMI, Unbalanced Stereo | |
| Output Signal Types | Unbalanced Stereo | |
| Digital Formats | HDMI 2CH LPCM, 8CH LPCM, Standard Bitstream | |
| CONNECTIONS | ||

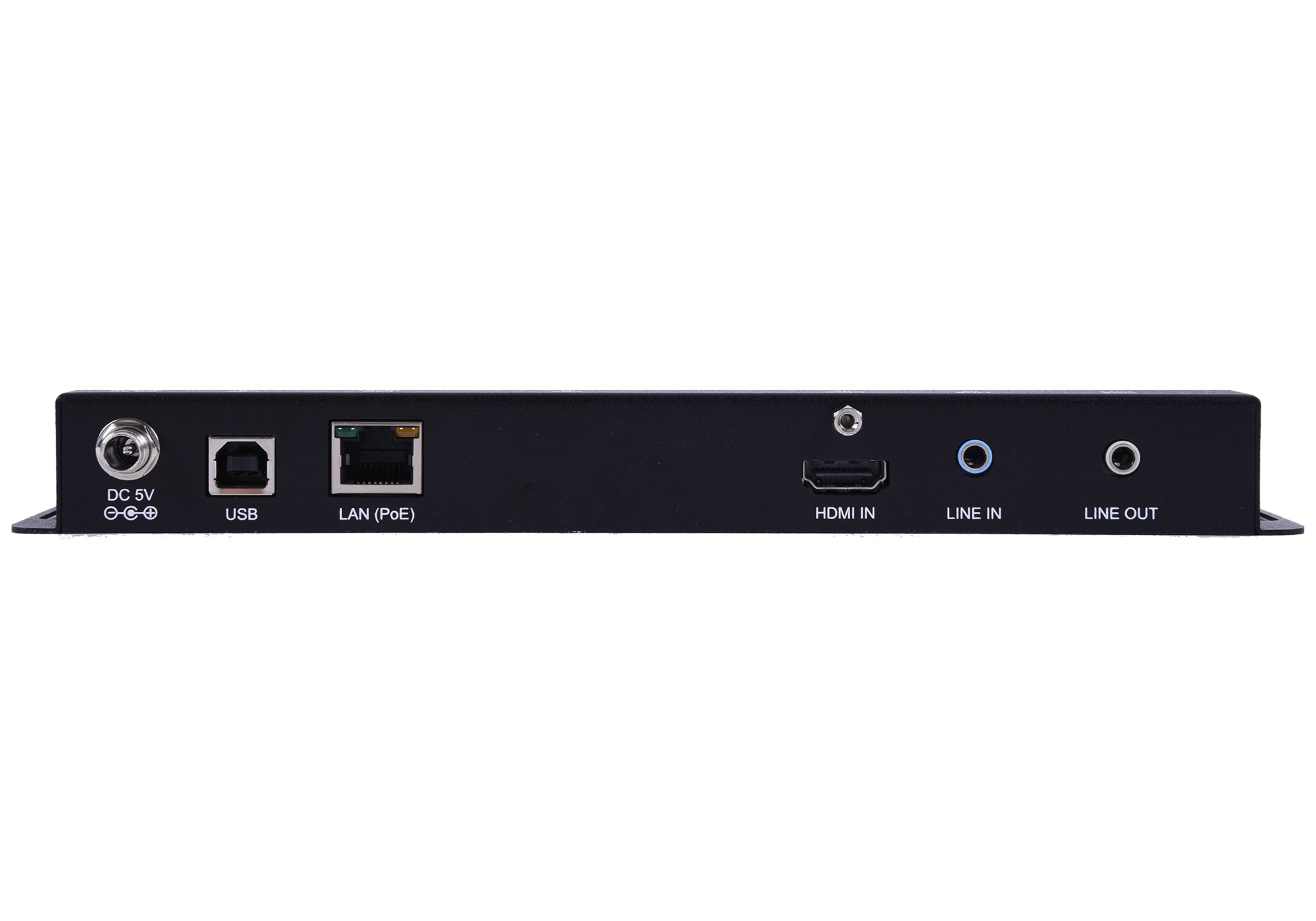

| Input Port | 1 HDMI (Type-A) 1 Unbalanced Stereo (3.5mm) |
|
| Output Port | 1 Cat.5e/6/7 (RJ45) 1 Unbalanced Stereo (3.5mm) 1 VGA |
|
| Control I/O | 1 USB Type-B 1 IR Extender [3.5mm] 1 IR Blaster [3.5mm] 1 RS232 |
|
| MECHANICAL SPECIFICATIONS | ||
| Housing Construction | Metal (Steel) | |
| Device Dimension (W x H x D) | 231.5mm×25mm×108mm (W×H×D) [Case Only] 231.5mm×25mm×120mm (W×H×D) [All Inclusive] |
|
| Weight | 660g | |
| Power Supply | PoE or 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) | |
| Power Consumption | 7.15W | |
| Operating Temperature | 0˚C – 50˚C/32˚F – 122˚F | |
| Storage Temperature | -20˚C – 60˚C/-4˚F – 140˚F | |
| Relative Humidity | 20 – 90% RH (Non-condensing) | |
| ESD Protection | Human Body Model: ±12kV (Air Discharge) ±8kV (Contact Discharge) |
|
