Home > AVoIP Solutions > JPEG2000 > VLIP-VGH1G-DEC
1G 4K30 4:4:4 / 4K60 4:2:0 AVoIP Receiver with USB, KVM, VGA
VLIP-VGH1G-DEC
4K UHD AVoIP receiver extending HDMI or VGA with audio, USB, and KVM over TCP/IP on Cat5e/6/7, up to 328ft (100m) per segment
Accepts up to 4K@60 4:2:0 streams; HDMI output up to 4K@30 (RGB 8-bit) with selectable scaling, plus a VGA output up to WUXGA
Unicast, multicast, and many-to-many modes for one-to-many distribution and video walls with 180/270-degree rotation, plus 3 LAN ports to daisy-chain receivers without an external switch
USB keyboard/mouse/storage KVM, IR and RS-232 pass-through, analog audio and mic paths, S/PDIF optical output, and 5V/4A DC power
Product Description
VLIP-VGH1G-DEC is part of a 4K UHD Multi-Function Extension system that allows you to extend HDMI or VGA signals along with KVM using the TCP/IP protocol over regular CAT5e/6/7 network cable. This extender supports the transmission of UHD signals (up to 4K@30Hz YUV 4:4:4 or 4K@60Hz YUV 4:2:0) with audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay.
It is also possible to have the extension system's Transmitter operate in multicast mode, allowing you to send a single AV signal to a large number of Receivers within the same local network. Additionally, that same multicast signal can be used to create large multi-display video walls with amazing simplicity. This system is perfect for both residential and commercial installation environments.
This system also features bi-directional IR and RS-232 pass-through, analog line level in/out, and a microphone input (on the Receiver), providing the user with a variety of audio options. The USB functionality allows the system to act like a remote USB hub which, when combined with the VGA input/output feature, provides a flexible remote KVM platform. Configuration information is provided via On Screen Display (OSD) and control is by WebGUI, Telnet, and front panel controls.
Key Features
HDMI 2.0 and DVI 1.0 compliant
HDCP 1.4 & 2.2 compliant
1×HDMI output, 1×VGA output
Video, audio and control transmission over TCP/IP in Unicast (point-to- point) or Multicast (single-to-many) modes
Multi-monitor video wall support with 180° and 270° rotation options
HDMI output resolutions up to 4K@30Hz (RGB, 8-bit); Note: 4K@50/60Hz (YUV 4:2:0) sources are automatically converted to 4K@25/30Hz (RGB) for output
VGA output resolutions up to WUXGA (RB)
Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, and Bitstream over HDMI; Note: The optical output on Receivers can only support LPCM 2.0 & Bitstream sources.
The analog Line In on the Transmitter sends audio directly to the analog Line Out and is inserted into the HDMI output on connected Receivers
The Mic In on the Receiver sends audio directly to the analog Line Out on the Transmitter
Both Tx and Rx may powered directly by PoE when connected to a Gigabit Ethernet switch that provides PoE (802.3af)
Includes 3 LAN ports, allowing multiple Receivers to be daisy chained without the need for an external Gigabit Ethernet switch
Supports USB keyboard, mouse and storage extension
Supports IR and RS-232 bypass
Unit has an info OSD (when unlinked) and can be controlled via WebGUI, Telnet, and front panel controls
Downloads
Specifications
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| Video | ||
| HDMI Compliance | HDMI 2.0 (DVI 1.0) | |
| HDCP Compliance | 2.X | |
| Input Signal Types | 4096x2160p@60 8bit YUV4:2:0 | |
| Output Signal Types | 4096x2160p@30 8bit RGB | |
| Resolutions | ||
| Maximum Input | LAN (Streaming) | 4096×2160p@30 |
| Maximum Output | HDMI VGA |
4096×2160p@30 1920×1200p@60RB |
| Audio | ||
| Digital Formats | HDMI
Line Out / Optical Out |
LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
LPCM (2 Channels), Bitstream |
| Digital Formats | Mic In
Line Out |
300 mVrms, S/N Ratio: > 80dB (1kHz with 0dBFS)
2 Vrms, S/N Ratio: > 80dB (1kHz with 0dBFS) |

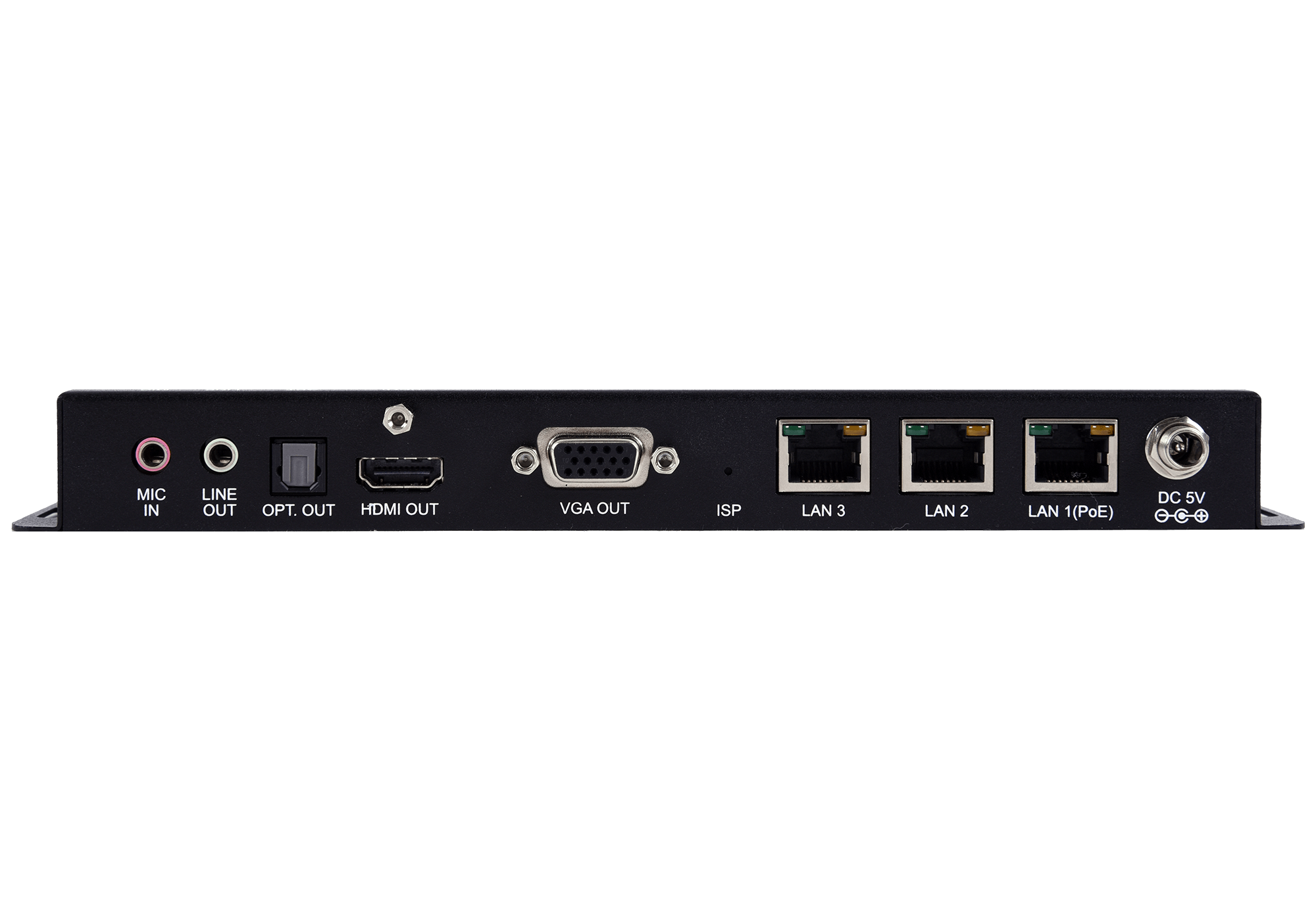

| CONNECTIONS | ||
| Input Port | 1 Analog Mono (3.5mm) | |
| Output Port | 1 HDMI (Type-A)
1 VGA (HD-15) 1 S/PDIF (TOSLINK) 1 Analog Stereo (3.5mm) |
|
| Control I/O | 3 GbE LAN (RJ-45) | Reserved Port | 1 IR Extender (3.5mm)
1 IR Blaster (3.5mm) 1 RS-232 (DB-9) 4 USB (Type-A) |
| MECHANICAL SPECIFICATIONS | ||
| Housing Construction | Metal (Steel) | |
| Device Dimension (W x H x D) | 231.5mm×25mm×108mm (W×H×D) [Case Only] 231.5mm×25mm×120mm (W×H×D) [All Inclusive] |
|
| Weight | 666g | |
| Power Supply | 5V/4A DC (US/EU standards, CE/FCC/UL certifi ed) | |
| Power Consumption | 17.68W | |
| Operating Temperature | 0˚C – 50˚C/32˚F – 122˚F | |
| Storage Temperature | -20˚C – 60˚C/-4˚F – 140˚F | |
| Relative Humidity | 20 – 90% RH (Non-condensing) | |
| ESD Protection | Human Body Model: ±12kV (Air Discharge) ±8kV (Contact Discharge) |
|
