AVoIP controller for VLIP-JP4K3K and VLIP-JP4K6K
VLIP-JP1G-CTRL
JPEG2000 AVoIP system controller managing VigilLink's JPEG2000 distribution products (VLIP-JP4K3K and VLIP-JP4K6K)
Dual 100M network ports isolating control and multicast video traffic, with PoE on the video LAN
Drag-and-drop Web GUI with image preview, HTTPS/SSH/SFTP security, and Auto/DHCP/Manual IP configuration
LAN, RS-232, and TCP/IP control with third-party integration, 12V IR input, and 4 GPIO ports (5V/12V)
Product Description

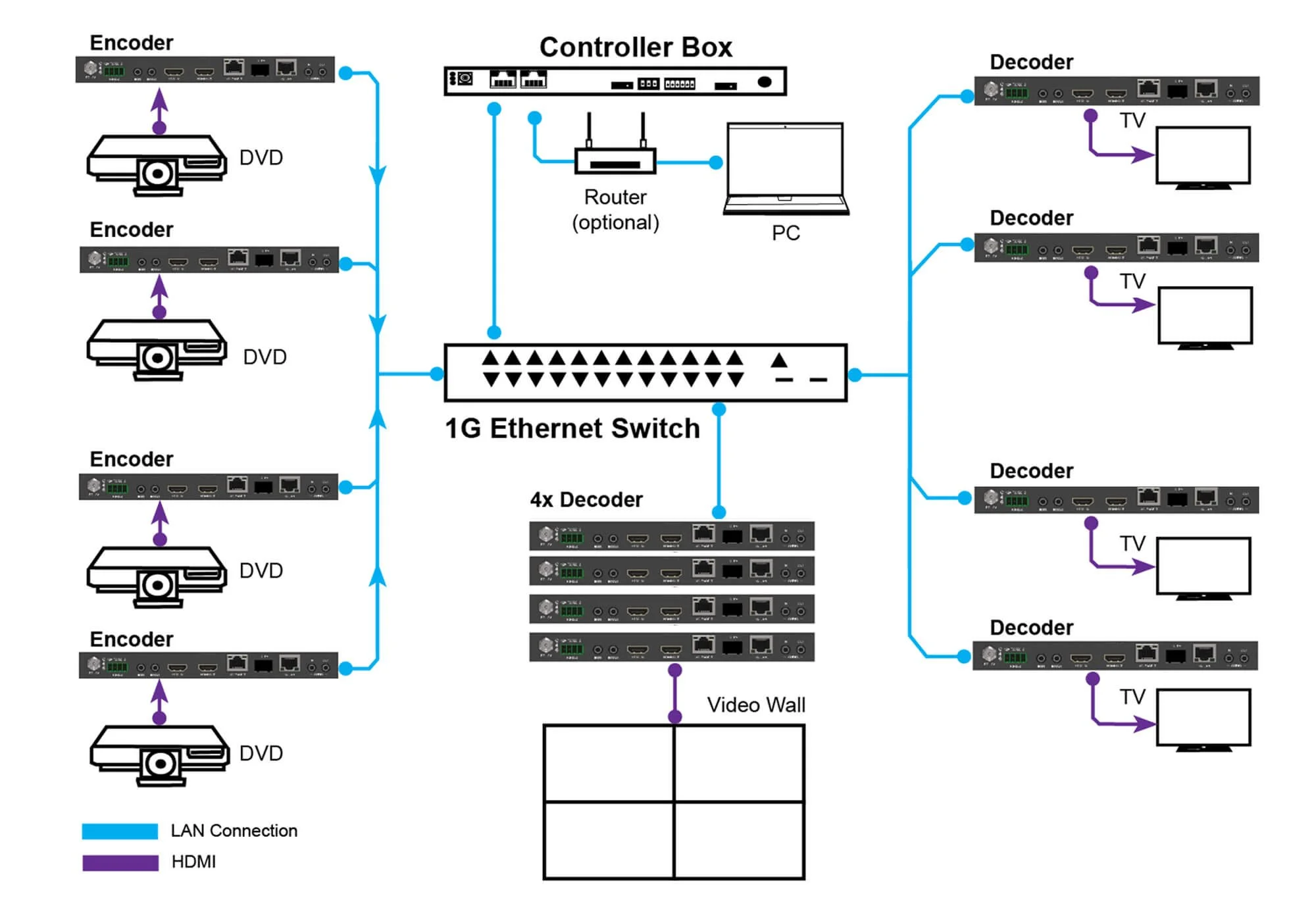

VLIP-JP1G-CTRL is a JPEG2000 AV over IP System Controller dedicated to managing and controlling VigilLink’s JPEG2000-based video distribution products with efficiency and precision. Built for scalable installations, this compact controller enables seamless system operation across dual networks, ensuring clear separation between control and multicast video traffic via its dual 100M LAN ports.
With built-in Web GUI, TCP/IP, and RS-232 control capabilities, the VLIP-JP1G-CTRL offers flexible integration with third-party systems, providing an intuitive user experience for managing devices and system layouts. Engineered with PoE support for simplified deployment and wide-band 12V IR signal reception (via 3.5mm jack), this controller supports responsive, real-time control in complex AV environments.
As the demand for JPEG2000 IP products continues to grow across industries, the VLIP-JP1G-CTRL is well-positioned to meet the evolving needs of corporate AV, control rooms, education, broadcast, and entertainment applications.
Key Features
Easy to create project, control and manage the system
Flexibly support Auto, DHCP and Manual three types of IP configurations
HTTPS, SSH, SFTP security compatible
Built-in Web GUI control interface, supporting Drag & Drop operations
Support image preview
Support video, audio, RS-232, IR, KVM, CEC control and management of the distributed system
Dual network ports (VIDEO LAN port supports POE function) to isolate Controls and Multicast networks
Support LAN/RS-232 port control and third-party central control
Support IR signal receiving (3.5mm audio jack, 12V level)
4 channel GPIO control ports (5V/12V optional level)
Multiple circuits protection, lightning protection and ESD design
Reliable system design, ensuring 24/7 stable usage
Downloads
Specifications
| Technical | |
|---|---|
| Network Bandwidth | 100M |
| Transmission Distance | 100m CAT 5E/6/6A/7 |

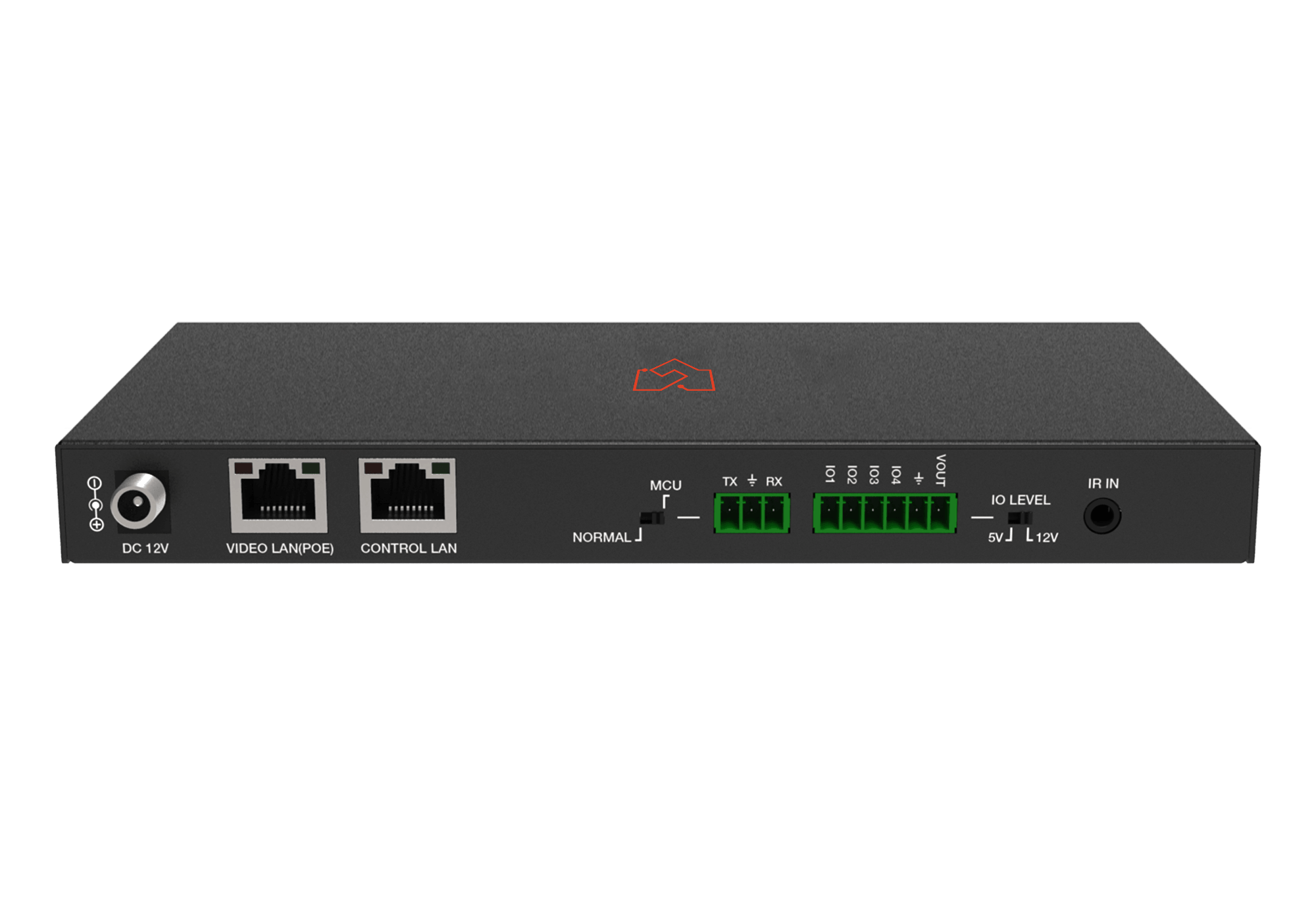

| Control Ports | 2 x 100M LAN [RJ45 connector] [VIDEO LAN support POE] 1 x IR IN [3.5mm audio jack, 12V level] 1 x DIGITAL I/O [6-pin 3.81mm phoenix connector] 1 x RS-232 [3-pin 3.81mm phoenix connector] |
| Dimensions | 204mm(W)×98mm(D)×21mm(H) |
| Housing | Metal Enclosure |
| Color | Black |
| Weight | 509g |
| Power Supply | 12V/1A |
| Power Consumption | 4.5W |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (No condensation) |
