3x1 HDMI 2.0 Switch 18Gbps

VLSW-31H20

Data Sheet

User Manual

Product Description

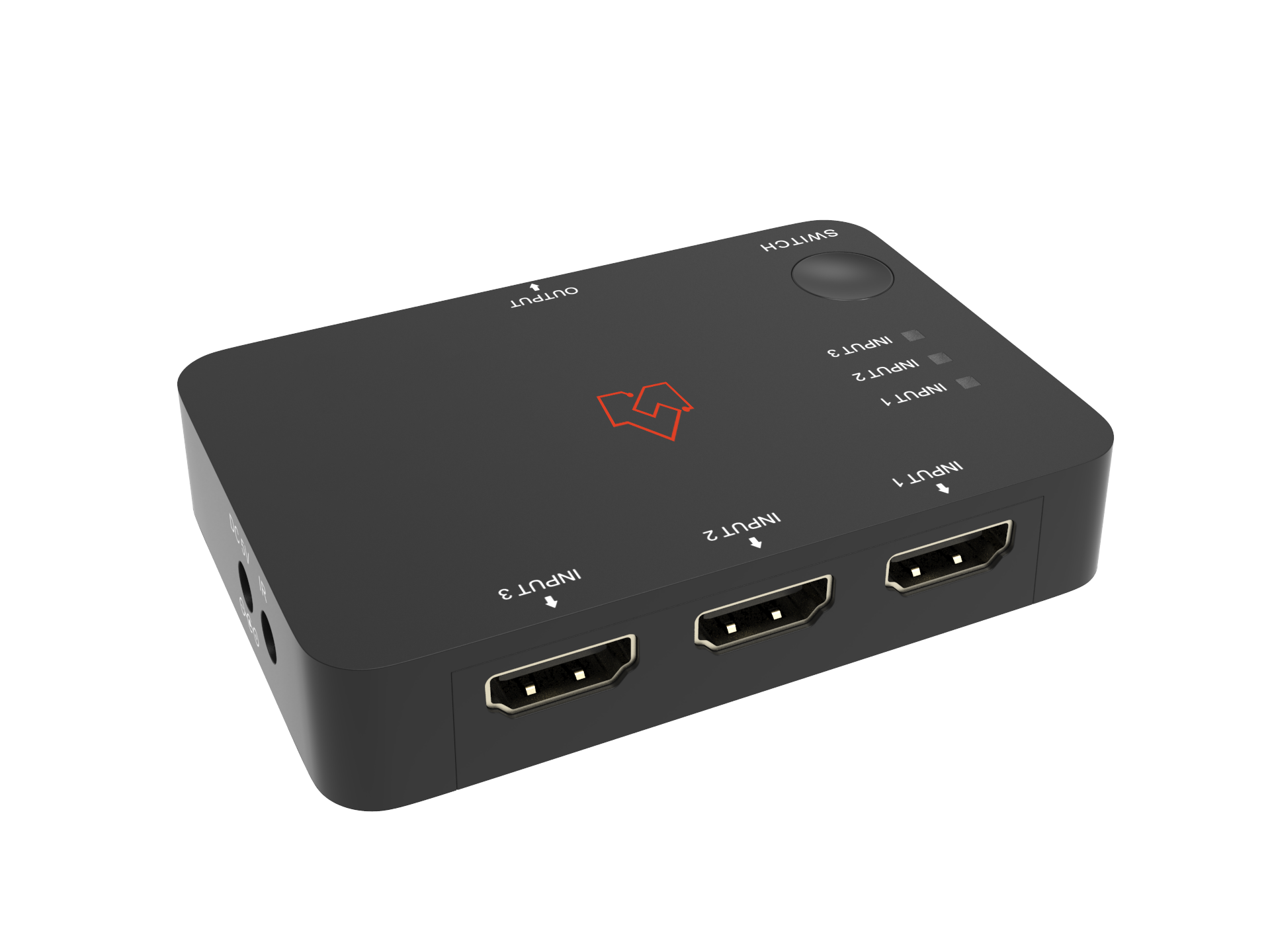

The VLSW-31H20 is a high-bandwidth 3x1 HDMI switcher that allows seamless switching between three HDMI sources to a single HDMI display. Supporting data rates up to 18Gbps and video resolutions up to 4K2K at 50/60Hz with YCbCr 4:4:4 color precision, it ensures exceptional image quality across a wide range of applications.

This switcher is compatible with advanced HDR formats, including HDR10, Dolby Vision, and HLG, providing enhanced contrast and color for a more immersive viewing experience. It also supports all HDMI 3D video formats, making it well-suited for both entertainment and professional AV environments.

With low power consumption and simple control via front panel buttons or the included IR remote, the VLSW-31H20 delivers reliable performance and user-friendly operation in a compact, efficient design.

Featured Highlights

  • HDCP 2.2/1.x and DVI 1.0 compliant

  • Supports 18Gbps video bandwidth

  • HDR, HDR10, Dolby Vision, and HLG are supported

  • Supports video resolution up to 4K2K@50/60Hz YCbCr 4:4:4

  • Supports 3D video format

  • Low power consumption

  • Supports IR remote control and panel button control

  • Compact design for easy and flexible installation

Specifications

Technical
HDCP Compliance     HDCP 2.2/1.x
Video Bandwidth     18Gbps
Video Resolution     Up to 4k2k@60Hz
Color Depth     8-bit (4K60Hz)
Color Space     RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:4:4
HDMI Audio Formats     PCM2.0/5.1/7.1CH, Dolby 5.1, DTS 5.1, Dolby True HD, DTS-HD Master Audio
ESD Protection     Human-body Model： ±8kV (Air-gap discharge) , ±4kV (Contact discharge)
Connection
Input Ports         3×HDMI Type A (19-pin female)

1×IR IN [3.5mm Stereo Mini-jack]
Output Ports         1×HDMI Type A (19-pin female）
Mechanical
Housing     Plastic Enclosure
Silkscreen Color     Black
Dimensions     87mm (W) × 59.5mm (D) × 19mm (H)
Weight     60g
Power Supply     5V/1A
Power Consumption     1.5W
Operating Temperature     0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature    -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity    20 - 90% RH (No condensation)
