AVoIP Controller for VLIP-H54KC-TRX

VLIP-H54G-CTRL

Data Sheet

User Manual

API Commands

Product Description

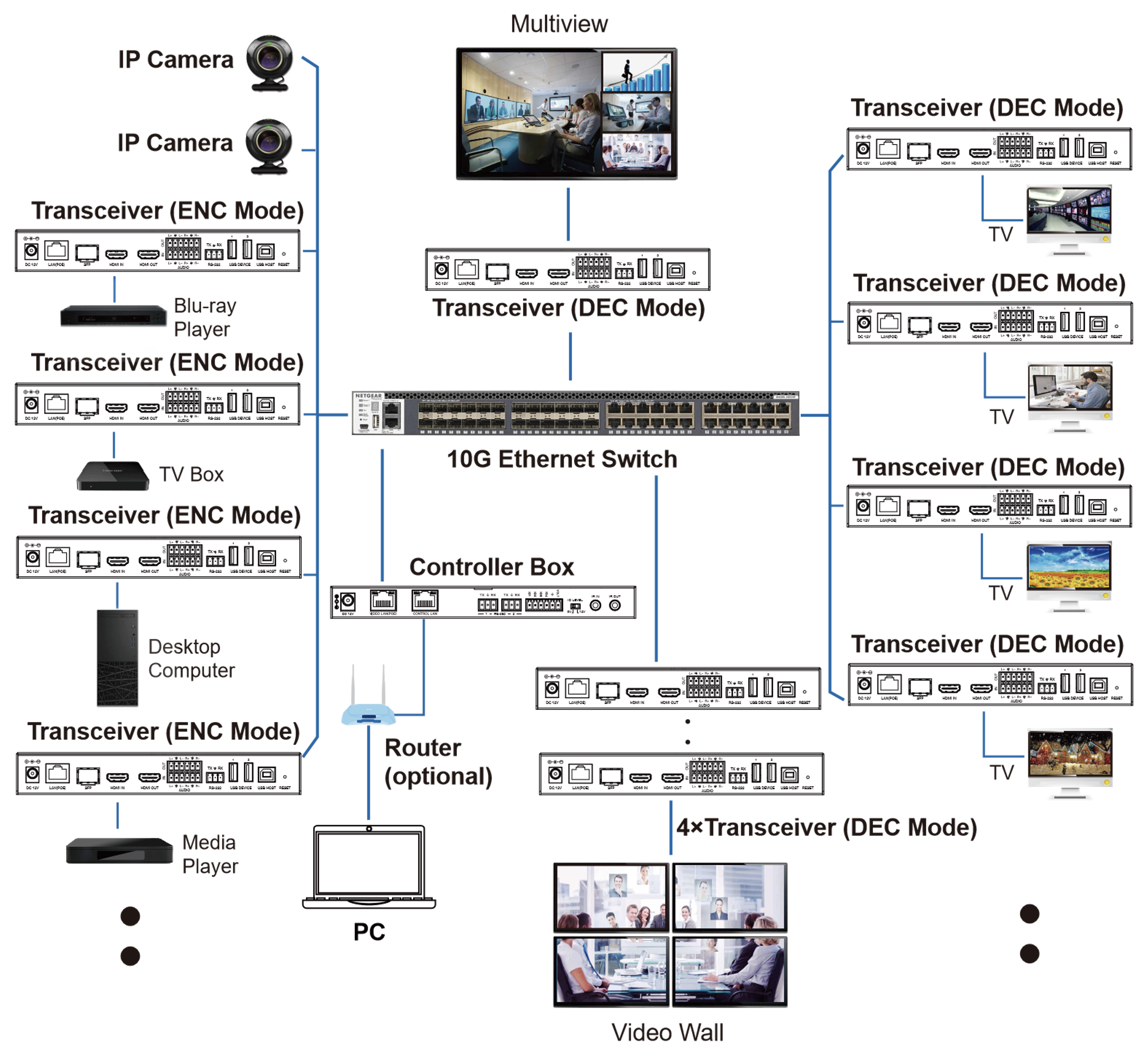

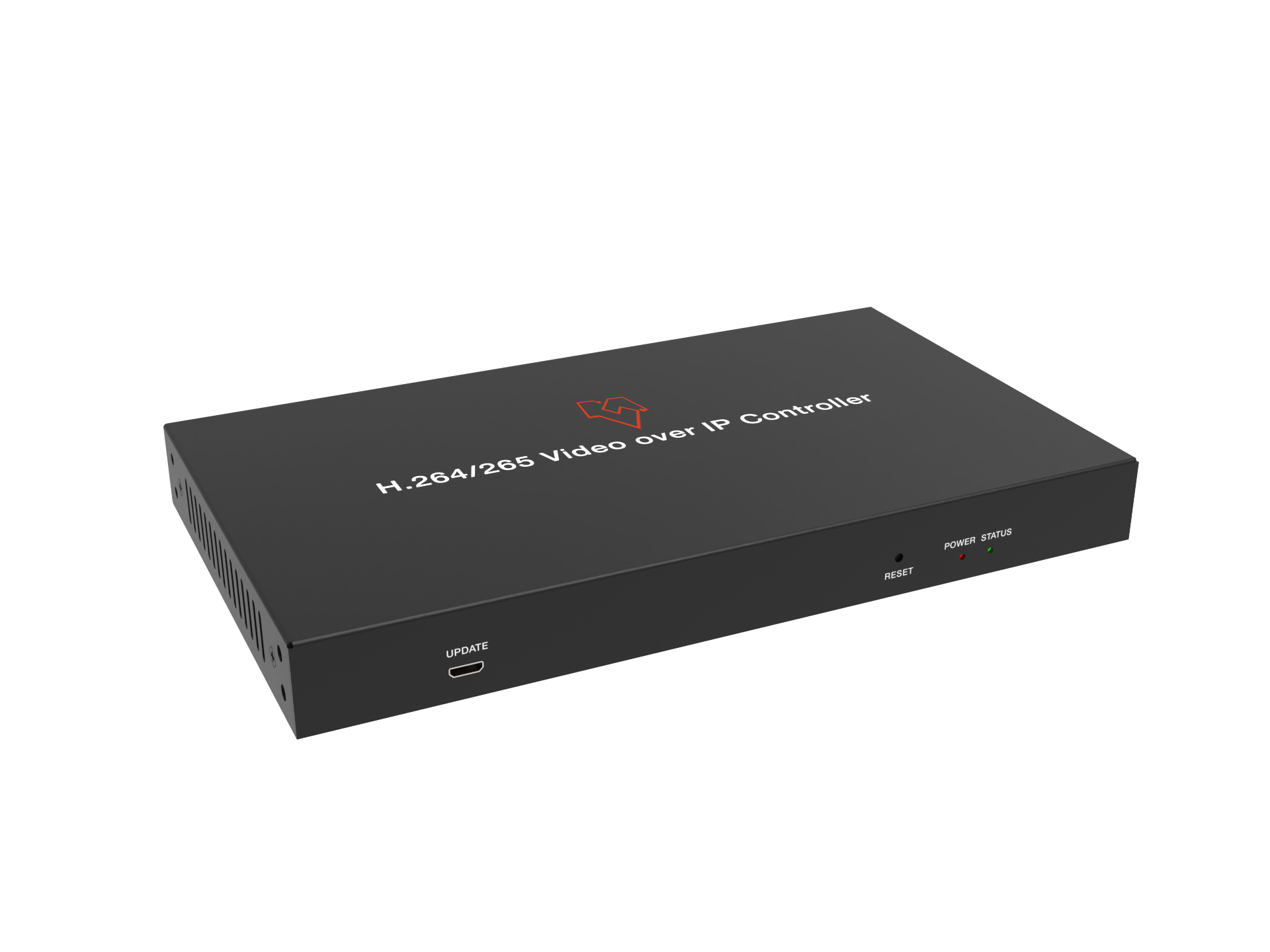

VLIP-H54G-CTRL is a high-performance H.264/H.265 Video-over-IP Controller designed to manage and control IP-based AV systems with ease. It features dual 1G network ports, enabling complete isolation between the control network and the video distribution network for enhanced security and reliability.

The controller supports multiple control interfaces, including Web GUI, TCP, RS-232, IR, GPIO, and offers PoE functionality for simplified installation.

With the growing demand for IP-based solutions, the VLIP-H54KC-CTRL is ideal for a wide range of applications, delivering flexibility and scalability for modern AV environments.

Featured Highlights

  • ARM Cortex-A55 2GHz CPU

  • Easy to create, control and manage the system

  • HTTPS, SSH security compatible

  • Built-in Web GUI control interface for easily system setup and management

  • Intuitive “drag & drop” source selection with video preview

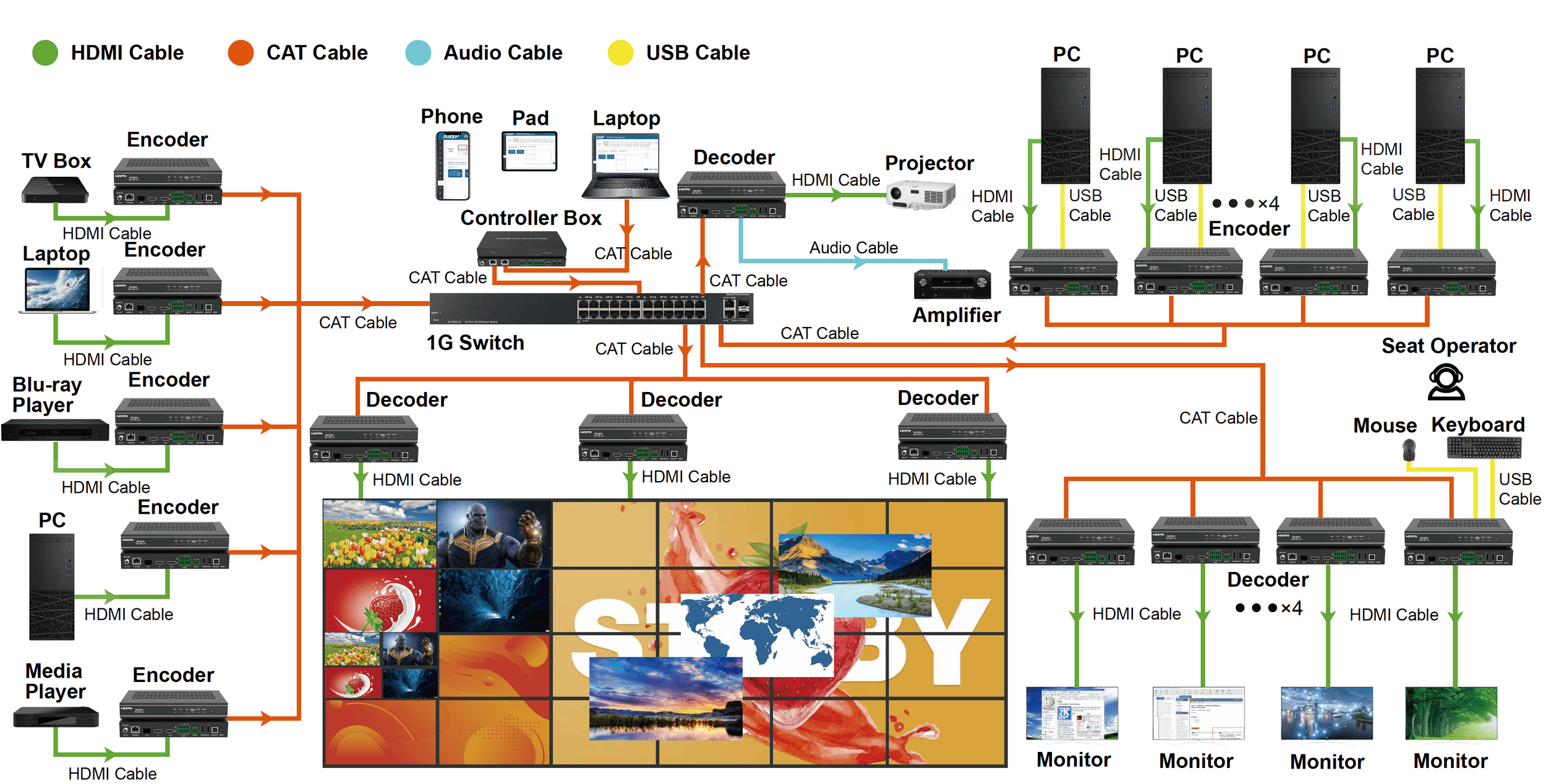

  • Powerful video wall function, supporting window roaming and marquee

  • Seamless switching for the distributed system

  • Collaboration management of computers via mouse roaming, allowing one       operator to manage multiple PCs

  • Supports video, audio, RS-232, KVM control and management of the distributed system

  • Dual 1G network ports (VIDEO LAN port supports PoE function) to isolate Controls and video networks

  • Supports IP camera imported as source

  • Supports high-definition background image, as well as multi-screen splicing display

  • Dual RS-232 ports, capable of connecting to central control or controlling external devices

  • Support IR signal receiving and loop output (3.5mm audio jack, 12V level)

  • 4 channel GPIO control ports (5V/12V optional level) for external devices control

  • Easy to integrate with the 3rd party major control system brands

  • Multiple circuits protection, lightning protection and ESD design

  • PoE (802.3af PD device) or local 12V power supply

  • Reliable system design, ensuring 7*24 hours reliable and stable work

  • Compatible with 1U/6U V2 rack installation

Specifications

Specification Details
Network Bandwidth 1G
Transmission Distance 100m (CAT5E/6/6A/7)

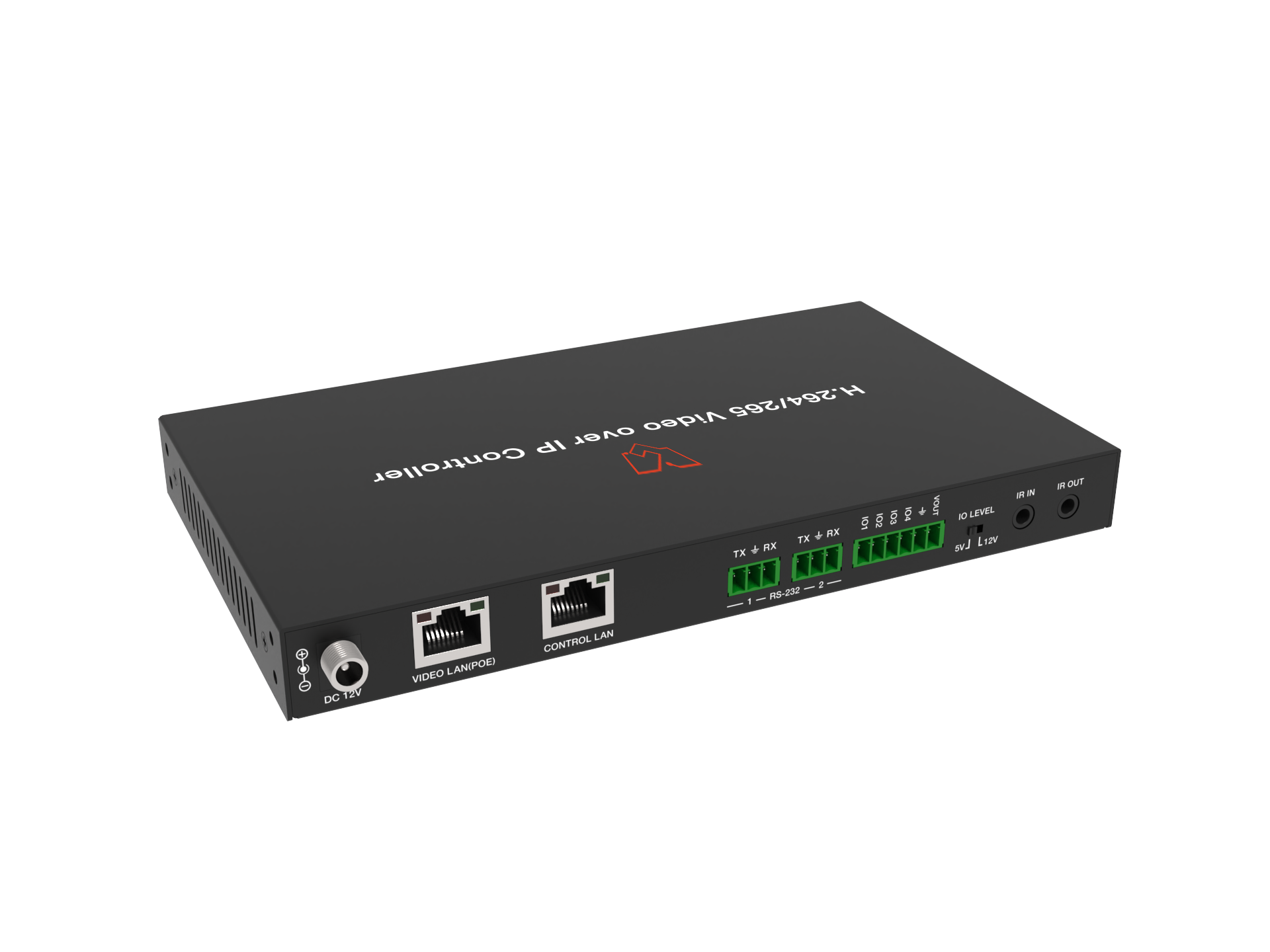

Control Ports
  • 2 x 1G LAN [RJ45 connector] [VIDEO LAN supports PoE]
  • 1 x IR IN [3.5mm audio jack, 12V level]
  • 1 x IR OUT [3.5mm audio jack, 5V level]
  • 1 x DIGITAL I/O [6-pin 3.81mm phoenix connector]
  • 2 x RS-232 [3-pin 3.81mm phoenix connector]
  • 1 x UPDATE [Micro USB, 5-pin female]
Dimensions 204mm (W) × 117.5mm (D) × 21.5mm (H)
Housing Metal Enclosure
Color Black
Weight 597g
Power Supply 12V/2.5A
Power Consumption 6.84W
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Operating Humidity 20% ~ 80% RH (relative humidity, non-condensing)
Storage Humidity 10% ~ 90% RH (relative humidity, non-condensing)
