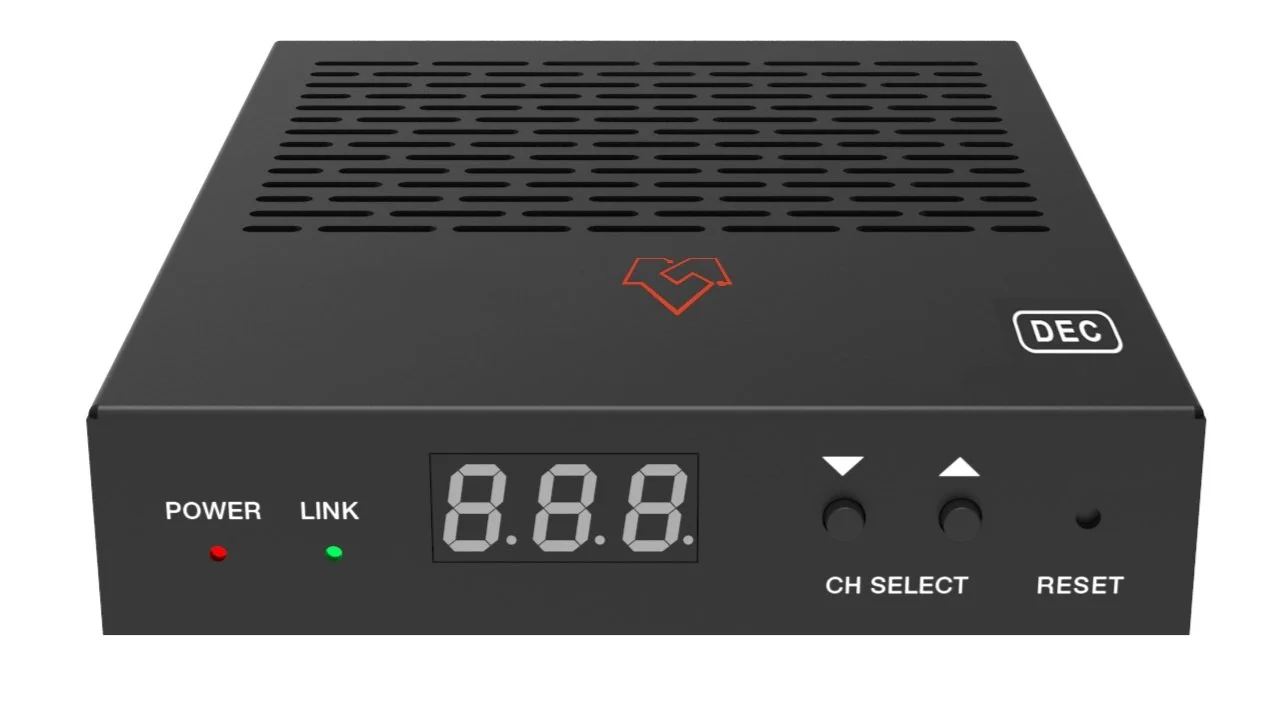

1G H.265 1080p@60HZ AVoIP Receiver w/Videowall Processing
VLIP-H5HD-DC
Data Sheet
User Manual
Product Description
The VigilLink VLIP-H5Lite Series offers a flexible and efficient AV over IP solution for distributing multiple HD content streams to multiple displays across a standard 100M/1G network switch. Built on H.265/H.264 video compression technology, this system delivers high-quality visuals with low bandwidth consumption, supporting resolutions up to 1920x1200 at 60Hz (4:4:4).
Designed for plug-and-play deployment, the system supports signal extension of up to 328 feet (100 meters) via CAT5e, CAT6, CAT6A, or CAT7 cabling and is ideal for applications such as digital signage, corporate video distribution, classroom AV, and retail environments. The solution supports analog audio embedding and extracting, as well as RS-232 pass-through and guest mode for flexible device control.
In scenarios where a controller box is not used, the system allows direct matrix switching via front panel buttons or RS-232 commands, enabling simplified point-to-point or small-scale AV networks.
Featured Highlights
HDMI 1.3 and HDCP 1.4 compliant
Video resolution up to 1920x1200@60Hz 4:4:4
Supports 4.95Gbps video bandwidth
Signal transmission distance can be extended up to 328ft / 100m via CATE/6/6A/7 cable
Supports point-to-point signal extension
Supports signal distribution, multicast mode, distributed matrix, and video wall (up to 9 x 9) functions over a 1G Network Switch
Intelligent video wall management makes it achievable for the novel layout of wall configurations
Supports LPCM 2.0CH (32/44.1/48KHz) audio format
Supports audio embedding and extracting
Supports RS-232 control (pass-through & Guest mode)
Supports mainstream and Substream encoding modes
Stream parameters can be configured via Web GUI or Controller Box
Controlled via panel buttons, RS-232, TCP/IP, Web GUI, and Controller Box
Supports POE function (802.3af Class 3, PD mode)
Smart networking design for easy and flexible installation
Specifications
| Technical | |
|---|---|
| HDMI Compliance | HDMI 1.3 |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 4.95Gbps |
| Video Compression Standard | H.265/H.264 |
| Transmission Distance | 100m (CAT5e/6/6a/7) |
| Video Resolution | Up to 1920x1200 @60Hz (4:4:4) |
| Color Space | RGB (4:4:4), YCbCr (4:4:4), YCbCr (4:2:2) |
| Color Depth | Input: 8-bit, 10-bit, 12-bit (1080p@60Hz); Output: 8-bit |
| Audio Formats | LPCM 2CH (32/44.1/48KHz) |
| Connection | |
| Decoder | 1x HDMI OUT [Type A, 19-pin female] 1x LAN [RJ45 connector, PoE] 1x AUDIO OUT [3-pin Phoenix connector] 1x RS-232 [3-pin Phoenix connector] |
| Mechanical | |
| Housing | Metal enclosure |
| Color | Black |
| Dimensions | 120mm [W] x 95mm [D] x 21.5mm [H] |
| Weight | 74g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A |
| Power Consumption | 2.88W |
| Operating Temperature | 14 - 113°F / -10 - 45°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (No condensation) |
