1G H.265 1080p@60HZ AVoIP Receiver w/Videowall Processing, KVM ,IR
VLIP-H5HDK-DC
Data Sheet
User Manual
Product Inquiry Form
Product Description
VLIP-H5HDK-DC – H.265/H.264 AV over IP Receiver with Video Wall & KVM Support
The VigilLink VLIP-H5HDK-DC is a high-efficiency AV over IP receiver designed to distribute HD video and audio over a standard 100M/1G network infrastructure. Featuring configurable H.265/H.264 video compression, it supports resolutions up to 1920x1200@60Hz (4:4:4) while maintaining excellent image quality and efficient bandwidth usage.

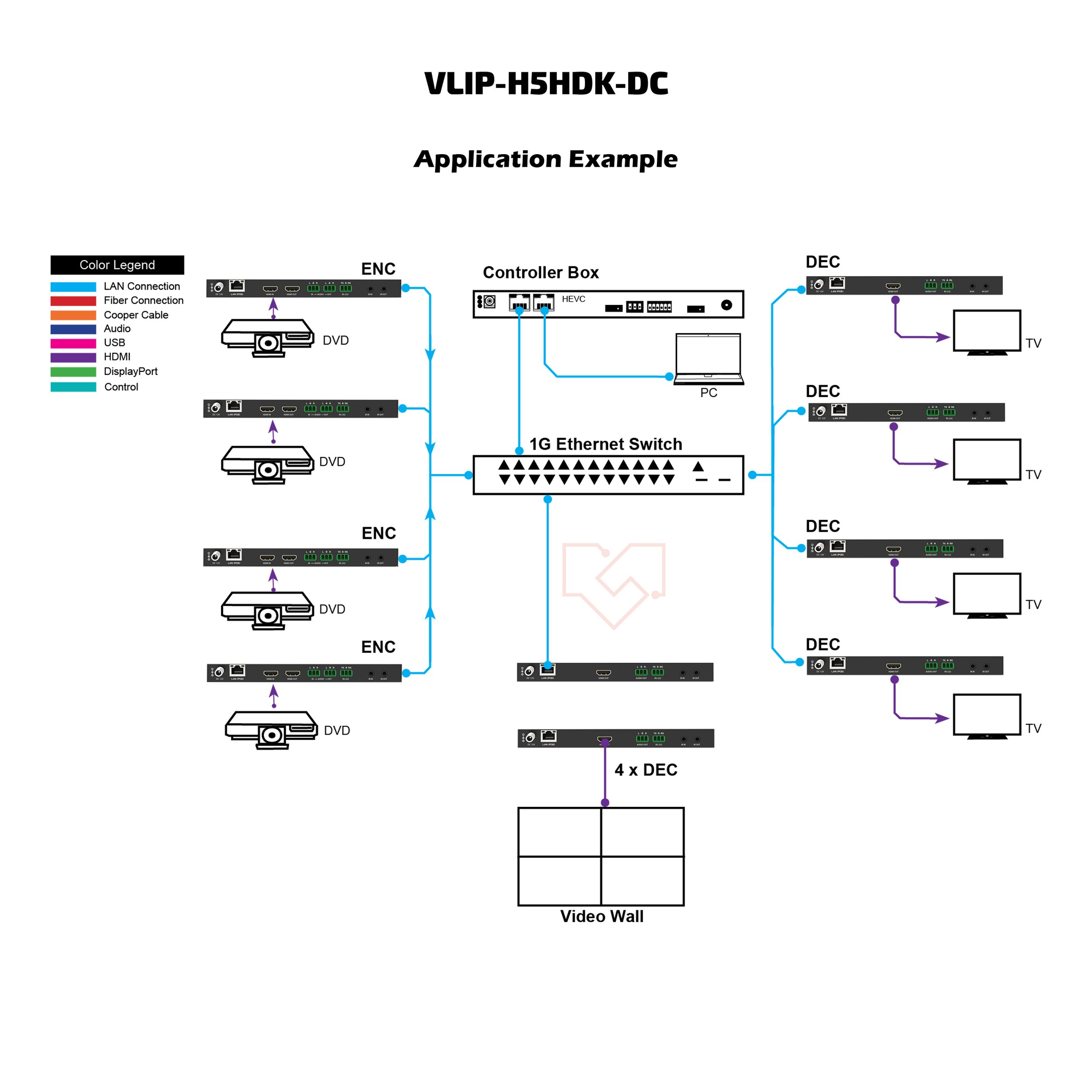

Ideal for signal extension, video walls, and distributed AV systems, the receiver supports point-to-point, multicast, matrix switching, and video wall layouts up to 9x9—all over a 1G network switch. With a transmission distance of up to 328ft (100m) over CAT5e/6/6A/7 cable, it offers flexible installation options across a wide range of commercial and institutional applications.
The unit includes robust audio embedding and de-embedding, support for LPCM 2.0CH audio, and USB KVM functionality for seamless keyboard/mouse control in both one-to-one and one-to-many configurations. It also supports bidirectional IR and RS-232 control (pass-through and guest modes), as well as mainstream/substream encoding for advanced content routing.
System control is available via panel buttons, IR remote, RS-232, TCP/IP, Web GUI, or integration with the VigilLink VLIP-H51G-CTRL controller box. The receiver also supports PoE (802.3af, Class 3), eliminating the need for a dedicated power supply.
With a smart networking design and compact footprint, the VLIP-H5HDK-DC is a go-to solution for conference rooms, retail displays, classrooms, and command centers looking for reliable and scalable AV distribution.
Featured Highlights
HDMI 1.4 and HDCP 1.4 compliant
Video resolution up to 1920x1200@60Hz 4:4:4
Supports 4.95Gbps video bandwidth
Signal transmission distance can be extended up to 328ft / 100m via CATE/6/6A/7 cable
Supports point-to-point signal extension
Supports signal distribution, multicast mode, distributed matrix, and video wall (up to 9 x 9) functions over a 1G Network Switch mode)
Intelligent video wall class management makes it achievable for wall-in-wall or novel layout of wall configurations
Support LPCM 2.0CH (32/44.1/48KHz) audio format
The encoder supports HDMI local loop output
Supports audio embedding and extracting
Supports USB/KVM function (one to one & one too many), and bidirectional
IR/RS-232 control (pass-through & Guest
Support mainstream and Substream encoding modes
Stream parameters can be set via API commands
Controlled via panel buttons, IR, RS-232, TCP/IP, Web GUI and Controller Box
Supports POE function (802.3af Class 3, PD mode)
Smart networking design for easy and flexible installation
Specifications
| Technical | |
|---|---|
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 4.95Gbps |
| Video Compression Standard | H.265/H.264 |
| Transmission Distance | 100m (CAT5E/6/6A/7) |
| IR Level | 12Vp-p (CAT5E/6/6A/7) |
| IR Frequency | Wideband 20 k - 60 KHZ |
| Video Resolution | Up to 1920x1200@60Hz 4:4:4 |
| Color Space | RGB (4:4:4), YCbCr (4:4:4), YCbCr (4:2:2) |
| Color Depth | Input: 8-bit, 10-bit, 12-bit (1080p@60Hz); Output: 8-bit |
| Audio Formats | LPCM 2CH (32/44.1/48KHz) |
| Connection | |
| Decoder | 1x HDMI OUT [Type A, 19-pin female] 1x LAN [RJ45 connector, POE] 1x AUDIO OUT [3-pin phoenix connector] 1x RS-232 [3-pin phoenix connector] 1x IR IN [3.5mm audio jack, 12V IR] 1x IR OUT [3.5mm audio jack, 12V IR] 2x USB Devices [Type A, 4-pin female]nbsp; |
| Mechanical | |
| Housing | Metal enclosure |
| Color | Black |
| Dimensions | 204mm [W] x 95mm [D] x 21.5mm [H] |
| Weight | 468g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A |
| Power Consumption | 4.08W |
| Operating Temperature | 14 - 113°F / -10 - 45°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (No condensation) |
