HDBaseT 3.0 4K@60Hz 4:4:4 USB-C/HDMI 2.0 Extender with USB 70m 18 Gbps
VLEX-HT3070CU
Data Sheet
User Manual
Product Description
The VigilLink VLEX-HT3070CU is a powerful HDBaseT 3.0 extender designed to transmit uncompressed HDMI and USB-C video signals, along with USB 2.0, RS-232, and bi-directional IR, over a single CAT6A/7 cable. Supporting video resolutions up to 4K@60Hz (YUV 4:4:4), it enables reliable signal transmission up to 230 feet (70 meters) at 4K30/1080p or 131 feet (40 meters) at 4K60.

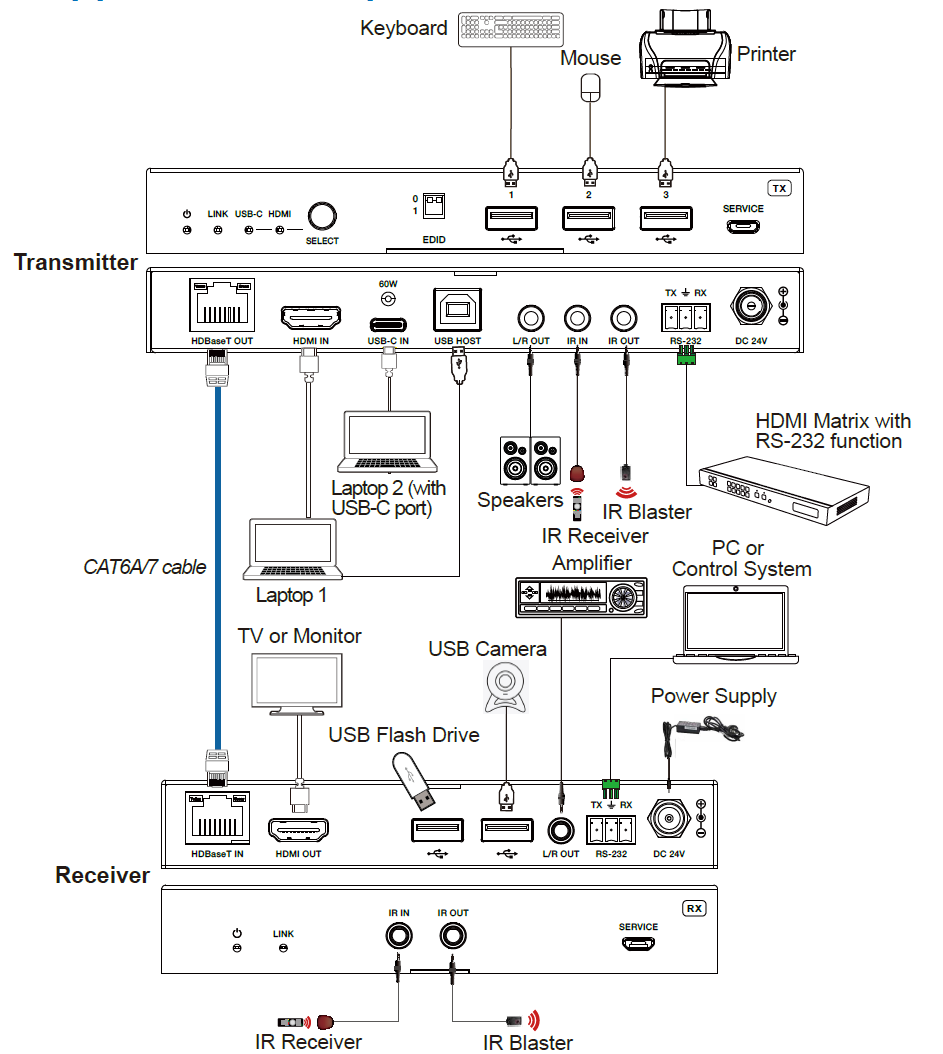

The transmitter is equipped with one HDMI input, one USB-C input with 60W charging, one USB host port, and three USB device ports. The receiver includes one HDMI output and two USB device ports. Both units support 3.5mm analog audio de-embedding, EDID management, and full RS-232 and IR pass-through functionality. A bi-directional 24V Power over Cable (PoC) system simplifies setup by powering both units over the same CAT cable.
Engineered for seamless integration and high-performance AV delivery, the VLEX-HT3070CU is the ideal solution for modern residential and commercial environments that demand flexibility, interactivity, and long-distance capability.
Featured Highlights
Compliant with HDMI 2.0b and HDCP 2.3, 18Gbps video bandwidth
HDBaseT 3.0 VS300R chipset based design
Supports video resolution up to 4K2K@60Hz (YUV 4:4:4)
Uncompressed video signal transmission distance can be extended up to 230ft/70m for 4K@30Hz, or 131ft/40m for 4K@60Hz over a single CAT6A/7 cable
TX features with 1x HDMI input, 1x USB-C input, 1x HDBT output, 1x USB 2.0 host and 3x USB 2.0 clients
RX features with 1x HDMI output, 2x USB 2.0 clients
USB-C and HDMI signal inputs support auto or manual switching mode
Auto switching supports HDMI 5V or signal detection selection
USB-C supports DP-ALT mode for A/V, USB 2.0 data, and power charging up to 60 watts
TX/RX USB-A client ports VBUS on or off depending on USB host is connected or not
HDR, HDR10, HDR10+, Dolby Vision LLM and HLG pass-through
4K to 1080p downscaling features on HDMI output, no frame rate conversion
Both TX and RX support analog audio de-embedding
RS-232 signal pass-through and guest-mode control
Supports bi-directional IR signal pass-through, USB 2.0 signal transmission
Advanced EDID management
Each USB-A port provides power up to 5V/500mA
Supports bi-directional 24V POC, with POC switch
Compact design for easy and flexible installation
Specifications
| Technical | |||
|---|---|---|---|
| HDMI Compliance | HDMI 2.0b | ||
| HDCP Compliancel | HDCP 2.3 | ||
| USB Compliance | USB 2.0 | ||
| Video Bandwidth | 18Gbps | ||
| Video Resolution | Up to 4K@60Hz 4:4:4 | ||
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 | ||
| Color Depth | 8/10/12-bit | ||
| IR Level | 12Vp-p | ||
| IR Frequency | Wideband 20K-60KHz | ||
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG | ||
| Audio Formats | HDMI/USB-C/HDBT: LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD 3.5mm Analog Audio: LPCM 2CH |
||
| Transmission Distance | 4K60: 131ft/40m (CAT6A/7) 4K30/1080P: 230ft/70m (CAT6A/7) |
||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | ||
| Connection | |||
| Transmitter | Inputs: 1 × HDMI IN [Type A, 19-pin female] 1 x USB-C IN [USB Type C, 24-pin female] Outputs: 1 × HDBaseT OUT[RJ45, 8-pin female] 1 × L/R OUT [3.5mm Stereo Mini-jack] Controls: 1 × IR IN [3.5mm Stereo Mini-jack] 1 × IR OUT [3.5mm Stereo Mini-jack] 1 × RS-232 [3pin-3.81mm Phoenix jack] 1 × SERVICE [Micro USB, 5-pin female] 1 × USB HOST [USB Type B] 3 × USB DEVICES [USB Type A] | ||
| Receiver | Inputs: 1 × HDBaseT IN [RJ45, 8-pin female] Outputs: 1 × HDMI OUT [Type A, 19-pin female] 1 × L/R OUT [3.5mm Stereo Mini-jack] Controls: 1 × IR IN [3.5mm Stereo Mini-jack] 1 × IR OUT [3.5mm Stereo Mini-jack] 1 × RS-232 [3pin-3.81mm Phoenix jack] 1 × SERVICE [Micro USB, 5-pin female] 2 × USB DEVICES [USB Type A, 4-pin female] |
||
| Mechanical | |||
| Housing | Metal Enclosure | ||
| Color | Black | ||
| Dimensions | Transmitter: 170mm [W] x 102mm [D] x 22mm [H] Receiver: 144mm [W] x 78mm [D] x 23mm [H] |
||
| Weight | Transmitter: 484g, Receiver: 318g | ||
| Power Supply | Input: AC 100 - 240V 50/60Hz Output: DC 24V/3.75A (US/EU standard, CE/FCC/UL certified) |
||
| Power Consumption (max) | 94.32W (Power supply from TX, 60W USB-C charging, POC to RX) 10.8W (Power supply from TX or RX, without USB-C charging)) |
||
| Operating Temperature | 32 - 104°F / 0 - 40°C | ||
| Storage Temperature | -4 - 140°F / -20 - 60°C | ||
| Relative Humidity | 20 - 90% RH (non-condensing) | ||
Box Content
1 × 18Gbps HDMI/USB-C over HDBaseT 3.0 Extender (Transmitter)
1 × 18Gbps HDMI/USB-C over HDBaseT 3.0 Extender (Receiver)
1 × IR Blaster Cable (1.5 meters)
1 × IR Wideband Receiver Cable (1.5 meters)
2 × 3pin-3.81mm Phoenix Connector (male)
4 × Mounting Ear
8 × Machine Screw (KM3*4)
1 × 24V/3.75A Desktop Power Supply
1 × User Manual
