HDBaseT 3.0 4K@60Hz 4:4:4 HDMI 2.0 Extender with EARC 100m 18Gbps

VLEX-HT3100U-TR

Data Sheet

User Manual

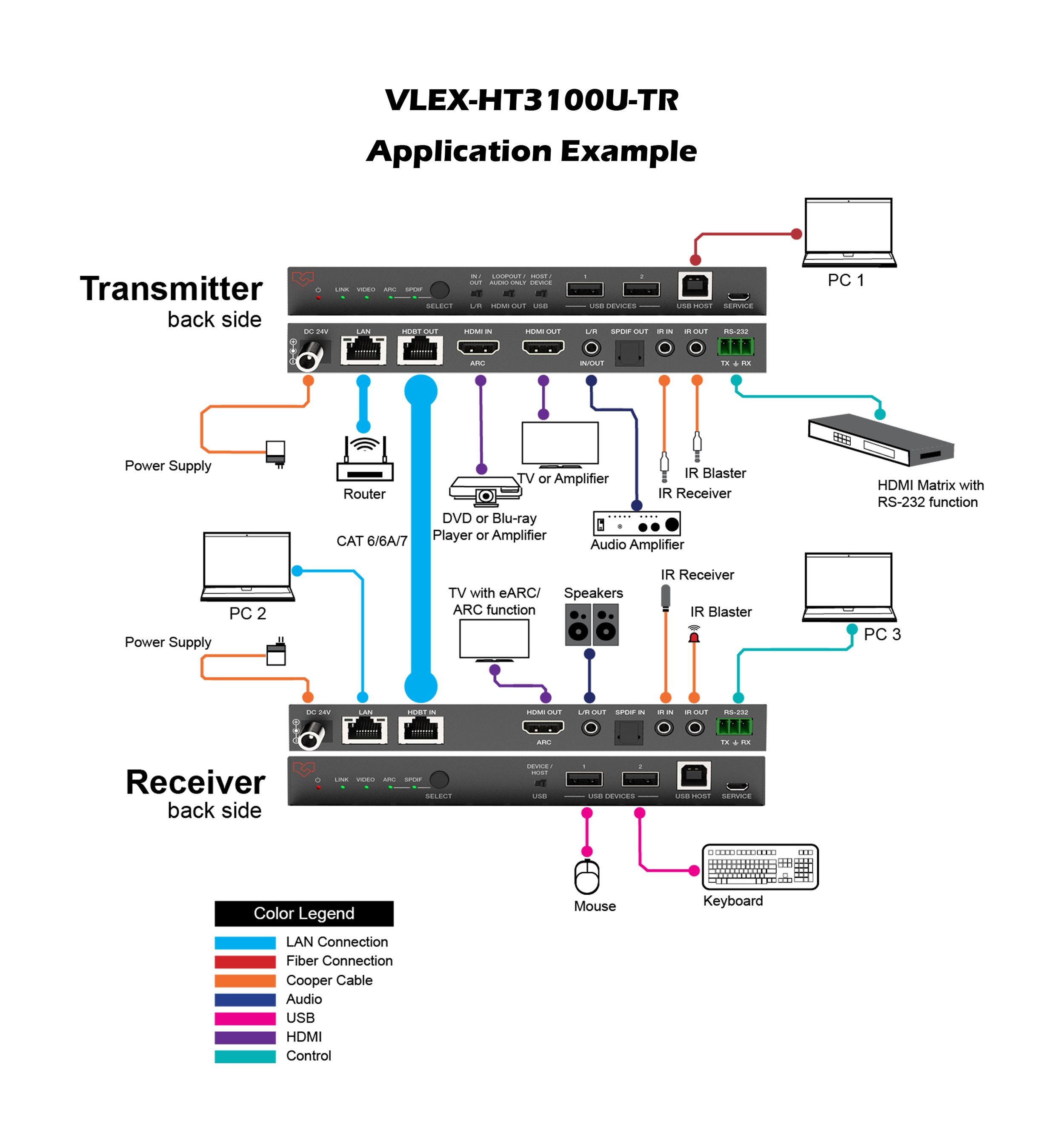

Product Description

The VigilLink VLEX-HT3100U-TR is a next-generation HDBaseT 3.0 extender designed to transmit uncompressed HD and UHD video, audio, and multiple control signals over a single Cat6A or Cat7 cable. Supporting transmission distances up to 328 feet (100 meters), it delivers robust performance and advanced functionality for both residential and commercial AV installations.

This extender supports full-bandwidth HDMI with audio embedding and de-embedding on the transmitter and de-embedding on the receiver. It also enables eARC/ARC functionality, allowing audio to be returned from the receiver’s HDMI output to the transmitter’s HDMI input or its SPDIF and HDMI audio-only ports. Additionally, the unit supports USB 2.0 with configurable host/device mode, 1 GbE Ethernet passthrough, RS-232, bi-directional IR control, and bi-directional Power over Cable (PoC), thereby reducing the need for multiple external connections and power adapters.

Engineered for reliability, long-distance coverage, and integration flexibility, the VLEX-HT3100U-TR is the ideal solution for advanced HDMI extension in high-performance AV environments such as home theaters, conference rooms, and control centers.

Featured Highlights

  • HDMI 2.0b, HDCP 2.2 compliant

  • Uncompressed 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4 over CAT

  • HDR, HDR10, HDR10+,Dolby Vision pass-through

  • Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio

  • Up to 100 meters using CAT6/6A cable

  • Supports eARC/ARC/SPDIF from RX to TX

  • TX HDMI OUT can be set to audio only (eARC/ARC/SPDIF) for legacy AVR

  • TX supports audio de-embedded or embedded

  • RX supports audio de-embedded

  • USB 2.0 high speed, LAN and two-way IR and RS-232 transmission

  • Two-way 24V POC (Power over Cable)

Specifications

Technical
HDMI Compliance     HDMI 2.0b
HDCP Compliance     HDCP 2.2
Video Bandwidth     18Gbps
Video Resolution     Up to 4K@60Hz 4:4:4
HDBaseT Bandwidth     16Gbps on the main and 2Gbps on the return link
HDR     HDR, HDR10, HDR10+, Dolby Vision, HLG
Color Depth     8/10/12-bit
Color Space     RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Audio Formats     LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
L/R Audio Formats     PCM 2.0
SPDIF Audio Formats     LPCM2.0, AC3 5.1, DTS 5.1
IR Level     12Vp-p
IR Bandwidth     Up to 350Mbps
Ethernet     Up to 921600bps
Transmission Distance 100m (via a single CAT 6A/7 cable)
ESD Protection     Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Transmitter Inputs:     1x HDMI IN [Type A, 19-pin female]

Outputs:  1x HDMI OUT [Type A, 19-pin female]

                 1x HDBT OUT [RJ45, 8-pin female]

                 1x SPDIF OUT [S/PDIF]
Receiver     Inputs:     1x HDBT IN [RJ45, 8-pin female]

                 1x SPDIF IN [S/PDIF]

Outputs:  1x HDMI OUT [Type A, 19-pin female]

                 1×L/R OUT [3.5mm Stereo Mini-jack]

Controls: 1x IR IN [3.5mm Stereo Mini-jack]

                1x IR OUT [3.5mm Stereo Mini-jack]

                1x RS-232 [3pin-3.81mm Phoenix jack]

                1x SERVICE [Mini-USB, Update port]

                1×USB HOST [USB Type B]

                2×USB DEVICES [USB Type A]

                1×LAN [RJ45]
Mechanical
Housing     Metal enclosure
Color     Black
Dimensions     Transmitter / Receiver: 170mm [W] x 102mm [D] x 22mm [H]
Weight    Transmitter: 425g,

Receiver: 437g
Power Supply    Input: AC 100 - 240V 50/60Hz

Output: DC 24V/1A

(US/EU standard, CE/FCC/UL certified)
Power Consumption     15.36W (POC)
Operating Temperature     32 - 104°F / 0 - 40°C
Storage Temperature    -4 - 140°F / -20 - 60°C
Relative Humidity    20 - 90% RH (No condensation)
Resolution /

Cable Length    		 4K60 -

Feet / Meters    		 4K30 -

Feet / Meters    		 1080P60 -

Feet / Meters
HDMI IN / OUT 16ft / 5M 32ft / 10M 50ft / 15M

The use of the “Premium High-Speed HDMI” is highly recommended.
