HDBaseT 3.0 8K HDMI 2.1 Extender 100m 40 Gbps
VLEX-HT3200U-TR
Data Sheet
User Manual
Product Description

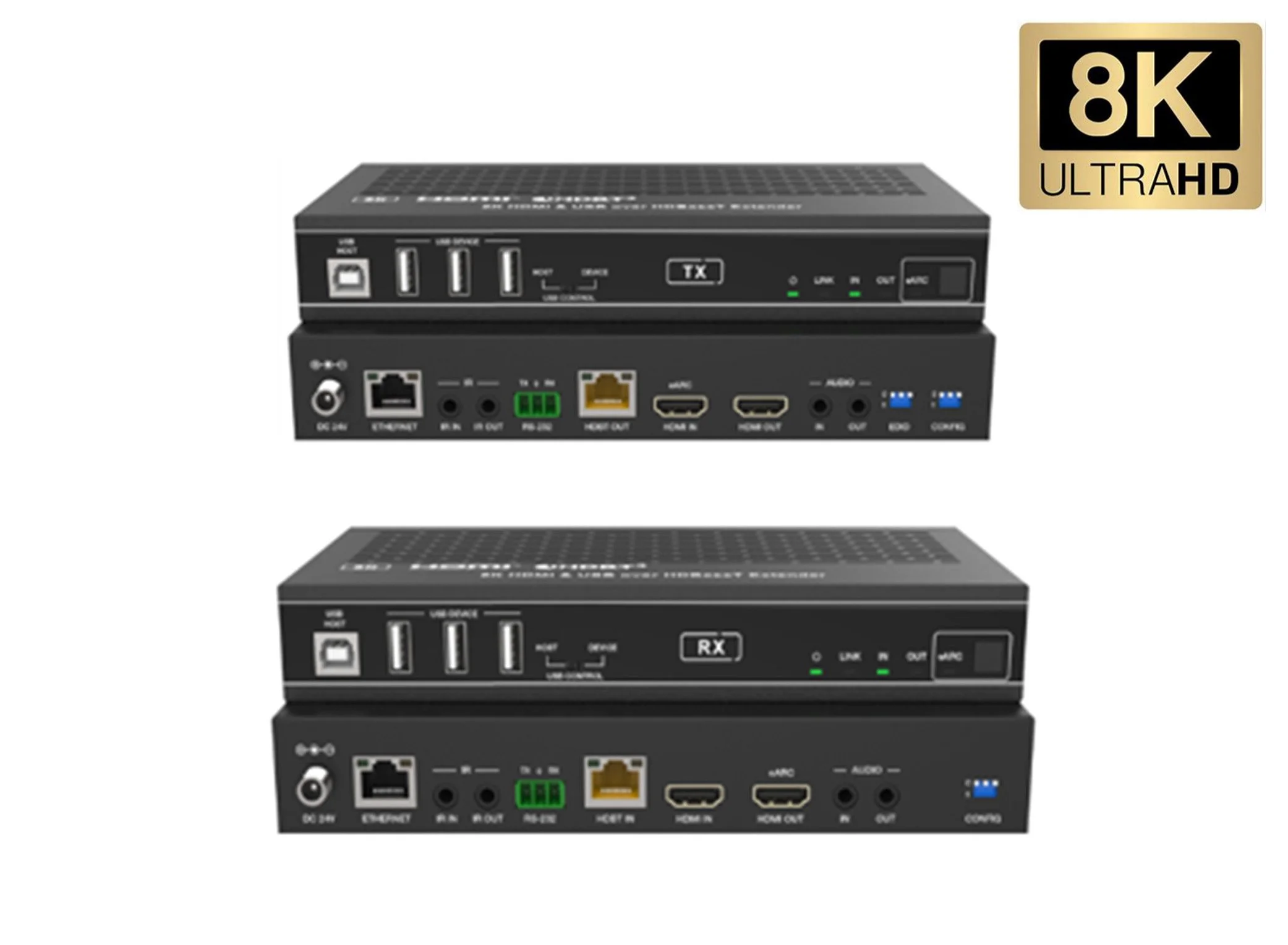

The VigilLink VLEX-HT3200U-TR is a cutting-edge HDBaseT extender that delivers uncompressed 8K and 4K video, audio, and control signals over a single CAT6A/7 cable. Designed for ultra-high-resolution AV applications, it supports video resolutions up to 8K@30Hz (4:4:4, 10-bit), 4K@120Hz (4:4:4, 10-bit), and 4K@60Hz (4:4:4), with transmission distances reaching up to 295 feet (90 meters).
This extender supports full-featured HDMI transmission along with eARC/ARC functionality, enabling audio return from the receiver’s HDMI output to the transmitter’s HDMI input or to its HDMI audio output port. It also provides USB 2.0 connectivity with configurable host/device roles, bi-directional IR control, RS-232, 1GbE Ethernet passthrough, and bi-directional Power over Cable (PoC) to simplify installation and reduce power supply needs.
With its broad signal support, high bandwidth, and streamlined single-cable installation, the VLEX-HT3200U-TR is the ideal AV extension solution for demanding home theaters, corporate environments, and commercial AV systems requiring uncompromising performance and long-distance reliability.
Featured Highlights
HDMI 2.1, HDCP 2.3 and HDBaseT 3.0 compliant
Support up to 40Gbps FRL and 18Gbps TMDS video bandwidth
Video resolution is up to 8K@30 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
Support all industry standard video resolutions, including VGA-WUXGA and 480i-8K30
VRR, FVA, ALLM support
HDR, HDR10, HDR10+, Dolby Vision and HLG pass-through
HDMI audio formats: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
Signal transmission distance can be extended up to 90m/295ft via a single CAT 6A/7 cable
Support eARC/ARC from RX to TX sound system
Advanced EDID management through EDID DIP switch
With the CONFIG DIP switch, allowing the RS-232 serial port to feature different functions
Supports USB 2.0 transmission (with speeds up to 350Mbps); host/Device is configurable.
Bi-directional Ethernet (1Gb), analog audio, IR & RS-232 signal pass-through
HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility, and handshaking issues
Bi-directional 24V POC function
Specifications
| Technical | |||
|---|---|---|---|
| HDMI Compliance | HDMI 2.1 | ||
| HDCP Compliance | HDCP 2.3 | ||
| Video Bandwidth | Up to 40Gbps FRL and 18Gbps TMDS | ||
| Video Resolution | Up to 8K@30 4:4:4 10bit, 4K@120Hz 4:4:4 10bit | ||
| USB Bandwidth | Up to 350Mbps | ||
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG | ||
| Color Depth | 8/10/12-bit | ||
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 | ||
| Audio Formats | HDMI: PCM2.0, LPCM5.1, LPCM7.1, (32K/44.1K/48K/88.2K/96K/176.4K/192K)(16/20/24); Dolby Digital, Dolby Digital plus, Dolby TrueHD, Dolby Atmos; DTS Surround, 96/24, ES, DTS Express, DTS-HD HRA, DTS HD Master, DTS:X Analog: PCM 2.0 48K |
||
| IR Level | 5Vp-p/12Vp-p | ||
| IR Bandwidth | 20K - 60KHz | ||
| Transmission Distance | MAX: CAT 6 -- 60m/197ft CAT 6A/7 -- 90m/295ft | ||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | ||
| Connection | |||
| Transmitter | Inputs: 1 x HDMI IN [Type A, 19-pin female] 1 x AUDIO IN [3.5mm Stereo Mini-jack] Outputs: 1 x HDMI OUT [Type A, 19-pin female] 1 x HDBT OUT [RJ45, 8-pin female] 1 x AUDIO OUT [3.5mm Stereo Mini-jack] Control: 1 x IR IN [3.5mm Stereo Mini-jack] 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x RS-232 [3pin-3.81mm Phoenix jack] 1 x USB HOST [USB Type B] 3 x USB DEVICE [USB Type A] 1 x ETHERNET [RJ45] | ||
| Receiver | Inputs: 1 x HDMI IN [Type A, 19-pin female]
1 x HDBT IN [RJ45, 8-pin female] 1 x AUDIO IN [3.5mm Stereo Mini-jack] Outputs: 1 x HDMI OUT [Type A, 19-pin female] 1 x AUDIO OUT [3.5mm Stereo Mini-jack] Controls: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [3pin-3.81mm Phoenix jack] 1x SERVICE [Mini-USB, Update port] 1×USB HOST [USB Type B] 3×USB DEVICES [USB Type A] 1 x ETHERNET [RJ45] |
||
| Mechanical | |||
| Housing | Front Panel — Aluminium Enclosure; Case — Metal Enclosure | ||
| Color | Black | ||
| Dimensions | Transmitter / Receiver: 200mm [W] x 100mm [D] x 30mm [H] | ||
| Weight | Transmitter: 571g, Receiver: 571g | ||
| Power Supply | Input: AC 100 - 240V 50/60Hz Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified) |
||
| Power Consumption | Total power consumption: 20.4W (POC) TX/RX full load: 9.36W/9.84W; TX/RX no-load: 2.46W/3.36W |
||
| Operating Temperature | 32 - 104°F / 0 - 40°C | ||
| Storage Temperature | -4 - 140°F / -20 - 60°C | ||
| Relative Humidity | 20 - 90% RH (No condensation) | ||
Cable Length
Feet / Meters
Feet / Meters
Feet / Meters
Feet / Meters
The use of the “Premium High-Speed HDMI” is highly recommended.
