4x1 HDMI 2.1 Switch with EDID 48Gbps

VLSW-41H21E

  • Ultra-slim 4x1 HDMI 2.1 switcher routing four 8K sources to a single display, up to 8K@60Hz (48Gbps)

  • Supports 8K@60 4:2:0, 8K@30 4:4:4, and 4K@120 4:4:4, with VRR, ALLM, QMS, QFT, and SBTM

  • HDR10, HDR10+, Dolby Vision, and HLG pass-through, with LPCM 7.1CH, Dolby Atmos, and DTS-HD Master Audio

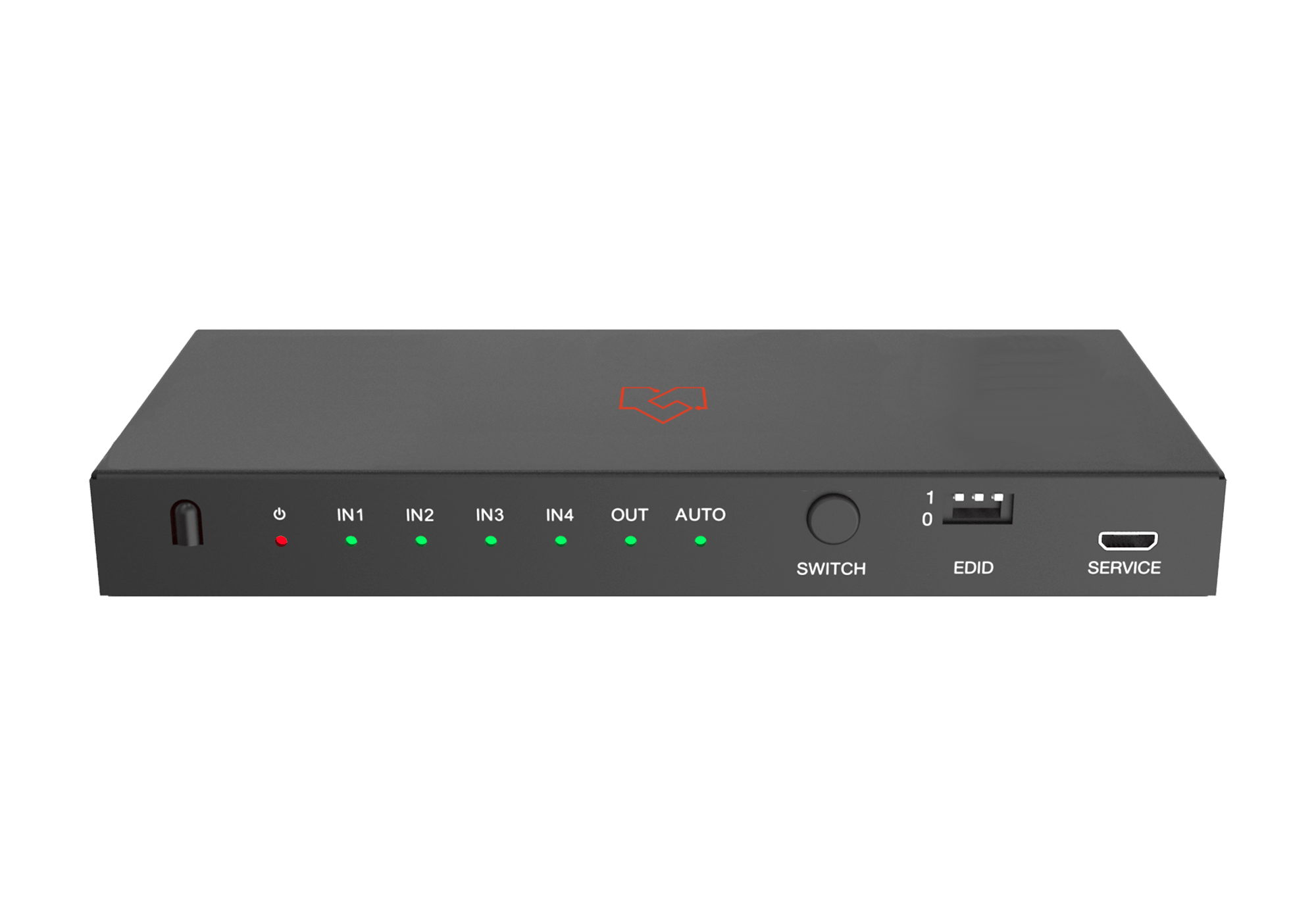

  • Front-panel DIP-switch EDID management, CEC, auto/manual switching, IR remote, and USB-C firmware updates

Where to Buy
Six Year Warranty logo
8K UltraHD tag

Product Description

The VigilLink VLSW-41H21E is a 48Gbps ultra-slim 8K HDMI 4x1 switcher designed for high-performance signal switching in space-sensitive environments. Featuring four HDMI inputs and one HDMI output, it supports resolutions up to 8K@60Hz (4:2:0, 12-bit) for stunning image clarity and detail.

This switcher is compatible with HDR10, HDR10+, and Dolby Vision, and supports multichannel audio formats for a truly immersive AV experience. A built-in EDID DIP switch enables precise EDID management for seamless integration with various displays. Additionally, a USB Type-C port enables easy firmware updates, ensuring long-term system compatibility and optimal performance.

Ideal for professional AV setups, the VLSW-41H21E delivers powerful functionality in a sleek, compact form factor.

Key Features

  • HDMI 2.1 and HDCP 2.3 compliant

  • 48Gbps FRL and 18Gbps TMDS video bandwidth

  • Video resolution up to 8K@60Hz 4:2:0, 8K@30Hz 4:4:4, and 4K@120Hz 4:4:4

  • HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through

  • HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, and SBTM supported

  • HDMI audio: LPCM 7.1CH, Dolby TrueHD, Atmos, and DTS-HD Master Audio

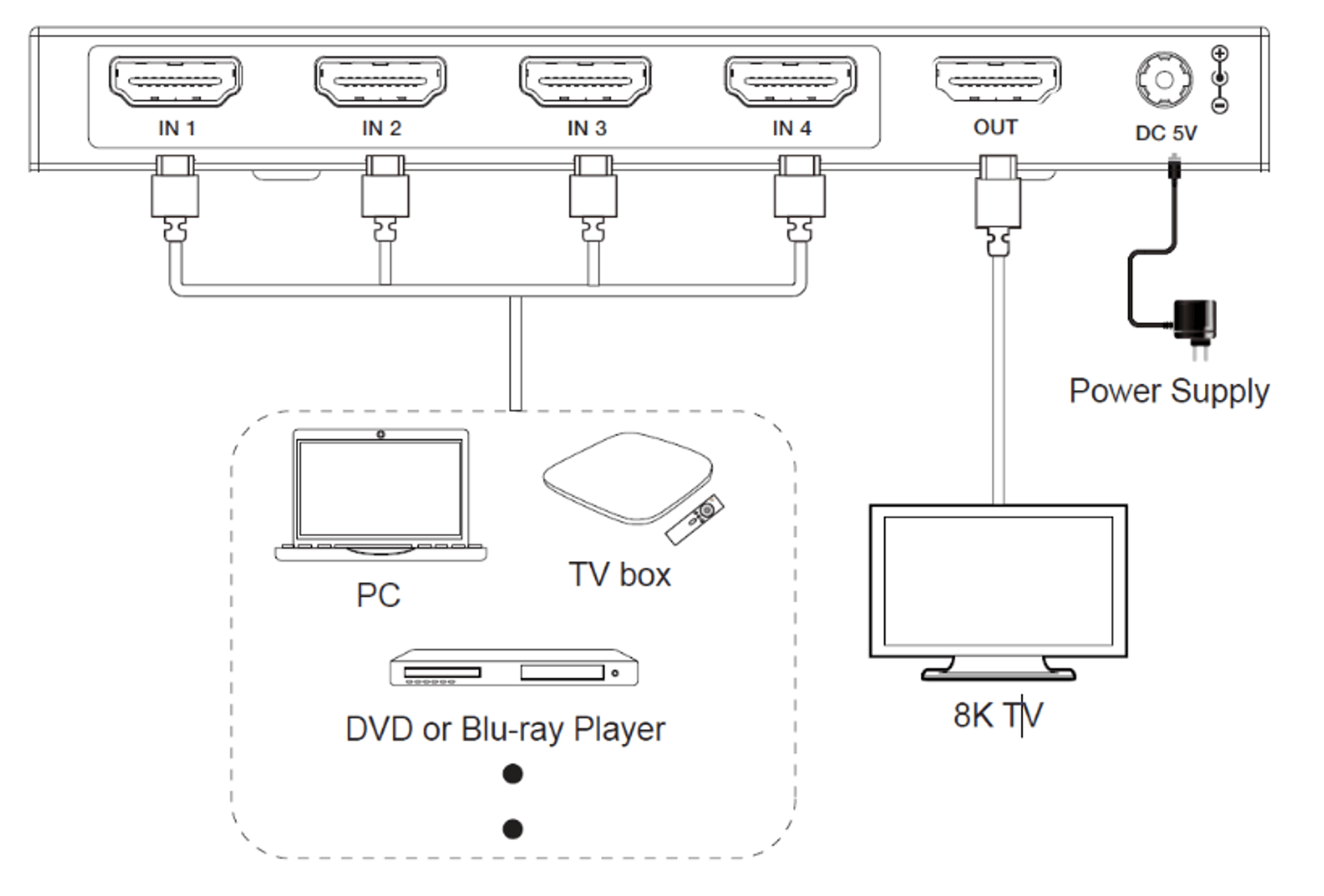

  • 4 HDMI inputs routed to 1 HDMI output

  • Auto and manual input switching, via front-panel button and IR remote

  • Advanced EDID management

  • CEC control from TV output to source input

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Specifications

Technical
HDMI Compliance     HDMI 2.1
HDCP Compliance     HDCP 2.3
Video Bandwidth     48Gbps FRL and 18Gbps TMDS
Video Resolution     Up to 8K@60Hz 4:2:0 12bit, 8K@30 4:4:4 12bit, 4K@120Hz 4:4:4 12bit
Color Depth     8/10/12-bit
Color Space     RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
HDMI Audio Formats     LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

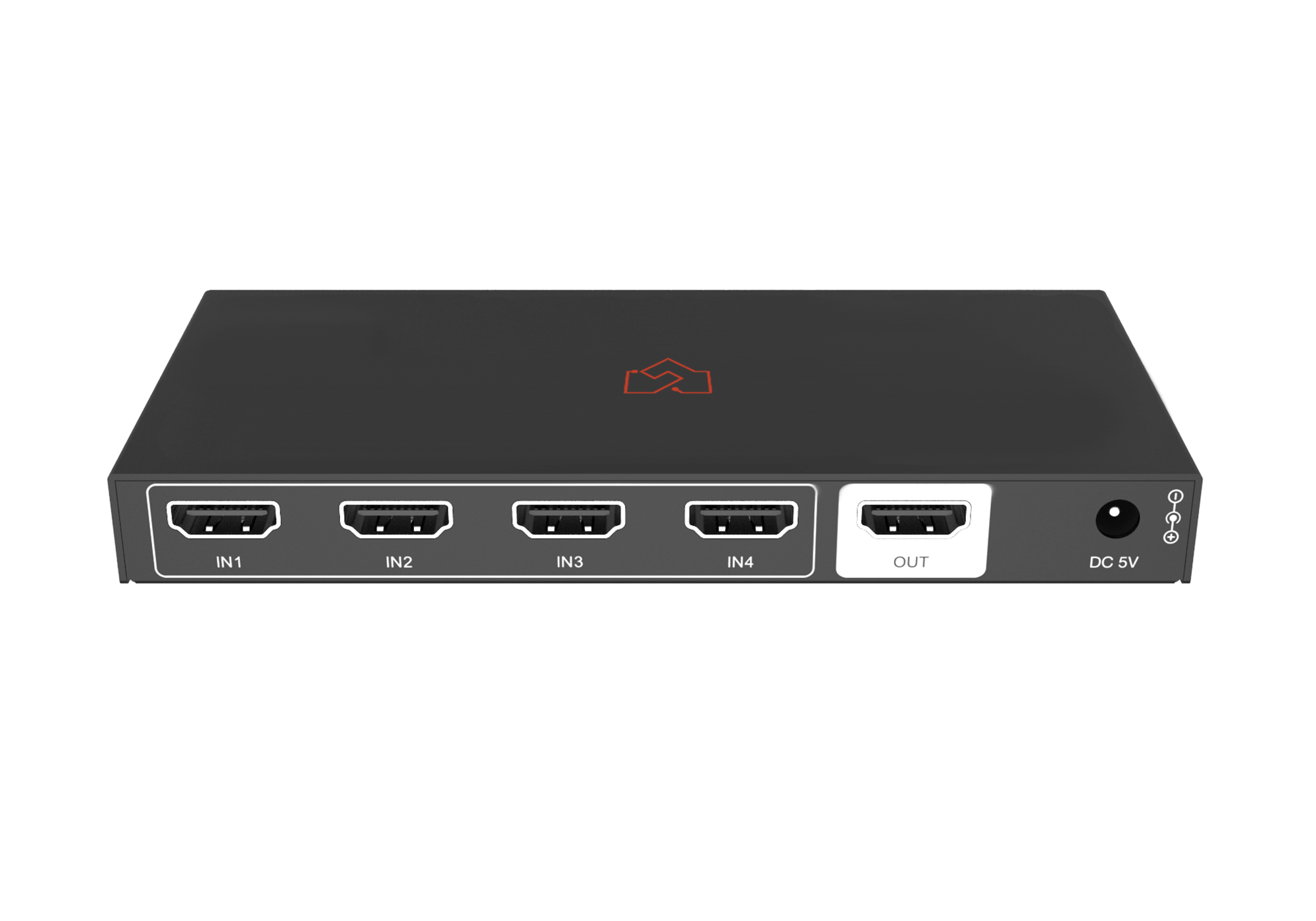

Connection
Input 4 × HDMI IN [Type A, 19-pin female]
Output     1 × HDMI OUT [Type A, 19-pin female]
Control     1 × SERVICE [USB Type C, Update port]
Mechanical
Housing     Metal
Color     Black
Dimensions     145mm (W) × 68mm (D) × 18mm (H)
Weight    258g
Power Supply    Input: AC 100~240V 50/60Hz, Output: DC 5V/1A

(US/EU standards, CE/FCC/UL certified)
Power Consumption     3W (Max)
Operating Temperature     32 - 104°F / 0 - 40°C
Storage Temperature    -4 - 140°F / -20 - 60°C
Relative Humidity    20 - 90% RH (No condensation)
Recommended HDMI Cable
Video Resolution 8K60/8K30/4K120 4K60      1080P
HDMI Cable Length

(HDMI IN / OUT)		 2m/6.6ft 5m/16ft      15m/49ft
The use of “Premium High Speed HDMI” cable is highly recommended.
