4x1 HDMI 2.1 Switch 48Gbps

VLSW-41H21

  • 1G H.265/H.264 AVoIP encoder sending 1080p@60Hz to multiple displays over a 100M/1G managed switch, up to 328ft (100m)

  • HDMI 1.4b (HDCP 1.4) up to 1080p@60Hz 4:4:4 and 1920x1200@60Hz, with local loop-out and a built-in H.264 preview stream

  • USB/KVM, two-way IR, and RS-232 pass-through, with seamless matrix switching and video wall without a central controller

  • Analog audio embedding and extraction, PoE (802.3af) power, and control via panel buttons, IR, RS-232, TCP/IP, or Web GUI

Where to Buy
8K UltraHD tag
Six Year Warranty logo

Product Description

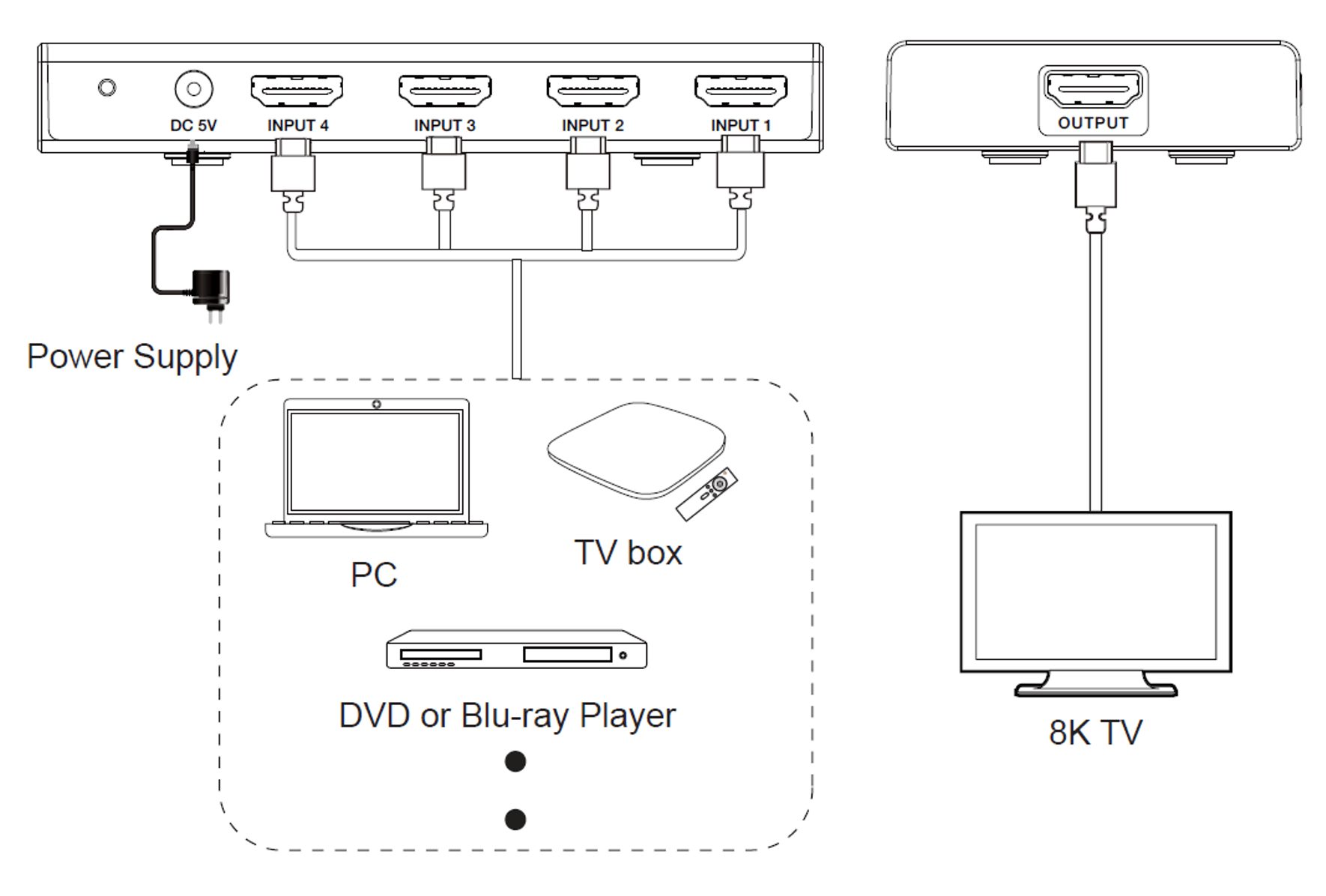

The VigilLink VLSW-41H21 is a high-performance 8K HDMI 4x1 switcher designed to connect up to four HDMI source devices to a single HDMI display. Supporting video resolutions up to 8K@60Hz (4:2:0) and 48Gbps video bandwidth, it ensures stunning clarity and smooth signal switching across demanding applications such as outdoor displays, video conferencing, security monitoring, and home theater systems.

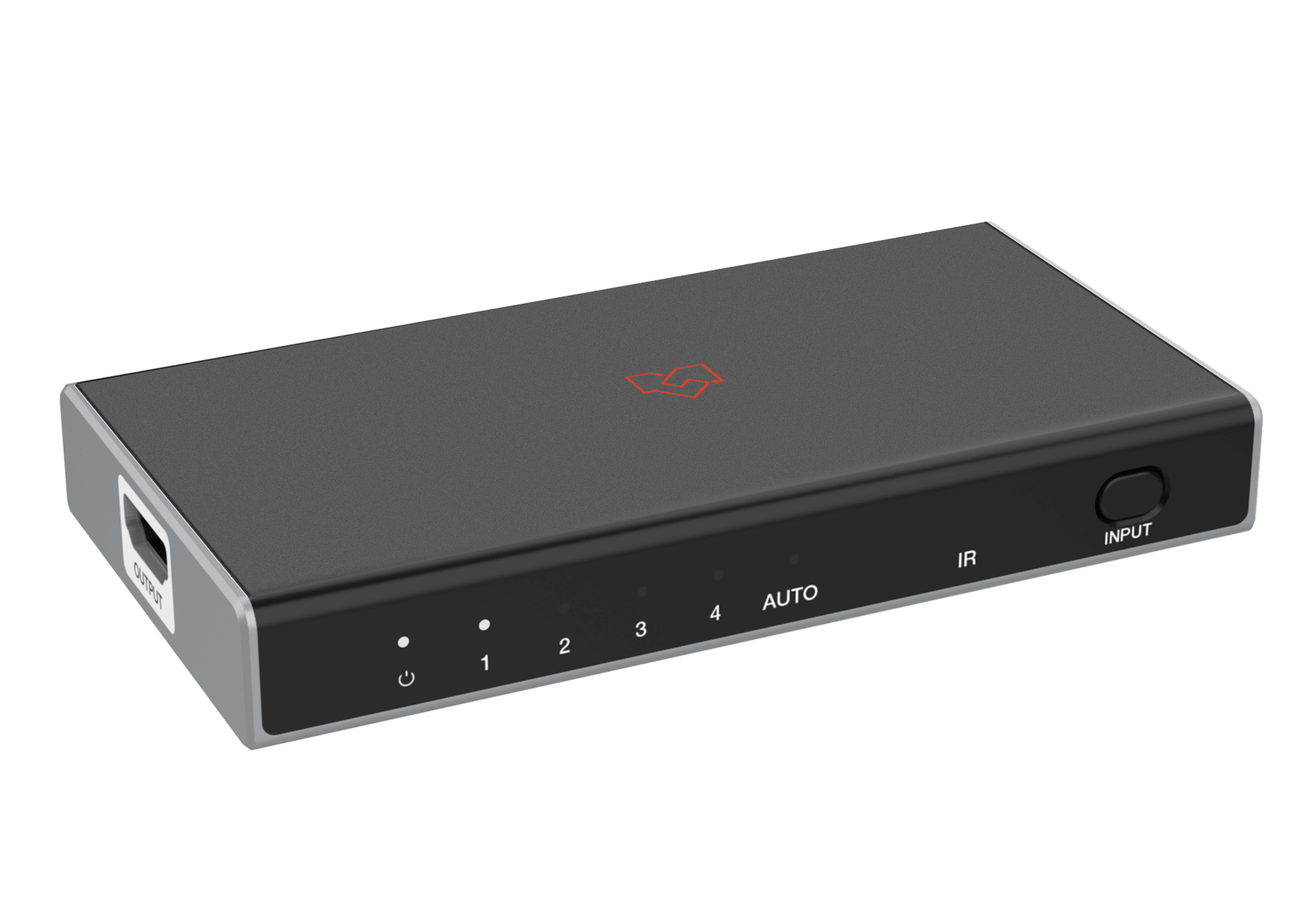

This 4x1 switcher enables users to toggle between HDMI sources using a front-panel button, making it easy to manage multiple devices, such as gaming consoles, media players, or streaming boxes. The unit is designed strictly for 4-input to 1-output use (not bidirectional), delivering reliable performance for setups that require multiple source connectivity to a single HDMI display.

Fully compatible with devices like Xbox and PS5, the VLSW-41H21 supports 4K@120Hz output for a premium gaming or viewing experience on supported displays.

Key Features

  • HDMI 2.1 and HDCP 2.3 compliant

  • Supports 48Gbps video bandwidth

  • Video resolution up to 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, and 4K@120Hz 4:4:4 10-bit

  • HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through

  • VRR, FVA, and ALLM supported

  • HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio

  • 4x1 switching with auto-switch support

  • Built-in equalizer and driver

  • Auto EDID management

  • Compact design for easy, flexible installation

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Specifications

Technical
HDMI Compliance     HDMI 2.1
HDCP Compliance     HDCP 2.3
Video Bandwidth     48Gbps
Video Resolution     Up to 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit
Color Depth     8/10/12-bit
Color Space     RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDMI Audio Formats     LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
ESD Protection     IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection

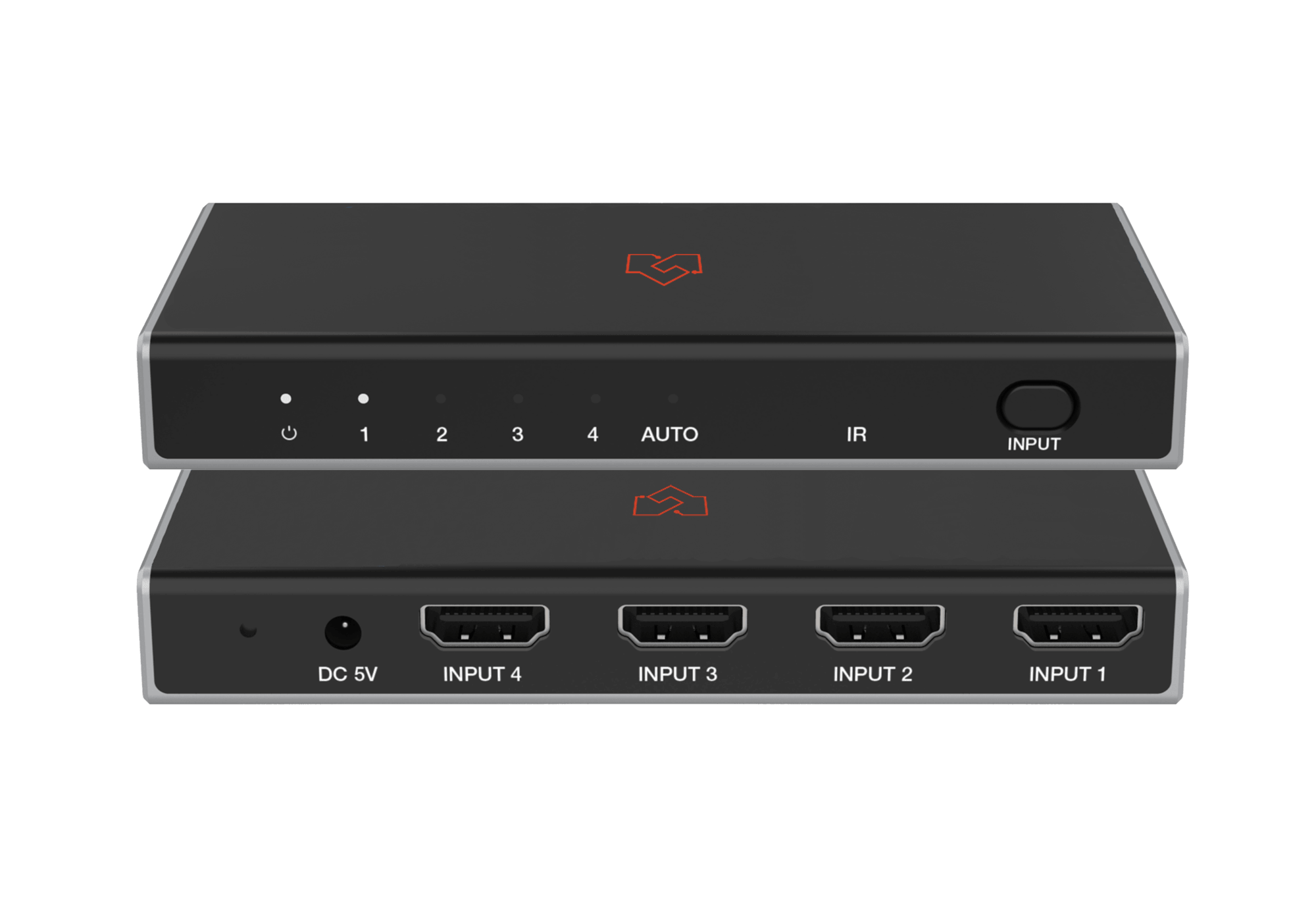

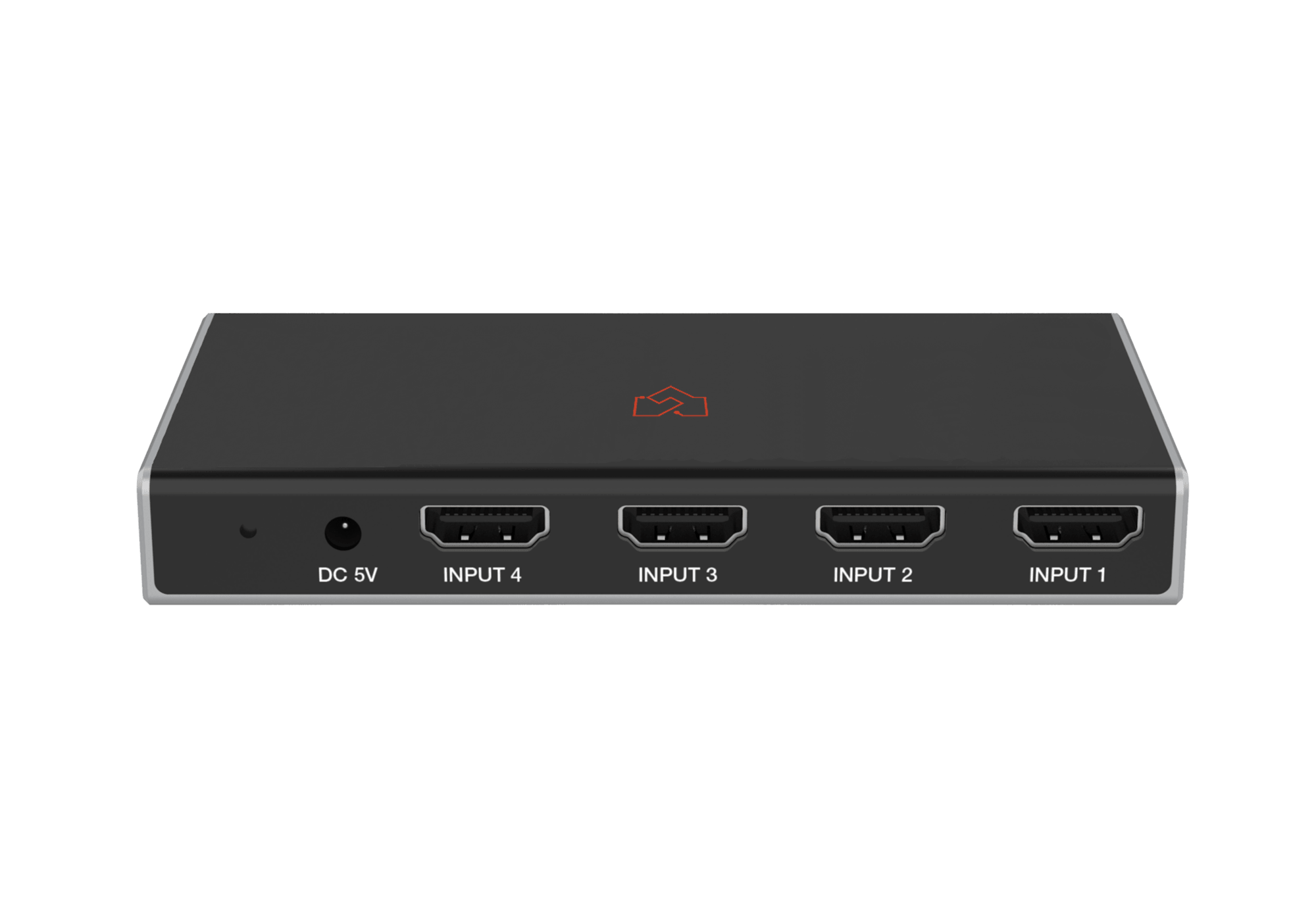

Input 4 x HDMI INPUT [Type A, 19-pin female]

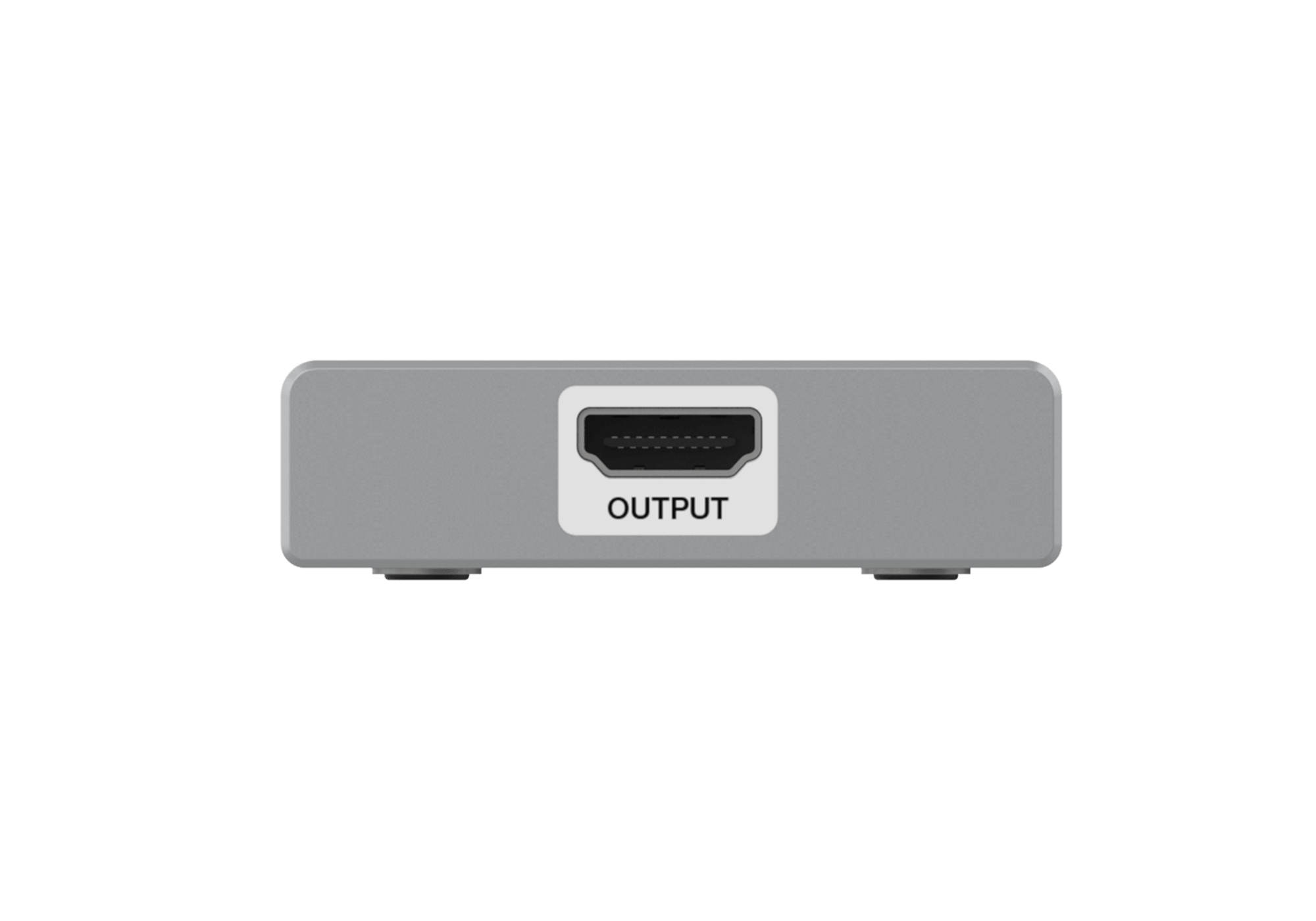

Output     1 x HDMI OUTPUT [Type A, 19-pin female]
Mechanical
Housing     Plastic Enclosure
Color     Black
Dimensions     122mm (W) × 65mm (D) × 19mm (H)
Weight    88g
Power Supply    Input: AC100 - 240V 50/60Hz, Output: DC 5V/1A

(US/EU standards, CE/FCC/UL certified)
Power Consumption     3.4W (Max)
Operating Temperature     32 - 104°F / 0 - 40°C
Storage Temperature    -4 - 140°F / -20 - 60°C
Relative Humidity    20 - 90% RH (No condensation)
