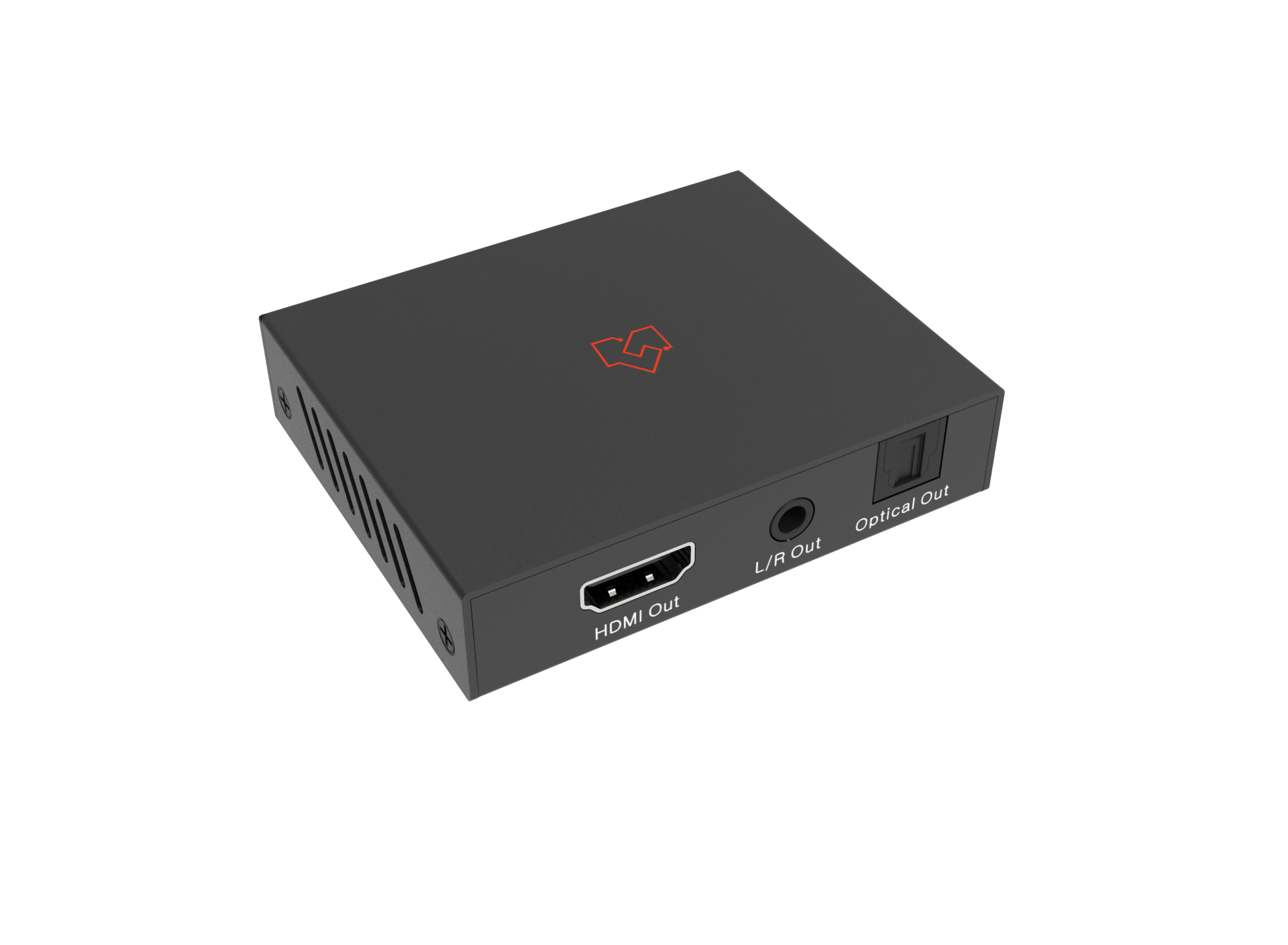

VLHA-DEM

4K HDMI 2.0 audio extractor that pulls audio from any HDMI source to digital optical (S/PDIF) and analog stereo L/R, with HDMI pass-through
Full HD audio pass-through up to Dolby Atmos and DTS:X, with HBR support and sampling rates up to 192kHz
Optical output up to Dolby/DTS 5.1, analog L/R for a stereo receiver or headphones
4K@60Hz 4:4:4 (18Gbps, HDCP 2.2) with 10-bit HDR pass-through and CEC bypass, in a compact metal enclosure

Product Description

The HDMI 18Gbps Audio Extractor could extract audio signals from any HDMI-compliant source to digital optical or analog stereo L/R audio outputs. Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444).

It supports 10bits HDR (High Dynamic Range) pass-through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio, with audio sampling rate up to 192 kHz. HDCP2.2and CEC bypass is supported.

Key Features

HDMI 2.0b (18Gbps), HDCP 2.2, and DVI compliant
Video resolutions up to 4K2K@50/60Hz (YUV 4:4:4)
Extracts HDMI audio to multichannel optical (S/PDIF) or L/R analog audio
Optical audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
HDMI High Bit Rate (HBR) audio pass-through
Audio sample rates up to 192kHz
10-bit HDR pass-through
CEC bypass supported

Downloads

DATA SHEET (PDF)

USER MANUAL (PDF)

Specifications


     Technical

     HDCP Compliance
     HDCP2.2and HDCP 1.4

     Video Bandwidth
     18Gbps

     Video Resolution
     Up to 4K2K@50/60Hz(YUV4:4:4), 4K2K@30Hz,1080P@120Hz, and 1080P3D@60Hz

     Color Depth
     10-bit, 12-bit

     Color Space
     RGB, YCbCr 4:4:4, YCbCr 4:2:2

     HDMI Audio Formats (Pass-through)
     LPCM 2/5.1/7.1 CH, Dolby Digital, DTS5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

     Optical Audio Formats
     LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH

     L/R Audio Formats
     Analog Stereo 2CH

     ESD Protection
     Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

     Connection

     Inputs
     1x HDMI TypeA [19-pin female]

     Outputs
     Ix HDMI Type A[19-pin female]

 1x L/R Audio Out [3.5mm Stereo Mini-jack]

 1x Optical Out[S/PDIF]

     Mechanical

     Housing
     Metal Enclosure

     Color
     Black

     Dimensions
     73.5mm [W] x60.7mm [D] x17mm [H]

     Weight
     130g

     Power Supply
     Input: AC100 - 240V 50/60Hz

 Output: DC 5V/1A

(US/EU standards, CE/FCC/UL certified)

     Power Consumption
     1W(Max)

     Operating Temperature
      0°C ~ 40°C / 32°F ~ 104°F

     Storage Temperature
     -20°C ~ 60°C / -4°F ~ 140°F

     Relative Humidity
     20 - 90% RH (No condensation)
