HDMI ARC and Toslink Digital Audio Extender over CAT Cable, 150m

VLEX-HAACT150-TR

  • Extends HDMI ARC audio up to 150m at 96kHz, or 90m at 192kHz, over a single Cat5e/6 cable

  • Dedicated S/PDIF pass-through channel for displays without ARC support

  • CEC pass-through in ARC mode for seamless control between source and display

  • Ultra-low jitter, high-fidelity design with true plug-and-play setup

Where to Buy
Six Year Warranty logo

Product Description

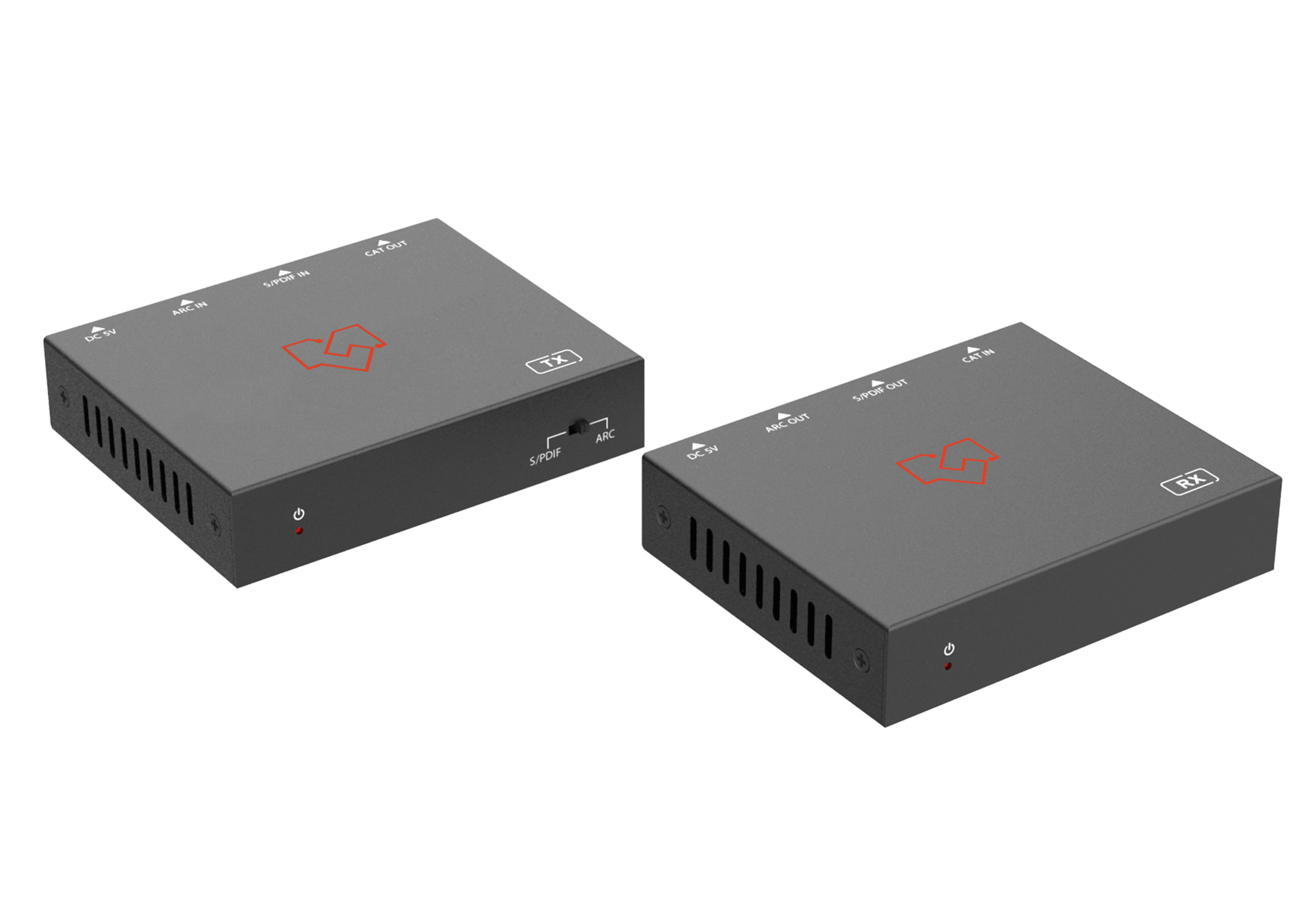

The VigilLink VLEX-HAACT150-TR is a compact, high-performance audio extender designed to transmit HDMI ARC or S/PDIF audio signals over a single CAT5e/6 cable. It supports transmission distances up to 492 feet (150 meters) at 96 kHz or 295 feet (90 meters) at 192 kHz (ARC only), providing a reliable solution for long-distance audio connectivity in residential or commercial AV environments.

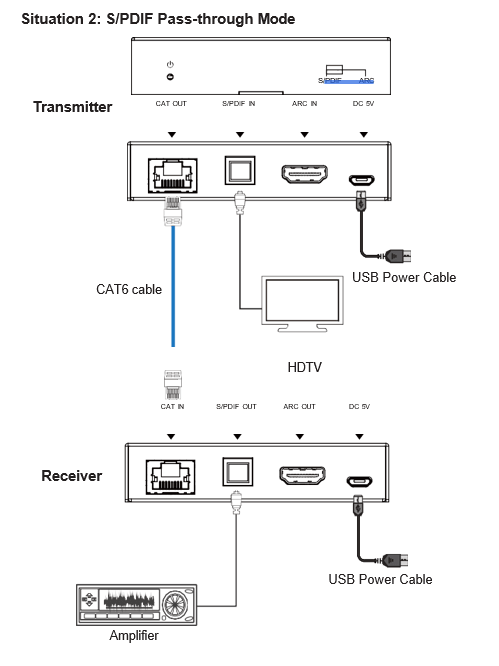

This extender supports full HDMI ARC functionality, including CEC pass-through between the ARC input and output ports, ensuring seamless control and compatibility between devices. For displays that lack ARC capability, the unit also features a dedicated S/PDIF pass-through channel, allowing digital audio to be transmitted from the S/PDIF input on the transmitter to the S/PDIF output on the receiver.

Ideal for routing audio from TVs to amplifiers, AVRs, or distributed audio systems, the VLEX-HAACT150-TR provides a plug-and-play solution that overcomes distance limitations without compromising audio quality or system integration.

Key Features

  • Extends HDMI ARC audio up to 150m/492ft (96kHz) or 90m/295ft (192kHz) over a single CAT cable

  • Extends S/PDIF audio up to 150m/492ft (96kHz) over a single CAT cable

  • Audio formats supported: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch

  • CEC pass-through when HDMI ARC mode is enabled

  • Plug-and-play

  • Compact size

  • Ultra-low jitter, high-fidelity design

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Specifications

Technical
Supported Audio Formats     PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch
Transmission Distance and Sample Rates     ARC audio: 150m/495ft - 96kHz, 90m/295ft - 192kHz

S/PDIF audio: 150m/495ft - 96kHz
ESD Protection     Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection

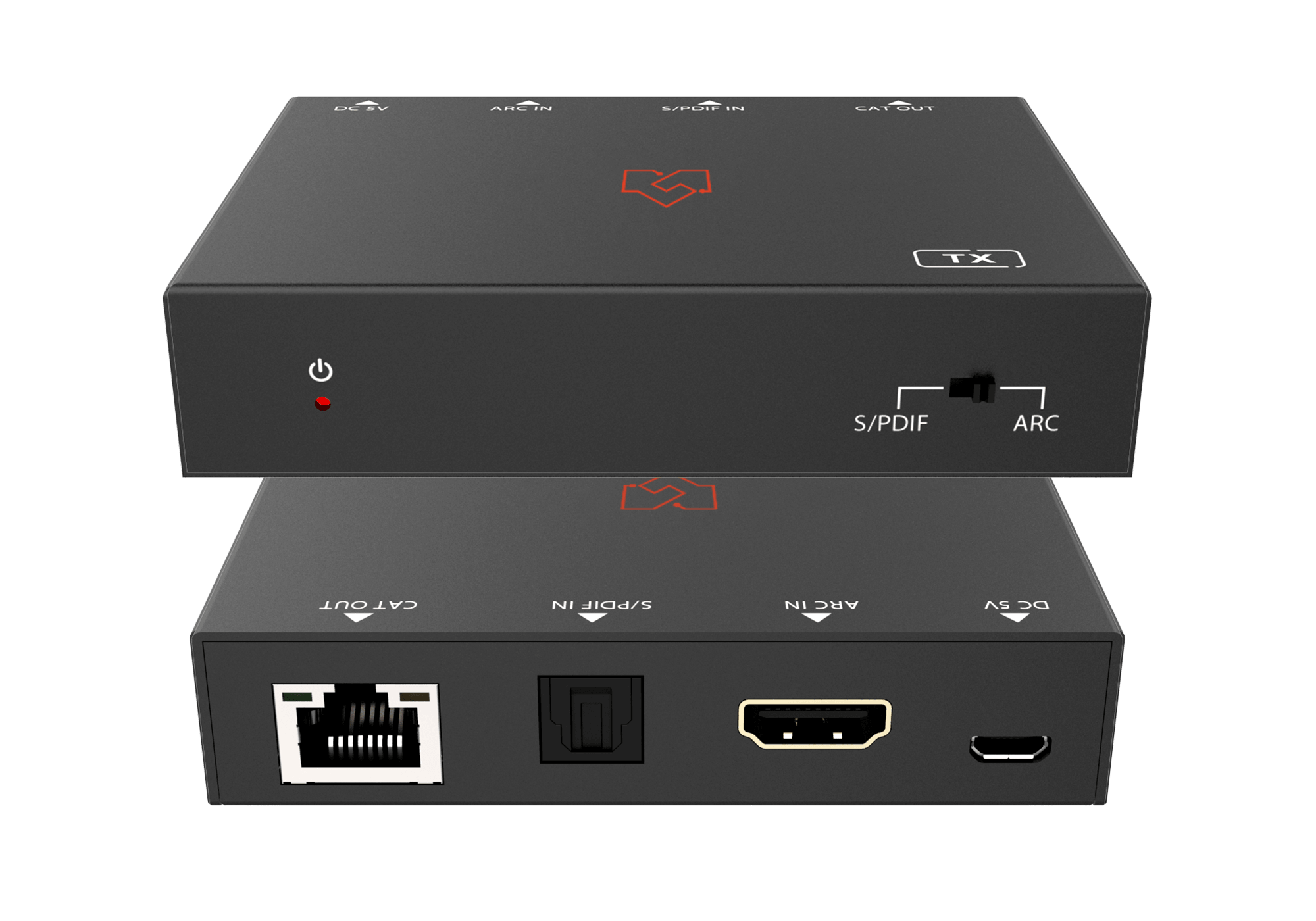

Transmitter Input port: 1 x S/PDIF IN [Optical Audio Jack]

                   1 x ARC IN [HDMI Type A, 19-pin female]

                   1 x Micro-USB

Outputs:     1 x CAT OUT [RJ45]
Receiver     Inputs:     1×CAT [RJ45, female]

                   1 x Micro-USB

Outputs:  1 x S/PDIF OUT [Optical Audio Jack]

                   1 x ARC OUT [HDMI Type A, 19-pin female]
Mechanical
Housing     Metal Enclosure
Color     Black
Dimensions     Transmitter / Receiver: 90mm (W) × 72mm (D) × 20mm (H)
Weight    Transmitter / Recever: 175g
Power Supply    DC 5V/1A
Power Consumption     Transmitter: 0.35W, Receiver: 0.7W
Operating Temperature     32 - 104°F / 0 - 40°C
Storage Temperature    -4 - 140°F / -20 - 60°C
Relative Humidity    20 - 90% RH (non-condensing)
