4K@60Hz 4:4:4 HDMI 2.0 Extender with ARC over CAT Cable, 70m 18Gbps

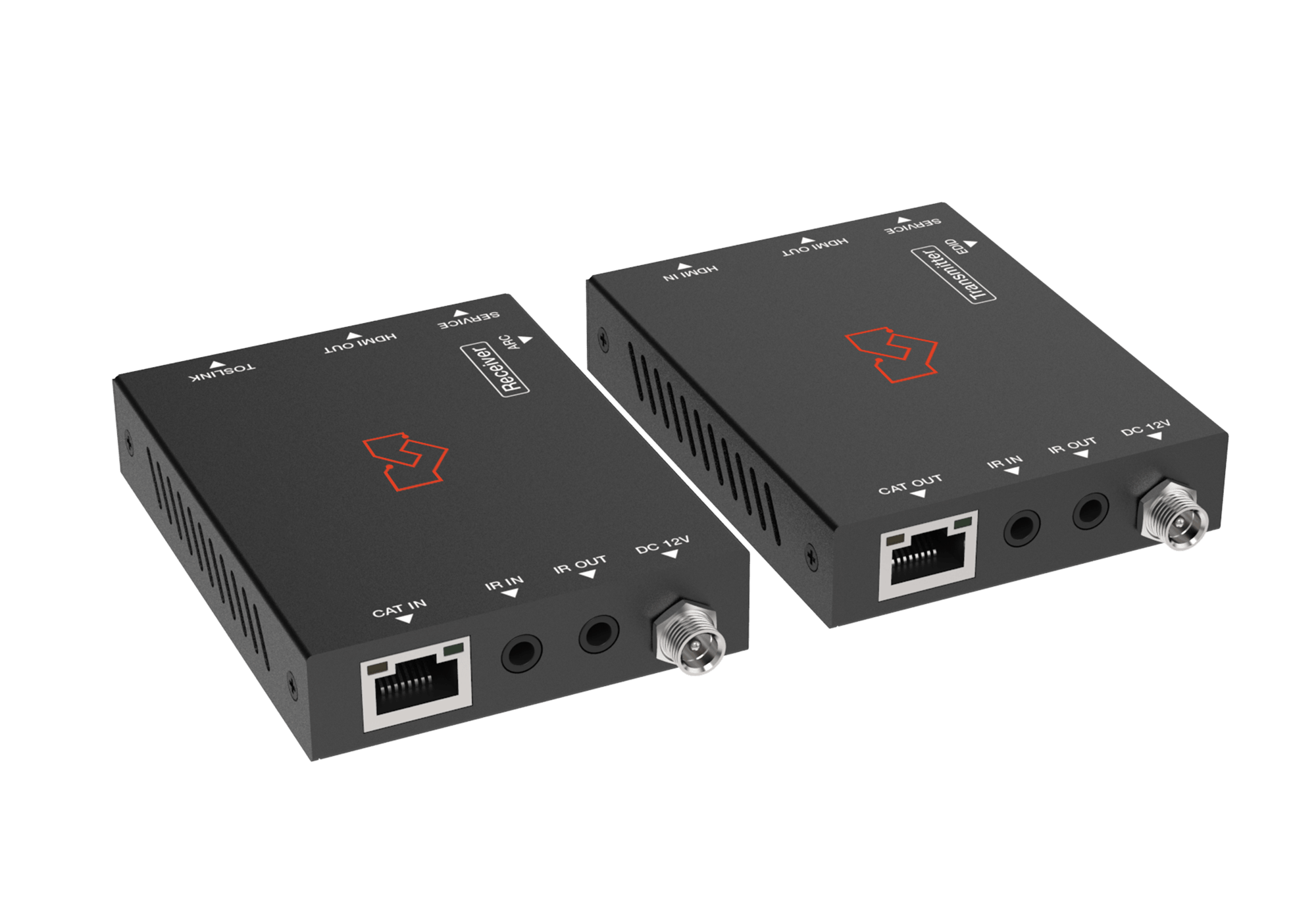

VLEX-CT070R-TR

  • Extends 4K@60Hz 4:4:4 HDMI 2.0 video at 18Gbps up to 70m over a single Cat6/6a cable

  • Audio Return Channel (ARC) plus audio de-embedding to an optical output on the receiver

  • Full HDR support including HDR10, HDR10+, Dolby Vision, and HLG pass-through

  • Bi-directional IR and two-way Power over Cable (PoC) for single-cable control and power

Where to Buy
Six Year Warranty logo

Product Description

The VigilLink VLEX-CT070R-TR is an 18Gbps HDMI extender designed for the transmission of uncompressed, zero-delay video and control signals over long distances. Using a single CAT6/6a cable, it extends HDMI and IR control signals up to 230 feet (70 meters) while delivering crystal-clear video resolution up to 4K@60Hz (4:4:4).

Designed for ease of integration, the extender features EDID copy pass-through, allowing seamless communication between the source and display for optimal compatibility. The built-in Power over Cable (PoC) function eliminates the need for separate power supplies at both ends, simplifying installation and reducing clutter.

Ideal for multimedia conference rooms, classroom displays, and large-format video environments, the VLEX-CT070R-TR offers a reliable, high-performance solution for long-distance HDMI transmission.

Key Features

  • HDMI 2.0b and HDCP 2.2 compliant

  • Supports 18Gbps video bandwidth

  • Supports video resolution up to 4K@60Hz RGB/YCbCr 4:4:4

  • Extends up to 70m/230ft via a single Cat6/6a cable

  • HDR support: HDR, HDR10, HDR10+, Dolby Vision, and HLG

  • Bi-directional IR control signal pass-through

  • Audio formats supported: LPCM 7.1, Dolby TrueHD, DTS-HD Master

  • EDID copy pass-through between source and display

  • ARC and audio de-embedding, with audio output through the optical port on the receiver

  • Bi-directional Power over Cable (PoC) function

  • Compact design for easy and flexible installation

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Specifications

Technical
HDMI Compliance     HDMI 2.0b
HDCP Compliance     HDCP 2.2
Video Bandwidth     18Gbps
Video Resolution     Up to 4K2K@60Hz RGB/YCBCR 4:4:4
IR Level     5Vp-p
IR Frequency     Wideband 20K-60KHz
Transmission Distance     4K2K@60Hz 4:4:4--70m, 1080P--70m (CAT6/6a cable)
Color Space     RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth     8/10/12-bit
Audio Formats     HDMI: LPCM 7.1CH, Dolby True HD, DTS-HD Master

Optical: Dolby 5.1, DTS 5.1, PCM 2.0

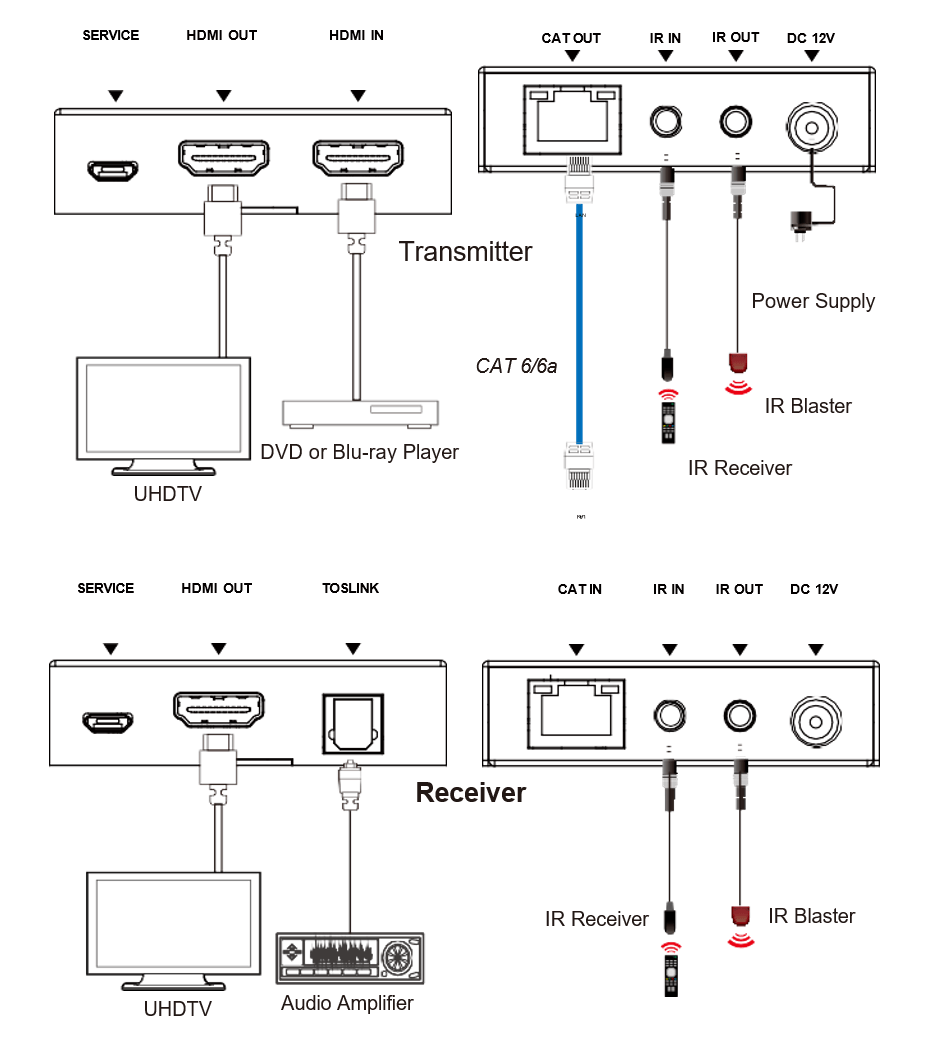

Connection

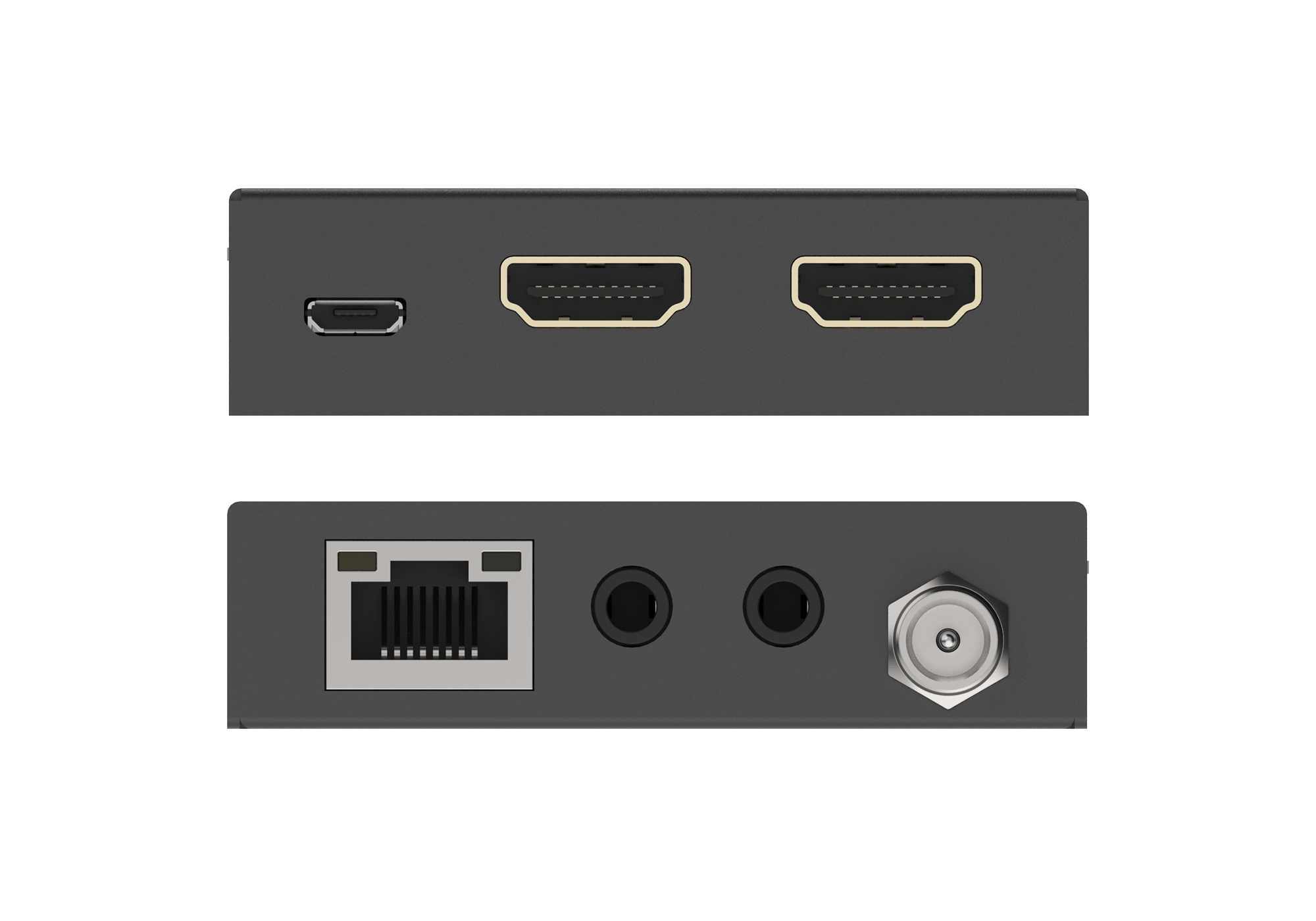

Transmitter Inputs:     1 × HDMI IN [Type A, 19-pin female]

Outputs:    1×HDMI OUT [RJ45]

                   1×CAT OUT [RJ45]

Controls:     1×SERVICE [Micro-USB jack]

                   1×IR IN [3.5mm Stereo Mini-jack]

                   1×IR OUT [3.5mm Stereo Mini-jack]

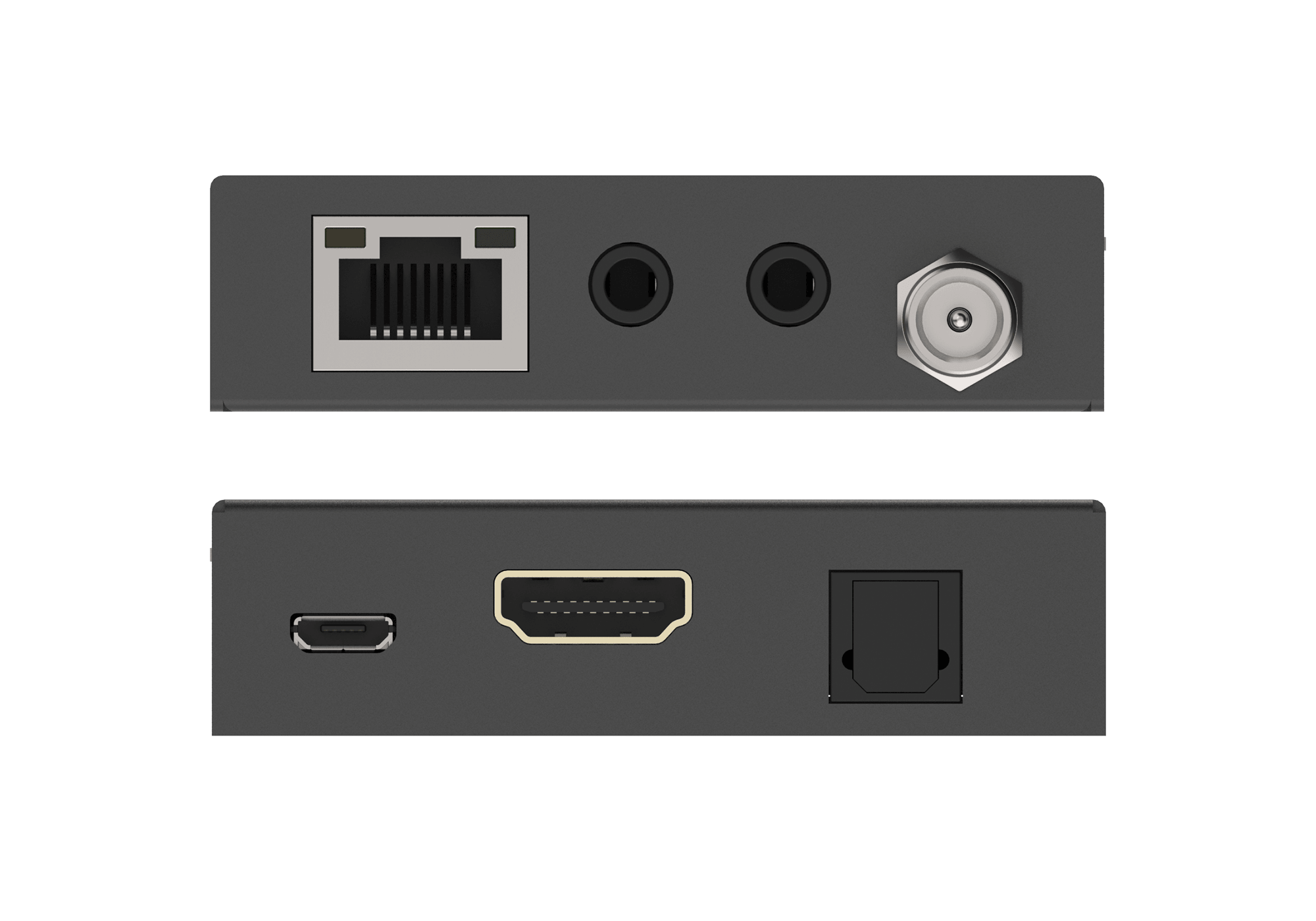

Receiver     Inputs:     1×CAT IN [RJ45]

Outputs:    1×HDMI OUT [Type A, 19-pin female]

                   1×TOSLINK

Controls:     1×SERVICE [Micro-USB jack]

                   1×IR IN [3.5mm Stereo Mini-jack]

                   1×IR OUT [3.5mm Stereo Mini-jack]
Mechanical
Housing     Metal Enclosure
Color     Black
Dimensions     Transmitter / Receiver: 90mm (W)×68mm (D)×18mm (H)
Weight    Transmitter: 160g, Receiver: 155g
Power Supply    DC 12V/1A;

Support bi-directional POC function
Power Consumption     3.36 W (max)
Operating Temperature     32 - 104°F / 0 - 40°C
Storage Temperature    -4 - 140°F / -20 - 60°C
Relative Humidity    20 - 90% RH (non-condensing)
