150W 2-Ch Class D Audio Amplifier with DSP and Dante®

Does the VLDT-A2AM150 support both Dante and analog audio inputs simultaneously?

Yes, the VLDT-A2AM150 features both Dante digital network audio inputs (2 channels) and balanced/unbalanced analog line-level inputs. You can route either input source to the amplifier outputs using the built-in DSP controls via the Web GUI or RS-232 commands. This flexibility allows the amplifier to serve as both a Dante endpoint and a traditional analog amplifier, making it versatile for mixed audio systems or migration scenarios.

What's the maximum distance I can run speakers from this amplifier?

In Lo-Z mode (4Ω/8Ω), keep speaker cable runs under 50 feet (15m) using quality 12-16 AWG cable to minimize power loss. In Hi-Z mode (70V/100V), you can extend cable runs to several hundred feet using 18-22 AWG wire, making it ideal for distributed speaker systems in commercial spaces. The constant voltage mode significantly reduces power loss over long distances, which is why it's preferred for installations like retail stores, restaurants, and large facilities.

Can I control the amplifier volume and settings remotely?

Absolutely. The VLDT-A2AM150 offers comprehensive remote control through three methods: Web GUI (via LAN connection for intuitive browser-based control), RS-232 (for integration with Crestron, AMX, or Extron control systems), and network-based control commands. The built-in DSP allows independent adjustment of input gain, output EQ, and volume for each channel. You can save presets and recall them remotely, making it perfect for multi-room installations managed from a central location.

What's the difference between Lo-Z and Hi-Z operation, and when should I use each?

Lo-Z mode (4Ω/8Ω) is ideal for short cable runs and high-fidelity applications like near-field monitors, studio speakers, or dedicated listening environments. You get 2×75W in stereo or can bridge to 150W mono. Hi-Z mode (70V/100V constant voltage) is designed for distributed audio systems with multiple speakers and long cable runs—common in commercial settings like retail stores, restaurants, offices, and warehouses. Hi-Z significantly reduces power loss over distance and allows you to connect multiple speakers to a single channel using matching transformers.

Does this amplifier work with Dante Domain Manager for network security?

The VLDT-A2AM150 is Dante-enabled and supports integration with Dante Controller software for device discovery, routing, and configuration. For enterprise environments requiring security features like encryption and authentication, compatibility with Dante Domain Manager depends on the Dante module firmware version.

Will the amplifier add latency to my Dante audio network?

The VLDT-A2AM150 introduces minimal latency typical of Dante-enabled devices—generally less than 5ms under standard network conditions. Dante's deterministic network behavior ensures consistent, low-latency audio distribution, making this amplifier suitable for live sound reinforcement, conference systems, and other applications where timing is critical. The built-in DSP processing adds negligible additional latency (typically under 1ms), so the total system latency remains well within acceptable ranges for professional audio applications.

Can I bridge both channels for a single 150W mono output?

Yes, the VLDT-A2AM150 supports bridged mono operation delivering 150W into 8Ω. This is configured through the Web GUI or control commands, allowing you to combine both amplifier channels for driving a single, higher-power speaker or subwoofer. Bridged mode is ideal when you need maximum output power for a single zone, such as powering a subwoofer in a conference room or driving a high-power speaker in an auditorium. Note that in bridged mode, you'll use the designated speaker output terminals for proper phasing.

What happens if the amplifier detects a fault condition or overheats?

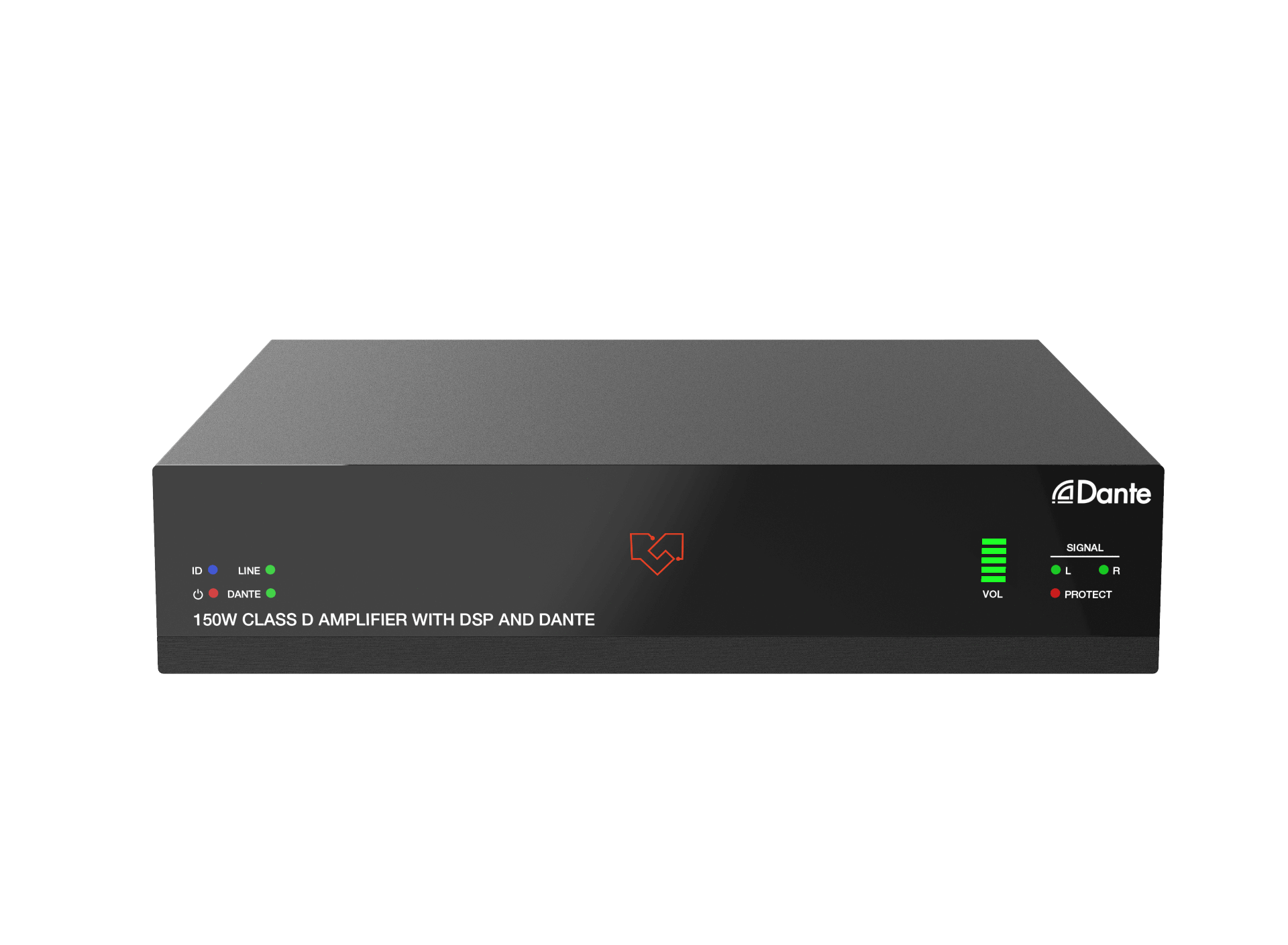

The VLDT-A2AM150 includes comprehensive protection circuits including thermal protection, short-circuit protection, and DC protection. If the amplifier detects overheating, it will reduce output power or enter protection mode until temperatures return to safe operating levels. LED indicators on the front panel provide status feedback, and you can monitor detailed diagnostics through the Web GUI. The auto-standby feature also helps prevent thermal issues by powering down during periods of no signal, and the 5-12V trigger input allows integration with room automation for intelligent power management.

What Dante audio channels does the VLDT-A2AM150 support?

The VLDT-A2AM150 supports 2 Dante® audio receive channels (inputs) and 2 Dante® transmit channels (outputs), referred to as 2x2 Dante® capability. The unit receives stereo audio from the Dante® network to feed its internal DSP and amplifier, and can simultaneously transmit line-level audio back to the network for monitoring or cascading to additional zones. These channels operate at your choice of 44.1kHz, 48kHz, 88.2kHz, or 96kHz sampling rates at 16 or 24-bit depth, configured through Dante® Controller software. The amplifier uses 24-bit A/D and D/A converters for the analog interfaces while supporting the full Dante sample rate range for network audio.

What is the difference between the VLDT-A2AM150 and the VLDT-A2AM70?

The primary differences are power output, voltage options, and form factor. The VLDT-A2AM150 delivers 2×75W (stereo) or 1×150W (bridged mono) — more than double the A2AM70's 2×35W or 1×70W — and uniquely supports constant voltage 70V/100V Hi-Z operation for distributed commercial speaker systems. The A2AM150 uses universal AC power (100-240V) rather than PoE, making it suitable for permanent rack installations. The A2AM150 also features a half-rack form factor compared to the A2AM70's compact design. Both share Dante® 2x2 audio, DSP processing, and web GUI control. Choose the A2AM70 for smaller installations with PoE infrastructure; choose the A2AM150 for large conference rooms, auditoriums, retail systems, or any application requiring 70V/100V distributed speaker capability and maximum power output.

Why Choose Dante® Networking for Professional AV?

Dante® has become the de facto standard for professional networked audio because it runs on standard Gigabit Ethernet infrastructure that most facilities already have in place. Where traditional analog audio distribution requires dedicated point-to-point wiring for every connection, a single Cat6 cable running to a network switch can carry hundreds of Dante® audio channels simultaneously, dramatically reducing installation complexity and cost.

For AV integrators and system designers, Dante® delivers key practical advantages: any Dante® device on the network can send audio to any other Dante® device without physical rewiring; routing changes are made entirely in software using the free Dante® Controller application; and the open ecosystem of over 600 manufacturers means mixing console, DSP, amplifier, and source products from different brands interoperate seamlessly. The VLDT-A2AM150 integrates into this ecosystem as a high-power network-connected amplifier — receiving audio from any Dante® source, processing it with integrated DSP, and delivering up to 150W of amplified output with flexible Lo-Z/Hi-Z operation for both traditional and distributed speaker systems, while simultaneously transmitting line-level audio back to the network for monitoring or cascading to additional zones.
