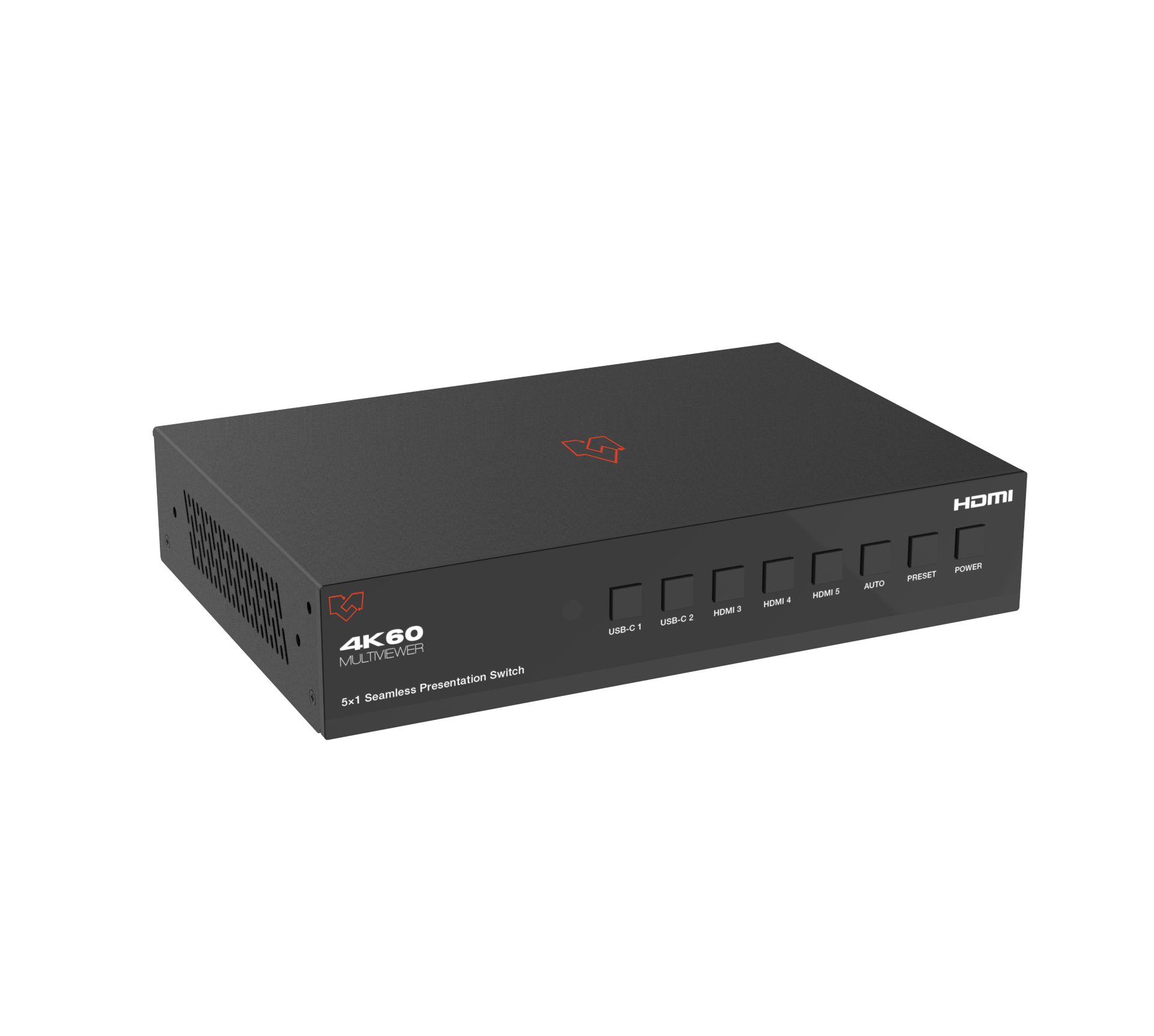

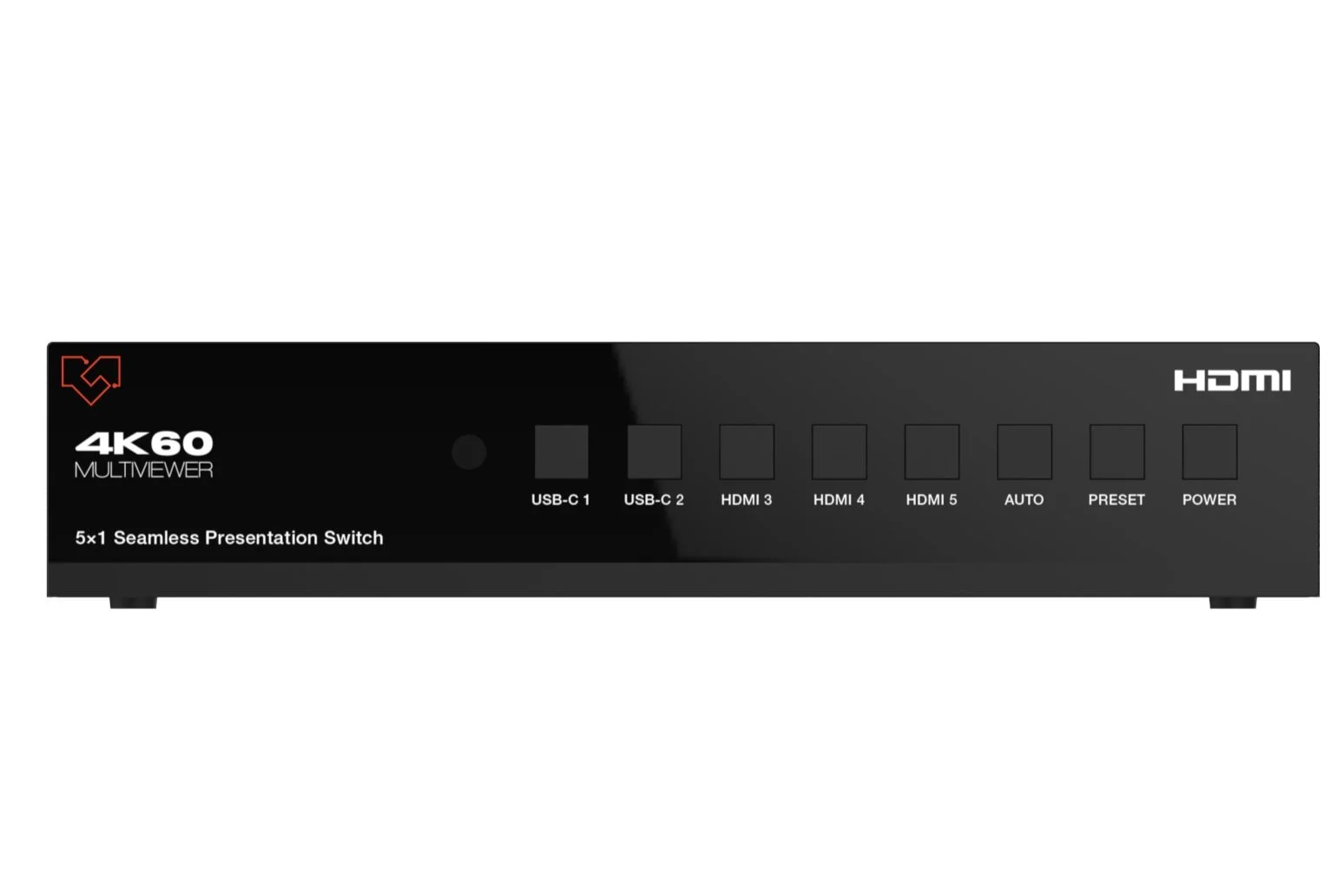

5x1 Presentation Switcher with HDBaseT output 70m 18Gbps

VLPT-51HT70

Data Sheet

User Manual

Product Description

Designed for professional AV environments, this 5x1 seamless presentation switcher offers powerful connectivity and advanced flexibility. Featuring 3 HDMI inputs and 2 USB-C inputs (supporting DP Alt Mode, USB 2.0, 100M Ethernet, and up to 60W charging), it seamlessly integrates modern devices into your AV workflow.

The switch provides 1 HDMI output and a mirrored HDBaseT output, capable of transmitting uncompressed 4K signals up to 230ft (70m) at 4K@30Hz 4:4:4 or 131ft (40m) at 4K@60Hz 4:4:4 over a single CAT6A (F/FTP) cable. HDBaseT output supports standard PoE for a simplified installation.

Enjoy versatile display configurations with support for full screen, Picture-in-Picture (PIP), Picture-by-Picture (PBP), Triple, and Quad multiview modes.

Built for hybrid workflows, this device includes USB 2.0 local KVM switching, USB pass-through (TX to RX), and bi-directional RS-232 and IR control signal pass-through.

Audio is equally robust, with:

1 analog audio input
1 analog audio output
Dante® 2x2 audio I/O
A built-in 3x3 audio matrix with independent EQ, volume, and delay adjustments

This all-in-one presentation switcher is the ideal solution for meeting rooms, classrooms, control centers, and collaborative spaces that demand seamless video, audio, and control integration.

Featured Highlights

· 4 HDCP 2.2 and DP 1.2 compliant

· Support 18Gbps video bandwidth

· Support video resolution up to 4K@60Hz 4:4:4, as specified in HDMI 2.0b

· Uncompressed 4K60 over HDBT 3.0 up to 132ft/40m via single CAT6A (F/FTP) cable

· Uncompressed 1080P&4K30 over HDBT 3.0 up to 230ft/70m via single CAT6A (F/FTP) cable

· Up to 5 categories of multiview display modes: Single/PIP/PBP/Triple/Quad

· Support 5x1 seamless switching (single screen) and fast switching (multiview) function

· Input: 2x USB-C, 3x HDMI, 1x Analog audio, 1x Dante® 2ch

· Output: 1x HDMI and 1x HDBT mirrored, 1x Analog audio, 1x Dante® 2ch

· HDMI and HDBaseT (PoE) outputs (Mirrored)

· Dante® 2x2 audio input and output

· USB-C supports DisplayPort Alt mode for A/V, USB 2.0, 100M Ethernet and 60W charging

· Local USB 2.0 KVM switching and extending USB 2.0 over HDBT 3.0

· Signal input supports manual switching and automatic switching modes

· Support analog/Dante® audio embedding, analog/Dante® audio de-embedding output

· CEC/RS-232 control external devices ON/OFF

· Advanced EDID management

· Flexible control via front panel buttons, IR remote, RS-232, TCP/IP or Web GUI

· Support standard PoE power supply (TX_PSE, RX_PD)

Specifications


     Technical

     HDMI Compliance
     HDMI 2.0

     HDCP Compliance
     HDCP 2.2

     DP Compliance
     DP 1.2

     Video Bandwidth
     18Gbps

     USB Bandwidth
     TX USB DEVICES to TX HOST/USB-C: 480Mbps

RX USB DEVICES to TX HOST/USB-C: 350Mbps

RX USB DEVICES to RX HOST: 480Mbps

     Network Bandwidth (LAN and USB-C Connection)
     100Mbps

     Input Video Resolution
     480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@50Hz/
60Hz 4:4:4

     Output Video Resolution
     Auto, 3840x2160p60, 3840x2160p50, 4096x2160p60, 4096x2160p50,

3840x2160p30, 3840x2160p25, 1920x

1200p60RB, 1920x1080p60, 1920x1080p50, 1360x768p60,

1280x800p60, 1280x720p60, 1280x720p50, 1024x768p60

     IR Level
     12Vp-p

     IR FrequencyIR Frequency
     Wideband 20K-60KHz

     Color Depth
     Input: 8/10/12-bit, 8-bit (4K60Hz 4:4:4) Output: 8-bit

     Color Space
     RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0

     Audio Formats
     LPCM 2.0

     Audio Sample Rate
     48KHz

     Transmission Distance
     1080P&4K30 -- 230ft/70m; 4K60 -- 131ft/40m

     HDR
     Input supports HDR, output does not support HDR.

     ESD Protection
     Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

     TX Analog Audio

     Input ImpedanceInput Impedance
     10K Ohms

     Output Impedance
     330 Ohms

     Line Input Level (Maximum)
     8.2dBu (2Vrms) @ balanced or unbalanced audio

     Line Output Level (Maximum)
     8.2dBu (2Vrms) @ balanced audio

     Frequency Response
     2.2dBu (1Vrms) @ unbalanced audio

     Audio Output Sync Delay
     (+0.5 dB, -1 dB) 20 Hz to 20 kHz

     Audio S/N Ratio
    0 to 50ms

     Audio THD+N
      93dB @ 2Vrms, 1kHz A-weighted

     RX Analog Audio

     Output Impedance
     330 Ohms

     Line Output Level (Maximum)
     8.2dBu (2Vrms) @ balanced audio

 2.2dBu (1Vrms) @ unbalanced audio

     Frequency Response
     (+0.5 dB, -1 dB) 20 Hz to 20 kHz

     Audio Output Sync Delay
     0 to 50ms

     Audio S/N Ratio
     93dB @ 2Vrms, 1kHz A-weighted

     Audio THD+N
     <0.1% @ 0dBV, 1kHz

     Dante® Audio

     Audio Formats

     LPCM2.0

     Sample Rate
     44.1, 48, 88.2 and 96KHz at 24 bits

    Audio Delay

     2ms, 3ms, 4ms, 5ms, 10ms

     Network Bandwidth
     100Mbps

     Connection

     Transmitter
     INPUTS:    3 x HDMI INPUT [Type A, 19-pin female]

                 2 x USB-C [24-pin female]

                 1 x LINE IN [5pin-3.5mm phoenix connector]

                 1 x DANTE [RJ45]

OUTPUTS:  1 x HDMI OUTPUT [Type A, 19-pin female]

                 1 x HDBT OUTPUT [RJ45]

                  1 x LINE OUT [5pin-3.5mm phoenix connector]

Control:  1 x RS-232 [3pin-3.5mm phoenix connector]

                 1 x LAN [RJ45]

                  1 x USB HOST [USB Type B]

                 2 x USB DEVICES [USB Type A]

                 1 x SERVICE [Micro USB]

                 1 x IR IN [3.5mm stereo mini-jack]

                 1 x IR OUT [3.5mm stereo mini-jack]

     Receiver
     INPUTS:      1 x HDMI IN [Type A, 19-pin female]

                 2 x USB-C [24-pin female]

                 1 x LINE IN [5pin-3.5mm phoenix connector]

                 1 x DANTE [RJ45]

OUTPUTS:  1 x HDMI OUTPUT [Type A, 19-pin female]

                 1 x HDBT OUTPUT [RJ45]

                  1 x LINE OUT [5pin-3.5mm phoenix connector]

Control:  1 x RS-232 [3pin-3.5mm phoenix connector]

                 1 x LAN [RJ45]

                  1 x USB HOST [USB Type B]

                 2 x USB DEVICES [USB Type A]

                 1 x SERVICE [Micro USB]

                 1 x IR IN [3.5mm stereo mini-jack]

                 1 x IR OUT [3.5mm stereo mini-jack]

     Mechanical

     Housing
     Front panel: Aluminum; Rear case: Metal Enclosure

     Color
     Black

     Dimensions
     Transmitter: 220mm [W]×150mm [D]×44mm [H]

Receiver: 140mm [W]×105mm [D]×21.5mm [H]

     Weight
     Transmitter: 220mm [W]×150mm [D]×44mm [H]

Receiver: 140mm [W]×105mm [D]×21.5mm [H]

     Power Supply
     Input: AC100 - 240V 50/60Hz

Output: DC 24V/8A (US/EU standard, CE/FCC/UL certified)

     Power Consumption
     150W (Max)

     Operating Temperature
      0°C ~ 40°C / 32°F ~ 104°F

     Storage Temperature
      -20°C ~ 60°C / -4°F ~ 140°F

     Operating Humidity
      20%~80% (relative humidity, non-condensing)

     Storage Humidity
     10%~90% (relative humidity, non-condensing)
