4x1 HDMI Switcher 4K60 with Multi-Viewer

VLML-4X1H20

Data Sheet

User Manual

Product Inquiry Form

Product Description

The VLML-4X1H20M is a seamless 4x1 UHD multiview switcher designed to combine multiple HDMI sources into a single high-resolution display. Supporting input resolutions up to 4K@60Hz (reduced blanking), this device enables users to view up to four HDMI video signals simultaneously on a single UHD or HD monitor with crystal-clear detail and full layout flexibility.

Built for performance and control, the VLML-4X1H20M allows users to manage each input independently using the supplied control software, adjusting the position and arrangement of sources in real time. Whether used in control rooms, broadcast workflows, or high-end presentation environments, this switcher simplifies multiview configurations without compromising image quality.

Audio de-embedding is available via both RCA and optical outputs, allowing seamless integration with external audio distribution systems. The unit offers intuitive control through front panel buttons, IR remote, and RS-232 commands, making it an adaptable solution for both standalone use and system-wide integration.

Featured Highlights

  • HDMI 2.0b, HDCP 2.2, and HDCP 1. x compliant

  • Supports 18Gbps video bandwidth

  • Input and output resolutions support up to 4K@60Hz

  • Supports LPCM, AC3, DD+, DTS, DTS-HD, and up to 7.1 audio channel

  • Seamless switching between input channels and combined multiple images on a single UHD monitor

  • Up to 8 display modes: SINGLE, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)

  • Seamless switching on single-screen display mode

  • Fast switching on Multiview display mode

  • Audio de-embedding via analog and optical fiber audio ports

  • Supports volume control and independent audio selection

  • Supports OSD navigation for advanced setting

  • EDID management

  • Control via front panel buttons, IR remote, and RS-232 commands

  • Compact design for easy and flexible installation

Specifications

Technical
HDMI Compliance     HDMI 2.0b
HDCP Compliance     HDCP 2.2 / 1.x
Video Bandwidth     18Gbps
Video Resolution     Up to 4K@60Hz
IR Level     5Vp-p
IR Frequency     38KHz
Color Space     RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth     8bit
Audio Formats     HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res

Analog audio [3.5mm L/R]: PCM2.0;

SPDIF (OPTICAL): Dolby Digital, DTS 5.1, PCM2.0.

Note: It does not support HBR audio.
Audio output     PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1
ESD Protection     Human-body Model： ±8kV (Air-gap discharge) , ±4kV (Contact discharge)
Connection
Input Ports         4 x HDMI IN [Type A, 19-pin female]
Output ports         1 x HDMI OUT [Type A, 19-pin female]

1 x L/R OUTPUT [RCA]

1 x OPTICAL OUTPUT [S/PDIF]
Mechanical
Housing     Metal Enclosure
Color     Black
Dimensions     220mm [W] x 100mm [D] x 30mm [H]
Weight     620g
Power Supply     Input: AC 100 - 240V 50/60Hz

Output: DC 12V/2.5A

(US/EU standard, CE/FCC/UL certified)
Power Consumption     10W (Max)
Operating Temperature     0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature     -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity     20 - 90% RH (No condensation)

Related Products

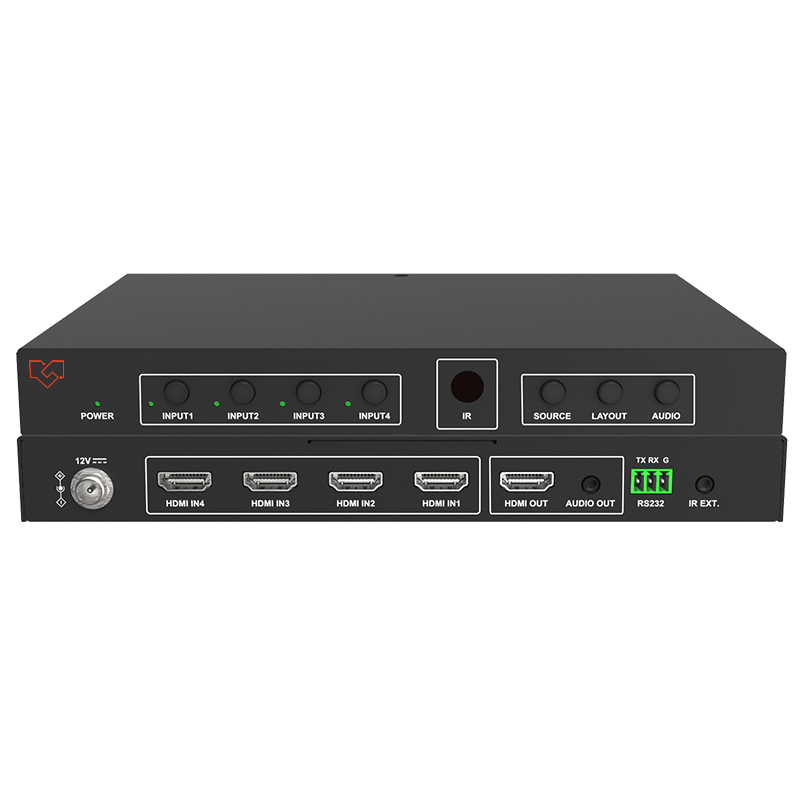

  • VLML-4X1H20ET

    4x1 HDMI 2.0 4K60 MultiViewer with Seamless Switching

    VIEW PRODUCT

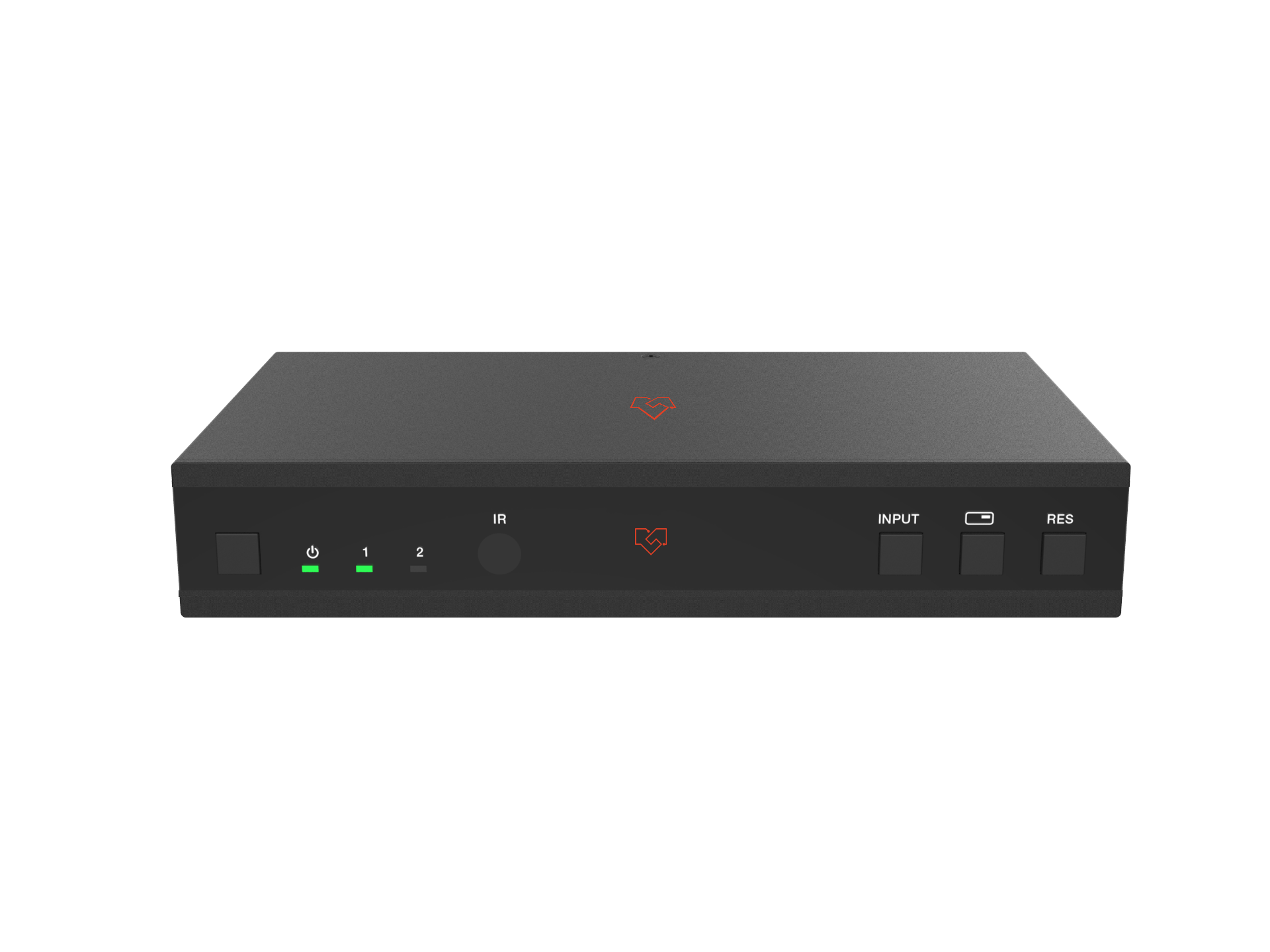

  • VLML-2X1H20
