4x4 HDMI 2.0 18Gbps Matrix with Seamless Switching, Videowall and Multiviewer

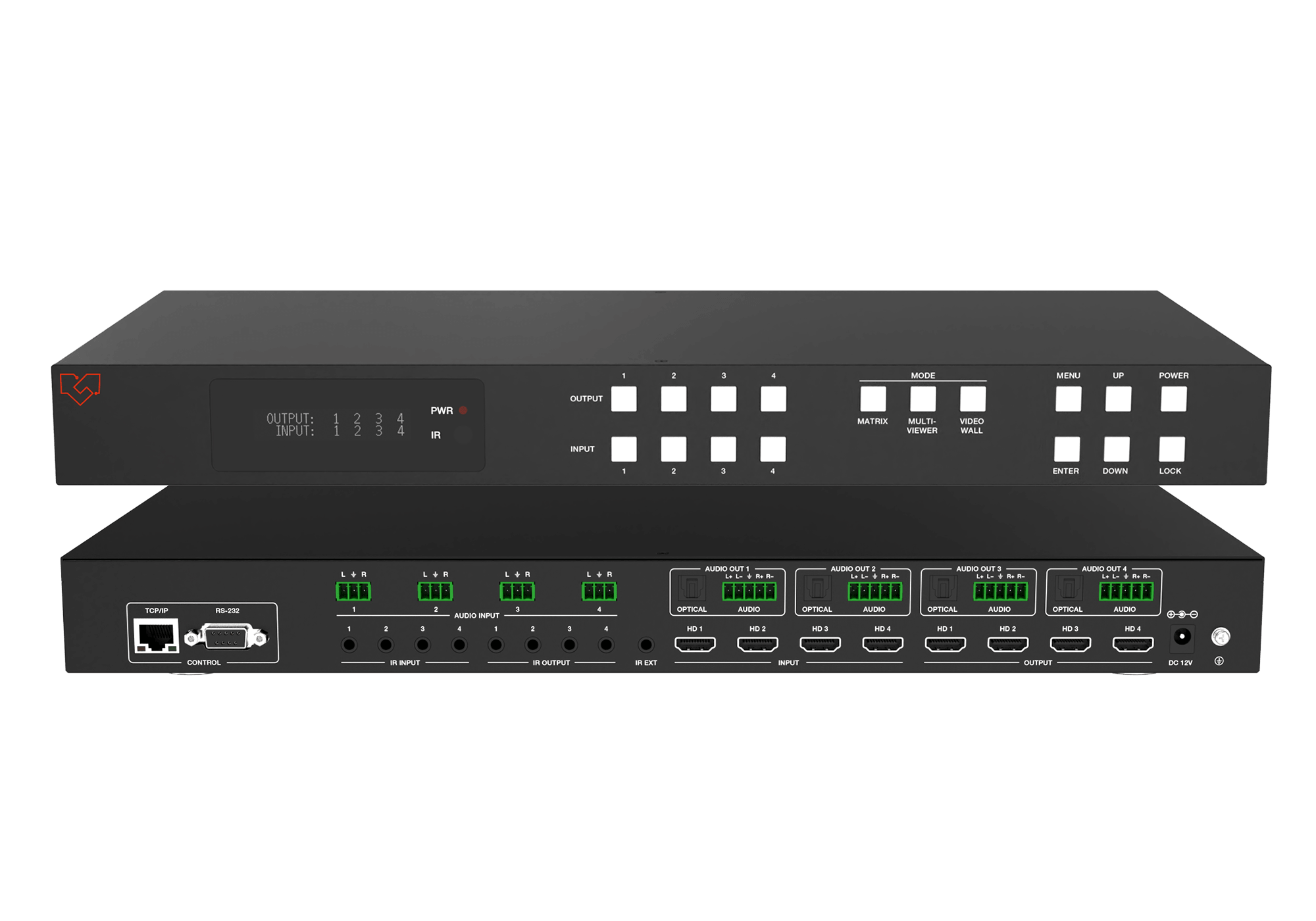

VLVW-MX44P
4x4 seamless HDMI 2.0 matrix switcher with multiview and video wall processing in a single 1U unit
HDMI 2.0 (HDCP 2.2) at 18Gbps with 4K@60Hz 4:4:4, individually scalable inputs, and zero-frame-loss switching
12 multi-viewer display layouts and 9 video wall splicing modes, with full-screen, multi-window, and video wall configurations
Audio embedding and de-embedding, a 4x4 IR matrix, advanced EDID and CEC management, and control via front panel, IR, RS-232, or Web GUI
Product Description
The VLVW-MX44P is an advanced 18Gbps 4x4 seamless HDMI matrix switcher designed to deliver flexible signal routing, multiview functionality, and video wall processing in a single, high-performance unit. Supporting four HDMI inputs and four HDMI outputs, it allows any source to appear on any screen with smooth, zero-frame-loss transitions.
Ideal for command centers, digital signage, and collaborative workspaces, the VLVW-MX44P offers multiple viewing modes, including full-screen, multi-window, and video wall configurations. Each input is individually scalable, allowing optimized visual layouts to meet diverse presentation needs.
The system also features full audio management, including audio embedding and de-embedding, along with a 4x4 IR matrix for independent remote control of connected sources.
User control is flexible and straightforward, via front panel buttons, IR remote, RS-232, or an intuitive Web GUI, making the VLVW-MX44P a powerful, user-friendly solution for professional AV environments that demand versatility, clarity, and seamless performance.
Key Features
HDCP 2.2 compliant
Supports video resolution up to 4K@60Hz 4:4:4 and 18Gbps video bandwidth, per HDMI 2.0
Supports 12 display layouts in multi-viewer mode and 9 splicing modes in video wall mode
HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio
Supports CEC control and multiple output resolutions
Advanced EDID management
Control via front panel buttons, IR remote, RS-232, and Web GUI
Downloads
Specifications
| Technical | |
|---|---|
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 594MHz/18Gbps |
| Video Resolution | 480i ~1080P@50/60Hz, 4K2K@24/30Hz, 4K2K@60Hz2 |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12-bit |
| Audio Format | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS- 96/24, DTS High Res, DTS-HD Master Audio |
| IR Level | 12Vp-p |
| IR Frequency | Wideband 20K-60KHz |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Input ports | 4 × HDMI INPUT [Type A, 19-pin female] 4 × L/R AUDIO INPUT [3.81mm, 3pin Phoenix Connector] |
| Output ports | 4 × HDMI OUTPUT [Type A, 19-pin female] 4 × OPTICAL AUDIO OUT [S/PDIF] 4 × L/R AUDIO OUT [3.81mm, 5pin Phoenix Connector] |
| Control ports | 1 × TCP/IP [RJ45] 1 × RS-232 [D-Sub 9] 1 × IR EXT [3.5mm, Stereo Mini-jack] 4 × IR INPUT [3.5mm, Stereo Mini-jack] 4 × IR OUTPUT [3.5mm, Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 440mm [W] × 203mm [D] × 44.5mm [H] |
| Weight | 2.55kg |
| Power Supply | Input: AC 100-240V 50/60Hz, Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | 25W (Max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 - 90% RH (No condensation) |
