4K30 BYOD Multiview Presentation Switcher
VLPT-42WLHUB
2x1 BYOD presentation switcher with wireless casting via AirPlay, Miracast, and Chromecast plus a built-in Wi-Fi module
Dual-view multiview of any two wired or wireless sources, with 4K@30 4:4:4 input and up to 4K@60 4:4:4 output
Full-function USB-C with video, USB 3.0, charging, and Ethernet, plus a USB switcher for 4K cameras and speakerphones on Zoom and Teams
HDBaseT2 output extending video, USB, and RS-232 up to 40m at 4K (70m at 1080p), with a built-in Ethernet switch and analog audio out
Product Description
The VLPT-42WLHUB Multiview Presentation Switcher is a versatile solution designed for seamless wireless presentations, supporting BYOD via Airplay, Miracast, and Chromecast. This device allows users to effortlessly connect and share content from smartphones, tablets, laptops, or computers, enabling smooth collaboration in any meeting environment. The Multiview function enhances productivity by displaying two videos from any device, whether wired or wireless, on a single screen. With automatic switching between HDMI and USB-C inputs, the switcher offers a plug-and-play experience with no configuration required, ensuring a hassle-free setup.
In addition to its wireless capabilities, the device also features USB connectivity, enabling integration with speakerphones and 4K cameras for seamless conferencing on platforms like Zoom and Teams. For even greater flexibility, the switcher is available with integrated HDBaseT2 technology, which provides a single connection extension for USB, video, and RS232 functionality. This all-in-one solution is ideal for modern meeting rooms and collaborative spaces, delivering high-quality video and audio with ease.
Key Features
2x1 presentation switcher
USB-C port with video input, USB 3.0, charging, and Ethernet
Multiview presentation, up to dual-view
BYOD receiver with Airplay Mirroring, Miracast, Chromecast, and Dongle
Video input timing up to 4K@30Hz 4:4:4
Video output timing up to 4K@60Hz 4:4:4 (4:2:0 on HDBT out)
Built-in Wi-Fi module for wireless casting
4 input and 2 output USB 3.0 switcher
Built-in Ethernet switch
Analog audio output
Downloads
Specifications
| Technical | |||
|---|---|---|---|
| HDMI Compliance | HDMI 2.0b | ||
| HDCP Compliance | HDCP 2.2, 1.4 | ||
| Video Bandwidth | 18 GB | ||
| Video Resolution (Up To) | 4k30 | ||
| Color Space | 4:4:4 | ||
| Color Depth | 10 Bit | ||
| Audio Formats | LPCM 2.0t | ||
| Transmission Distance 4k | 40 meters | ||
| Transmission Distance 1080p | 70 meters | ||
| Connections | |||

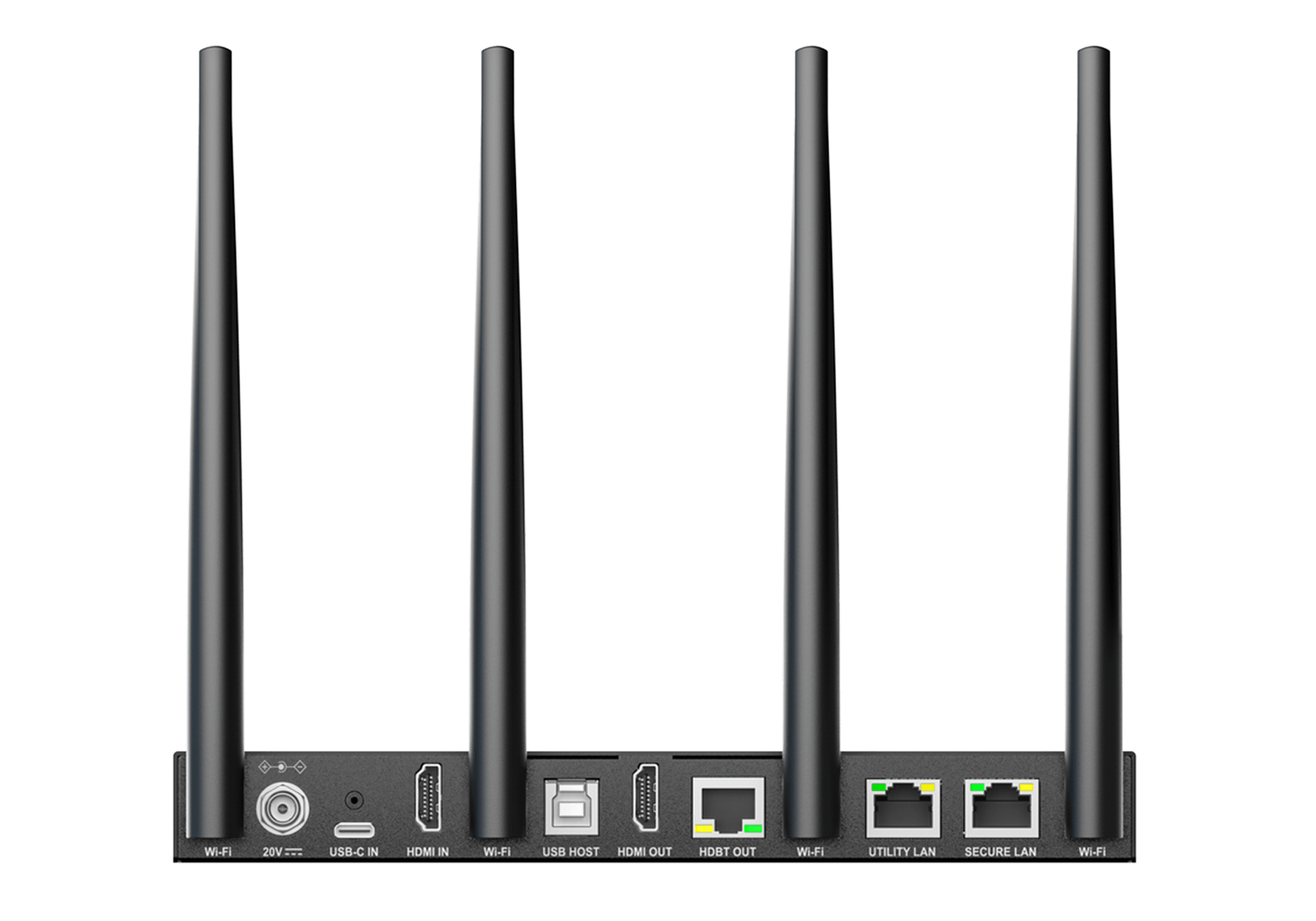

| Input Ports | 1 x USB-C 1 x HDMI 2 x LAN, 10/100/1000Mbps Ethernet 2 x Wi-Fi 3 x USB-A |
||
| Output Ports | 1 x HDMI 1 x HDBT (Mirror of HDMI output) 1 x Analog Audio (5 pin Phoenix) 1 x USB Host |
||
| Control Ports | 1 x RS-232 | ||
| Mechanical | |||
| Housing | Metal Enclosure | ||
| Color | Black | ||
| Dimensions | 130mm (6.30Inches) L x270mm(8.46Inches)Wx30mm(.098Inches)H | ||
| Product Weight | 0.9KG (2 LBS) | ||
| Power Supply Voltage | 20V | ||
| Power Supply Current Draw | 6A | ||
| Operating Temperature | 32 - 104°F / 0 - 40°C | ||
| Storage Temperature | -4 - 140°F / -20 - 60°C | ||
| Relative Humidity | 20 - 90% RH (non-condensing) | ||
