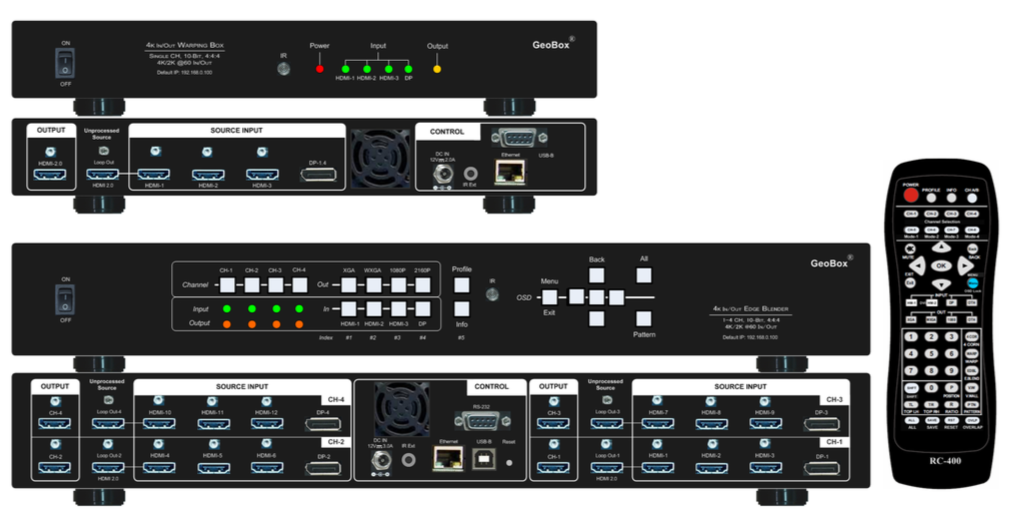

UD100 Series: High-Performance Video Processing for Projection Systems

The UD100 is a powerful video processor designed for advanced projection applications, offering seamless edge blending, geometry alignment, and multi-view display.

• Control 4k UHD projector edge blending on flat, curved and 360 degree screen

• Support max input of 4096×2160@60hz or 7680×2160@30hz and true 4K output

• Modularized design to control from one to four projectors in one box

• Support multiple unit cascade through HDMI loop through for controlling more than four projectors

High-Resolution Input & Output

• Inputs: 4 ports, including HDMI 2.0 and DisplayPort

• Output & Loop-Through: HDMI 2.0

• Resolution Support:

  • Up to 7680x2160 @30Hz and 7680x1200 @60Hz with 4:4:4 color sampling

  • DisplayPort input supports 7680x4320 @30Hz

• Advanced Processing:

  • 10-bit high-end processor for superior video clarity

  • Motion-adaptive de-interlacing, low-angle smooth algorithm, and 3:2/2:2 pull-down

  • Programmable EDID to optimize input timing

Advanced Warp & Edge Blending Technology

• Geometry Alignment: Up to 17x9 control points via multiple control methods (front panel, IR remote, USB, WebGUI, Ethernet)

• Precision Color Control:

  • RGB gamma correction for fine-tuned edge blending

  • Independent color correction for each output

  • 9-region black level uplift for projector light leakage compensation

• Real-Time Adjustments for instant optimization

Seamless Video Wall & Multi-View Capabilities

• HDMI Loop-Out: Daisy-chain multiple units for large-scale displays

• Video Wall Function:

  • Crop and allocate source images for each projector

  • Set overlap pixels for edge blending

• Multi-Window Display:

  • PIP (Picture-in-Picture), POP (Side-by-Side), and 3/4 Split View Multiviewer

  • PIP size adjustable from 320x180 to 1920x1200

  • Display up to 16 input sources from a single UD104

Ideal for Projection & Simulation Applications

✔ Simulation & Training Systems
✔ Multi-Projector Edge Blending
✔ Large-Scale Display Walls
✔ Flexible Projection with Portrait Mode Support
✔ Laser Projector Integration Without Installation Angle Limitations
