4K60 USB-C over HDBaseT Extender with USB 2.0, IR & RS-232, 100m

VLEX-CD14U2100

  • 4K@60Hz 4:4:4 USB-C video extension up to 100m/328ft over a single Cat5e/6 cable

  • Compliant with USB Type-C DisplayPort 1.4a ALT Mode, with HBR3/HBR2/HBR/RBR link-rate support

  • Bi-directional IR and RS-232 pass-through for full remote source and display control

  • Bi-directional PoC powers the link from either end, simplifying installation

Where to Buy

Product Description

The VLEX-CD14U2100 is a long-reach HDBaseT extender that carries USB-C video, USB 2.0, IR, and RS-232 signals up to 100m/328ft over a single Cat5e/6 cable, converting the USB-C DisplayPort ALT Mode signal to standard HDBaseT for transmission and reconstructing it at the receiver. Video resolution reaches 4K@60Hz at full 4:4:4 chroma sampling, with USB Type-C DisplayPort 1.4a ALT Mode and HDCP 2.3/2.2/1.x compliance across up to 32.4Gbps of video bandwidth (HBR3/HBR2/HBR/RBR).

Bi-directional IR and RS-232 pass-through let installers control the source or display from either end of the run without a separate control cable, while advanced EDID management (COPY TV/STD) and audio de-embedding at the receiver round out a compact, plug-and-play design. Bi-directional PoC simplifies power delivery for installations built around single-cable USB-C laptops and docking scenarios that need to reach displays beyond standard USB-C cable length.

Key Features

  • Compliant with USB Type-C DisplayPort 1.4a ALT Mode

  • HDCP 2.3/2.2/1.x compliant

  • Support for HBR3, HBR2, HBR, and RBR link rates (8.1/5.4/2.7/1.62Gbps)

  • Video resolution up to 4K@60Hz 4:4:4

  • Transmission distance up to 100m/328ft over Cat5e/6 cable

  • USB 2.0 signal transmission

  • Bi-directional IR and RS-232 control signal pass-through

  • Audio formats: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X

  • Audio de-embedding on the receiver

  • Advanced EDID management

  • HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through

  • Bi-directional PoC (Power over Cable)

  • Compact metal enclosure for flexible installation

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Ideal Applications

Corporate Huddle Rooms & BYOD Conference Spaces
Extend a single USB-C laptop connection to a display well beyond cable reach, keeping video, USB peripherals, and IR display control on one run for simple bring-your-own-device meeting setups.

Higher Education Classrooms & BYOD Learning Spaces
Run USB-C laptop or tablet video to a projector or display across a classroom on a single Cat5e/6 cable, with IR pass-through supporting projector control from the instructor station.

Modern Workstation & Docking Environments
Extend a USB-C-equipped workstation or laptop dock to a display positioned beyond standard cable reach, with USB 2.0 pass-through supporting peripheral connectivity at the display end.

Broadcast & Production Control Rooms
Bridge USB-C monitoring or editing laptop output to reference displays outside the immediate workstation footprint, with RS-232 automation and IR pass-through preserving remote monitor control.

Hospitality & Meeting-on-Demand Venues
Feed USB-C source content from a guest laptop to in-room or meeting-space displays at distance, with IR pass-through simplifying display power control for transient, single-cable connections.

Healthcare & Clinical Consultation Rooms
Extend a USB-C consultation or imaging workstation to a display outside the immediate workstation area, with RS-232 and IR pass-through preserving display control at the far end.

Specifications

Technical
USB ComplianceUSB Type-C 1.1
HDCP ComplianceHDCP 2.3/2.2/1.x
Video BandwidthUp to 32.4Gbps (8.1/5.4/2.7/1.62Gbps)
Video Resolution (Input & Output)Up to 4K@60Hz (4:4:4)
IR Level5Vp-p
IR FrequencyWideband 20K-60KHz
Color SpaceRGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth8/10/12-bit
HDRHDR, HDR10, HDR10+, Dolby Vision, HLG
Audio FormatLPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X
Transmission Distance100m/328ft for 4K2K@60Hz over Cat5e/6 cable
ESD ProtectionIEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
Connections

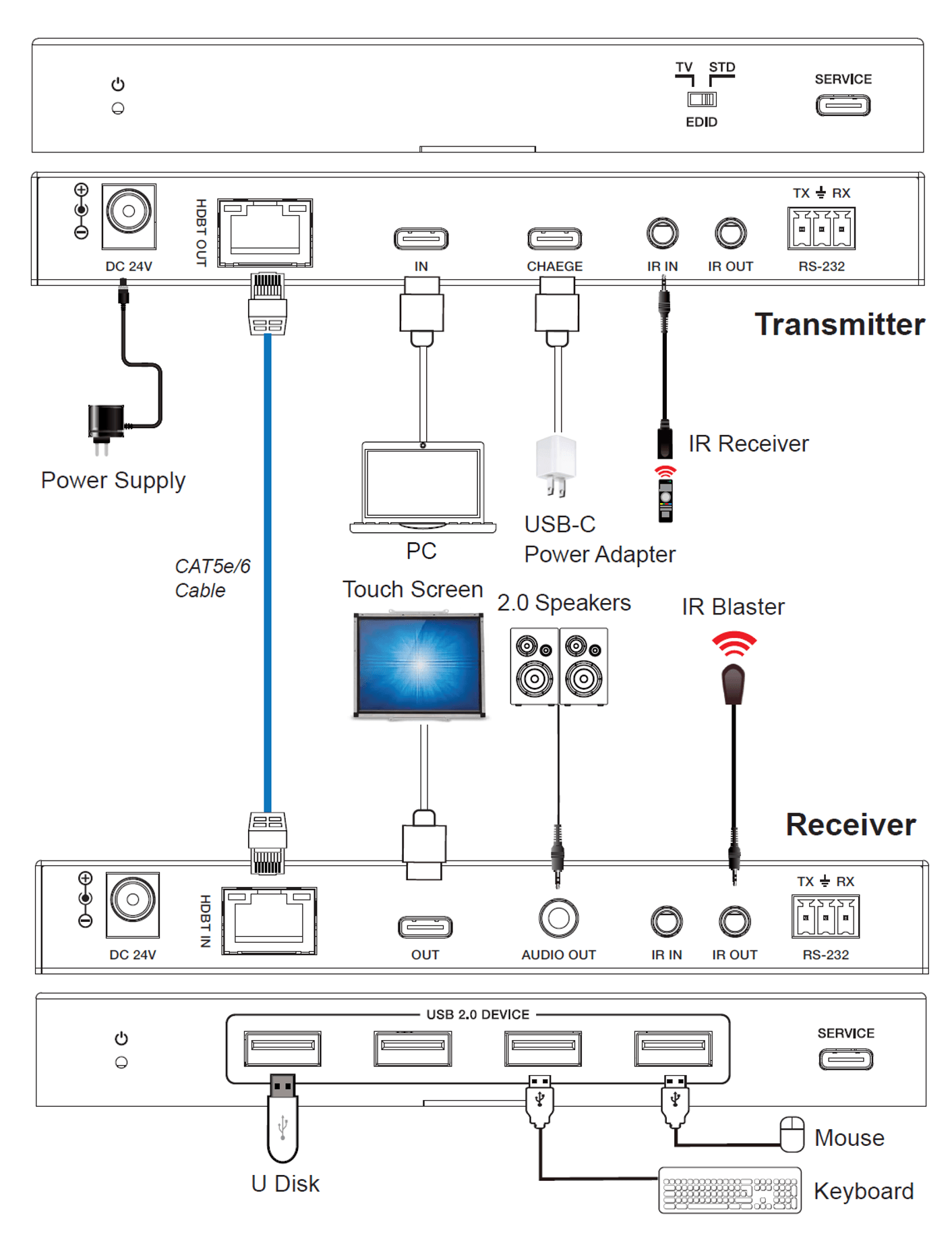

TransmitterInput: 1x USB-C IN [USB-C, 24-pin female], 1x CHARGE [USB-C, 24-pin female]; Output: 1x HDBT OUT [RJ45]; Control: 1x IR IN [3.5mm audio jack], 1x IR OUT [3.5mm audio jack], 1x RS-232 [3-pin 3.5mm phoenix connector], 1x SERVICE [USB-C]

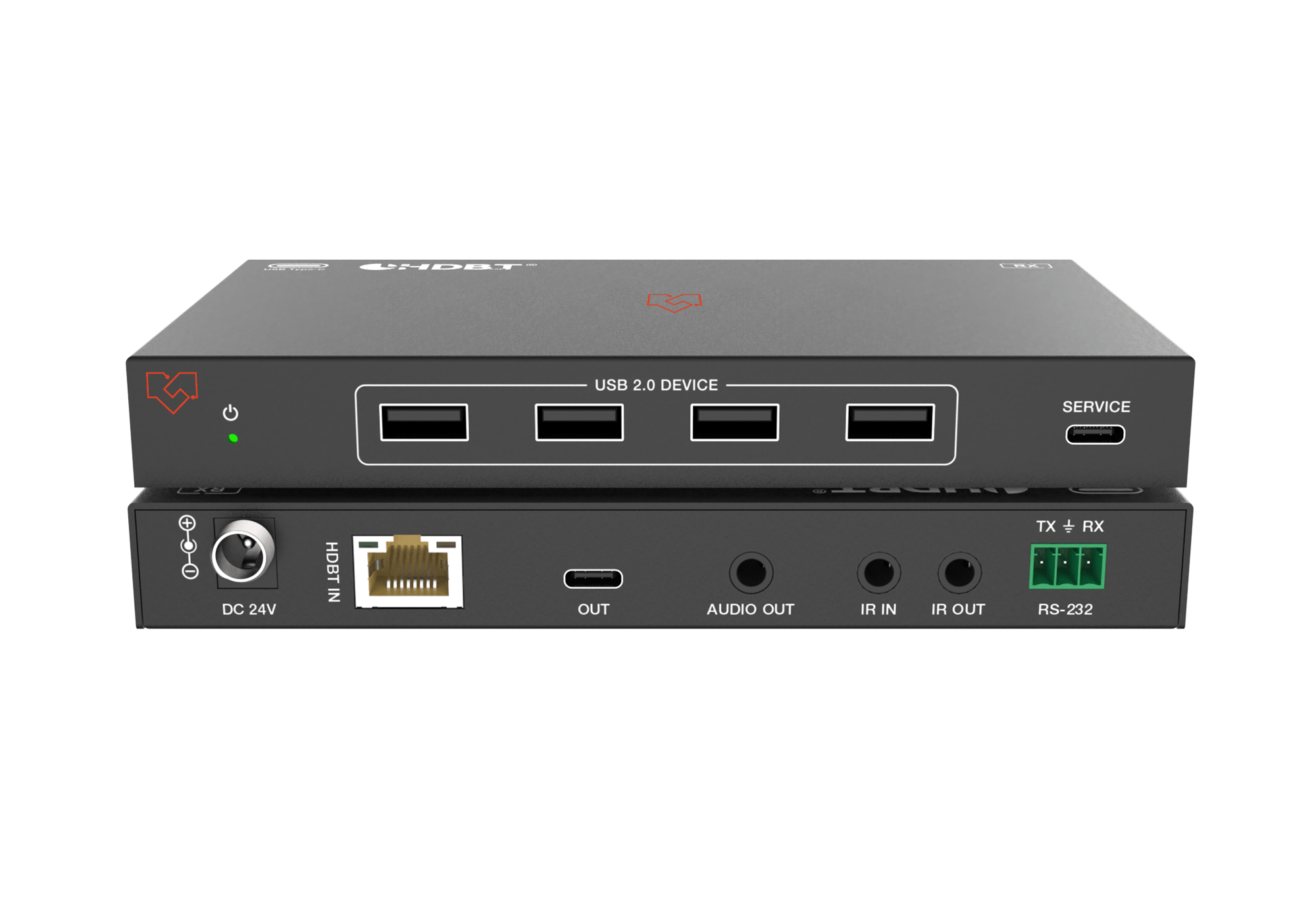

ReceiverInput: 1x HDBT IN [RJ45]; Output: 1x USB-C OUT [USB-C, 24-pin female], 4x USB 2.0 DEVICE [USB-A, 4-pin female], 1x AUDIO OUT [3.5mm audio jack]; Control: 1x IR IN [3.5mm audio jack], 1x IR OUT [3.5mm audio jack], 1x RS-232 [3-pin 3.5mm phoenix connector], 1x SERVICE [USB-C]
Mechanical
HousingMetal Enclosure
ColorBlack
DimensionsTx/Rx: 157mm (W) x 88mm (D) x 20mm (H)
WeightTx: 378g; Rx: 390g
Power SupplyDC 24V/1A; bi-directional PoC function
Power ConsumptionTransmitter: 6W; Receiver: 12.96W
Operating Temperature0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature-20°C ~ 60°C / -4°F ~ 140°F
Operating Humidity20%~80% (relative humidity, non-condensing)
Storage Humidity10%~90% (relative humidity, non-condensing)

What’s in the Box

  • 1 x VLEX-CD14U2100 HDBaseT Extender (Transmitter)

  • 1 x VLEX-CD14U2100 HDBaseT Extender (Receiver)

  • 1 x 24V/1A Locking Power Supply

  • 1 x IR Blaster Cable (1.5m)

  • 1 x IR Wideband Receiver Cable (1.5m)

  • 2 x 3-pin 3.5mm Phoenix Connector

  • 4 x Mounting Ear

  • 8 x Machine Screw (KM3x6)

  • 1 x User Manual

Frequently Asked Questions

What is the maximum distance and resolution for the VLEX-CD14U2100?
The VLEX-CD14U2100 extends 4K@60Hz 4:4:4 USB-C DisplayPort ALT Mode video up to 100m/328ft over a single Cat5e/6 cable, with up to 32.4Gbps of video bandwidth and HDCP 2.3/2.2/1.x compliance.

Does the VLEX-CD14U2100 charge a connected laptop?
The transmitter includes a dedicated USB-C CHARGE input port separate from the USB-C IN video port, allowing a laptop's charging cable to be routed through the same unit. Confirm supported wattage with the data sheet before specifying for high-draw laptops.

Does this extender support control signals in addition to video?
Yes. The VLEX-CD14U2100 passes bi-directional IR and RS-232 control signals over the same Cat cable as the USB-C video signal, so remote and serial automation continue to work across the full 100m run.

Can I power this extender from one end only?
Yes. The VLEX-CD14U2100 supports bi-directional PoC (Power over Cable), so a single 24V/1A power supply at either the transmitter or receiver can power both units over the Cat cable.

Is the VLEX-CD14U2100 compatible with laptops that don't support DisplayPort ALT Mode over USB-C?
No. The extender requires a USB-C source with DisplayPort 1.4a ALT Mode support. For DisplayPort-only sources, use the VLEX-D14U2100; for HDMI sources, use the VLEX-H20U2100 or VLEX-H21U2100.

What audio formats does the VLEX-CD14U2100 pass through?
The extender passes LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DTS:X, with audio de-embedding available at the receiver via the 3.5mm analog output.
