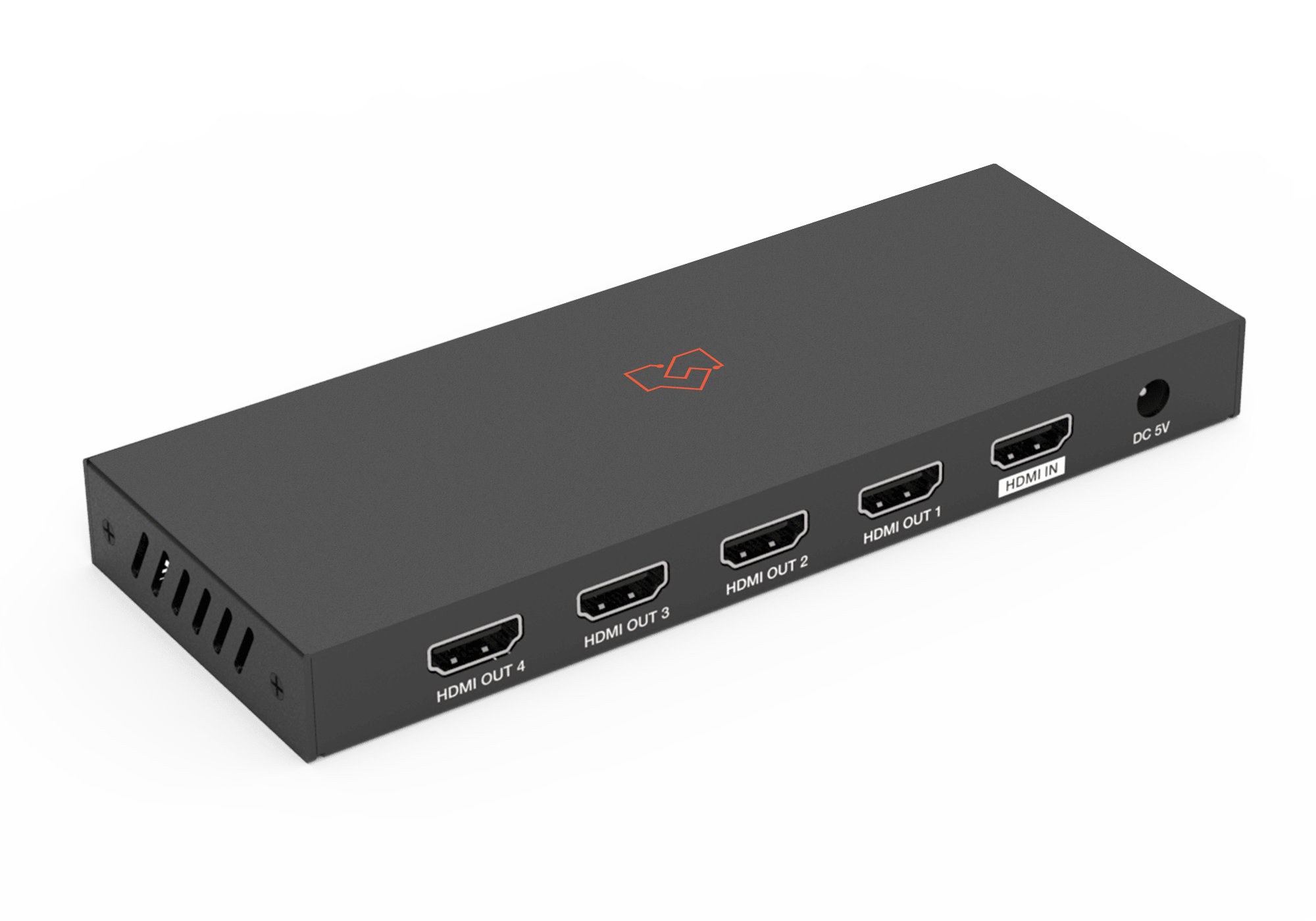

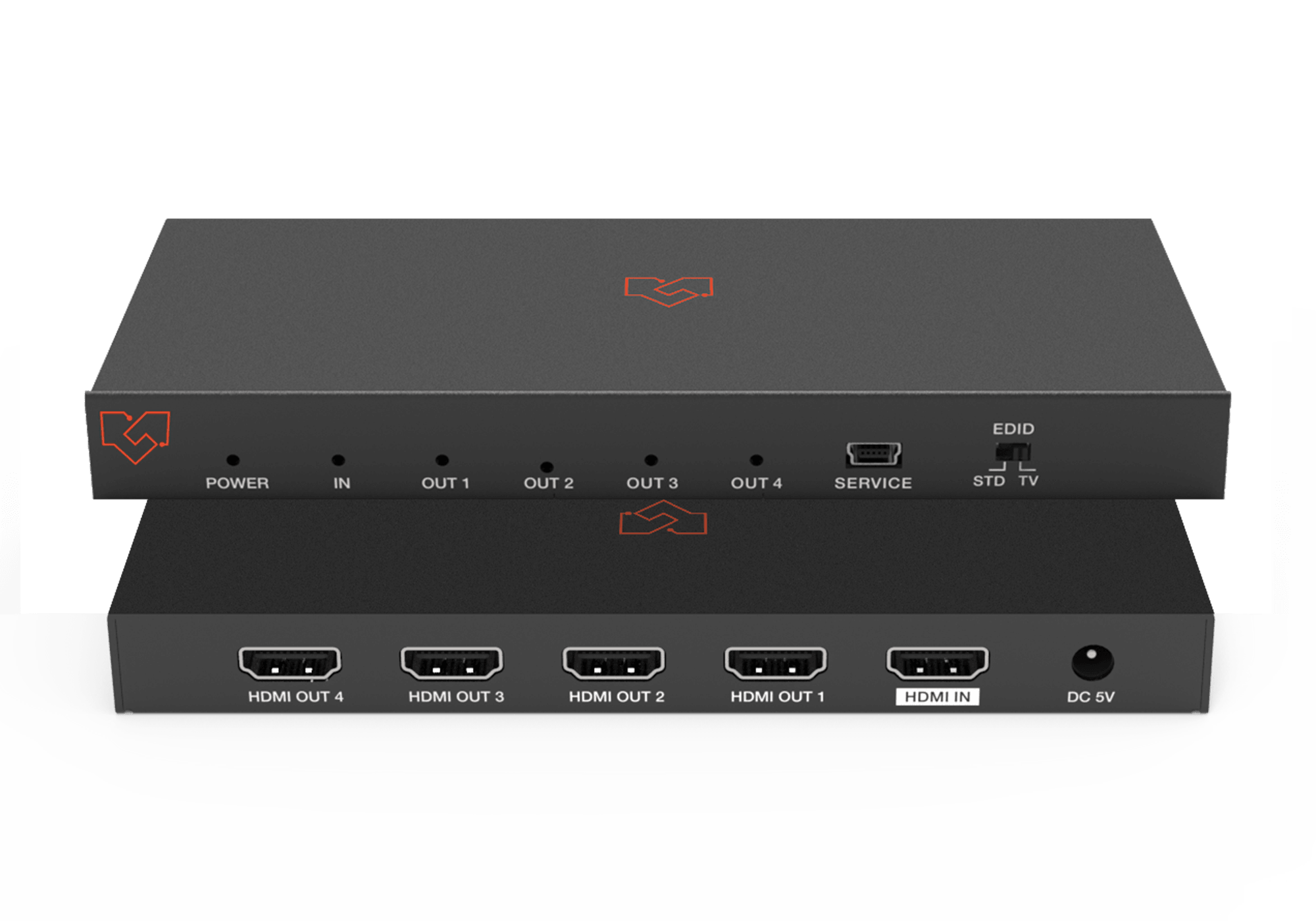

1x4 HDMI 2.0 Distribution Amplifier 18Gbps

VLSP-14H20

  • 1x4 HDMI 2.0 distribution amplifier splitting one 4K source to four displays simultaneously, at 18Gbps

  • Up to 4K@60Hz 4:4:4 (8-bit RGB/YCbCr), with VESA modes up to QSXGA@60Hz

  • 3D frame-sequential support (1080p@60 and 4K@30), with LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio

  • Smart EDID control in a compact metal enclosure, for signage, conference rooms, and home theater

Where to Buy
Six Year Warranty logo

Product Description

The VLSP-14H20 is a high-performance 1x4 HDMI splitter designed to distribute a single HDMI source to four displays with uncompromised quality. Supporting video resolutions up to 4K@60Hz 4:4:4 and data rates up to 18Gbps, this splitter ensures seamless transmission of high-bandwidth content without loss or degradation.

Fully compliant with HDMI 2.0b and HDCP 2.2 standards, the VLSP-14H20 offers reliable signal integrity across all outputs, making it ideal for both professional and residential AV systems. Whether you're delivering content to signage displays, conference room monitors, or home entertainment setups, this splitter delivers consistent, high-quality video and audio performance.

Engineered for plug-and-play simplicity and long-term reliability, the VLSP-14H20 is an essential solution for robust HDMI distribution.

Key Features

  • HDMI 2.0b and HDCP 2.2 compliant

  • Video up to 4K2K@60Hz with 8-bit RGB/YCbCr 4:4:4 or YCbCr 4:2:2

  • 3D frame-sequential video up to 1080p@60 and up to 4K2K@30Hz

  • High-resolution VESA modes up to QSXGA@60Hz

  • LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio support

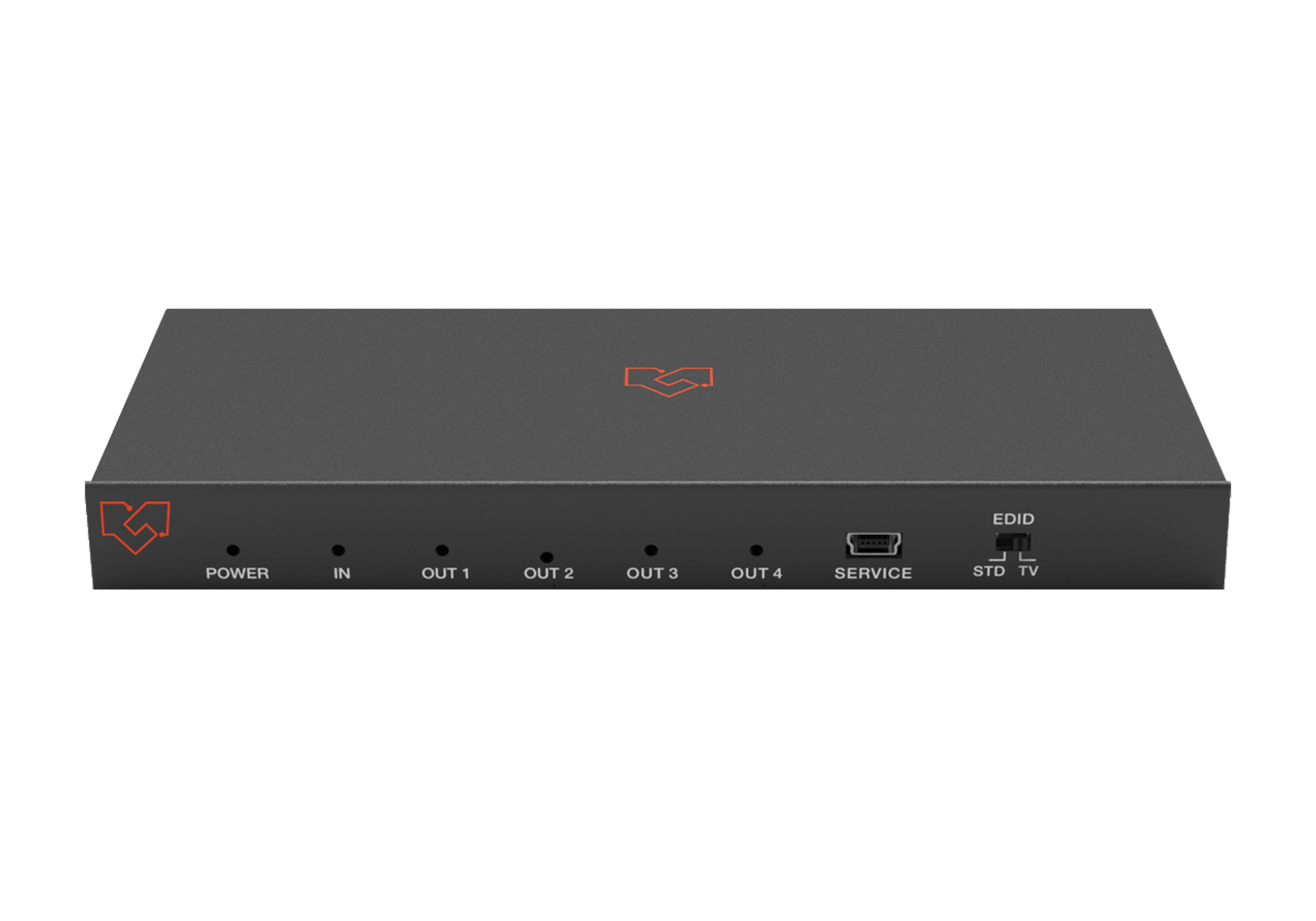

  • Smart EDID control

  • Compact design for easy, flexible installation

Downloads

DATA SHEET (PDF)
USER MANUAL (PDF)

Specifications

Technical
Video Bandwidth     600MHz/18Gbps
Input Ports     1×HDMI Type A[19-pin female]
Output Ports     4×HDMI Type A[19-pin female]
ESD Protection     Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Power Supply     5V/1A DC (US/EU standards, CE/FCC/UL certified)
Dimensions     63mm (W) × 163mm (D) × 16mm (H)
Weight     509g
Chassis Material     Metal
Silkscreen Color     Black
Power Consumption     2W
Operating Temperature     0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature    -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity     20~90% RH (No condensation)
