Home > Dante® Network Audio > Encoders & Decoders > VLDT-AA2D

2CH Dante Analog Audio Decoder with POE

VLDT-AA2D

  • Dante two-channel digital audio to balanced or unbalanced analog output, built on the Dante Ultimo platform

  • Three-level gain adjustment on a 6-pin phoenix output for matching amplifiers and analog equipment

  • 44.1/48/96kHz at 24-bit with AES67 RTP audio transport and configurable 1/2/5ms Dante latency

  • PoE (802.3af) or 12V DC power in a rugged metal enclosure, up to 328ft (100m) over Cat6/6A

Where to Buy
Six Year Warranty logo

Product Description

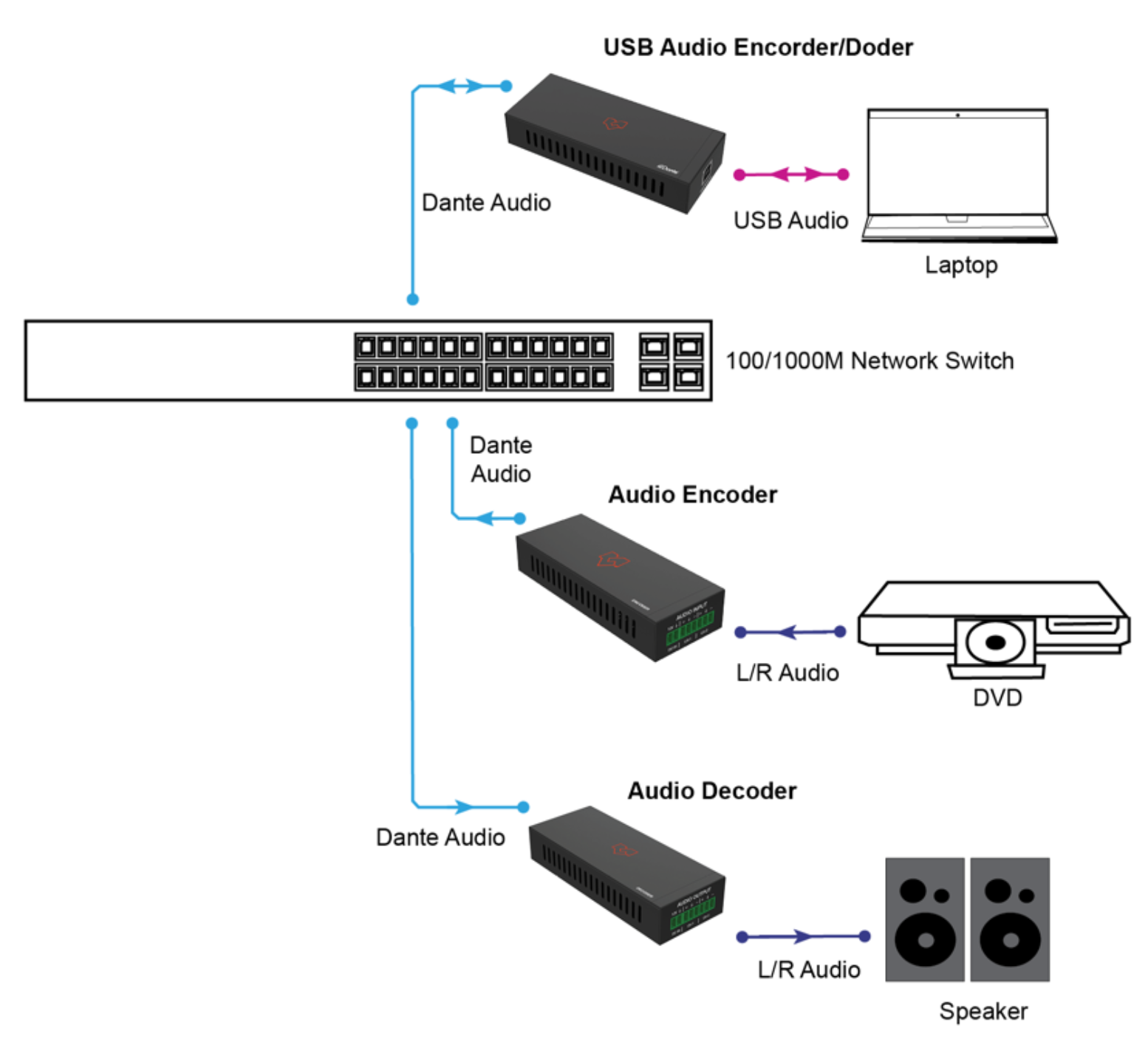

This Dante 2CH Analog Audio Decoder is an audio receiver based on the Dante Ultimo solution. It supports balanced/unbalanced audio output and 3- level gain adjustment. It receives audio signals from the transmitting end through a network (Dante), then decodes and outputs the audio as analog audio. It supports the PoE function.

Key Features

  • Dante 2CH Analogue audio Decoder

  • Supports both balanced and unbalanced audio signals

  • 44.1/48/96KHz sample rates @24bit

  • Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)

  • Supports AES67 RTP audio transport

  • Features Class 1 802.3af PoE for powering of product from any PoE switch

Downloads

VLDT-AA2D DATA SHEET (PDF)
VLDT-AA2D USER MANUAL (PDF)

Specifications

Technical
Network Bandwidth     100M
Audio Formats     PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit
Transmission Distance     100m (Cat 6/6A)
Control Method     Dante Controller
Connection
Input         1x DANTE [RJ45 connector, PoE]

1x PWR [2-pin phoenix, 3.81mm]
Output         1x AUD [6-pin phoenix, 3.81mm]
Mechanical
Housing     Metal Enclosure
Color     Black
Dimensions     120mm[W] x 47mm[D] x 26mm[H]
Weight     186g
Power Supply     DC input: 12V

PoE input: IEEE802.3af Class 0
Power Consumption     1.32W
Operating Temperature     0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature     -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity     20 - 90% RH (No condensation)
