HDMI Dongle Transmitter
VLWP-HD1
Data Sheet
Product Inquiry Form
Product Description

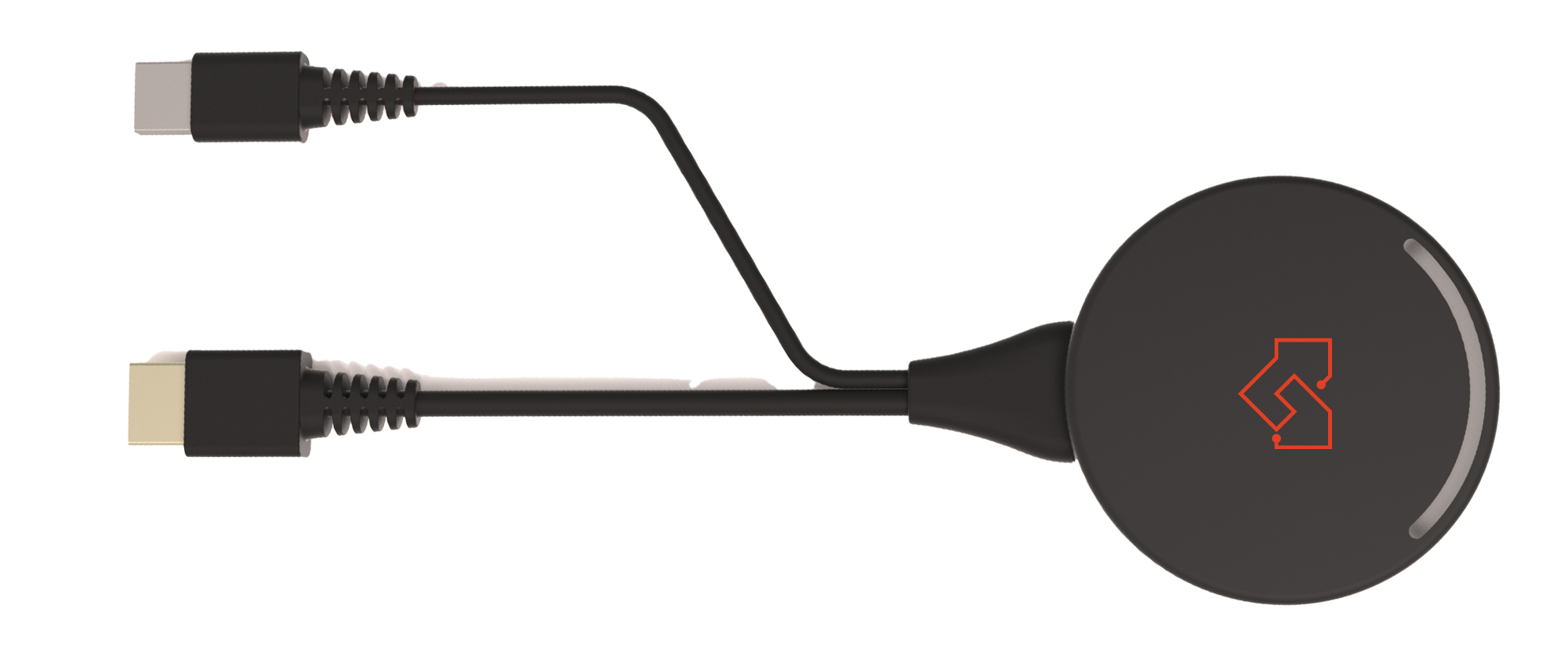

The VLWP-HD1 is a wireless HDMI dongle designed for effortless screen sharing and full compatibility with all VigilLink wireless media base systems. Offering a streamlined alternative to traditional casting devices, the VLWP-HD1 features intuitive touch-and-tap functionality—eliminating the need for button clicks and providing a faster, more user-friendly experience.
With true plug-and-play performance, the dongle requires no software installation, drivers, or additional USB power cables. This all-in-one design ensures a cleaner setup and greater ease of use in any collaborative space.
Whether in a meeting room, classroom, or shared workspace, the VLWP-HD1 makes wireless presentation simple, efficient, and cable-free—empowering users to connect and present with confidence.
Featured Highlights
With HDMI interface
APP-free
Plug and play
Easy to use
Specifications
| Technical | |
|---|---|
| HDCP | HDCP1.4 |
| Video Input Formats | HDMI 1.4 |
| Video Input Resolution | VESA, maximum 2560×1440 |
| Video input timing | 1920×1080,1680×1050, 1600×900,1440×900,1400×1050,1366×768,1280×1024, 1280×800, 1280×720, 1024×768,1920×1200,1600×1200, 2560×1440 @24 25, 30, 50,60 HZ |
| Video Output Formats | 1 x Wireless |
| Audio Input Formats | HDMI 2CH PCM |
| Audio Output Formats | WIFI 11b/g/n/ac |
| HDMI Input | 1 X HDMI type A 19P male connector |
| USB Input | USB type A, USB 2.0 |
| Wireless transmission protocol | WIFI IEEE 802.11 a/g/n/ac |
| WIFI Frequency band | 2.4 GHz & 5 GHz |
| WIFI Antenna | MIMO 2x2 |
| WIFI Data rate | Up to 1200Mbps |
| Video Capacity | Wireless Transmission 1080P@60Hz, 2560×1440 30Hz |
| Distance | Typical: 35m without obstacle between WMT3-H and WMS |
| Latency | < 100ms |
| Button | Capacitive touch Key and vibration |
| Indicator | Green/Red/color back-lit LED indicator |
| Mechanical | |
| Round Unit Dimensions (LxHxR) | 80mm x 65mm x 1.3mm HDMI cable: 11cm, USB cable: 21cm |
| Weight | ~0.2lbs (~100g) |
| Surface finish | 1~2mm plastic with matte black finish |
| Power Input | USB Internal 5V |
| Power Consumption | 2.5W (max.) |
| Operating Temperature | - 4 °F to + 113 °F (-20 °C to 45 °C) |
| Storage Temperature | - 4 °F to + 140°F (- 20 °C to 60 °C) |
| Relative Humidity | 20 - 85% RH (No condensation) |
