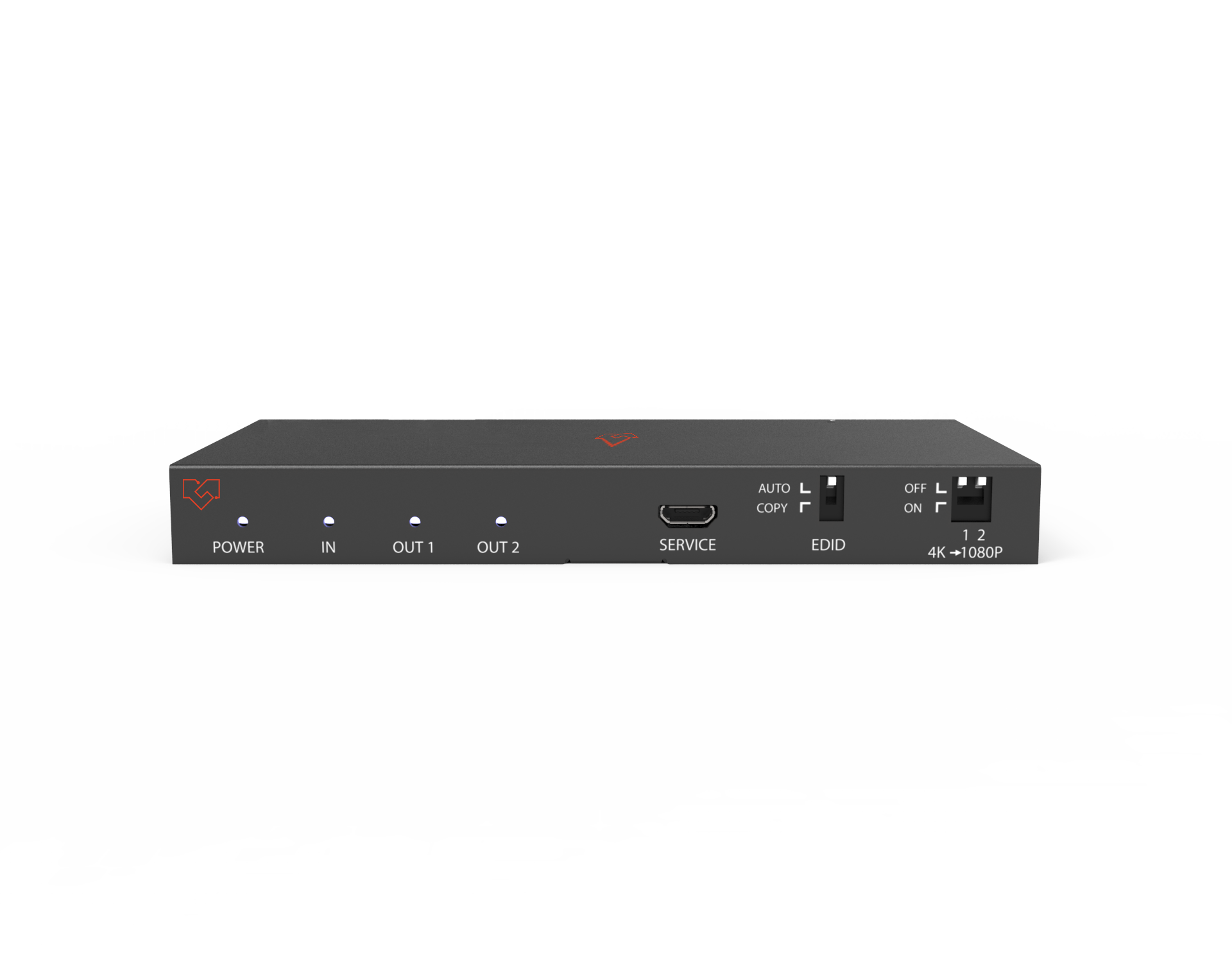

1x2 HDMI 2.0 Distribution Amplifier, with integrated HDBaseT Extender 60 meters
VLSP-12CTH20
Data Sheet
User Manual
Product Description
The VigilLink VLSP-12CTH20 is a high-performance HDMI 1x2 splitter designed to distribute one HDMI source to two remote display devices over CAT6/6a/7 cabling, while providing a local HDMI loop output for real-time monitoring. Supporting full 18Gbps bandwidth and resolutions up to 4K@60Hz (4:4:4), it delivers uncompromised video quality for demanding AV installations.
Engineered with one HDMI input, one HDMI loop output, and two CAT outputs, the VLSP-12CTH20 extends HDMI transmission up to 115 feet (35 meters) at 4K60Hz, 164 feet (50 meters) at 4K30Hz, or 197 feet (60 meters) at 1080p60. It supports one-way IR control signal pass-through for remote operation of the source device, audio extraction for flexible routing of sound to external audio systems, and advanced EDID management for seamless device compatibility. Ideal for digital signage, commercial AV, and multi-display environments, this splitter combines performance, versatility, and ease of use in a compact form factor.
Featured Highlights
HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
Support 18Gbps video bandwidth
Support video resolution up to 4K2K@50/60Hz 4:4:4
Support HDR, HDR10+, HLG, Dolby Vision
Up to 7.1CH HD audio pass-through
Support digital and analog audio de-embedded output
Extend the signal transmission distance up to 115ft/35m at the resolution of 4K2K@60Hz, 164ft/50m at 4K2K@30Hz, 197ft/60m at 1080P@60Hz via a single CAT6/6a/7 cable
Support 1 HDMI input, 1 HDMI loop output and 2 CAT outputs
Support 20-60Hz IR control source equipment from RX side
Advanced EDID management
Support one-way PoC function (only from transmitter to receiver)
Specifications
| Technical | |
|---|---|
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2/1.x |
| Video Bandwidth | 594MHz/18Gbps |
| Video Resolution | Input: 480i ~1080P50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz Loop Out: 480i ~1080P50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz |
| Color Depth | 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0) 8-bit (4K2K@60Hz YUV 4:4:4) |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0 |
| HDR | Support HDR10, HDR10+, HLG, Dolby vision |
| HDMI Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
| Coaxial Audio Formats | LPCM 2.0, LPCM 5.1, Dolby Digital 2/5.1CH |
| Analog Audio Formats | PCM 2.0CH |
| Extended Distance | 115ft/35m at 4K2K@60Hz (600M Bandwidth) 164ft/50m at 4K2K@30Hz (300M Bandwidth) 197ft/60m at 1080P@60Hz (148.5M Bandwidth) |
| ESD Protection | Human-body Model： ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
| Connection | |
| Input | 1×HDMI Type A (19-pin female) |
| Output | 1 × HDMI LOOP OUT [Type A, 19-pin female] 2 × CAT OUTPUT [RJ45, 8-pin female] 1 × COAX AUDIO OUT [RCA] 1 × L/R AUDIO OUT [3.5mm Stereo Mini-jack] |
| Control | 1 × SERVICE [Micro USB, Update port] 1 × IR OUT [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter: 175mm (W) × 100mm (D) × 25mm (H) Receiver: 88mm (W) × 61mm (D) × 18mm (H) |
| Weight | Transmitter: 485g / Receiver:155g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A (US/EU standards, CE/FCC/RoHs certificated) |
| Power Consumption | 8.28W (Max.) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 - 90% RH (No condensation) |
