2ch x 2ch Bluetooth/Analog RCA or 3.5mm to Dante® Converter Wall Plate (US 2-Gang)

VLDT-WP22B2AUS

Data Sheet

Product Description

VLDT-WP22B2AUS Dante® Wall Plate is designed for ultimate flexibility, allowing switching between Bluetooth, RCA, or 3.5mm audio inputs and distribution via Dante® network. Outputs are available simultaneously via RCA and 3.5mm, with adjustable input sensitivity and output gain to meet any environment’s demands.

Supporting Dante® sample rates up to 96kHz and AES67 RTP audio transport, this interface delivers professional-grade audio over IP with configurable latency for precise synchronization. Bluetooth functionality includes dual-device pairing, track control, and album info display, while PoE or 12V DC power options provide installation flexibility for demanding audio networking installations.

Featured Highlights

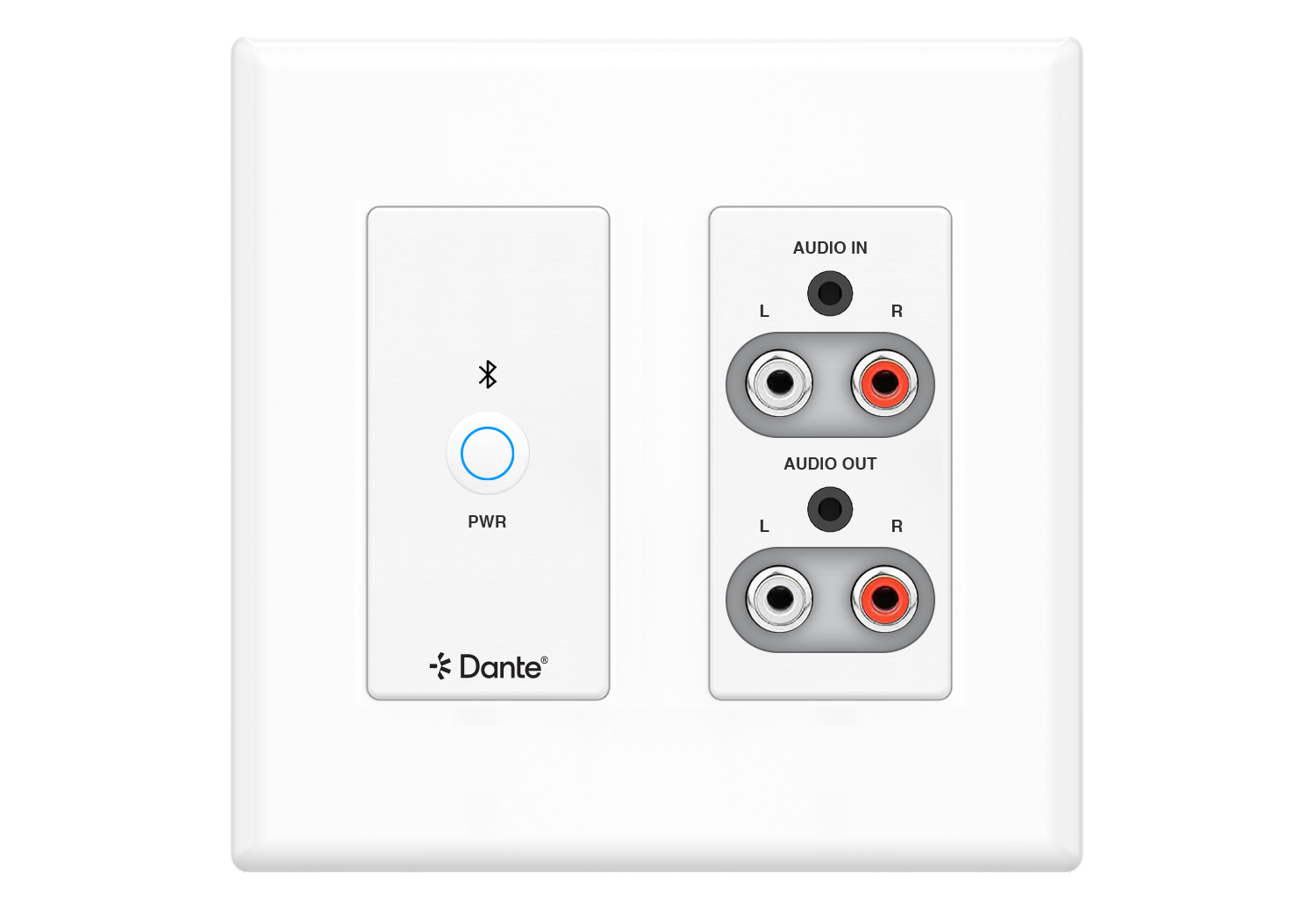

  • Dante® network wall plate interface for Bluetooth or analog RCA or 3.5mm audio inputs and RCA & 3.5mm outputs

  • Input switching between Bluetooth, RCA, or the 3.5mm audio interface

  • RCA and 3.5mm output simultaneously

  • Adjustable analog input sensitivity: +24dBu, +4dBu, OdBu, - 10dBV, -28dBV via control software

  • Adjustable output gain: +18dBu, +4dBu, OdBu, 0dBV, - 10dBV via control software

  • Dante® sample rates: 44.1, 48, 88.2, 96kHz @16, 24, 32 Bit

  • Configurable Dante® device latency (supports 2, 5 or 10ms configurable using Dante® Controller)

  • Configurable Bluetooth naming allows for simple discovery of the device

  • Bluetooth supports:

    • Maximum of 2 devices to be connected simultaneously

    • Volume adjustment with range is from 0 to 16.

    • Previous track/next track/pause functions

    • Displaying the album information of the audio source

  • Supports AES67 RTP audio transport

  • Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch

  • Power via local 12V DC adapter (not included) for when network switch does not support PoE

  • Front panel button, TCP/IP, and Web GUI control

Specifications

Specifications
Real Panel     1x DANTE [RJ45 connector, PoE]

[Digital audio in/out, PCM 2CH 44.1K-96KHz 16/24Bit]

1x USB-C Connector Power 12V
Connection
Inputs Audio Port         1x Bluetooth IN (Wireless)

2x L/R IN (3.5mm)

1x DANTE IN (RJ45)
Inputs Audio Format         Bluetooth V5.0:

SBC/MP3/AAC/APT-X /APTX-LL/APTX-HD, 44.1K-48KHz 16/24Bit

L/R: Analog audio, Max input level 10dBu

DANTE: LPCM 2 channels, 24 bits @ 44.1-96 kHz / channel
Output Audio Port         1x Bluetooth OUT (Wireless)

2x L/R OUT (3.5mm)

1x DANTE OUT (RJ45)
Output Audio Format         Bluetooth V5.0:

SBC/MP3/AAC/APT-X /APTX-LL/APTX-HD, 44.1K-48KHz 16/24Bit

L/R: Analog audio, Max output level 10dBu

DANTE: LPCM 2 channels, 24 bits @ 44.1-96 kHz / channel
Control
Control Method     Button, TCP/IP, Web GUI
Mechanical
Housing     Plastic (front panel and cover)

Iron (rear enclosure)
Color     White or Black two different models (front panel and cover)

Black (rear enclosure)
Operating Temperature     32 to 113° F (0 to 45° C)
Storage Temperature     -4 to +140° F (-20 to +70° C)
Operating Humidity     10 - 90%, non-condensing
Storage Humidity     10 - 90%, non-condensing
Power     PoE Class 0 IEEE 802.3a) or local 12VDC/0.5A
Power Consumption (Maximum)     TBD
ESD Protection     Human body model: ±8 kV (air-gap discharge), ±4 kV (contact discharge)
Surge Protection     Voltage: ±1 kV
Dimensions     91.8mm (W)×43mm (D)×105mm (H)
Weight     230g
Certification     CE, RoHS compliant
