2x2 HDMI 2.1 Distribution Amplifier

VLSP-22H21

Data Sheet

User Manual

Product Description

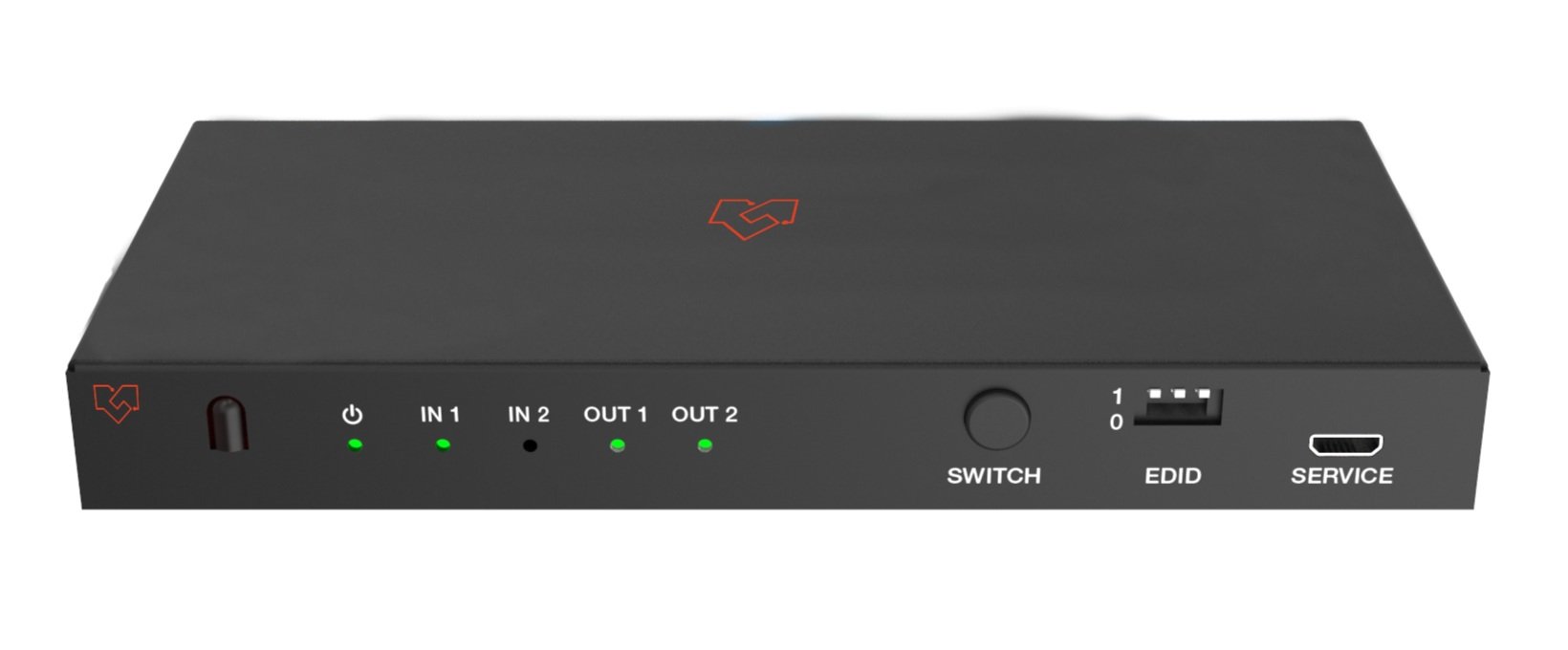

The VLSP-22H21 is a high-performance 8K HDMI splitter and switcher designed to deliver ultra-high-definition video distribution with maximum flexibility. Featuring two HDMI inputs and two HDMI outputs, it supports seamless switching between sources or simultaneous output to dual displays, making it an ideal solution for both duplication and source selection.

Supporting resolutions up to 8K@60Hz (4:2:0), this dual-view splitter ensures stunning image clarity and is fully capable of handling the demands of next-generation displays. Its multi-functional design allows it to operate as either a 2x1 switcher or a 1x2 splitter, depending on your setup requirements.

Versatile and easy to deploy, the VLSP-22H21 is well-suited for demonstration environments, multimedia classrooms, video conferencing, and large-screen presentation systems where both flexibility and performance are essential.

Featured Highlights

  • HDMI 2.1 and HDCP 2.3 compliant

  • Supports 40Gbps video bandwidth

  • Supports video resolution up to 8K@60Hz 4:2:0

  • Supports HDR, HDR10, HDR10+, Dolby Vision, ALLM/VRR pass-through

  • Supports HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, and –DTS-HD Master Audio

  • 2x1 Switch with Dual Output

  • Built-in Equalizer, Retiming, and Driver

  • Auto EDID management

  • Compact design for easy and flexible installation

Specifications

Technical
HDMI Compliance     HDMI 2.1
HDCP Compliance     HDCP 2.3
Video Bandwidth     40Gbps
Video Resolution     Up to 8K@60Hz YCBCR 4:2:0 10bit, 8K30 RGB/ YCBCR 4:4:4 10bit or,4K120 RGB/YCBCR 4:4:4 10bit
Color Depth     8-bit,10-bit,12-bit
Color Space     RGB, YCbCr 4:4:4 / 4:2:2. YCbCr 4:2:0
HDMI Audio Formats     LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Connection
Input         2× HDMI IN [Type A, 19-pin female]
Output         2× HDMI OUT [Type A, 19-pin female]
Control         1× SERVICE [Micro USB, Update port]
Mechanical
Housing     Metal Enclosure
Silkscreen Color     Black
Dimensions     115mm (W) × 68mm (D) × 18mm (H)
Weight     220g
Power Supply    Input: AC100 - 240V 50/60Hz,

Output: DC 12V/1A

(US/EU standard, CE/FCC/UL certified)
Power Consumption     2.25W
Operating Temperature      0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature    -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity    20 - 90% RH (No condensation)
