2x Input and 2x Output Analog XLR to Dante® Converter Wall Plate (US 2-Gang)

VLDT-XL22WPUS

Data Sheet

User Manual

Product Description

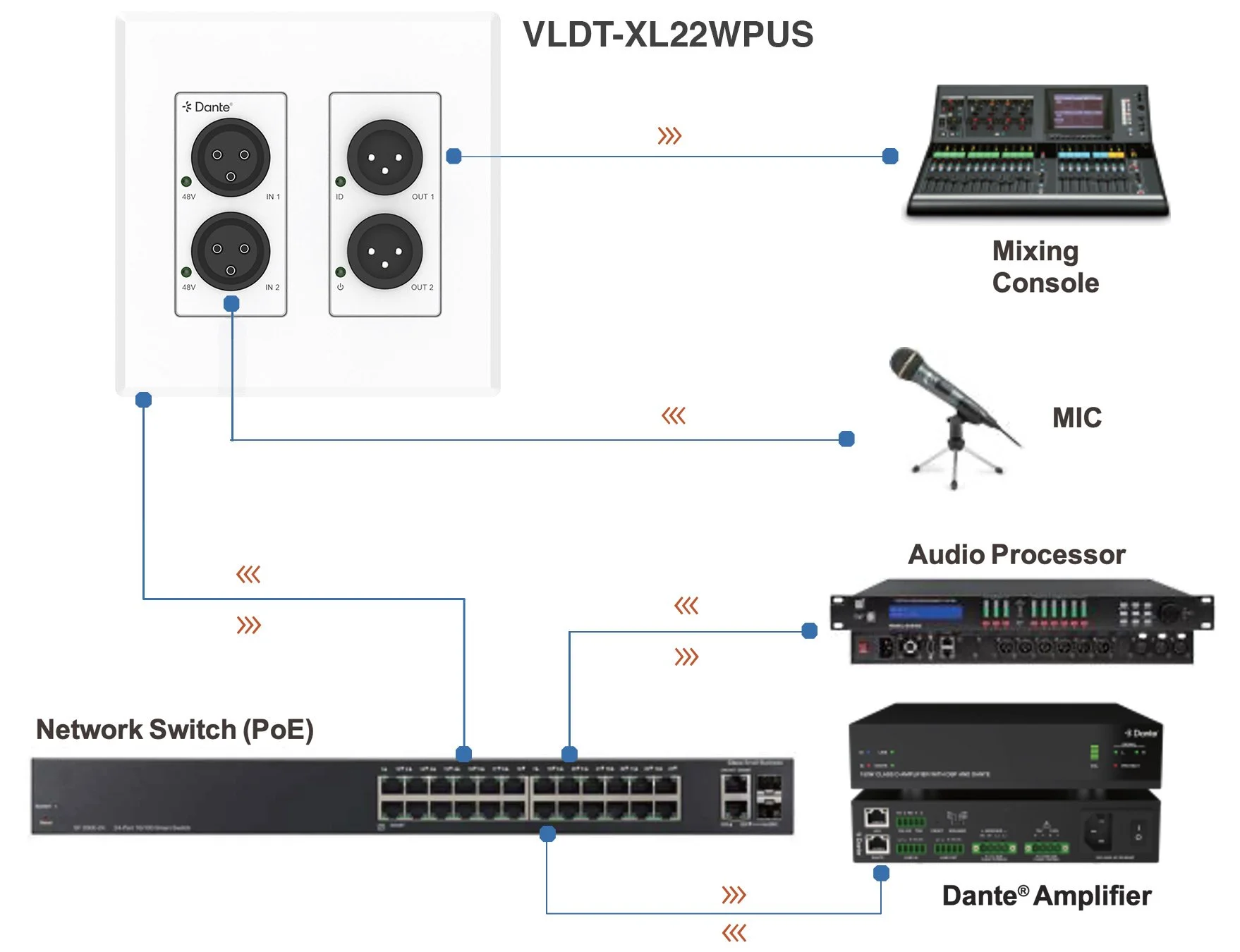

VLDT-XL22WPUS 2x Input & 2x Output Analog XLR to Dante® Converter Wall Plate is an audio transmitter based on the Dante® Ultimo 2x2 solution. It is designed as a standard 2-Gang US wall plate to convert and bridge traditional audio source/sink devices to Dante® digital network.

Analog audio input supports 5-level sensitivity adjustment. Analog audio output supports 5-level gain control.

The converter supports local 12VDC power supply and PoE function to provide installation flexibility for demanding audio networking installations.

Featured Highlights

  • 2x Inputs + 2x Outputs (Dante® in and Dante® out)

  • Balanced/unbalanced XLR analog audio

  • MIC Phantom 48V Power and on/off via hard button

  • Input sensitivity and output gain control to adjust for different levels of MIC/XLR

  • Dante® audio sampling rate supports 44.1/48/88.2/96KHz@24bit

  • Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)

  • Supports AES67 RTP audio transport

  • PoE & local power options

  • Standard 2-Gang US Decora design

Specifications

Technical

Network Bandwidth 100 Meters (328 ft)
Control Method Dante® Controller
Audio Latency Configurable Dante® device latency (Supports 1, 2 or 5ms configurable using Dante® Controller)
Audio Formats DANTE [Digital audio in/out, PCM 2CH 44.1K-96KHz 16/24Bit]
LINE In [Analog audio, Balanced/unbalanced connection, Max input level 24dBu]
MIC In [Analog audio, Balanced/unbalanced connection, Max input level 50mVRMS]
LINE Out [Analog audio, Balanced/unbalanced connection, Max output level 18dBu]
Audio Parameters Output Impedance: 300 Ohm
Output Level (Maximum): 18dBu (Maximum)
Frequency Response: 20Hz to 20kHz (-/+0.5dB)
Dynamic Range: > 90dB@0dBu, 1kHzA-weighted
Audio S/N Ratio: > 90dB@0dBu, 1kHzA-weighted
Audio THD+N: < 0.015% at +4dBu, 1KHz
Transmission Distance 328ft/100m (CAT6/6A/7)
ESD Protection IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Output Video Port 1 x HDMI, 1 x SFP+ (10GBase-SR)
Output Video Type 4K UHD uncompressed or light compressed IP stream
Output Video Resolutions Ethernet output: Same as Input Video Resolutions table above

Connection

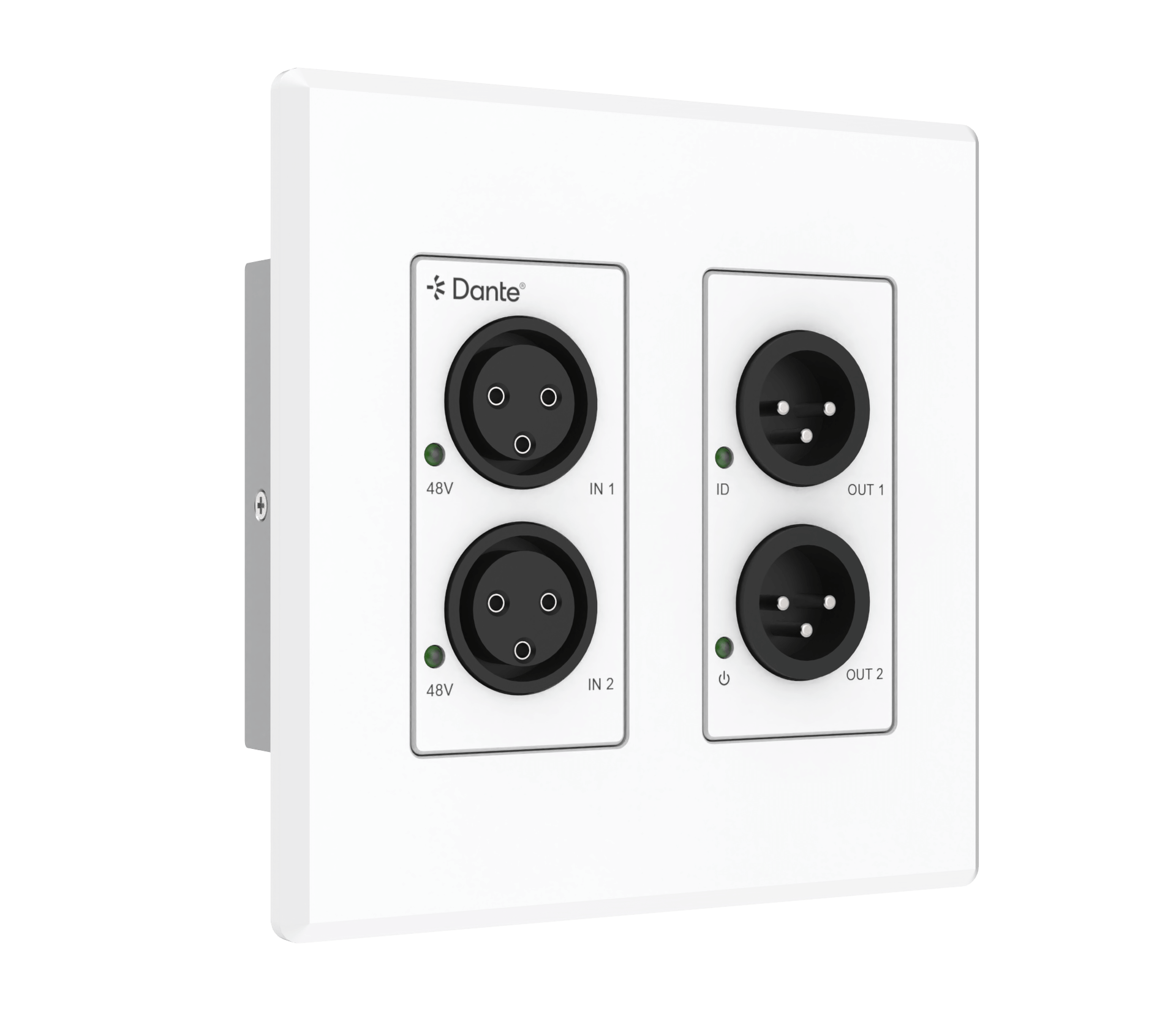

Front Panel 1x Power LED [Green Color]
1x ID LED [Green Color]
2x MIC Phantom Power 48V LED [Green Color]
2x MIC Phantom Power 48V button with backlit LED [Green Color]
2x Audio In [3-pin XLR, Female] [LINE audio, Balanced/unbalanced connection, Max input level 24dBu] [MIC audio, Balanced/unbalanced connection, Max input level 50m VRMS, 48V phantom power]
2x Audio Out [3-pin XLR, Male, Analog audio, Balanced/unbalanced connection, Max output level 18dBu]

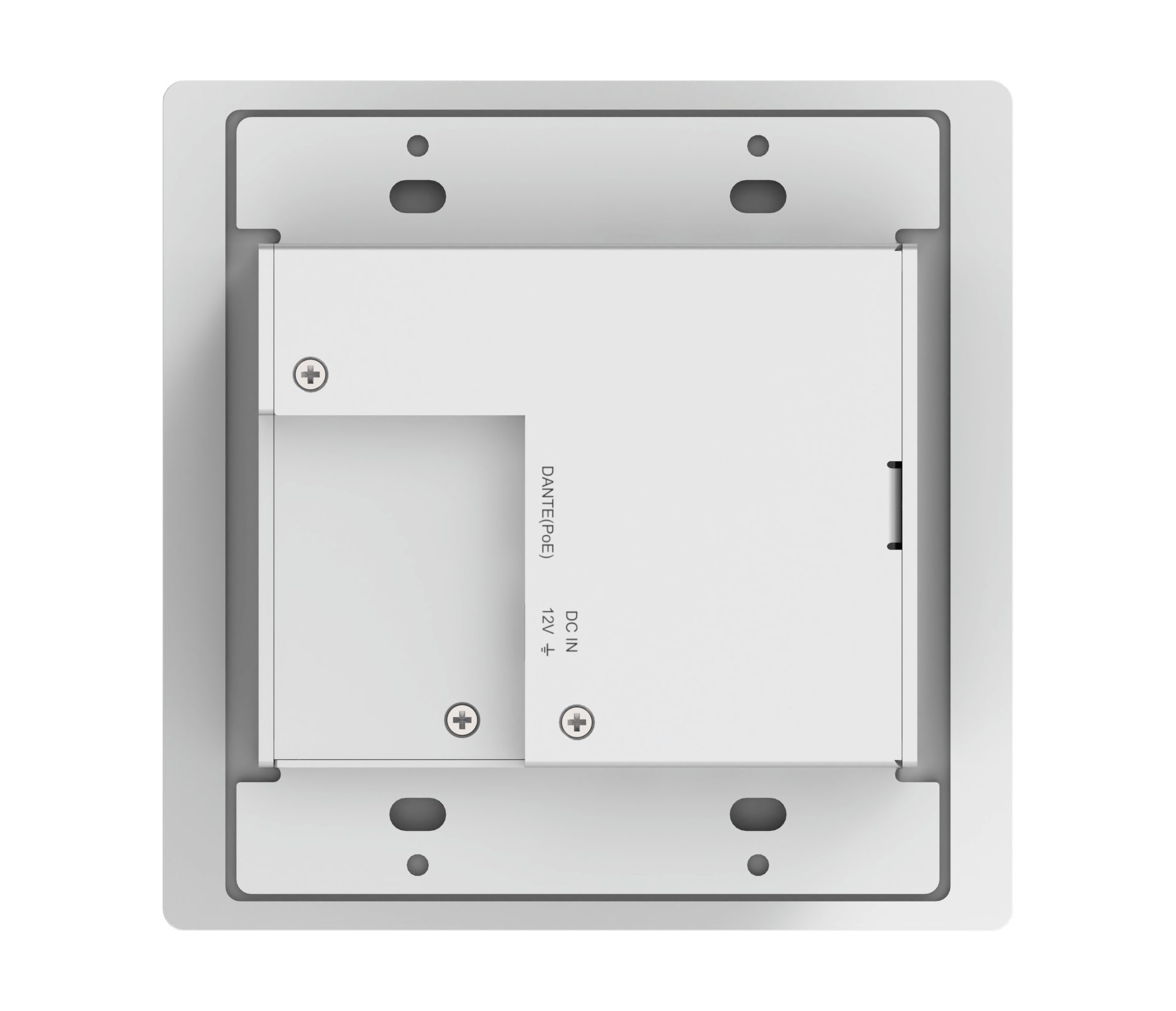

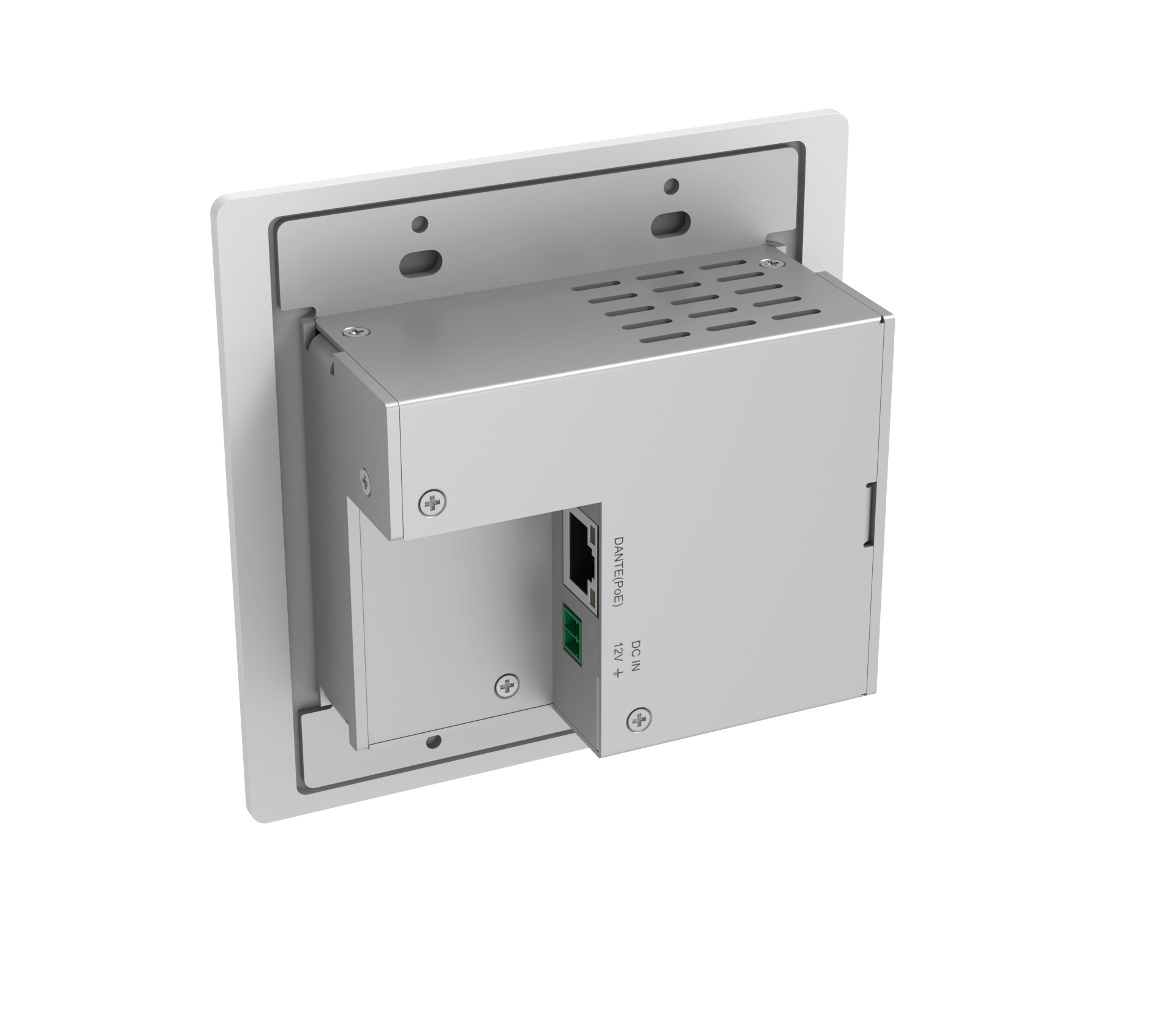

Rear Panel 1x DANTE [RJ45 connector, PoE] [Digital audio in/out, PCM 2CH 44.1K-96KHz 16/24Bit]
1x DC/12V [2pin-3.5mm phoenix connector] [12VDC/ 500mA]

Mechanical

Housing Aluminum panel + Iron chassis
Color White panel + Silver chassis
Dimensions Wall plate: 95mm [W] x 105mm [H] x 41.2mm [D]
Faceplate: 115mm [W] x 115mm [H] x 6mm [D]
Weight Without faceplate: 359g
With faceplate: 452g
Power Supply 1. PoE/PD (Class 1 IEEE 802.3af)
2. DC 12V (for the case that Switch does not support PoE)
Power Consumption 3.6W (Max)
Operating Temperature 32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature -4°F ~ 140°F / -20°C ~ 60°C
Operating Humidity 20% ~ 80% (relative humidity, non-condensing)
Storage Humidity 10% ~ 90% (relative humidity, non-condensing)
