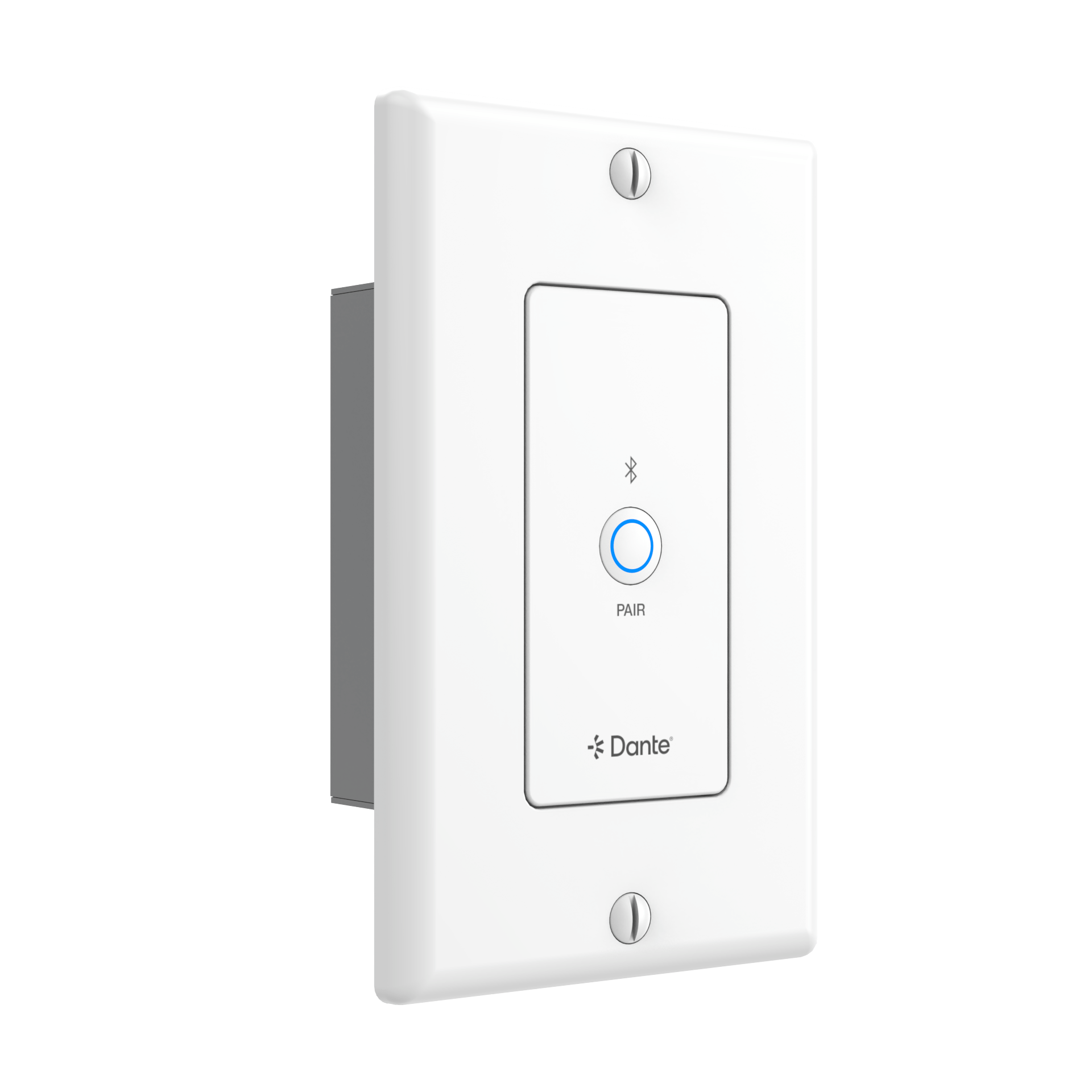

2 Channel Bluetooth over Dante® Converter Wall Plate (1-Gang)
VLDT-BT2WPUS
Data Sheet
Product Description

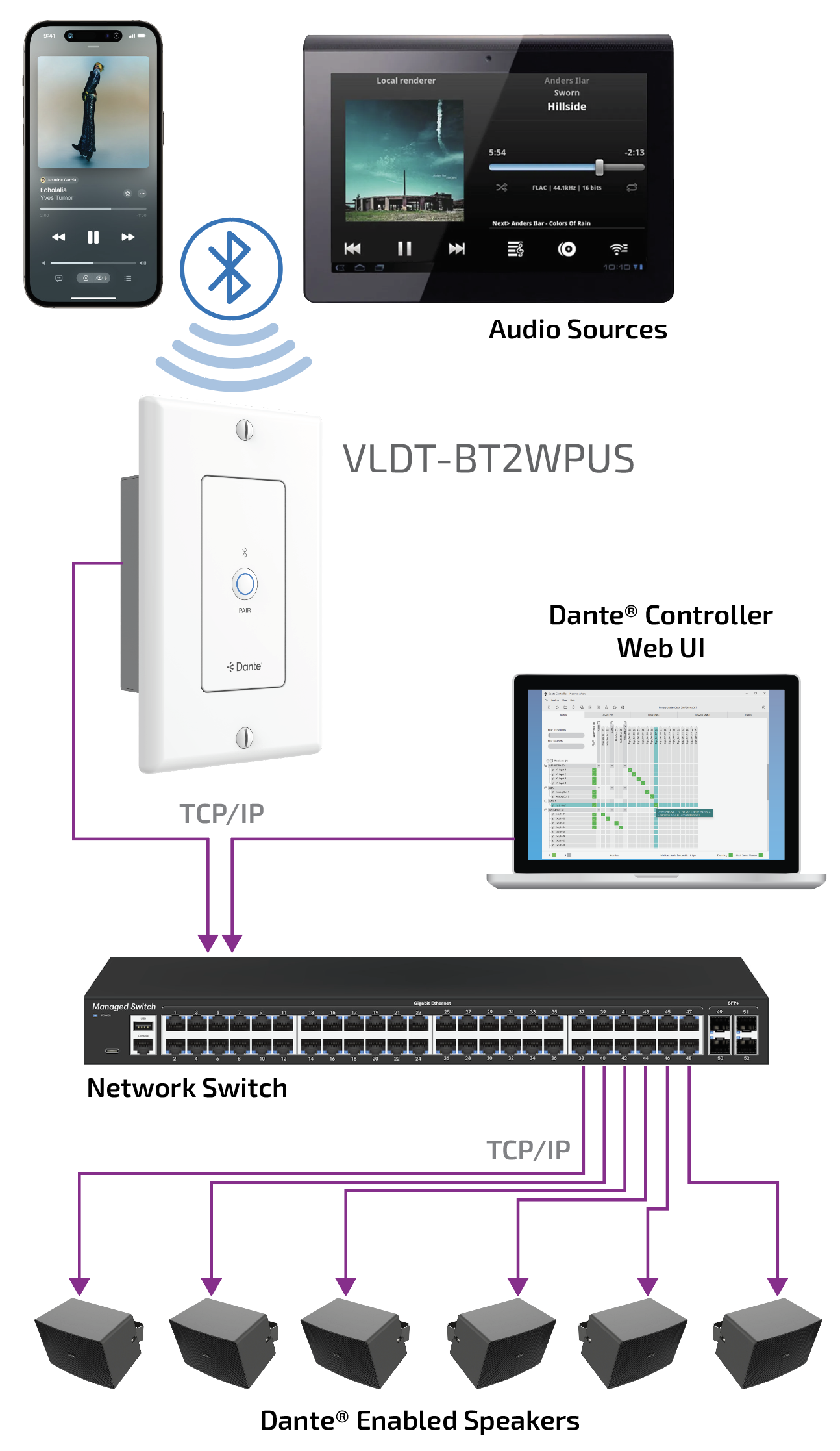

The VLDT-BT2WPUS Bluetooth-to-Dante wall plate interface enables two-way audio transmission between Bluetooth and Dante networks. It connects Bluetooth enabled devices, with incoming audio automatically converted to digital format for Dante network distribution.
Supporting Dante® sample rates up to 96kHz and AES67 RTP audio transport, this interface delivers professional-grade audio over IP with configurable latency for precise synchronization. Bluetooth functionality includes dual-device pairing, track control, and album info display, while PoE or 12V DC power options provide installation flexibility for demanding audio networking installations.
Featured Highlights
Dante® network wall plate interface for Bluetooth audio inputs and Dante® Network Audio output
Dante® sample rates: 44.1, 48, 88.2, 96kHz @16, 24, 32 Bit
Configurable Dante® device latency (supports 2, 5 or 10ms configurable using Dante® Controller)
Configurable Bluetooth naming allows for simple discovery of the device
Supports AES67 RTP audio transport
Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch
Power via local 12V DC adapter (not included) for when network switch does not support PoE
Front panel pairing button, TCP/IP, and Web GUI control
Bluetooth supports:
Maximum of 2 devices to be connected simultaneously
Volume adjustment with range is from 0 to 16.
Previous track/next track/pause functions
Displaying the album information of the audio source
Specifications
| Technical | |
|---|---|
| Bluetooth Specs | Bluetooth 5.0, Stereo |
| Bluetooth Range | 50 - 75 ft (15 - 23 m) max |
| Control Method | Dante® Controller |
| Audio Latency | Configurable Dante® device latency (Supports 1, 2 or 5ms configurable using Dante® Controller) |
| Audio Formats | DANTE [Digital audio in/out, PCM 2CH 44.1K-96KHz 16/24Bit] |
| Audio Parameters |
Output Impedance: 300 Ohm Output Level (Maximum): 18dBu (Maximum) Frequency Response: 20Hz to 20kHz (-/+0.5dB) Dynamic Range: > 90dB@0dBu, 1kHz A-weighted Audio S/N Ratio: > 90dB@0dBu, 1kHz A-weighted Audio THD+N: < 0.015% at +4dBu, 1KHz |
| Transmission Distance | 328ft/100m (CAT6/6A/7) |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |

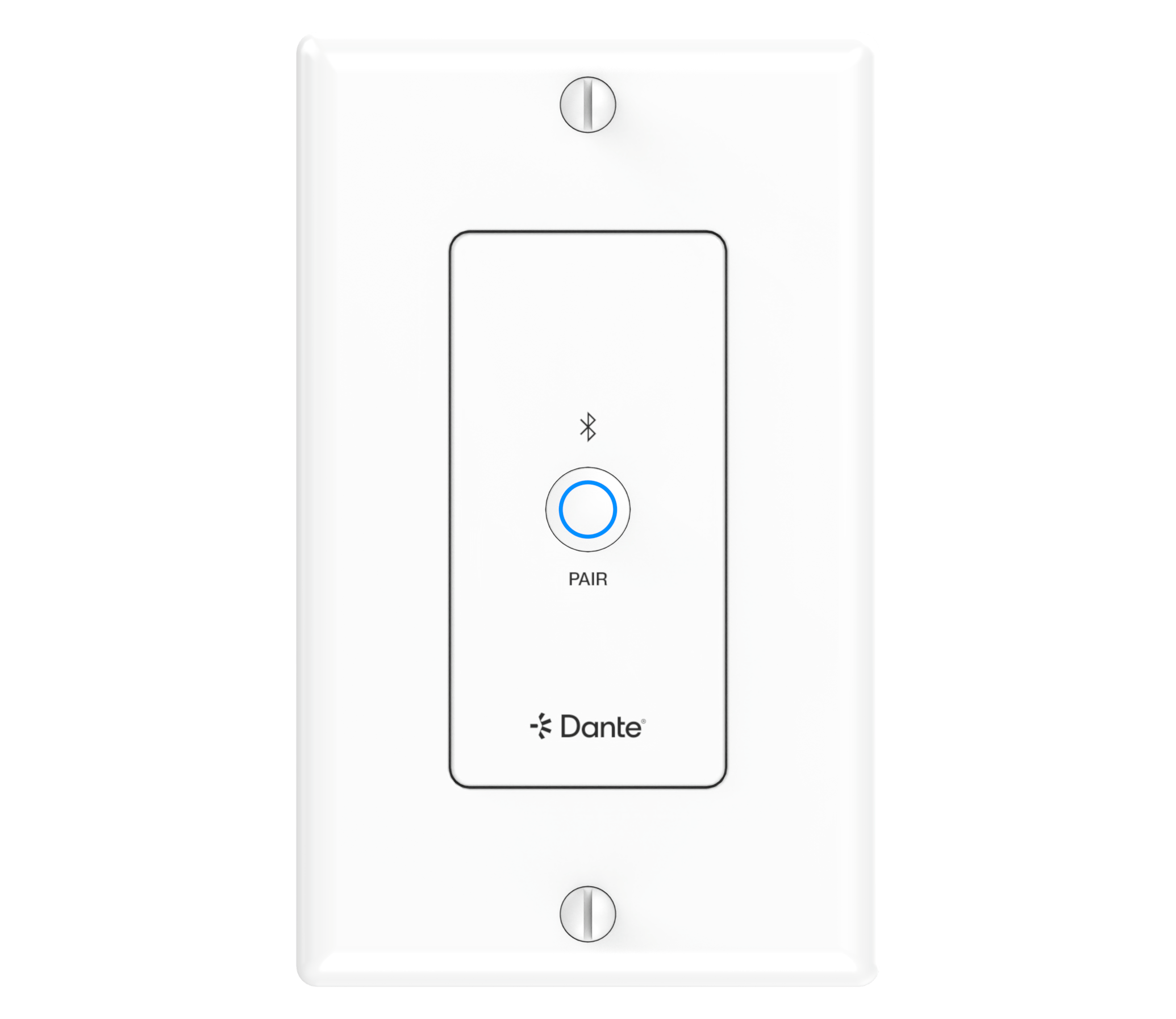

| Front Panel | Pair Button |

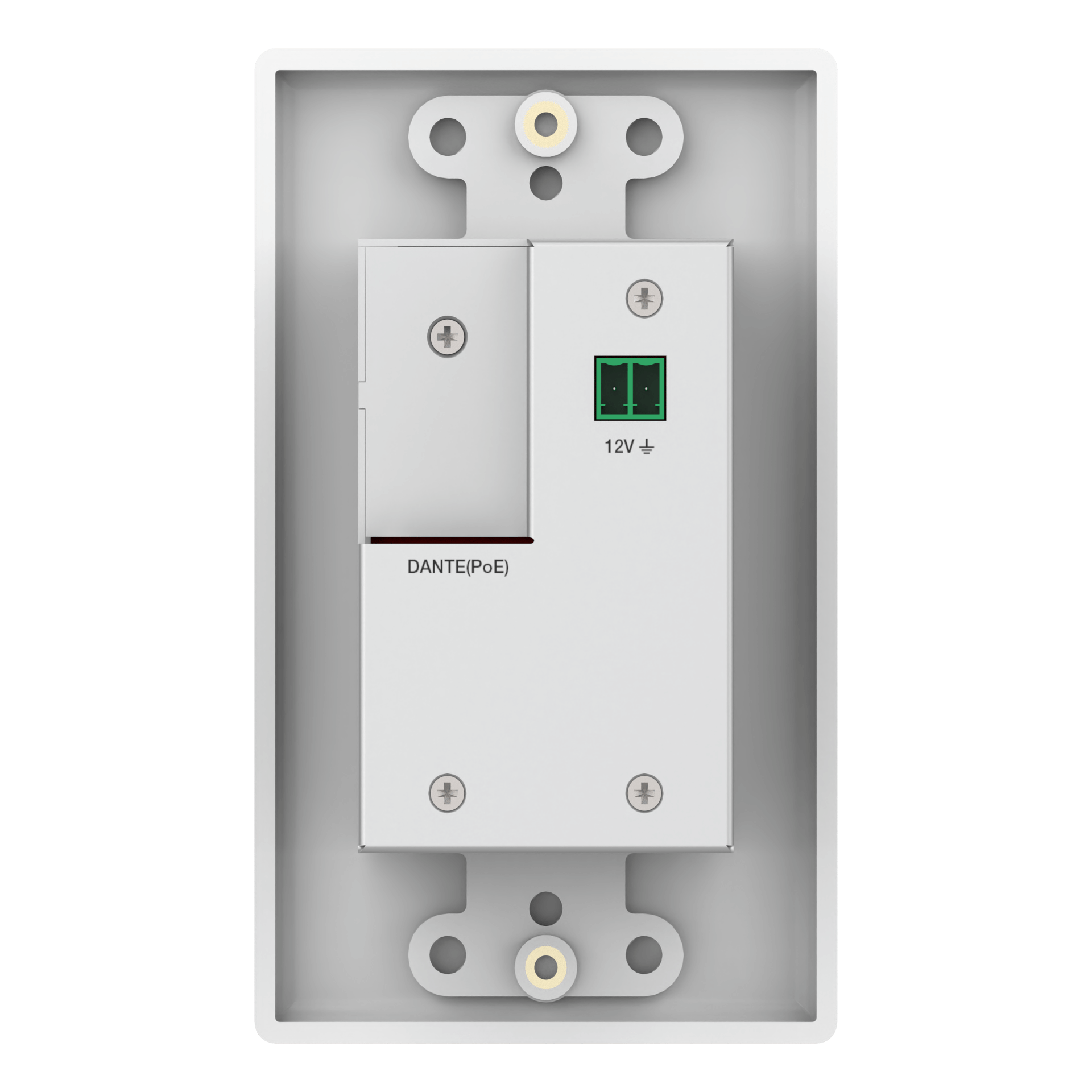

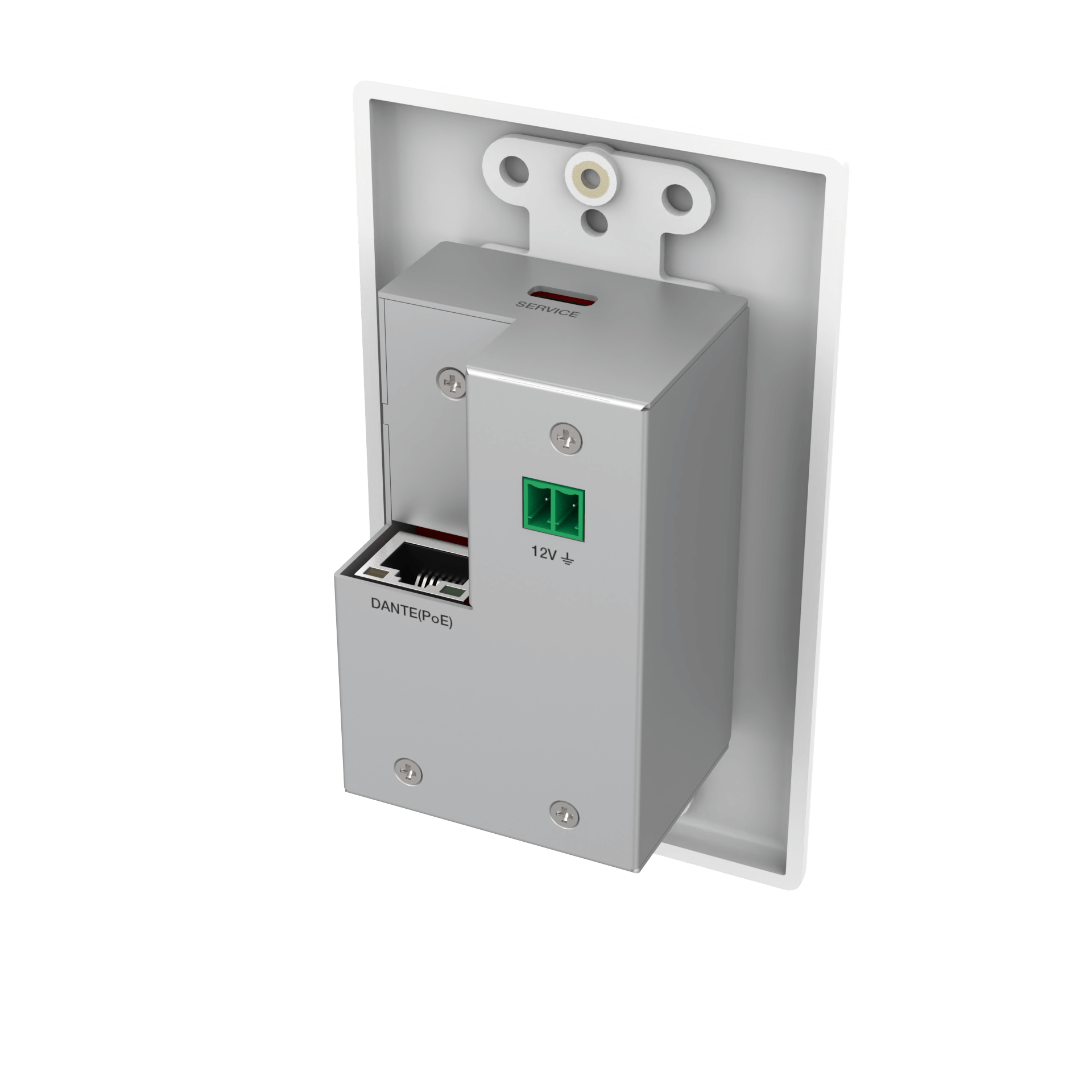

| Rear Panel |
1x DANTE [RJ45 connector, PoE] [Digital audio in/out, PCM 2CH 44.1K-96KHz 16/24Bit] 1x DC/12V [2pin-3.5mm phoenix connector] [12VDC/ 500mA] |
| Mechanical | |
| Housing | Aluminum panel + Plastic decora plate |
| Color | White panel + Silver chassis |
| Dimensions | 115mm × 79mm × 35mm |
| Weight | 160g |
| Power Supply |
1. PoE/PD (Class 1 IEEE 802.3af) 2. DC 12V (for the case that Switch does not support PoE) |
| Power Consumption | 3.6W (Max) |
| Operating Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C |
| Operating Humidity | 20% ~ 80% (relative humidity, non-condensing) |
| Storage Humidity | 10% ~ 90% (relative humidity, non-condensing) |
