2X4 HDMI 2.0 Videowall processor 18Gbps

VLVW-MX24P


Data Sheet

User Manual

Product Description

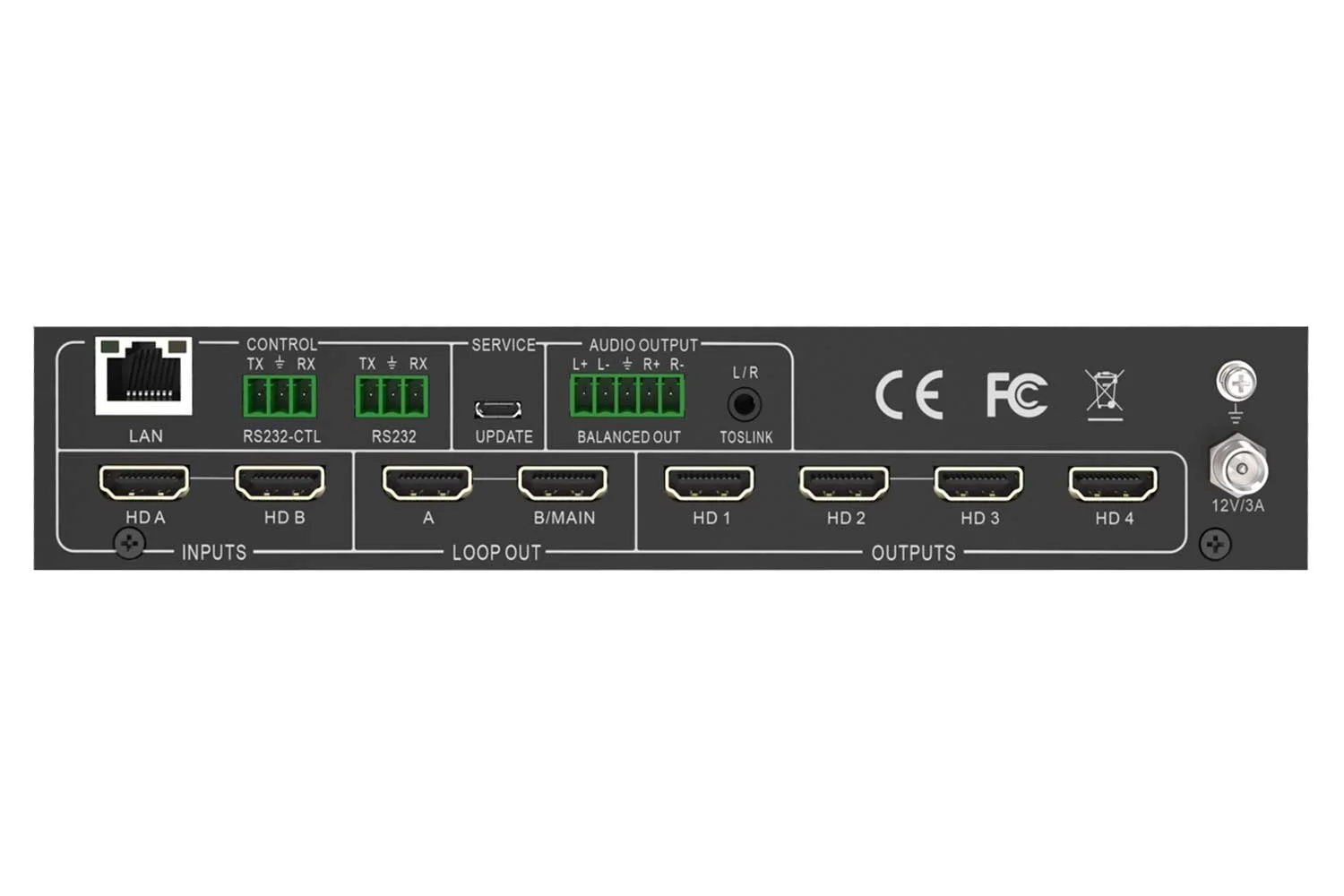

The VLVW-MX24P is a high-performance HDMI 2.0 video wall controller designed to deliver flexible video wall configurations with seamless signal processing. Featuring two HDMI input sources and two HDMI loop outputs, the unit drives up to four displays via HDMI scaling outputs, making it ideal for digital signage, control rooms, and large-scale visual installations.

This controller supports both analog and digital audio output via a Toslink terminal, offering analog L/R and digital SPDIF connectivity. Additionally, a 5-pin Phoenix connector provides balanced L/R audio output for integration with professional sound systems.

Control and configuration are made easy through RS-232 commands or PC software, enabling users to manage display layouts, scaling, and signal routing with precision. The VLVW-MX24P delivers robust video wall performance with simple operation and versatile audio options, ensuring a reliable and adaptable solution for demanding AV environments.

Featured Highlights

  • HDMI 2.0b, HDCP 2.2 compliant

  • Up to 4K / 2K @60Hz with 24bit RGB / YCbCr (4:4:4)

  • 2x4 / 2x9 video wall processor with cascading up to 16x16 displays

  • Supports PIP mode on a video wall

  • Two inputs with two independent loop outs

  • Bezel Compensation and 180-degree rotation

  • Digital and analog audio de-embedded

  • RS-232 cascading and TCP/IP control

  • CEC control display by PC Tool or commands

Specifications

Technical
HDMI Compliance     HDMI 2.0
HDCP Compliance     HDCP 2.2/1.4
RS-232     Baud rate: 57600, Data bit: 8, Stop bit: 1, no parity
Input Video Formats   4096x2160p 24/25/30/50/60Hz

1400x1050 60Hz

3840x2160p 24/25/30/50/60Hz

1366x768 60Hz

1080p 24/25/30/50/60Hz

1360x768 60Hz

1080i 50/60Hz

1280x960 60Hz

1680x1050 60Hz

1280x800 60Hz

1600x1200 60Hz

1024x768 60Hz

1440x900 60Hz

1280x720p50/60Hz
Audio Format     2.0 channel, 5.1 channel, LPCM, Dolby, AC3, DTS
ESD Protection     Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
Mechanical
Housing     Metal Enclosure
Color     Black
Dimensions     218mm (W)×146mm (D)×43mm (H)
Weight     2Kg
Supply Voltage     +12V/3A
Power Consumption     25W (Max)
Operating Temperature     0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature     -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity     20 - 90% RH (No condensation)
