1080p HDMI to USB2.0 Video Capture
VLUC-USB22K
Data Sheet
User Manual
Product Inquiry Form
Product Description
VLUC-USB22K: This HDMI-to-USB 2.0 video capture device captures HDMI audio and video input signals. It supports video capture resolutions up to 4K2K at 30Hz and outputs up to 1080p at 60Hz. The product offers high performance, broad compatibility, and easy portability and installation. It is compatible with Windows, Linux, and macOS operating systems, supports USB 2.0, and features plug-and-play functionality for simple, user-friendly operation.
Featured Highlights
HDMI 1.4 and HDCP 1.4 compliant
Supports 10.2Gbps video bandwidth
The captured video resolution is up to 4K2K@30Hz, and the output resolution is up to 1080P@60Hz
Be compatible with Windows, Linux, Mac OS X operating system, and USB2.0 port
Supports automatic recognition of input video format
Specifications
| Technical | |
|---|---|
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 10.2 Gbps |
| Video Resolution | Input: Up to 4k2k@30Hz; Output: Up to 1080P@60Hz |
| Color Depth | 8/10/12-bit (1080P@60Hz); 8-bit (4K2K@30Hz YUV4:4:4) |
| Color Space | RGB, YCbCr 4:4:4/4:2:2, YUV 4:2:0 |
| HDMI Audio Format | LPCM2.0 |
| USB Version | USB 2.0 |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Input | 1x HDMI [Type A 19-pin female] |
| Output | 1x USB [Type A male] |
| Mechanical | |
| Housing | Plastic Enclosure |
| Color | Black |
| Dimensions | 51mm[W] x 31mm[D] x 13mm[H] |
| Weight | 16g |
| Power Supply | PC USB 5V |
| Power Consumption | 1.75W |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 - 90% RH (No condensation) |
Related Products
-
![]()
VLUC-USB34K
4K60 HDMI to USB3.0 Video Capture
-
![]()
VLDT-BT2D
Dante ® 2CH Bluetooth Input Adapter
-
![]()

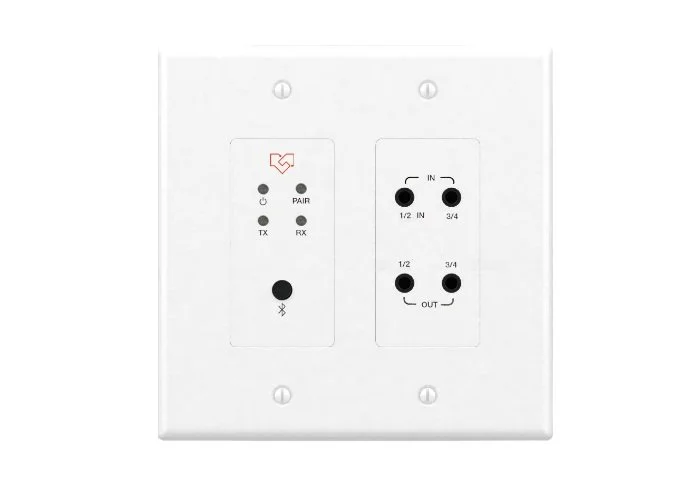

VLDT-WP44AB
