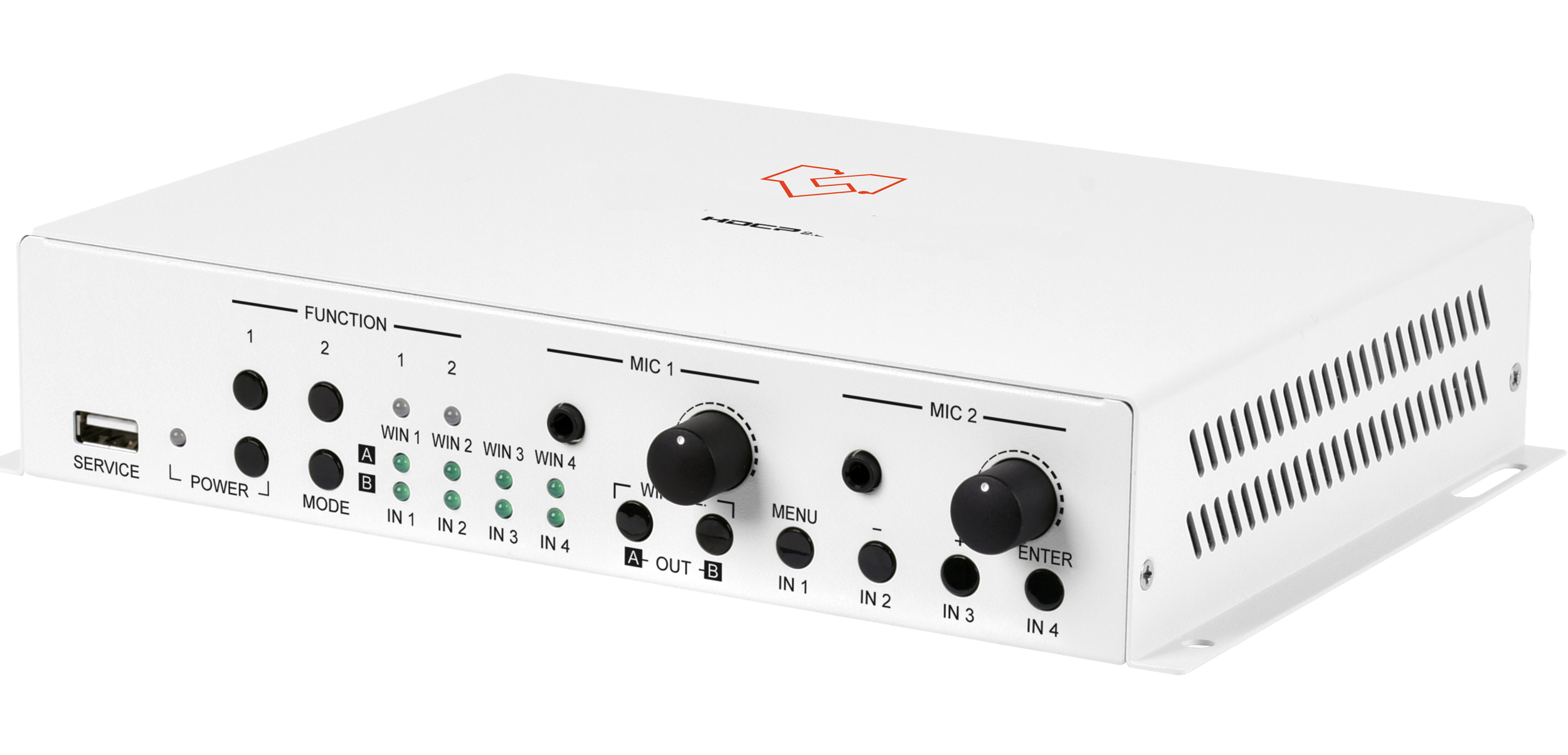

4 x 2 Modular Multiview Processor
VLML-4X2KM4K-SR
Data Sheet
User Manual
Product Description
The VLML-4X2KM4K-SR is an excellent solution for streaming, as it combines both streaming and recording functionality, offering rich video processing capabilities. It makes online broadcasting of live video a simple and easy process. Video content up to 4K UHD+ is supported and automatically scaled to a resolution more suitable for efficient streaming. Both HDMI and VGA inputs are supported. An HDMI output is provided for local monitoring. An audio mixer function is included, allowing an external audio source to be mixed with the embedded audio of your HDMI source (LPCM 2.0 only) for your video stream. Comprehensive EDID management, intuitive WebGUI, and adjustable Audio functions make this unit a terrific tool for video streaming and recording.
Besides high-performance HDMI switch with integrated scaling, multi-windowing technology, multi-view, and streaming are also supported. Any of the four different HDMI sources can be displayed individually, full screen, or in a variety of multi-window modes, including quad mode PiP and PoP mode, which makes it a splendid source for streaming.
Featured Highlights
Serves as a signage platform to couple with CYP modular solutions for multiple ProAV purposes
HDMI inputs and outputs with 18Gbps (600MHz) 4K UHD support
Seamless switching (no loss of sync to display) when switching sources in 4x2 matrix mode
Supports PiP (Picture-in-Picture), PoP, quad mode display options with independent audio source selection
Supports the ability to store a multi-window arrangement as a preset that can be recalled later
EDID management
Uploadable and freely positioned graphic logo support
Supports easy adjustment of window size, position and settings in the PiP windowing mode via the WebGUI
Controllable via front panel buttons, WebGUI, Telnet, RS-232
Specifications
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| Viedo | ||
| HDMI Compliance | 2.0 (DVI 1.0) | |
| HDCP Compliance | 2.2 | |
| Input Signal Types | 4K@60 YUV 4:2:0 | |
| Output Signal Types | 4K@60 8 bit YUV 4:4:4 | |
| Resolutions | ||
| Maximum Input | HDMI | 4096×2160p@60 |
| Maximum Output | HDMI | 4096×2160p@60 |
| Audio | ||
| HDMI Input 1,2 | LPCM (8 channel,192kHz) Bitstream
High-Definition Bitstream |
|
| HDMI Input 3,4 | LPCM (2 Channels, 48KHz) | |
| Line In | Max Audio Level: 2Vrms
Impedance: 10kΩ Type: Unbalanced |
|
| CONNECTIONS | ||
| Input Port | 4 HDMI (Type-A) 3 Stereo (3.5mm) |
|
| Output Port | 2 HDMI (Type-A) 2 Stereo (3.5mm) |
|
| Control I/O | 1 RS-232 3-pin Terminal Block 1 IP Control (RJ-45) |
Service Port | 1 USB (Type-A) |
| MECHANICAL SPECIFICATIONS | ||
| Housing Construction | Metal (Steel) | |
| Device Dimension (W x H x D) | 213.5mm×43mm×179.3mm [Case Only] 213.5mm×44mm×180.3mm [All Inclusive] |
|
| Weight | 1257g | |
| Power Supply | 24V/2.7A DC (US/EU standards, CE/FCC/UL certified) | |
| Power Consumption | 24W | |
| Operating Temperature | 0˚C – 50˚C/32˚F – 122˚F | |
| Storage Temperature | -20˚C – 60˚C/-4˚F – 140˚F | |
| Relative Humidity | 20 – 90% RH (Non-condensing) | |
| ESD Protection | ±8kV (Air Discharge) ±4kV (Contact Discharge) |
|
